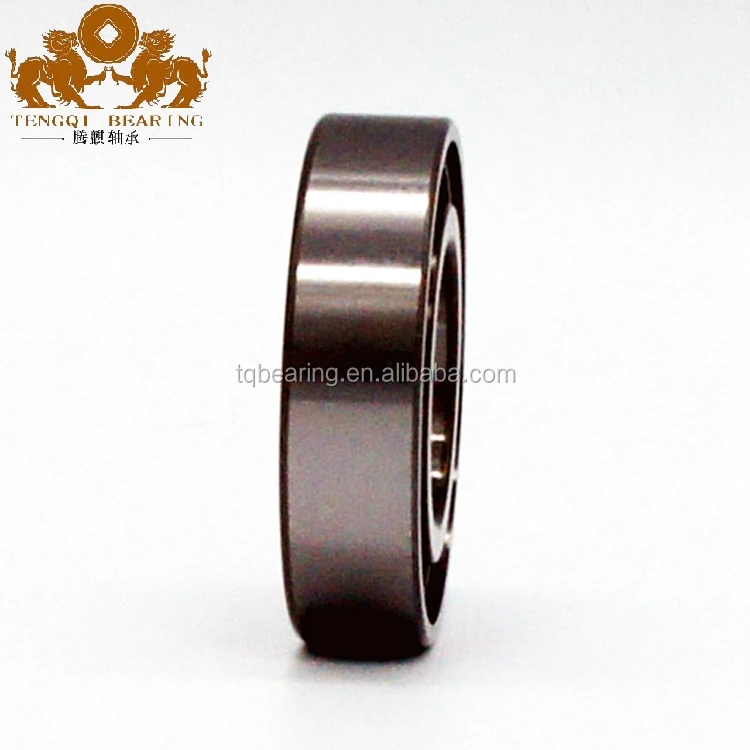

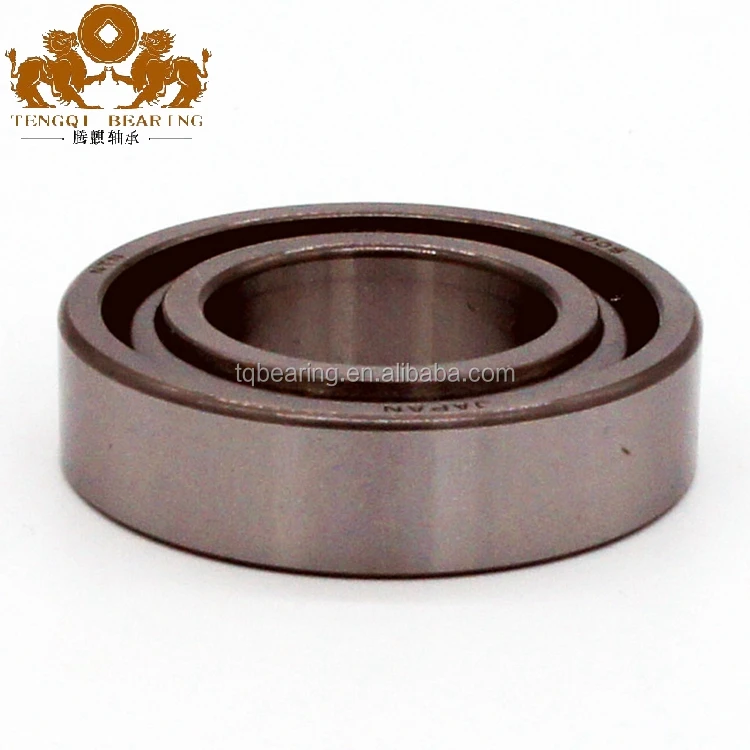

NSK супер точный шарикоподшипник 35BNR10H

NSK супер точный шарикоподшипник 35BNR10H

Категория: >>>
Поставщик: Tianjin Tengqi International Trade Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

NSK super precision ball bearing

High precison angular contact ball bearings have a line connecting the contact points drawn in the radial direction, which is called the contact angle. The contact angle makes this bearing suitable for accommodating radial loads, single direction axial loads, and a combination of both. Furthermore, since an axial component is generated when a radial load is applied, these bearings are generally used in pairs, triplex sets, quadruplex sets, or multiplex sets.

NSK super precision ball bearing Types

1.Standard series

79 Series,70 Series, 72 Series, Miniature Series, BSA Series for Ball Screw Support

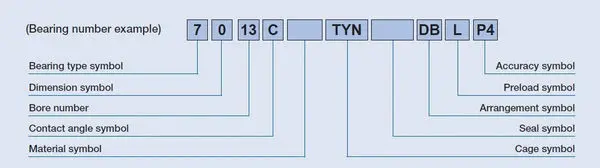

high precision bearing 1.jpg

725C	7910C	7926C	7002C
725A	7910A5	7926A5	7002A5
706C	7911C	7928C	7002A
726A	7911A5	7928A5	7003C
707C	7912C	7930C	7003A5
707A	7912A5	7930A5	7003A
708C	7913C	7932C	7004C
708A	7913A5	7932A5	7004A5
728C	7914C	7934C	7004A
728A	7914A5	7934A5	7005C
7900C	7915C	7936C	7005A5
7900A5	7915A5	7936A5	7005A
7901C	7916C	7938C	7006C
7901A5	7916A5	7938A5	7006A5
7902C	7917C	7940C	7006A
7902A5	7917A5	7940A5	7007C
7903C	7918C	7944C	7007A5
7903A5	7918A5	7944A5	7007A
7904C	7919C	7948C	7008C
7904A5	7919A5	7948A5	7008A5
7905C	7920C	7952C	7008A
7905A5	7920A5	7952A5	7009C
7906C	7921C	7956C	7009A5
7906A5	7921A5	7956A5	7009A
7907C	7922C	7000C	7010C
7907A5	7922A5	7000A5	7010A5
7908C	7923C	7000A	7010A
7908A5	7923A5	7001C	7011C
7909C	7924C	7001A5	7011A5
7909A5	7924A5	7001A	7011A

NSK 7002CTYNSULP4 2.jpg

2. Robust Series

BNR19, BER19 Series; BNR10, BER10 Series; BNR19XE/10XE, BER19XE/10XE Series ;

BNR29, BER29 Series;BNR20, BER20 Series

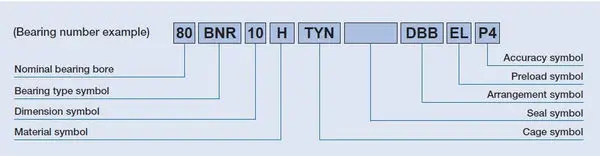

high precision bearing 2.jpg

Model Number	Boudary Dimensions			Mass
	d	D	B	kg
30BER10X	30	55	13	0.126
35BNR10S	35	62	14	0.164
35BNR10H	35	62	14	0.154
35BNR10X	35	62	14	0.154
35BER10S	35	62	14	0.164
35BER10H	35	62	14	0.154
35BER10X	35	62	14	0.154
40BNR10S	40	68	15	0.204
40BNR10H	40	68	15	0.193
40BNR10X	40	68	15	0.193
40BER10S	40	68	15	0.204
40BER10H	40	68	15	0.193
40BER10X	40	68	15	0.193
45BNR10S	45	75	16	0.259
45BNR10H	45	75	16	0.246
45BNR10X	45	75	16	0.246
45BER10S	45	75	16	0.259
45BER10H	45	75	16	0.246
45BER10X	45	75	16	0.246
50BNR10S	50	80	16	0.281
50BNR10H	50	80	16	0.266
50BNR10X	50	80	16	0.266
50BER10S	50	80	16	0.281
50BER10H	50	80	16	0.266
50BER10X	50	80	16	0.266
55BNR10S	55	90	18	0.414
55BNR10H	55	90	18	0.393
55BNR10X	55	90	18	0.393
55BER10S	55	90	18	0.414
55BER10H	55	90	18	0.393
55BER10X	55	90	18	0.393
60BNR10S	60	95	18	0.443
60BNR10H	60	95	18	0.419
60BNR10X	60	95	18	0.419
60BER10S	60	95	18	0.443
60BER10H	60	95	18	0.419
60BER10X	60	95	18	0.419
