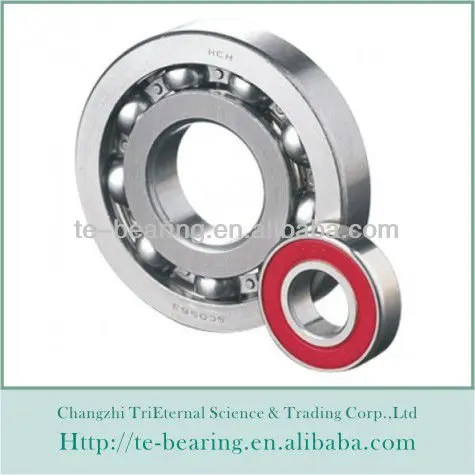

China brands single row deep groove ball bearing 6305

Сохранить в закладки 769016786:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


 deep groove ball bearing 6305



















































































Name



Deep groove ball bearing



Model



6000 Series - Extra Light Ball Bearings – Ideal for limited space applications



6200 Series - Light Series Ball Bearings – Balanced between space and load capacity



6300 Series - Medium Series Ball Bearings – Ideal for heavier load capacity



Material



GCr15 chrome steel



Precision



P0, P6, P5



Bore Size



10mm-100mm



Outside diameter



25mm-220mm



Clearance



C0,C1,C2,C3,C4,C5 etc.



Cage Type



Brass cage or Stainless cage



Seals Type



ZZ,RS, 2RS, R2, Z, 2Z, 2RZ etc



Certificate



ISO9001:2001



Features



Deep groove ball bearing are simple in design, non-separable, suitable for high and even very high speeds and are robust in operation, requiring little maintenance. Deep-groove bearings have higher load ratings for their size than shallow-groove , but are also less tolerant of misalignment of the inner and outer races



Application






Automobile, tractor, machine tool, electric machine, water pump, agricultural machinery and textile machinery.



Package



pallet, wooden case, industrial package or as customers' requirement



Price



FOB, CFR, CIF



Delivery Time



20-30 days after the order confirmed



Payment Terms



T/T, 30% in advance, the balance should be paid against the B/L.



Website



//te-bearing.en.alibaba.com






Deep Groove Ball Bearing is the most representative rolling bearing, it can suffer from both axial and bidirectional radial load. It can be used in these occasions with the demand of high rotation, low noise, and low oscillation. Bearing with seal together with steel cover of rubber seal usually filled with lubricant in advance ,the outside ring with stopping circle or flange ,these will not only be easier for axial orientation ,but also good for the installing of outside shell. The size of maximum loading bearing is just the same as standard bearing ,while with backfill trough in the inside and outside ,which can add the balls, and improve the maximum load at the same time.























































































Deep Groove Ball Bearings



Model



d



D



B



6201



12



32



10



6202



15



35



11



6203



17



40



12



6204



20



47



14



6205



25



52



15



6206



30



62



16



6207



35



72



17



6208



40



80



18



6305



25



          62



17



6306



30



72



19



6307



35



80



21












Deep groove ball bearing catalog..jpg


Deep groove ball bearing types:
1,.A single deep groove ball bearing


2. With dust cover single deep groove ball bearing


3. With dust cover, sealing ring single deep groove ball bearing outer ring, have


4. Stop moving slot and stop ring single deep groove ball bearing


5. Have put the ball of the gap of deep groove ball bearings


6. Double row deep groove ball bearing


deep groove ball bearingDeep groove ball bearing catalog..jpg


Ball+Roller Bearing Catalog


Our Advantages:


1. More than ten years bearing products exporting experiences.


2. OEM order and non-standard bearing order can be accepted.


3. Many sizes of bearing are available. Large quantity bearing can be provided.


4. To respect customers, you can choose the loading port.


5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.





Our Bearing Product Range:


1.Deep groove ball bearing


2.Thrust ball bearing


3.Angular contact ball bearing


4.Self-aligning ball bearing


5.Taper roller bearing


6.Cylindrical roller bearing


7.Spherical roller bearing


8.Bearing cage


9.Forgings etc...
