steel fiber for RPC reinforcement for construction material

Product Description

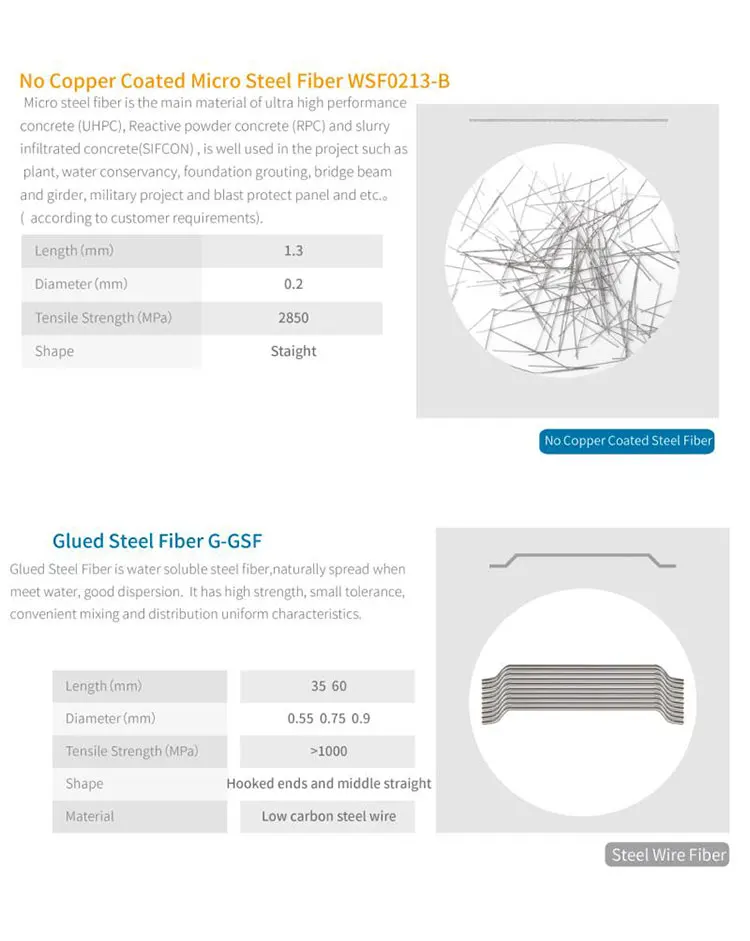

Micro Steel Fiber

Type WSF 0213 & WSF0215

Surface Copper coated

Chemical Composition

C: MN: P: S: Si:

=0.80% =0.75% =0.035% =0.035% =0.30%

Tensile Strength	Minimum 2300Mpa
Melting Point	1500oC
Length	=15mm or 13mm±1mm
Diameter	=0.2mm±0.02mm
Form	Straight

This steel fibers can be produced with different length and diameters

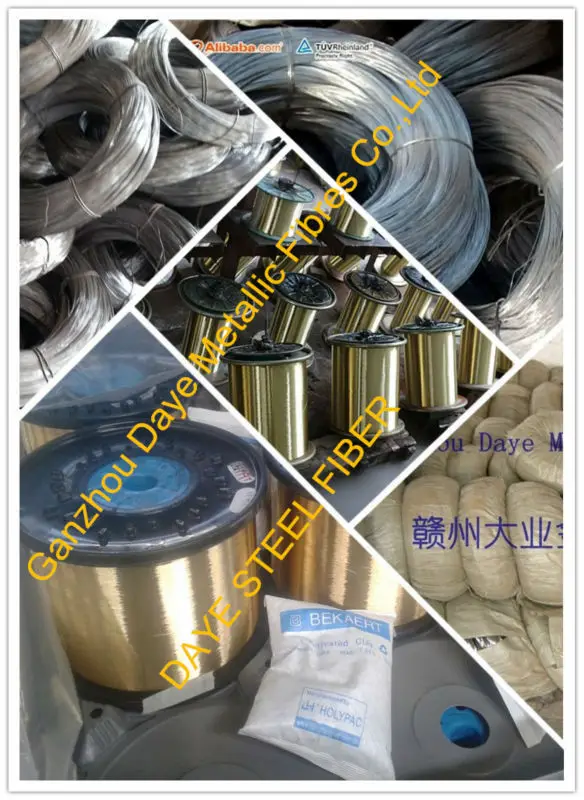

Package: 25kg/bag,1000kg/pallet, 20000Kg/20ft container.

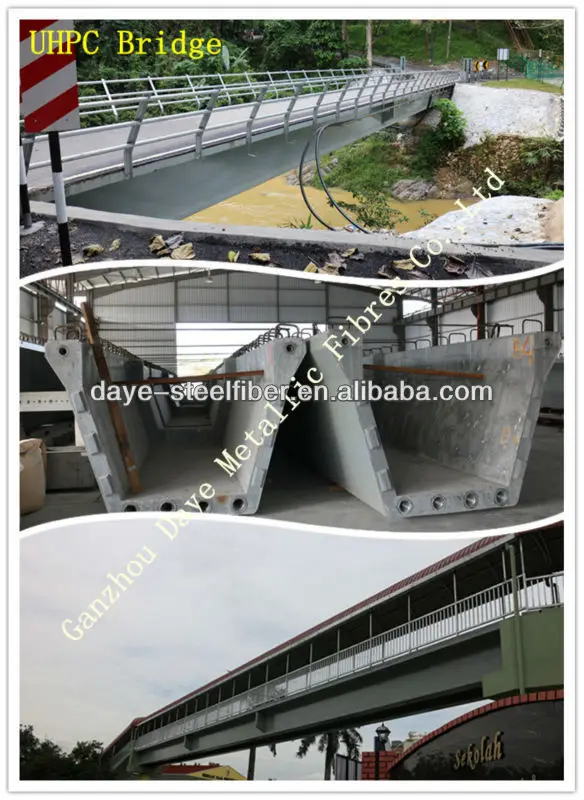

Application: Micro steel fiber is the material of ultra high performance concrete (UHPC) and slurry infiltrated concrete(SIFCON).And Micro steel fiber is well applied to the project such as bridge, bank cash-box, plant , water conservancy, foundation grouting, military project and blast protect panel and etc.

1.We manufacture fibers according customer requirement

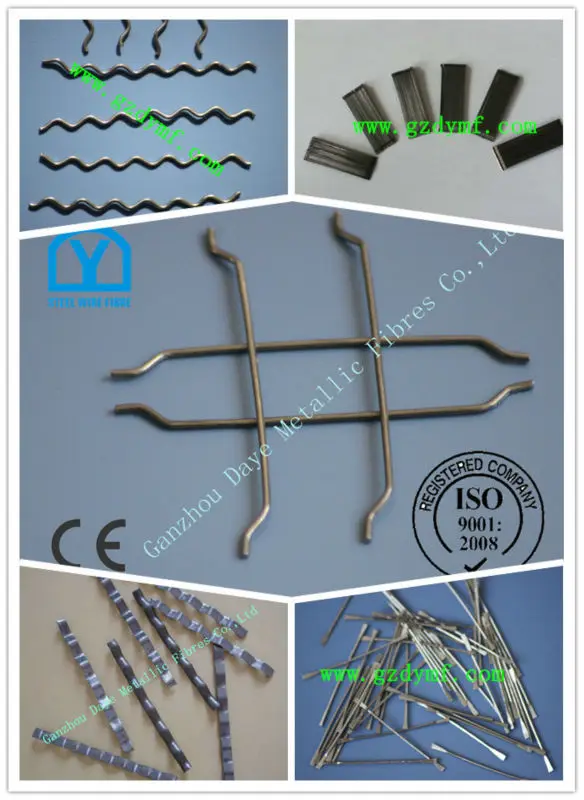

Steel fiber types includs,

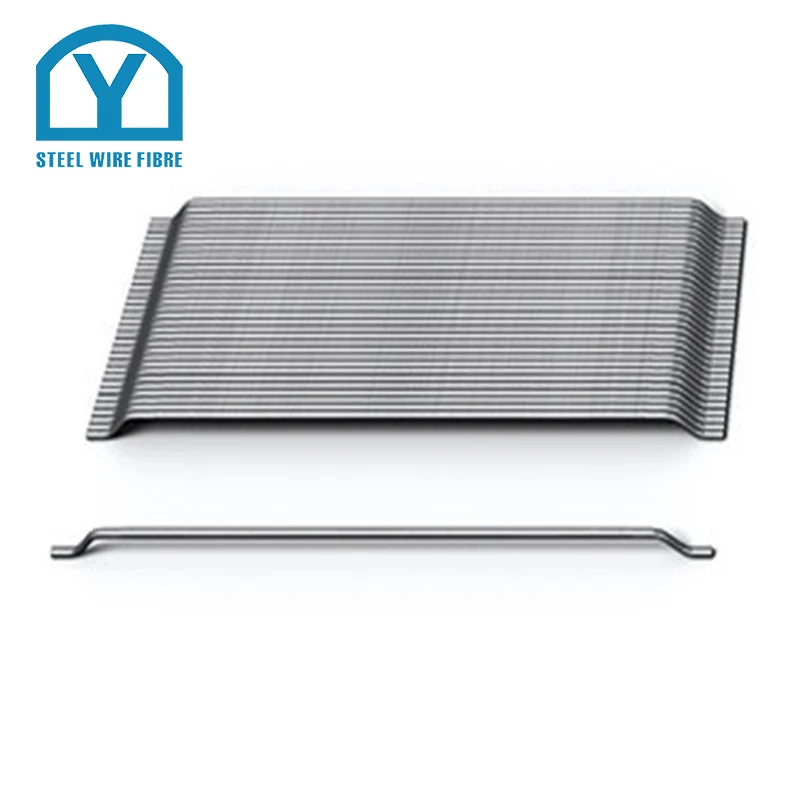

a) Hooked ends steel fiber

b) Flat head steel fiber

c) Needle-flat steel fiber

d) Wavy steel fiber

e) Xorex steel fiber

f) Micro-steel fiber

g) stainless steel fiber

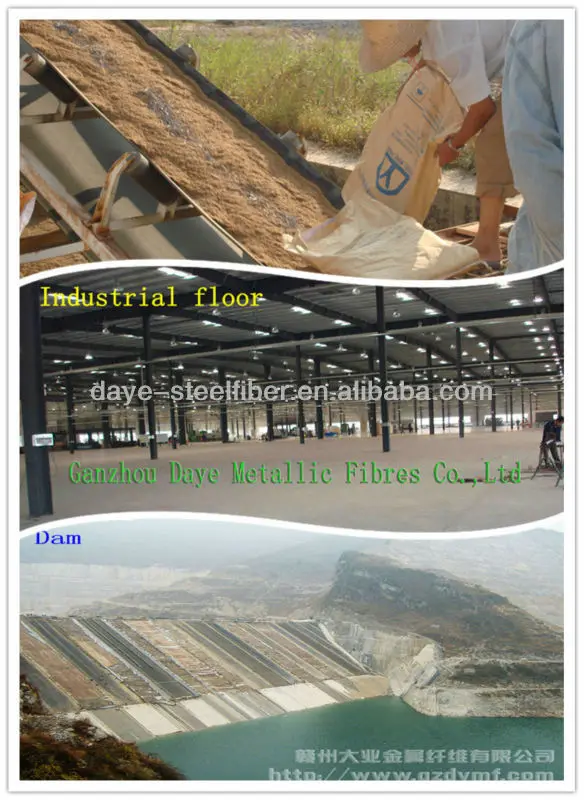

2. Application of Daye steel fiber:
A. Tunnel pre-treatment(primary support)

B. Tunnel forming(permanent lining)

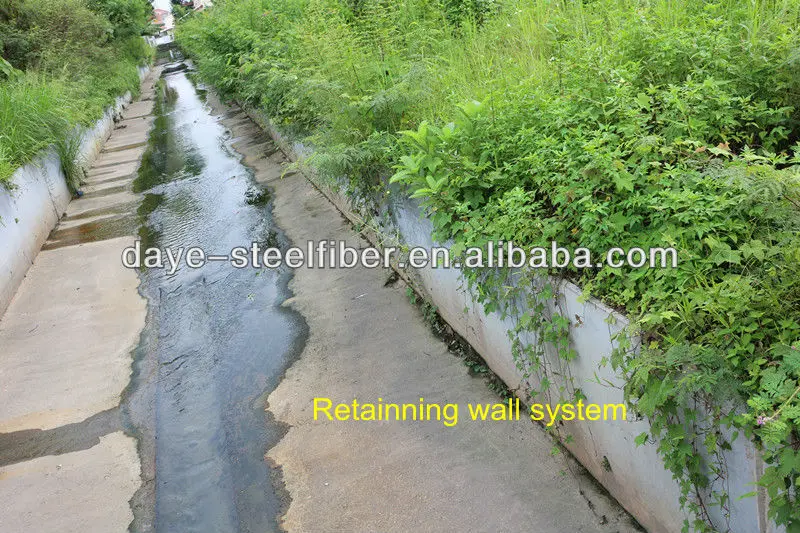

C. Slope stabilization

D. Ditch excavation support

E. Industrial floor

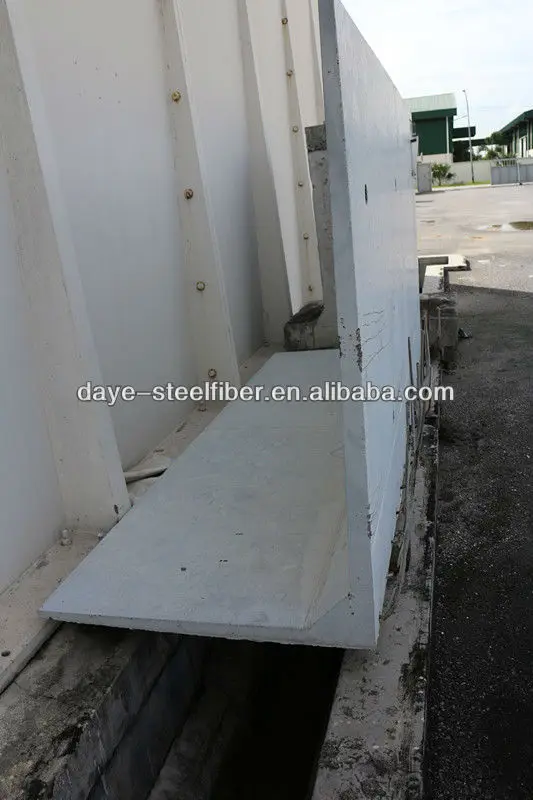

F. Precast concrete element

G. Concrete restoration

H. High performance concrete

3.Technical advantages of Daye steel fiber:
A. Improve mechanical performance of concrete
B. Provide uniform distribution throughout concrete with excellent mixing
C. No balling or caking by adopt correct mixing method

4. Economic benefits of DAYE steel fiber:
A. Replace of rebar mesh

B. Reduce concrete volume

C.Save construction time and cost

D.Reduce excavation volume

E.Available for jointless floor.

5.Specification of steel fiber

Type	Diameter (mm)	Length (mm)	Aspect ratio	Tensile strength (Mpa)
DY-0.3/25	0.3	25	83	2500
DY-0.4/25	0.4	25	63	1200
DY-0.4/30	0.4	30	75	1200
DY-0.5/30	0.5	30	60	1100
DY-0.5/25	0.5	25	50	1100
DY-0.55/25	0.55	25	45	800 or 1000
DY-0.6/30	0.6	30	50	1000 or 1100
DY-0.7/30	0.7	30	43	1000
DY-0.7/35	0.7	35	50	1000
DY-0.75/35	0.75	35	47	1000
DY-0.75/60	0.75	60	80	1000
DY-0.8/60	0.8	60	75	1000
DY-0.9/50	0.9	50	56	1000
DY-0.9/60	0.9	60	67	1000
DY-1.0/50	1.0	50	50	1000
DY-1.0/60	1.0	60	60	1000
