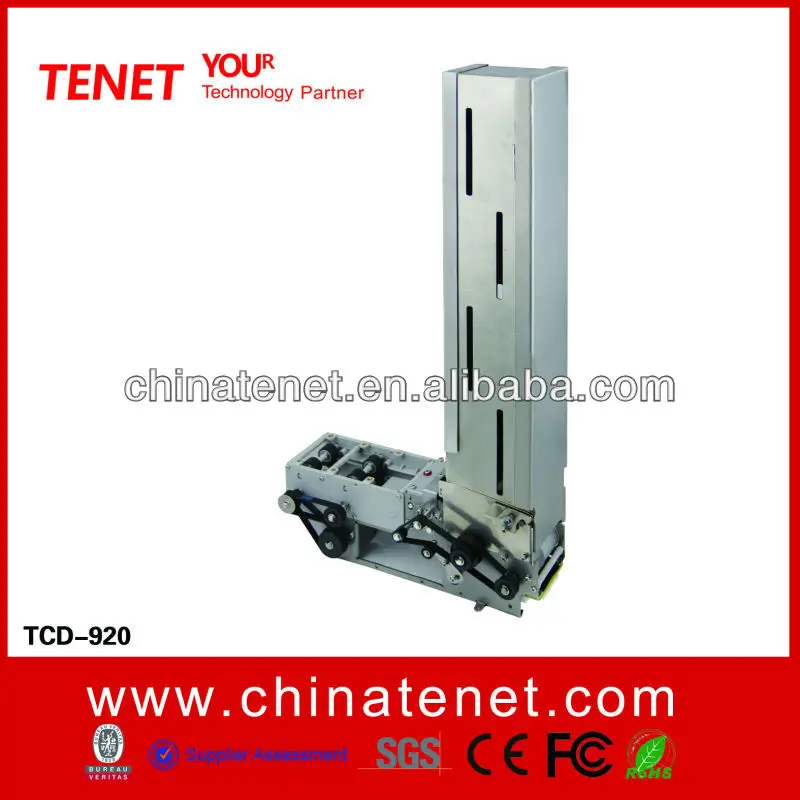

PVC/Paper Card Dispenser/Vending Machine/Ticket Vending/Dispenser for TCP/IP Parking TCD-920M

Instructions

      It is a classical mechatronics product, which has become into industrial standard actually. Its usability and reliability get from customers’ long time suggestion and manufacturer’s improvement and accumulation. TCD card machine is mainly used in parking entrance card dispenser, phone card automatic vending machine, ticket vending machine, all kinds of smart card vending and so on.

Main Characteristics

•  Industrial design, adjust to high temperature and other bad environments;
•  Simulated manpower friction card issuers ,better adaptability to various deformed cards;
•  Watchdog of hardware and embedded operating system to ensure properly running;
•  Pre-dispense function accelerate dispensing speed;
•  Connectable with the vehicle detector to achieve card issuing and “one car, one card”;
•  Automatic buzzer alarm when no cards, fewer cards or failure.
•  Provide both RS232 and I/O voltage control interface;
•  Automatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;
•  Capacity of card stacker is more than 40pcs, automatic buzzer alarm when the withdrawing stacker is full;
•  Slide card stacker with a capacity of 40pc;
•  Adjustable of card stacker with a capacity of 120pc each;
•  Automatic withdrawal to prevent card lost (only for TCD800F series
•  Slide design to make installation and disassembling easier;
•  Molded production to ensure high consistency of precision and quality.

Main technical data

•  Operating voltage: 24VDC (max current 2A, static current 0.1A)
•  Operating temperature: -20°C to 85°C
•  Operating humidity: 30-90% (comparatively)
•  Use condition: install in bin
•  Card available: width: 54+/-0.5mm
•                        Length: 85+/-0.5mm
• Thickness: 0.3-2.5mm (adjustable)
•  Card material: Paper or Polyester card
•  Net weight of card dispenser: 2.0kg (including the briquette)
• Time of issuing: max0.5s
• Capacity of stacker: 150pcs (0.8mm), 100pcs available when an extra stacker is needed

Control Interface

This dispenser provides both I/O and RS232 interface of power level. PWL control interface is led by standard 12pin (2.54mm) socket CN3of the control board, RS232 control interface is led by the standard 3pin (2.54mm) socket CN7.
