     FOM is HWATEL PDH optical multiplexer serial equipment. FOM consist of Standard PDH, network PDH, Optical APS PDH, Optical MODEM, Multi Service PDH, Voice PDH, PDH poll, Modular PDH and Network Management System 7 serial over 30 models of device. All of PDH are equipped with HWATEL elaborate designed core ASIC give much higher technical performance than ITU-T standard.

    Over 20 years history , over 50 countries,OEM to Alcatel(SHANGHAI), Marconi, HUAWEI, ZTE, WRI, DLINK and many TAIWAN company

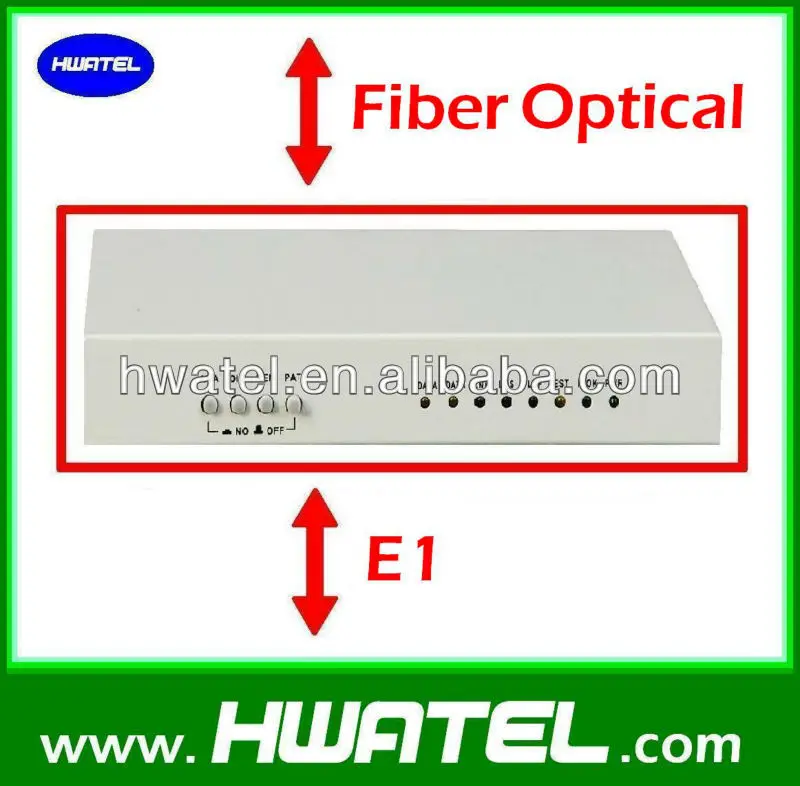

FOM-E1

Single Port E1 Fiber Optcial Multiplexer

HWATEL PDH Family

 Feature

• Optical speed : 155 Mbps
• 1 E1 ports
• Impedance: 75 ohm, BNC connectors or 120 ohm ,RJ45
• Support 850 nm, 1310 nm and 1550 nm,
• range from 1 Km to 120 Km
• Support single mode single fiber (WDM) option
• support DC, AC, AC+DC and DC+DC redundancy
• desktop
• Card for 4U HT-COMM Rack
• Diagnostic capabilities including local and remote loop back
• all products feature LED status indicators, AIS alarm generation
• With NMS can manage/control peer PDH
• Ethernet management port with SNMP version 2 protocol supports HTView NMS
• Embed control channel (ECC) support NMS
• HTView for FOM NMS, user-friendly, GUI-based software runs on PC/Windows

Application

Order Information

---------------- OPtical Modem -----------------------------------------------------------

• FOM-E1: 1 port E1 optical modem
• FOM-2E1: 2 port E1 PDH
• FOM-V35: 1 port V.35 optical modem
• FOM-4V35: 4 port V.35 optical modem
• FOM-V.24: 1 port V.24 optical modem
• FOM-RS: 1 port RS232/485/422 optical modem
• FOM-RS: 8 port RS232/485 optical modem
• FOM-Eth: 1 port  Ethernet optical modem
• FOM-2Eth: 2 port  Data Physical separate Ethernet optical modem
• FOM-3Eth: 3 port   Data Physical separate Ethernet optical modem
• FOM-4Eth: 4 port  HUB embeded Ethernet optical modem
• FOM-V35+Eth: 1 port V.35 and 1 port Ethernet Hybrid optical modem

---------------- NG PDH with Ethernet -----------------------------------------------------------

• FOM-8E1: 8E1 PDH
• FOM-8E1-Eth: 8E1 + 1 Ethernet PDH
• FOM-8E1-2Eth: 8E1 + 2 Ethernet PDH
• FOM-8E1-4Eth: 8E1 + 4 ports Ethernet PDH
• FOM-8E1-ED: optical 1+1, 8E1, Ethernet PDH
• FOM-4E1: 4 E1 PDH
• FOM-4E1-mini : 4 ports E1 desktop E1 PDH
• FOM-4E1-Eth: 4E1 +1 ports Ethernet PDH
• FOM-4E1-2Eth: 4E1 +2 ports Ethernet PDH
• FOM-4E1-4Eth: 4E1 +4 ports Ethernet PDH
• FOM-4E1-ED: optical 1+1, 4E1, Ethernet PDH
• FOM-4E1--Eth-V: 4E1 +Ethernet + 1 ports V.35 PDH
• FOM-16E1: 16 ports E1 Fiber OPtical PDH Multiplexer
• FOM-16E1-E: 16 ports  E1 + 1 ports Ethernet PDH
• FOM-16E1-4E: 16 ports E1 + 4 ports Ethernet PDH
• FOM-16E1-ED: optical 1+1, 16E1, 1  ports Ethernet PDH
• FOM-16E1-4ED: optical 1+1, 16E1, 4  ports Ethernet PDH

---------------- Giga PDH ---------------------------------------------------------------

• FOM-4E1-4GE:  4 ports E1, 4  ports Giga Ethernet PDH
• FOM-8E1-4GE:  8 ports E1, 4  ports Giga Ethernet PDH
• FOM-16E1-4GE: 16 ports E1, 4  ports Giga Ethernet PDH

--------------- E1 Data Video Multiservice Service Bybrid PDH ---------------------------

• FOM-4E1-4E-V35: 4 ports E1 + 4 ports Ethernet + 1 port V.35 PDH
• FOM-3E1-3E: 4E1:  3 ports E1 + 3 ports Ethernet PDH
• FOM- MSG: 8 ports E1, 2 port Giga Ethernet , 1 port RS232, 16 lins FXS/FXO
• FOM- MSV:  2 ports E1, 2 ports Video,  2 port Ethernet , 6 port RS232, 6 ports Switch, 4 lins FXS/FXO

--------------- Voice PCM PDH multiplexer -----------------------------------------------

• PCM4F: Fiber optical uplink , 4 line FXS/FXO
• PCM8F: Compact 1U PCM, Fiber optical uplink , 8 line FXS/FXO
• PCM8F-Eth:  8 lins FXS/FXO + 1 ports Ethernet PCM multiplexer PDH
• PCM8-4EthV: Compact 1U shelf Multiservice multiplexer, E1 uplink, 4 port 100M Ethernet or 1 port V.35 port selectable, 8 lines FXS/O, 1 port RS232
• PCM8F-4EE: Compact 1U shelf Multiservice multiplexer, 155M fiber uplink, 4 ports E1, 1 port 100M Ethernet, 8 lines FXS/O, 4 port RS232
• PCM16F:  16 lins FXS/FXO PCM multiplexer PDH
• PCM16F-4E4E-MST: Compact 1U shelf Modular Multi Service Access Multiplexer with 155M optical uplink, support 4 pcs share 100M bps line speed Ethernet, 4 port E1 and up to 16 pcs multi-slot for I/O card
• PCM30F-MST: Compact 1U shelf Modular Multi Service Access Multiplexer with optical uplink, support up to 30 pcs universal -slot for I/O card
• PCM30F-E-MST: Compact 1U shelf Modular Multi Service Access Multiplexer with optical uplink, support 1 pcs 10M bps Ethernet and up to 30 pcs universal -slot for I/O card
• PCM32F-8E2E-MST: PCM with 155M optical uplink, support 2 pcs share 100M bps line speed Ethernet, 8 port E1 and up to 32 pcs multi-slot for I/O card

------------------ Electronic Optical Converter / modem -----------------------------------

• OEC-E3: 1 port E3 Electric to optical converter modem
• OEC-DS3:  1 port DS3  Electric to optical converter modem
• OEC-STM1:  1 port DS3  Electric to optical converter modem
