Гидравлическая машина для изготовления кирпича из листового лайма с двойным давлением

Описание и отзывы

Характеристики

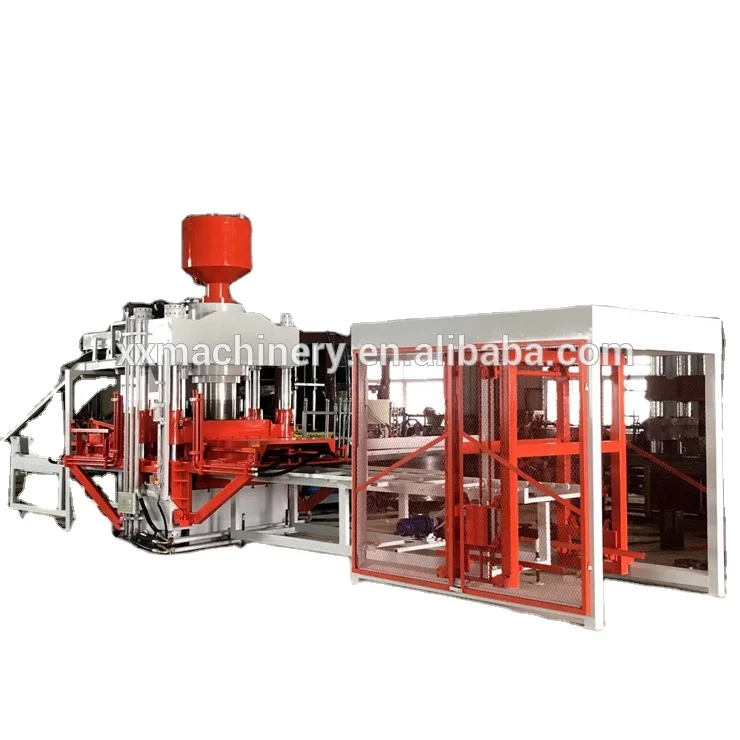

Hydraulic Double Pressure Fly Ash Lime Brick Making Machine Bearing Lime Brick Making Machine Features:

1. Bin-direction Hydraulic Pressure Concrete Brick Machine with four pillar six cylinder (the main oil cylinder pressure, side pressure cylinder, oil cylinder, demoulding oil cylinder), as a host, the vice frame with rigid connection and demoulding box, with vice frame set feeding dolly and the feeding dolly rigid connection to replace the pinch of brick device.

2. Wet product conveyor belts, hydraulic station and electric control system, composed of the bidirectional automatic static pressure machine. Pressed by two cylinder and the cylinder and vice to neutralize oil cylinder, not only can improve the work efficiency, and can greatly improve the density and quality of manufactured goods.

3. Upper and lower beam is made of high quality steel casting, can greatly improve the rigidity of the machine. The machine has compact structure, reasonable design, stable movement, pressure big, cycle is short, is to make fly ash brick, lime-sand brick, concrete brick device of choice.

Structure briefly introduction

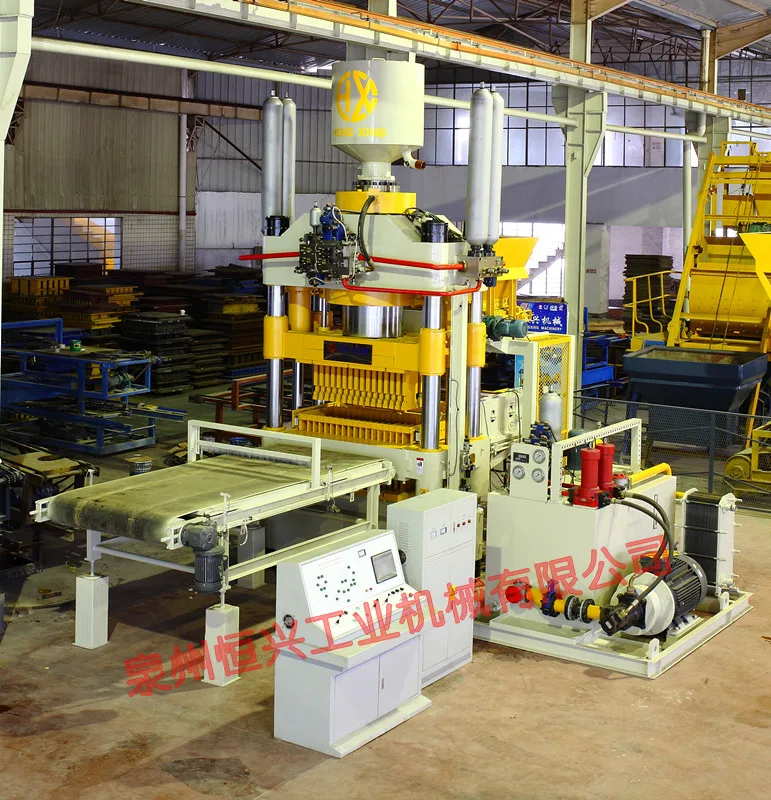

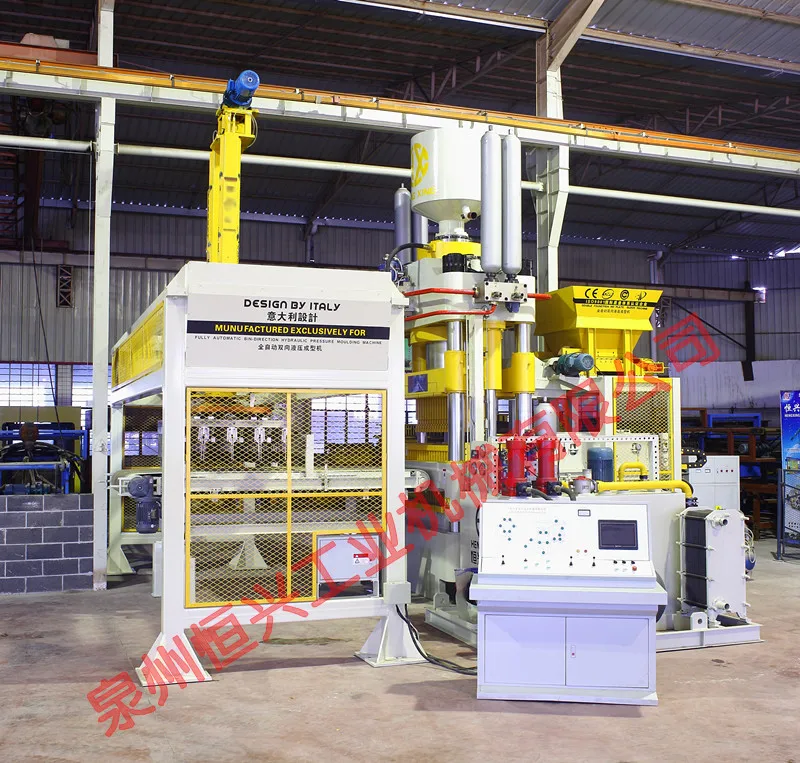

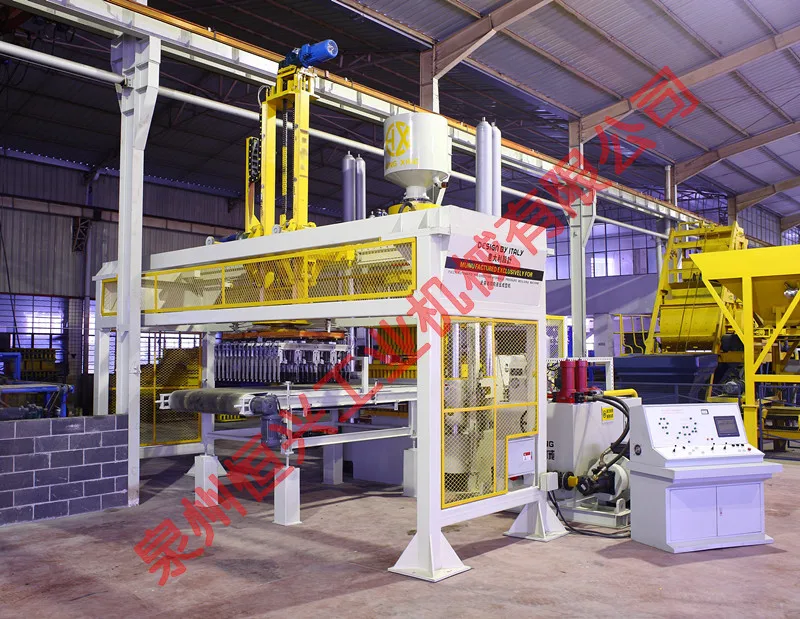

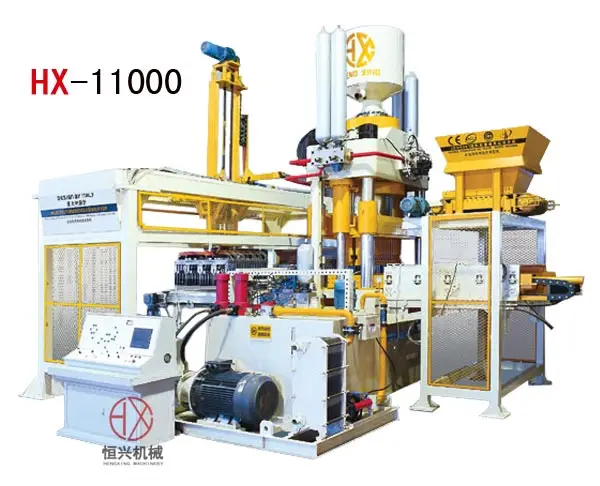

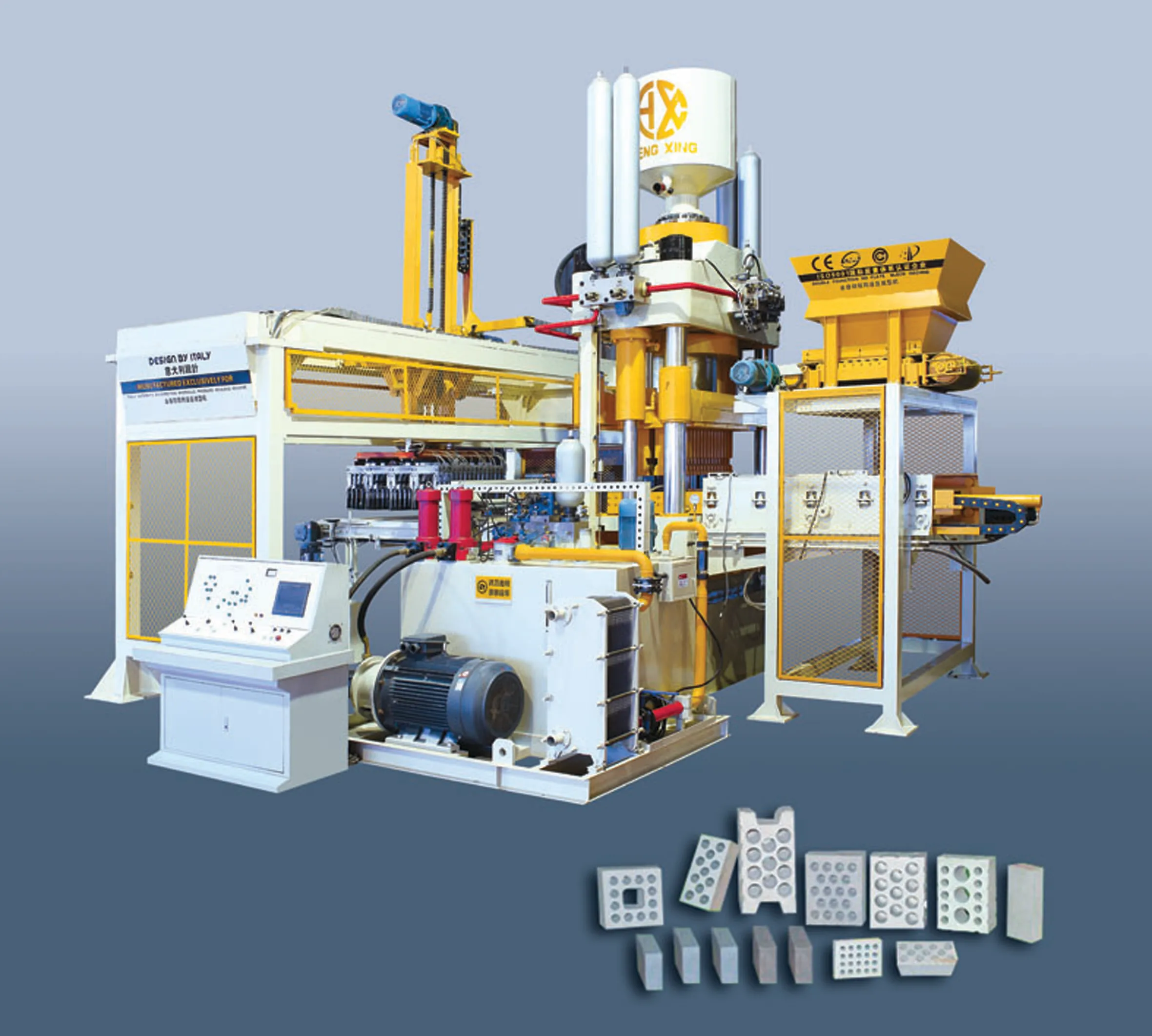

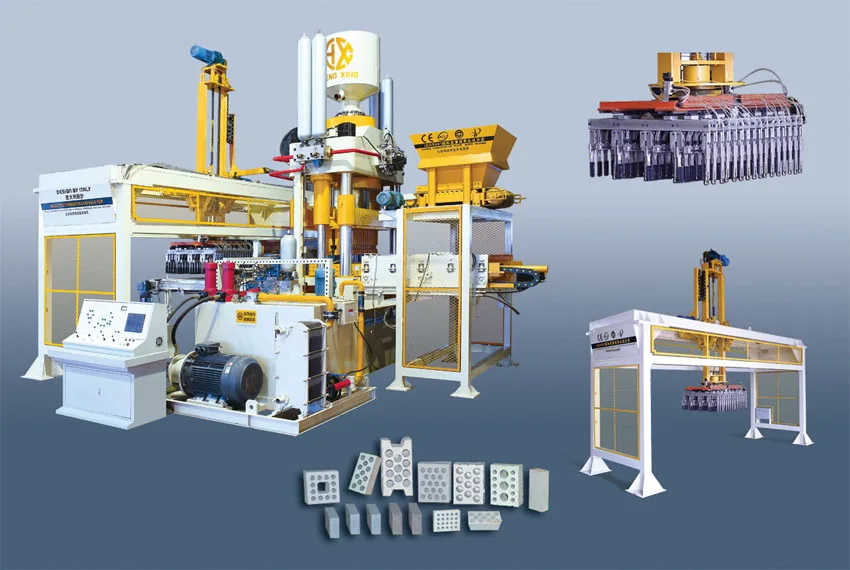

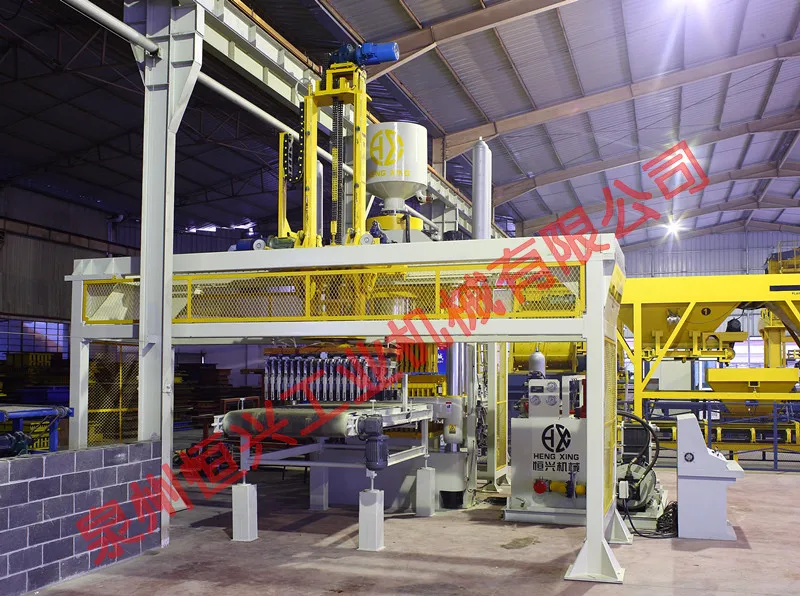

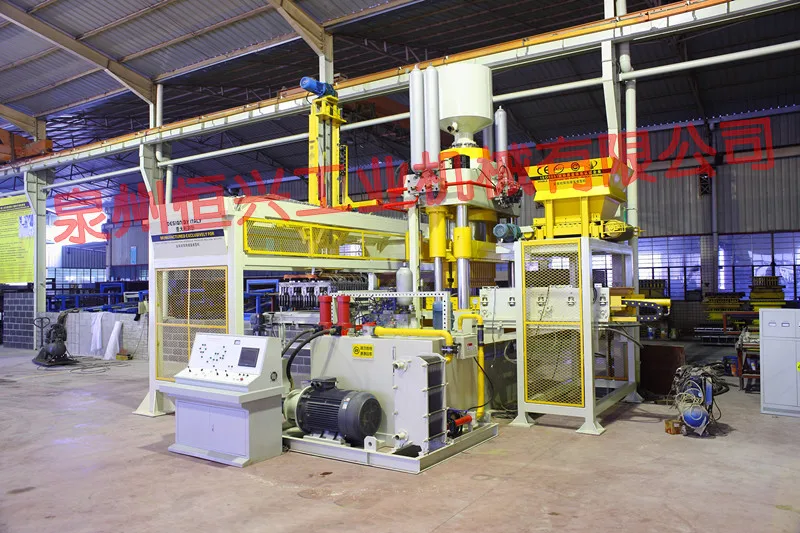

1. Bin-direction Hydraulic Pressure Concrete Machine consists of the host, feeding device, product delivery device, hydraulic station and electric control box, electronic work station.

2. Host machine, the main body, is composed of upper and lower beam four columns frame structure. With rapid cylinders, pressure on the head, the main oil cylinder pressure falling fast, until the contact inside the frame and preloading raw materials.

3. When pressed to pressure over the sequence valve setting pressure, liquid valve closed, high and low pressure pump at the same time, the main oil cylinder pressure oil supply, medium speed, when reaching the highest pressure of low pressure pump set, switch to a high-pressure pump for main and side pressure oil cylinder oil for high pressure slow down at the same time.
