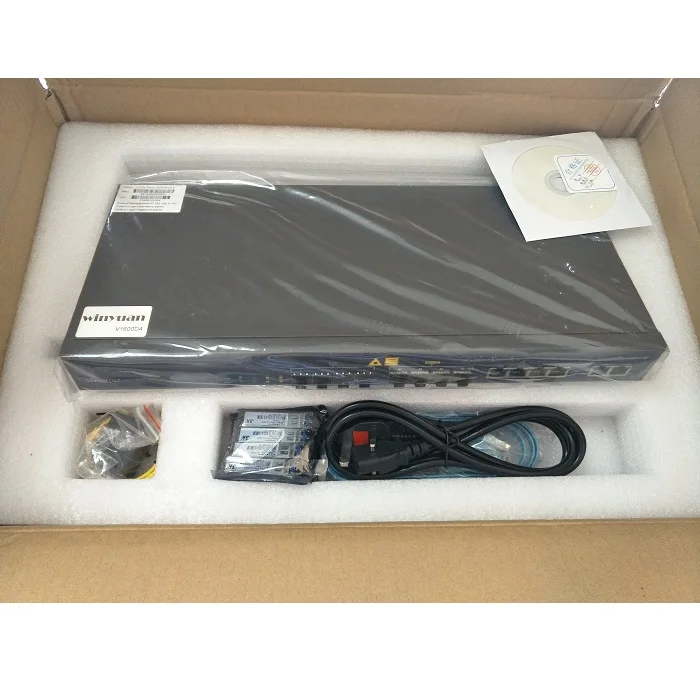

GPON OLT с 10G и GE uplink поддерживает до 1024 ONU 1:128 коэффициент сплиттера

Item

WY1600G1

Chassis

Rack

1U 19 inch standard box

1000M

Uplink Port

QTY

16

Copper

10/100/1000M auto-negotiation

8

SFP

1000M,Duplex

(independent)

6

SFP+

SFP+ is 10GE

(independent)

2

GPON Port

QTY

8

Physical Interface

SFP Slot

Connector Type

Class B+/C+

Max splitting ratio

1:128

Management Ports

1*10/100BASE-T out-band port, 1*CONSOLE port

PON Port Specification

Transmission Distance

20KM

GPON port speed

Upstream 1.244G, Downstream 2.488G

Wavelength

TX 1490nm, RX 1310nm

Connector

SC/PC

Fiber Type

9/125μm SMF

TX Power

+1~+5dBm

Rx Sensitivity

-28dBm

Saturation Optical Power

-8dBm

Management Mode

SNMP, Telnet ,CLI,WEB

Management Function

Fan Group Detecting;

Port Status monitoring and configuration management;

Layer2 switch configuration such as VLAN, Trunk, RSTP,IGMP,QOS, etc;

GPON management function: DBA,ONU authorization, ACL, QOS, etc;

Online ONU configuration and management;

User management;

Alarm management.

Layer2 Switch

16K Mac address

Support 4096 VLANs;

Support port VLAN and protocol VLAN;

Support VLAN tag/Un-tag ,VLAN transparent transmission;

Support VLAN translation and QinQ;

Support storm control based on port

Support port isolation

Support port rate limitation

Support 802.1D and 802.1W;

Support static LACP;

QOS based on port, VID, TOS and MAC address;

Access control list;

IEEE802.x flow control;

Port stability statistic and monitoring.

Multicast

IGMP snooping

256 IP Multicast Groups;

DHCP

DHCP server

DHCP relay

DHCP snooping

Layer 3 Route

Arp proxy

Static route

1024 hardware Host Routes;

512 hardware Subnet Routes;

GPON Function

Tcont dba;

Gemport traffic

In compliant with ITUT984.x standard;

Up to 20KM transmission Distance;

Support data encryption, multi-cast, port VLAN, separation, RSTP, etc;

Support ONU auto-discovery/link detection/remote upgrade of software;

Support VLAN division and user separation to avoid broadcast storm;

Support power-off alarm function, easy for link problem detection;

Support broadcasting storm resistance function;

Support port isolation between different ports;

Support ACL and SNMP to configure data packet filter flexibly;

Specialized design for system breakdown prevention to maintain stable system;

Support RSTP,IGMP Proxy.

Dimension(L*W*H)

442mm*200mm*43.6mm

Weight

3.1kg

Power Supply

220VAC

AC:90~264V, 47/63Hz

Double Power Module

Hot Backup

Power Consumption

25W

Operating Environment

Working Temperature

-10~+55℃

Storage Temperature

-40~+85℃

Relative Humidity

5~90%(non-conditioning)
