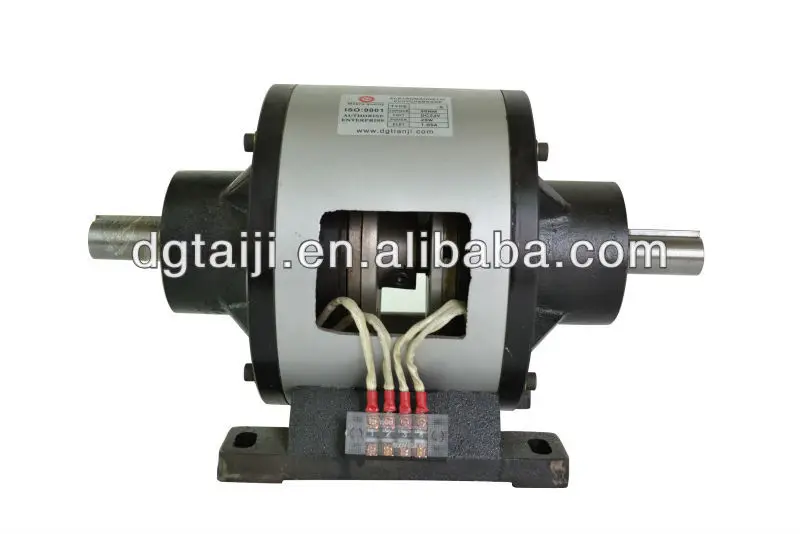

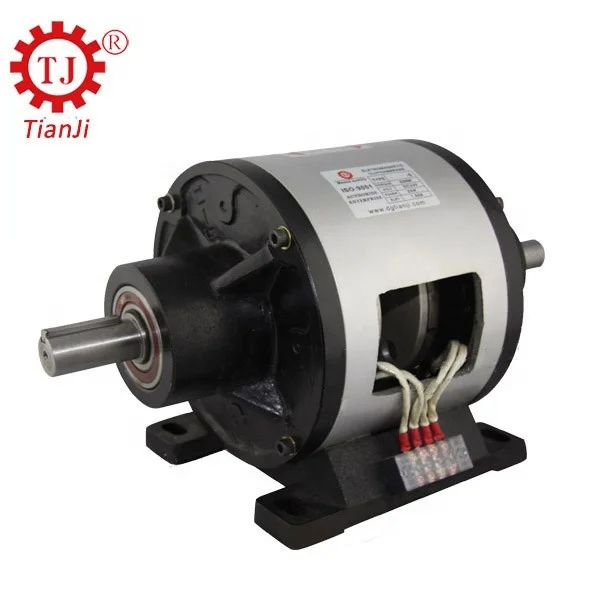

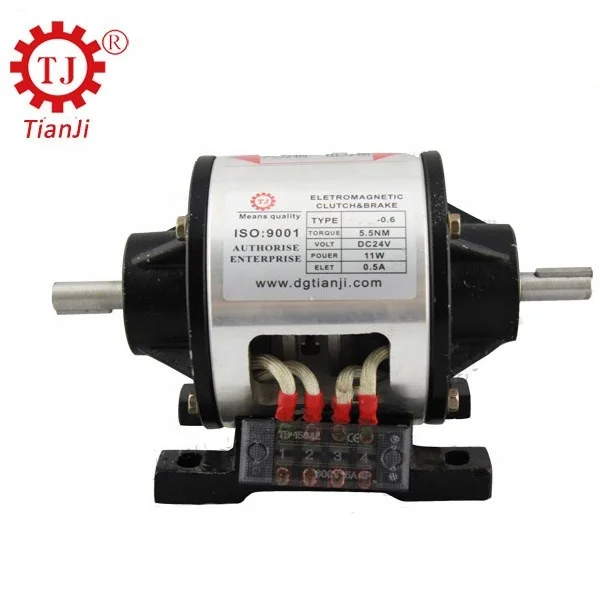

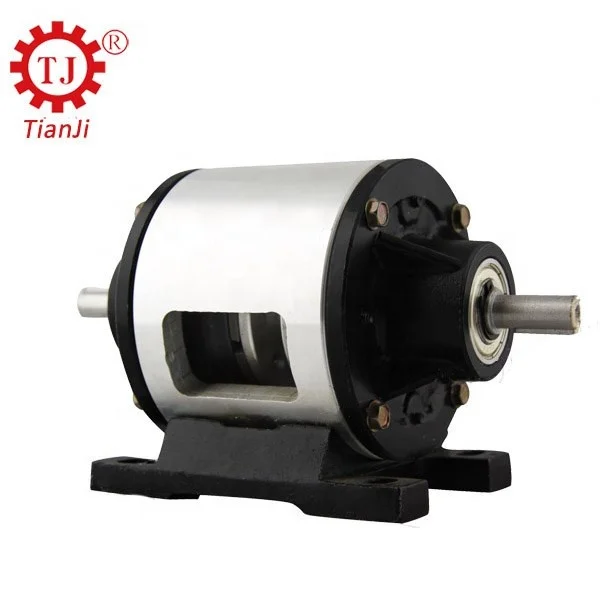

Internal electromagnetic clutch &brake combination for stopping machine

Electromagnetic clutch brake combination Introduction:

The electromagnetic clutch brake assembly is a combination of a TJ-A electromagnetic clutch and a TJ-B electromagnetic brake. It can be divided into exposed type, hidden type, double electromagnetic clutch group, double/single flange electromagnetic clutch brake group and so on. The internal and external devices of each electromagnetic clutch brake group are slightly different, but they all have the same characteristics: wide application, simple structure, high-frequency operation, safe use and so on. Taiwan Tianji electromagnetic clutch brake group is one of the most common equipment in the field of packaging machinery, moon cake machinery, bread machinery, wire and cable equipment, textile machinery, food machinery, electronic equipment, ultrasonic machinery and other machinery.

Electromagnetic clutch brake combination Principle:

The clutch rotor ia attached to the input shaft, and the clutch armature and brake use the same shaft which acts as an output shaft. the clutch yoke and brake are set on the frame of the machine, and when the clutch is energized the output shaft is instantly moved away form the clutch. When the brake is energized the output shaft stops turning. This unit is suitable for staring, stopping, high frequency cycles and stationary passive applications.

Features:

1. Technology & material from Taiwan

2. Manufacture with 30 years' experience

3. Warranty--1 year

4. OEM available

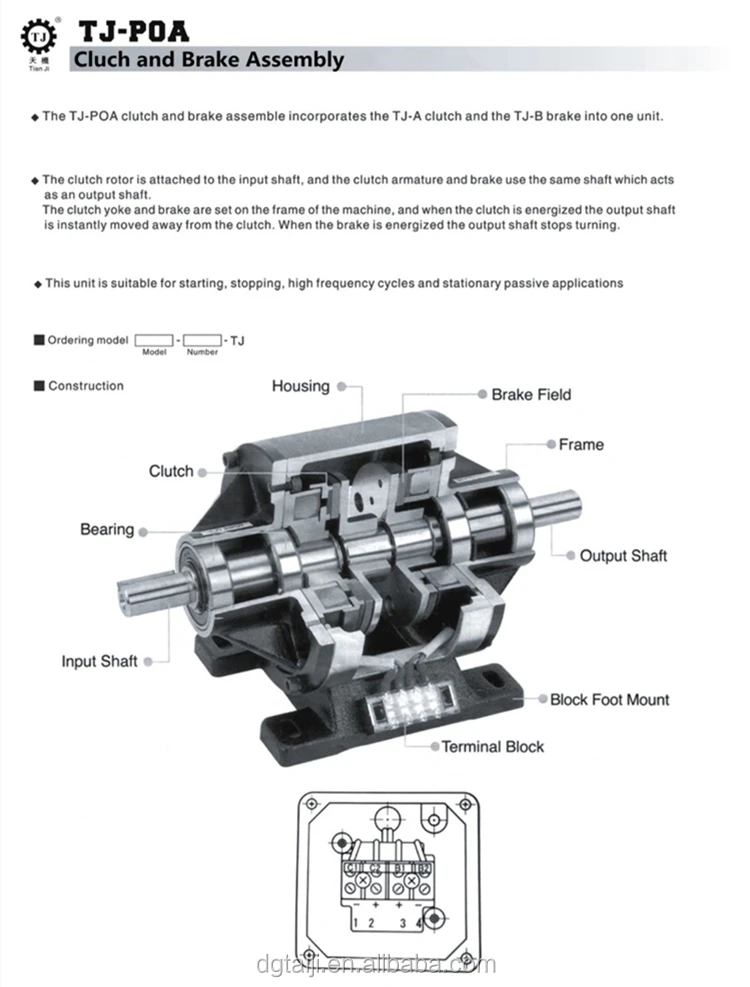

Structure :

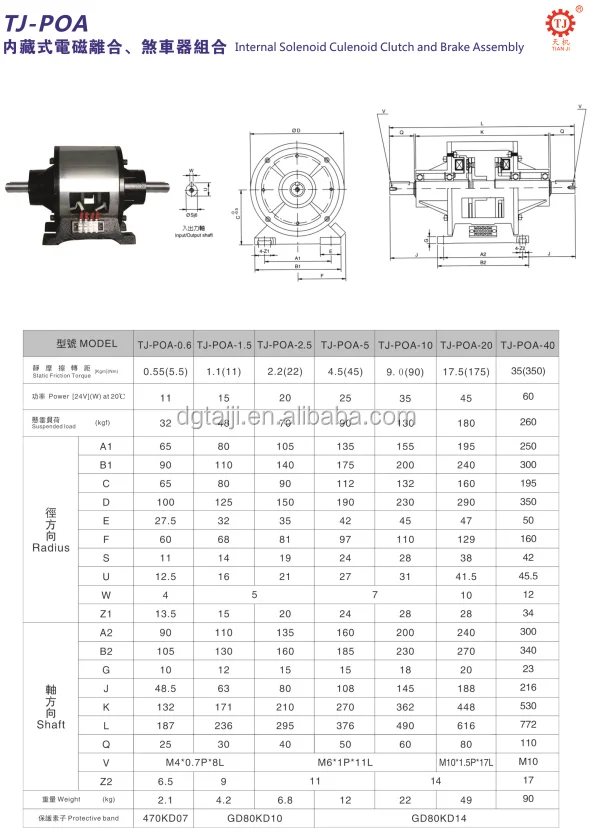

Electromagnetic clutch brake combination Product details:

Application scope:

1. Packing and wrapping systems: packing machine, strapping machines, wrapping machinery.

2. Textile machinery: fiber twisters, treatment machines, weaving machines.

3. Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines.

4. Machine tool systems: lathes.

5. Millers, steel extruders, CNC lathes, specialized machinery.

6. Transportation equipment: hoists, feeders, conveyors, rollers, winders.

7. Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines.

8. Printing systems: conveyors and in-feeders.

9. Wood-working systems: saws, wood-working machine, laminators.

10. Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers.

11. Testing systems: lab machines, durability testers, measuring systems.

12. Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines.

13. Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.

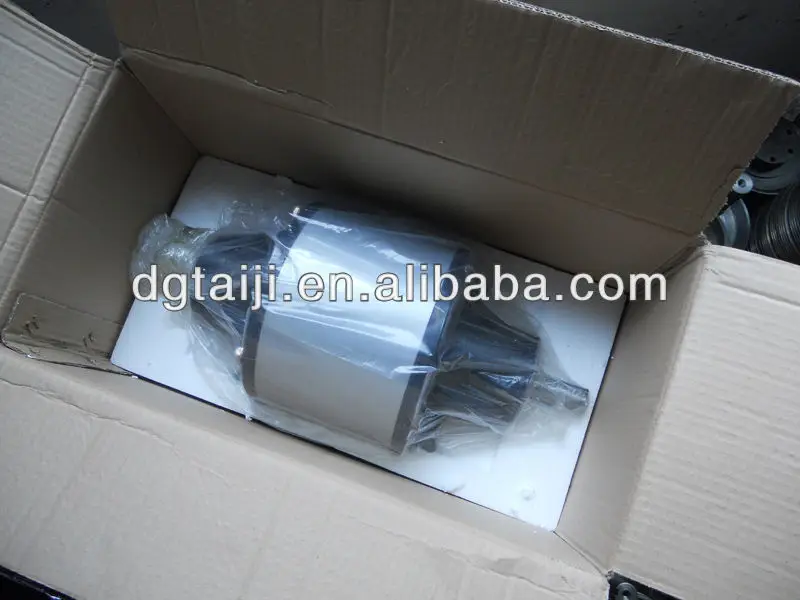

Product shipping and packing:
