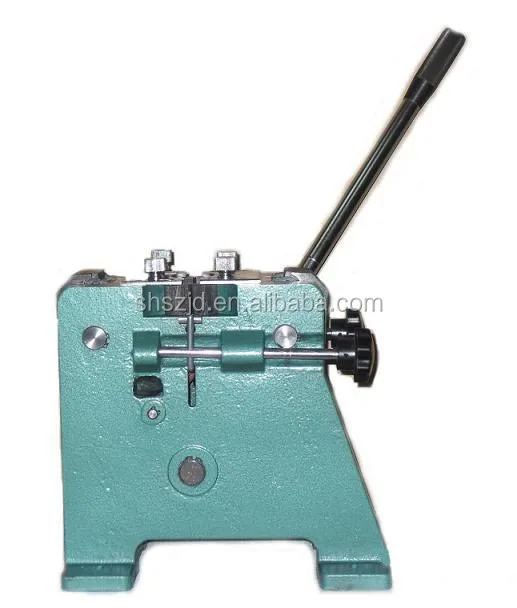

SZ-3TR trolly cold press welding sets / welding cable machine / trolly copper wire cold welding machine

1. Application: Widely used in the cold welding for the wire of copper, aluminum, gold, silver, nickel, and other non-ferrous metal wire/rod.
2. Range of the wire: Copper: 0.70mm-4.5mm
                               Aluminium: 0.70mm-6.0mm
3. Structure: Precise Moulding(spheroidal graphite cast iron QT-600-3
4. Advantage:

No power, no heat, no electricity,  light,  easy to operate, welding just one minute.

5. Overall dimensions: 300mm* 190mm × 290mm (L*W*H)
6. Material of mould: Integral casting/moulding

7.Weight:37KG

2.Brief description:

1. Weld copper wire or aluminum wire; or weld copper wire with aluminum wire

2. No need any power, heat, only match corresponding dies.

3. Our machine can weld copper wire from 0.06mm-10.0mm; weld aluminum wire: from 0.06mm-15.0mm.

4. You can choose suitable machine according the wire diameter you need to weld and our machine's welding range.

5. For example, if you want to weld 0.90mm, 1.0mm, 1.20mm, 1.40mm copper wire, you can choose model SZ-3T, SZ-3TR. It should make four single cavity dies or two double cavity dies.

6. Our machine is compatibility with other supplier’s welders. You can use others’ welding machine with our dies; or use our dies on other supplier’s machine.

7. The tolerance of dies to wire: -1%mm+ 3%mm wire to dies tolerance.

For example: 2.0mm dies can weld the wire diameter from: 1.98mm to 2.06mm wires.

8. Can different metals be welded using cold pressure? Cold welding can be used to join dissimilar materials, such as aluminum to copper.

9. It can weld following wires: copper wire ( purple copper wire, brass wire, including round wire or flat wire, square wire); aluminum wire. Plastic wire and other wires should remove surface insulation part, then welding.

Steel wire can’t be welded.

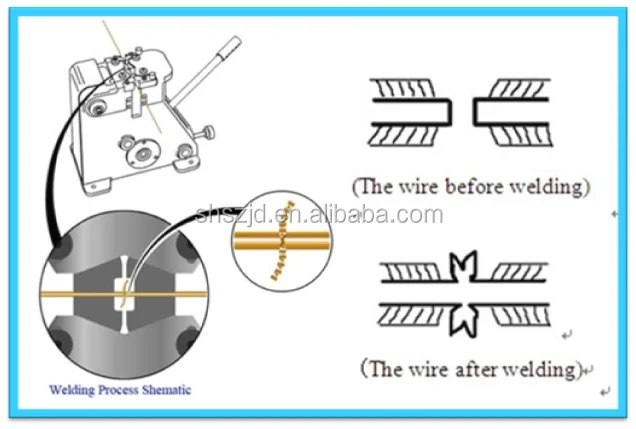

3.Welding process:

Model SZ-3TR cold welding machine operating process:

1. Install dies

2. Adjust the centre joint of welding machines

3. Thread the wires

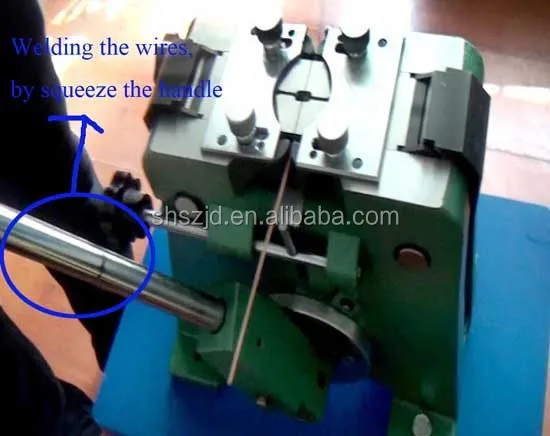

4. Welding the wires, by squeeze the handle:

5. Clean the flash of the wire joint.

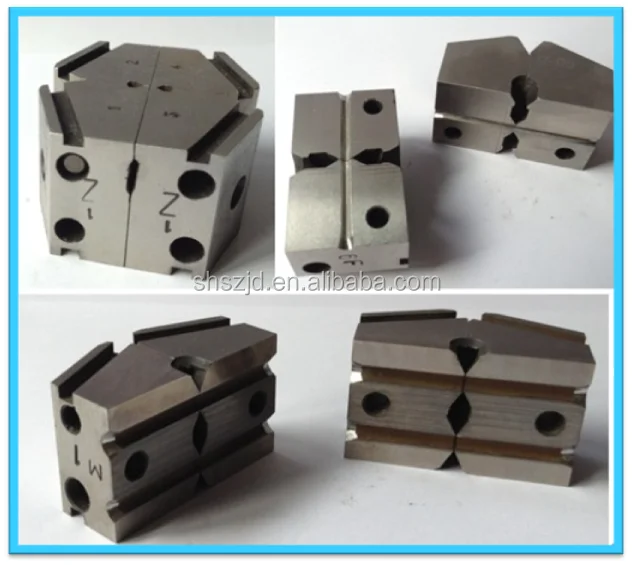

4.Welding Dies pictures:

 5. This welding machine can be fixed on a trolly like following:

6. Delivery:

*For small order, we recommend by express like DHL, FedEx, UPS, etc. Large order by air, by sea, by train.

 *All welders are in stock, only need time to make welding dies.

7.Advantage of Our cold welder:

*One year quality guarantee for main welding Machine. Lifetime Maintenance.

*Competitive price.

*Flexible delivery for sample and big order. Usually most not quite big orders can be delivered within 3 working days after order confirmed.

*10 years working experience for production & Research and Development.

* Certificate: CE, CCC, ISO9001-2008; exporting entitlement.

* Agents & distributors & representatives are welcome for all countries.

8. Exporting Countries we have:

We had exported many countries with good result, like South Korea, India, Pakistan, Sri Lanka, Indonesia, Malaysia, Singapore, Philippines, Vietnam, Thailand, Australia, Iran, UAE, Saudi Arabia, Turkey, Kazakhstan, Uzbekistan, USA, Canada, Russia, Finland, Germany, Serbia, Slovakia, Romania, Egypt, South Africa, Morocco, Tanzania, Angola, Brazil, Mexico, Argentina, Chile, Colombia, etc.

9. Brief catalogue:

You can choose suitable machine according to its wire welding range

10. Operating video:

We will provide English & Chinese detail operting manual for better operating, though the operating of this device is quite easy.

Operating video also can be provided:

Here is all our wire cold welding machine video weblink:

SZ-2S: //v.youku.com/v_show/id_XMjM2MTk2MjA0.html

SZ-1A: //v.youku.com/v_show/id_XMzU2MjQxOTYw.html

SZ-2T: //v.youku.com/v_show/id_XNDcyODQ5OTEy.html

SZ-3T: //v.youku.com/v_show/id_XNDcyODIyNTA4.html

SZ-3TR: //v.youku.com/v_show/id_XMzU0NTk4NTM2.html

SZ-158: //v.youku.com/v_show/id_XOTA4NzU0MzQ4.html

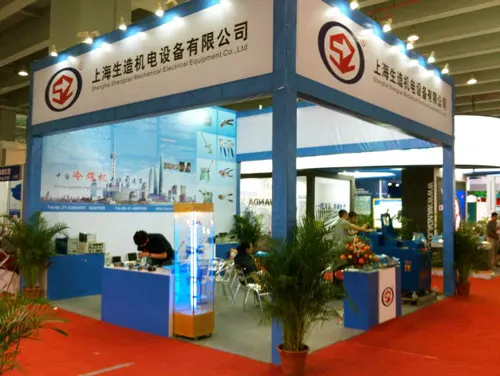

11. Wire exhibition we attent:

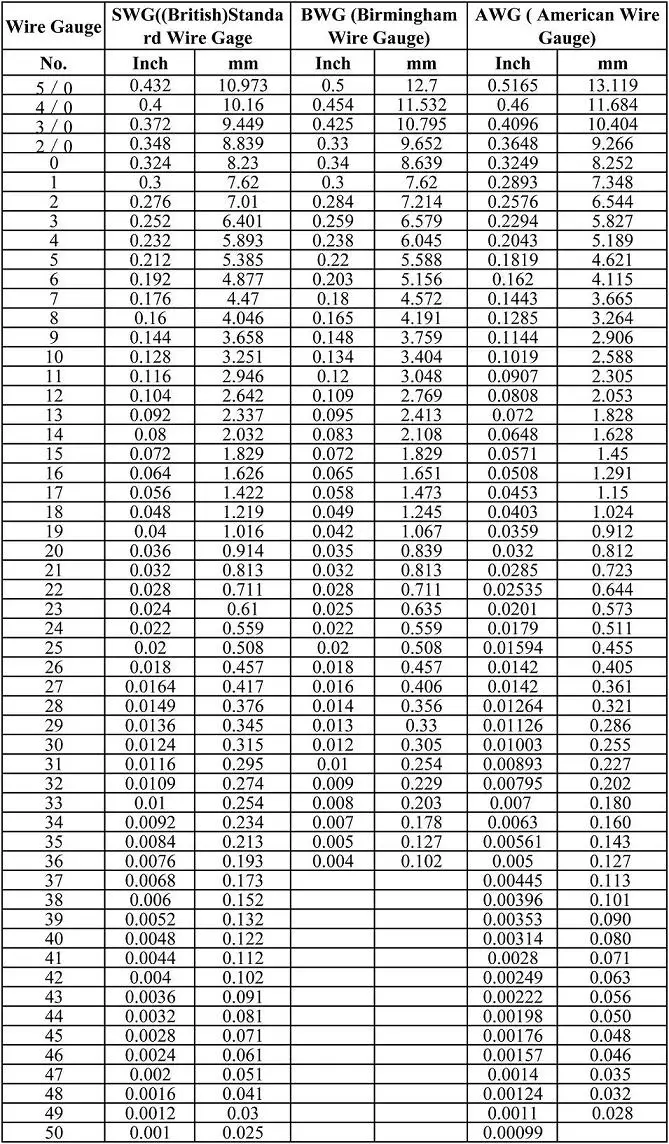

12. SWG and mm Wire guage:
