1. Introduction

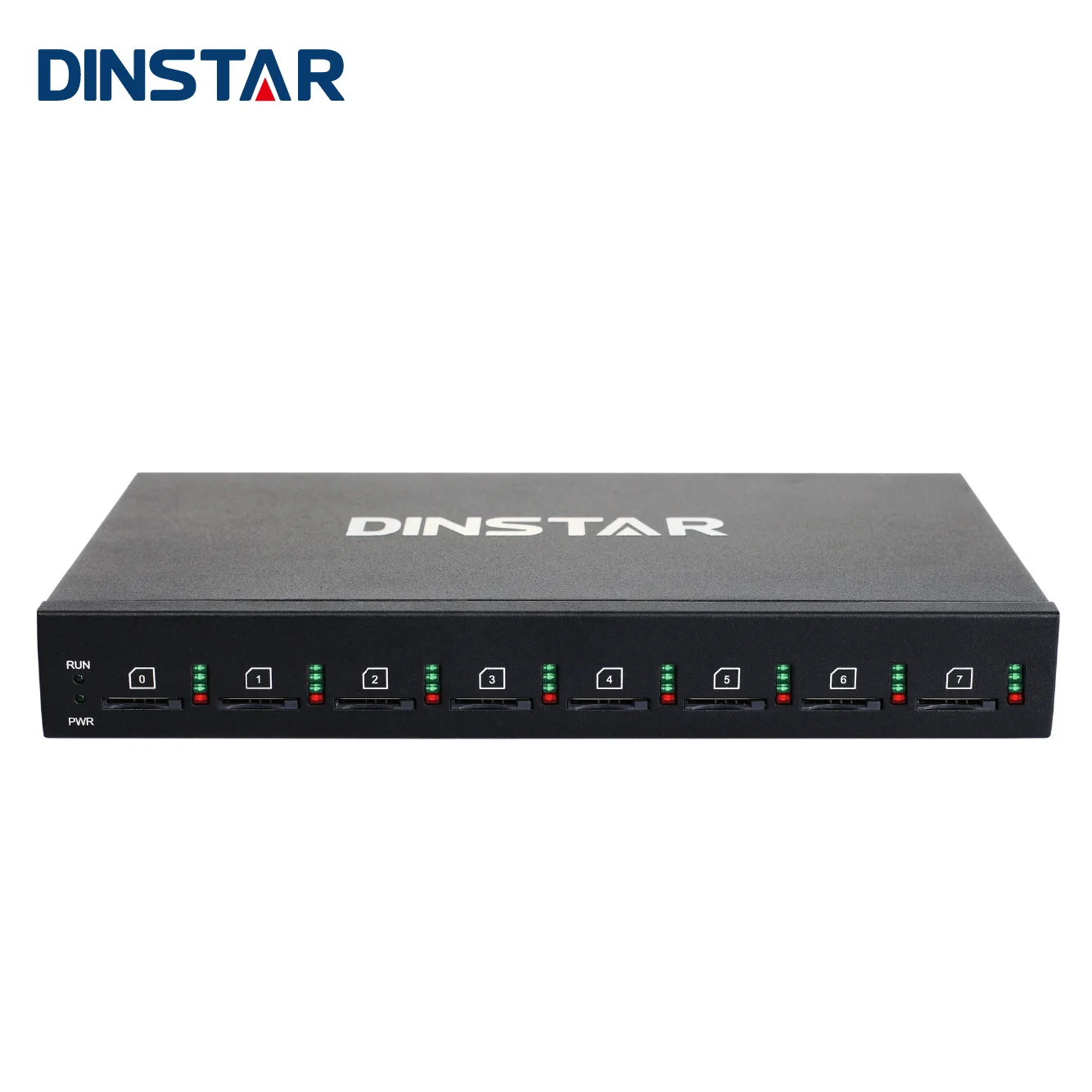

UC2000-VE LTE VoIP Gateway

Dinstar UC2000-VE series LTE VoIP Gateway is a multi-functional gateway which helps to effectively implement calls between 4G/3G/2G mobile network and VoIP network. It capable of make incoming/outgoing calls through 4G network with VoLTE as well as GSM/WCDMA network, users can easily choose network mode on demands. Moreover, with the opened API, the users could build their own application software to send SMS/USSD messages or bulk SMS messages, or push their text messages from email, HTTP etc. It has great performance in software features also in new hardware structure design. The gateway provide low cost, easy and flexible IP telephony solution to enterprise, SMEs and business office etc.

2.Key Features:

4 or 8 LTE Channels on Demands

Supports to work with different mobile networks:

Compatible with LTE-FDD/LTE-TDD/WCDMA/GSM Networks

Supports Make Call through VoLTE

HTTP API for SMS Application Integration

SMS to Email and Email to SMS

Flexible Dial Rules and Manipulation Rules

Item No.	channel qty	IEMI	BCCH	SIMBANK	Sample price
UC2000-VE-4T	4 ports	support	support	support	426
UC2000-VE-8T	8 ports	support	support	support	816
UC2000-VF-16T	16 ports	support	support	support	1584
UC2000-VG-32T	32 ports	support	support	support	3028

Voice Processing

•Protocol: SIP v2.0, RFC3261, SIP TLS

• Codecs:G.711A/U law, G.723.1, G.729A/B

•Silence Suppression

•Comfort Noise Generator(CNG)

•Voice Activity Detection(VAD)

•Echo Cancellation: G.168 with up to 128ms

•Dynamic Jitter Buffer

• DTMF: RFC2833, SIP Info

• Call Progress Tone Generation

• Programmable Gain Control

• NAT: STUN, Dynamic NAT, Static NAT

Software Features

•Calling Type:

Mobile to VoIP, VoIP to Mobile

• SIP Trunk and Trunk Group

• Caller/Called Number Manipulation Rules

• SIP Codes Mapping

• White/Black List

• PSTN Hotline

• VoIP Hotline

• Abnormal Call Monitor

• Call Minutes Limitation for Ports/Single Call

• Balance Check

• Low Balance Alarm

• Auto Update SIM Number

• Random Call Interval

• Auto CLIP

• Signaling & RTP Encryption

• SMPP for SMS

Frequency Bands

Type A.

FDD: B2/B4/B12 WCDMA: B2/B4/B5

Type E.

FDD:B1/B3/B5/B7/B8/B20

TDD: B38/B40/B41

WCDMA: B1/B5/B8

GSM:900/1800MHz

Type V. FDD:B4/B13

Type J.

FDD:B1/B3/B8/B18/B19/B26

TDD:B41 WCDMA:B1/B6/B8/B19

Type AU.

FDD:B1/B2/B3/B4/B5/B7/B8/B28

TDD:B40 WCDMA: B1/B2/B5/B8

GSM: 850/900/1800/1900

* UC2000-VE supports different frequency bands, please choose a dedicated type based on the region or operator.

Mobile

•USSD Encoding: Unicode/ASCII

• HTTP API for SMS

• Polarity Reversal

• PIN Modify

• CID/CLIR

• SMS Send and Receive

• SMS to Email

• Call Waiting/Call Back

• Call Forward

• GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR

Network

Static IP, DHCP Client, PPPoE

Network Protocols:

TCP/UDP,TFTP, FTP, RTP/ RTCP, SSH,ARP,RARP,ICMP Ping, NTP, HTTP, DNS

Static/Dynamic ARP Request

PPTP VPN

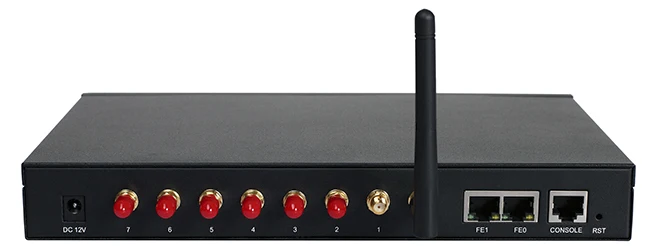

Physical Interface

Mobile: 4/8 Channels

Antennas Connectors: SMA

Ethernet Interfaces:

2*10/100 Base-T, RJ45

LED Indicators: Power, RUN, Signal Strength Indicators

Console:

1* RS232 115200bps

Maintenance

Web/Telnet Configuration

Configure Backup/Restore

Firmware Upgrade by HTTP/TFTP

Factory Reset

CDR (10000 Lines CDRs Storage Locally)

Syslog/Filelog

Ping and Tracert

Traffic statistics: TCP,UDP,RTP

VoIP Call Statistics

PSTN Call statistics: ASR,ACD,PDD

Voice Diagnose with Loopback

GSM Network Test

IVR Customization

Auto Provisioning

SIP/RTP/PCM Capture

Environmental

•Power Supply

Input:100-240V,50-60Hz

Output: DC12V 4.0A

•Power Consumption:

UC2000-VE-4G: 20w

UC2000-VE-8G: 25w

•Temperature(Operation): 0 ℃ ~ 45 ℃

(Storage): -20 ℃ ~80 ℃

•Operation Humidity: 10%-90% No Condensation

•Dimension(W/D/H): 250*156*32.5mm

•Weight: 1.069kg

Package Weight: 2.05kg
