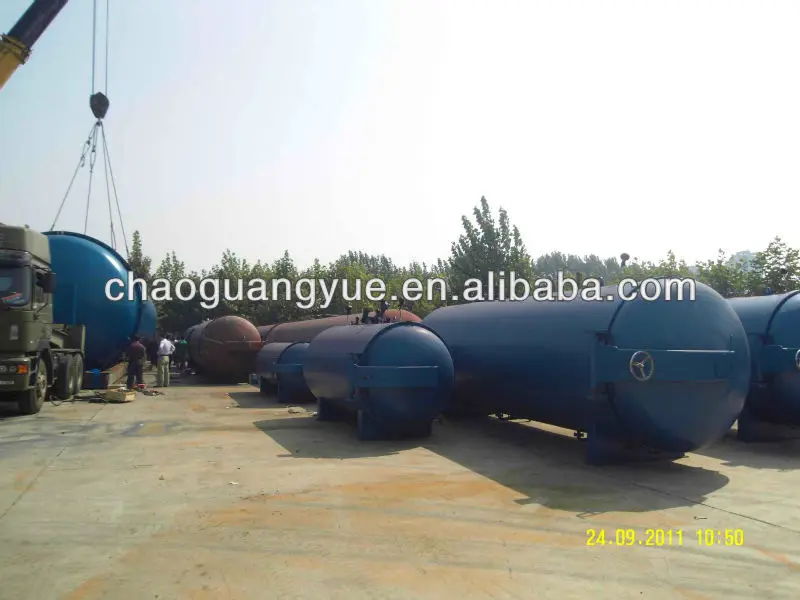

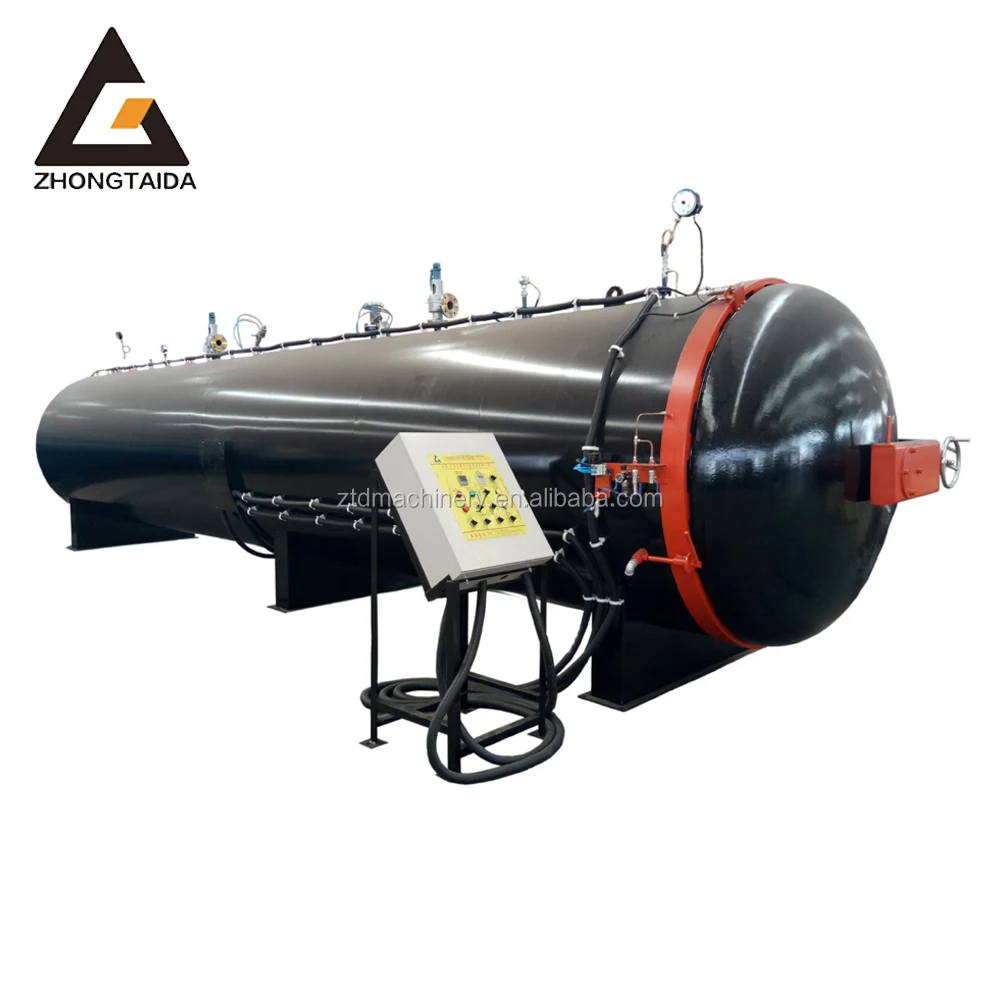

Машина для вулканизации резины большой вулканизирующий резервуар шин из Китая машина

Описание и отзывы

Характеристики

Heating and circulation

1.Steam indirect heating.

2. helix disco heat radiator is attached on the steam pipe ,strategically located at the left ,right, bottom of this vulcanizer.

3.the inlet steam take the bottom channel and radiate heat to the other two radiators .

4.heat wave recycle in a high speed drived by impeller through the stratigcally located wave channel to achieve desirable temperature distribution and products uniform effect.

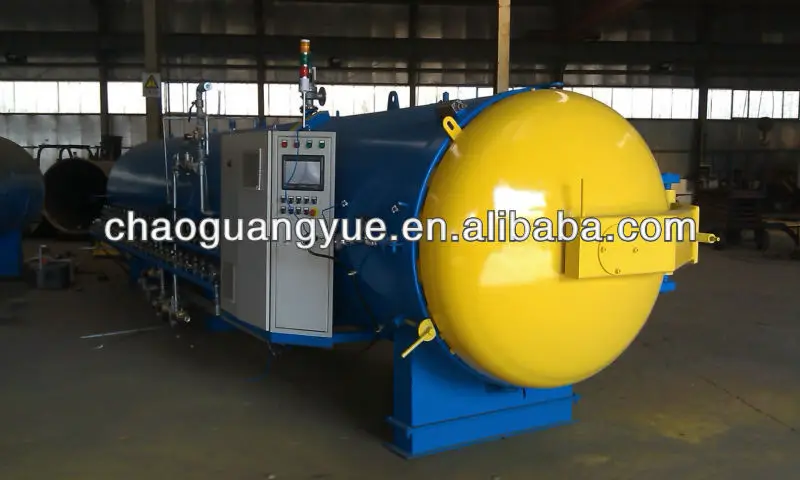

Door operation and seal

1.Safety door and inflatable seal

2. Easy operation manual type.Inflation is done on the door seal ring to achieve a desired seal position via process pressure.

3.the seal ring repositioned when the process pressure is gone ,which guarantee safety and saves wear out of this vulcanizer

Safety interlock

1.Automatic sensing interlock

The sensor will actuate the program when the safety door is fully in position and give the door a firmly phumatic lock.

2. automatic pressure interlock instrument, the door will be locked in an automatic manner when the process pressure reachs as high as 0.01MPA,to ensure a firmly and safely lock.

3. manual interlock instrument,process pressure can not be applied while the manual interlock remains in open position, for the simple reason that the valve connecting to the manual interlock will block the treatment pressure.make sure the manual interlock remains in an open position when opening the door. bear in mind that the manual interlock operation always comes  before the electrical-drived  interlock operation. Thus guarantee a pressure free door-opening operation.

Temperature control mode

1. three stratigic location inside the chamber is choosen to test the temperature distribution.

2. one F value test location is set to test the uniformity of temperature and pressure.

3.one digital temperature reader and one temperature sensor is designed at the shell middle to collect data to transmit to computer.

4. the automatic steam valve will adjust their working position to meet the set temperature value.

5. temperature tolerance inside the chamber is within ±0.5°C.

6. all  steam control systerm is designed with manual option in case of emergency and maintenance

Pressure control

7. pressure inside the chamber is controlled automatically to match the setting value via phumatic angle seat valve,in a compensate and relief manner.

8. manual valve option is available for pressure control

9. avaiable digital pressure reader.one additional pressure gauge for easy operation

10. one lift safety valve attached on the shell body for overpressure relief

11. overpressure alarming systerm

Time control

l       Rise up, treamtment  and cooling time is controlled automatically.

l       multi-segment rise up and process plan is avilable.

l       automatic control of uniform treating temperature .

l       digital reader available.

l       easy operation data setting for different product, specification and process.

 Insulation

1. Shell and cover head Insulation is made by 50mm spun glass covered by 1.50mm cold rolled sheet.welding attached.

2. insulation inside the cover head is fixed by bolts which can better preserve the heat and energy effective..

Technical parameter
