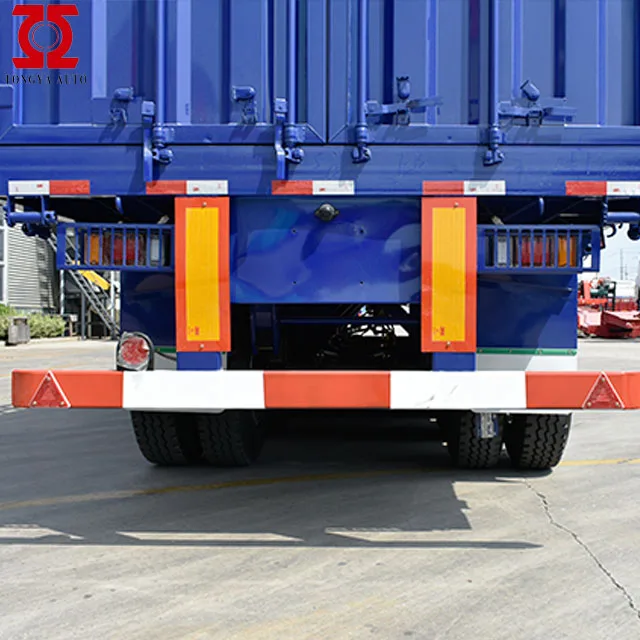

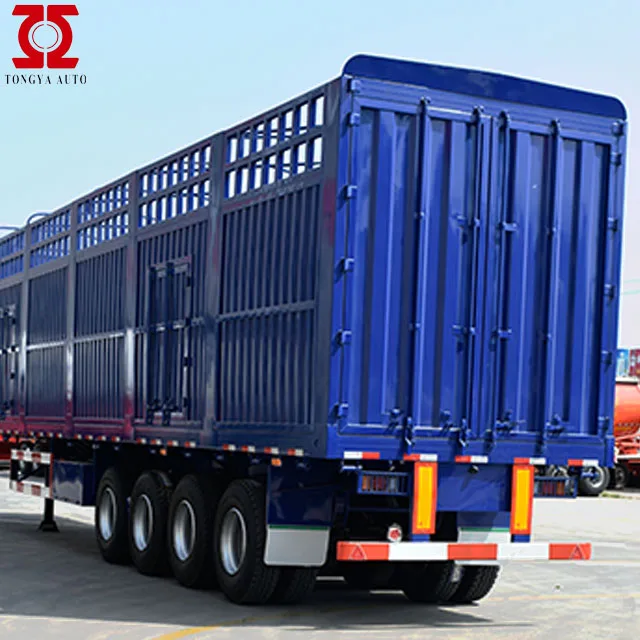

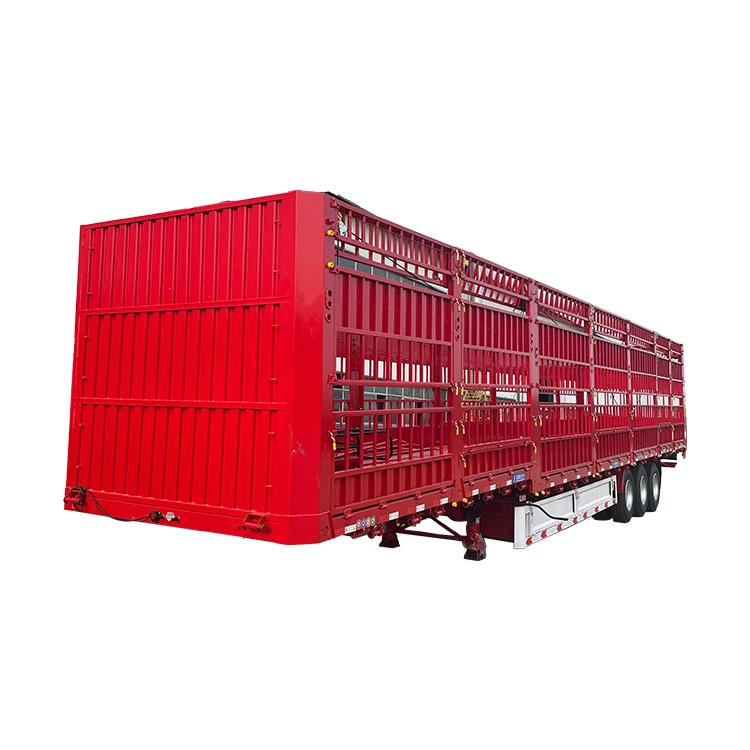

Высококачественный 2023 новый 3-х осевой 40-футовый грузовой полуприцеп для перевозки животных 30-60 тонн из Китая
733 944,73 ₽ - 914 609,11 ₽

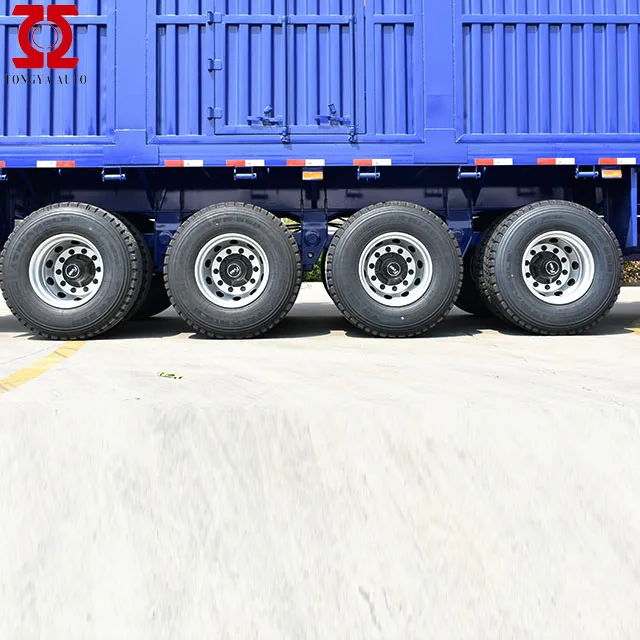

Китай лучшие продажи 3 или 4 оси прицеп для перевозки животных продажа
- Категория: >>>
- Поставщик: Tongya Automobile Co. Ltd.
Сохранить в закладки 861787115:
Описание и отзывы
Характеристики
Product Description
Bulk Cement Tanker Series
acid tanker semi trailer
water tank truck
Fuel Tanker Trailer Series
skeleton semi trailer
Cargo Trailer Series
Flatbed container
Low bed semi trailer
Road sweeper

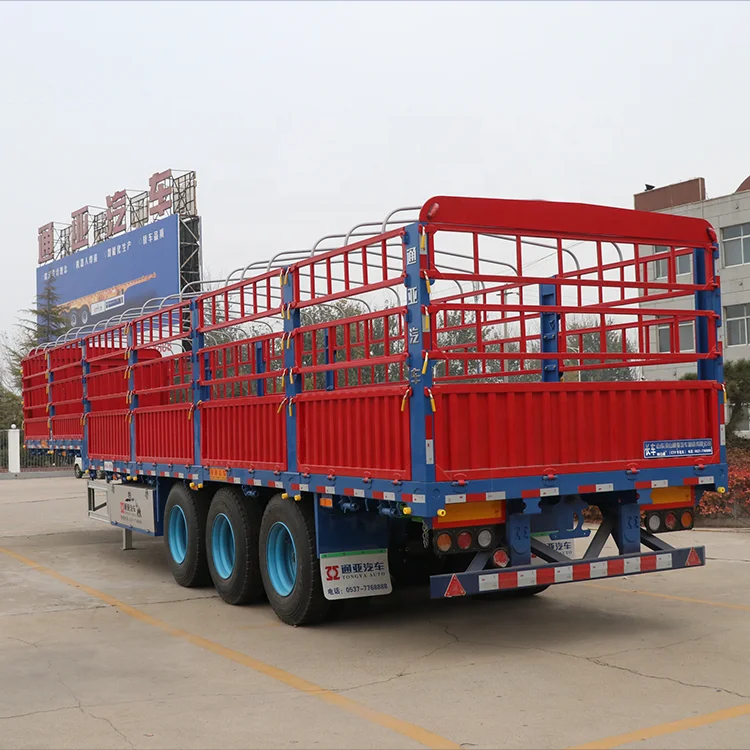

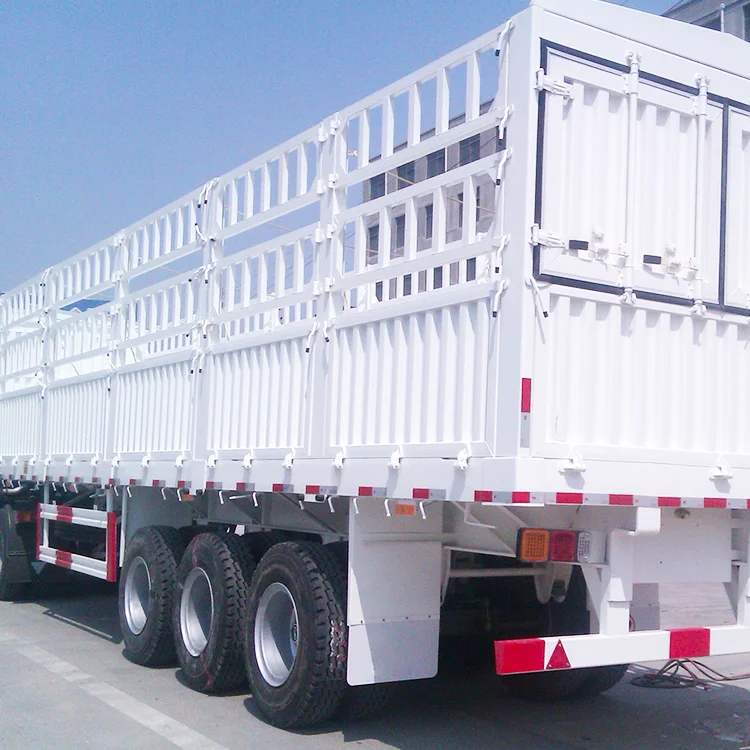

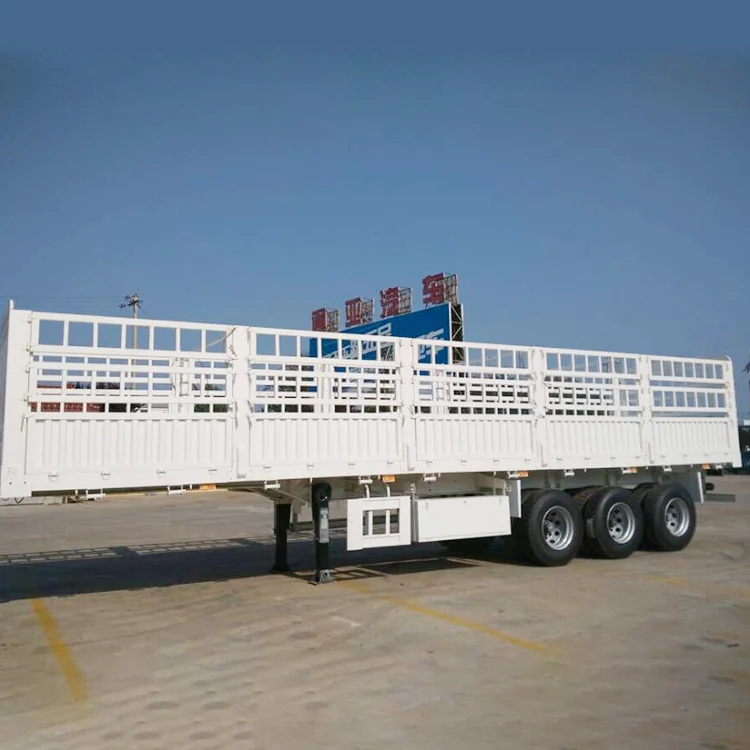

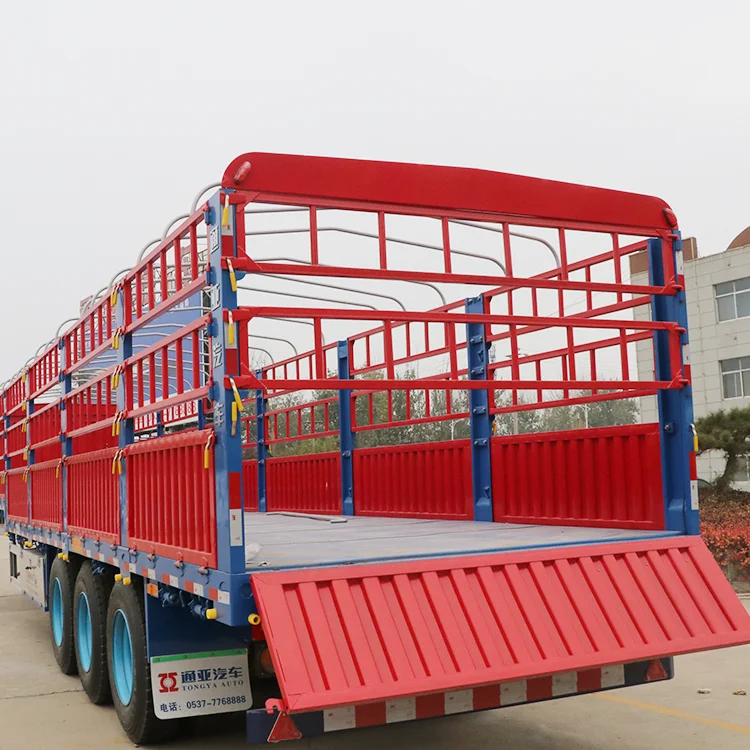

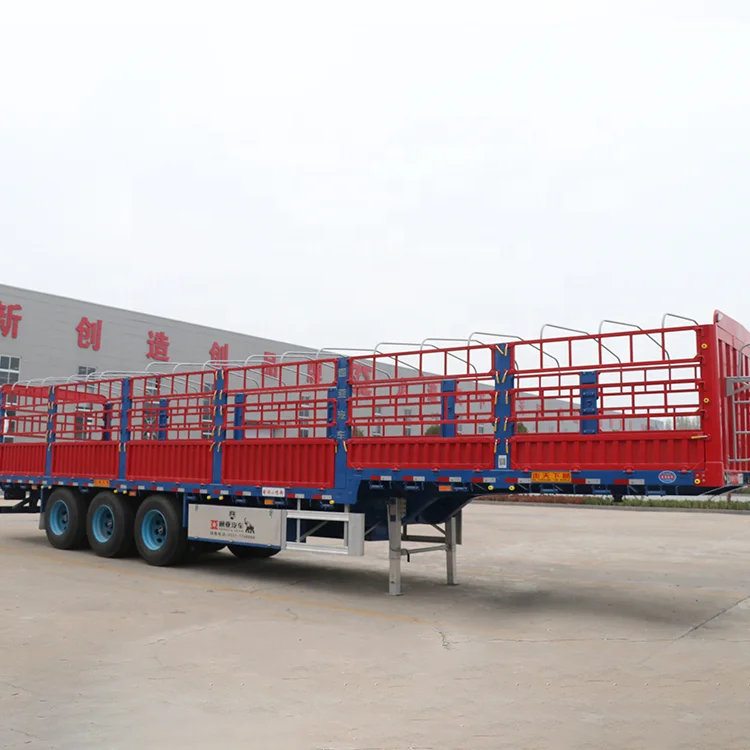

China Best Selling 3 or 4 Axle Animal Transport Truck Trailer For Sale

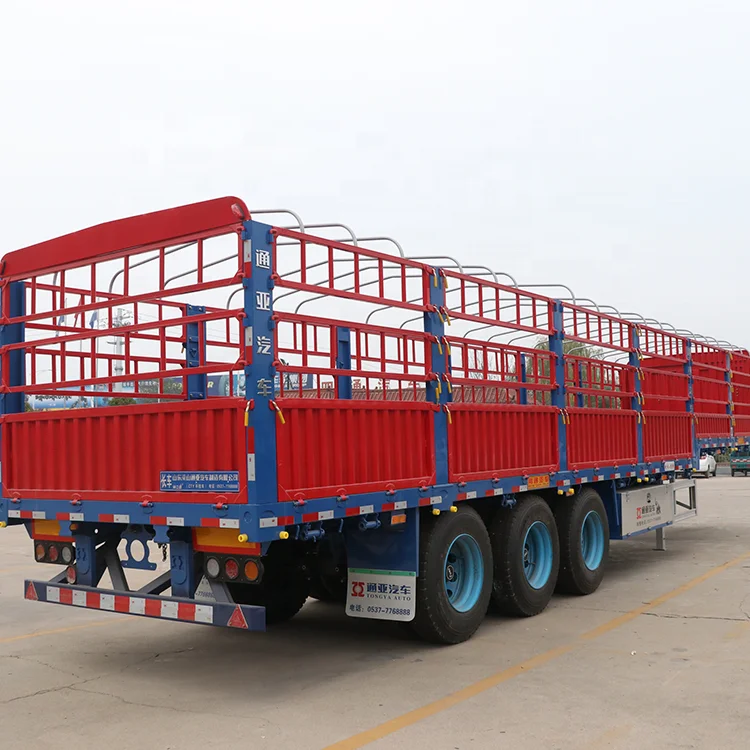

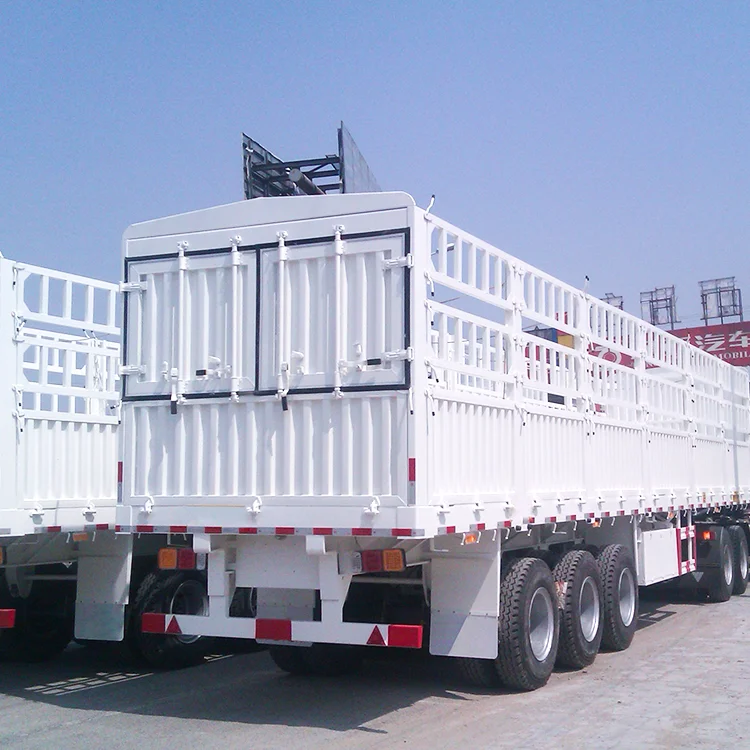

Storage grid semi-trailer 2/3 axles
Tare Weight | About 8T | ||||||
Dimension | 13000mm*2490mm*2860mm (Outer side) | ||||||
Loading Capacity (T) | 60T | ||||||
Axle | 13 T/16T, FUWA /BPW /Huajing Brand; (optional) Two pieces | ||||||
Rim | 9.00-22.5 | ||||||

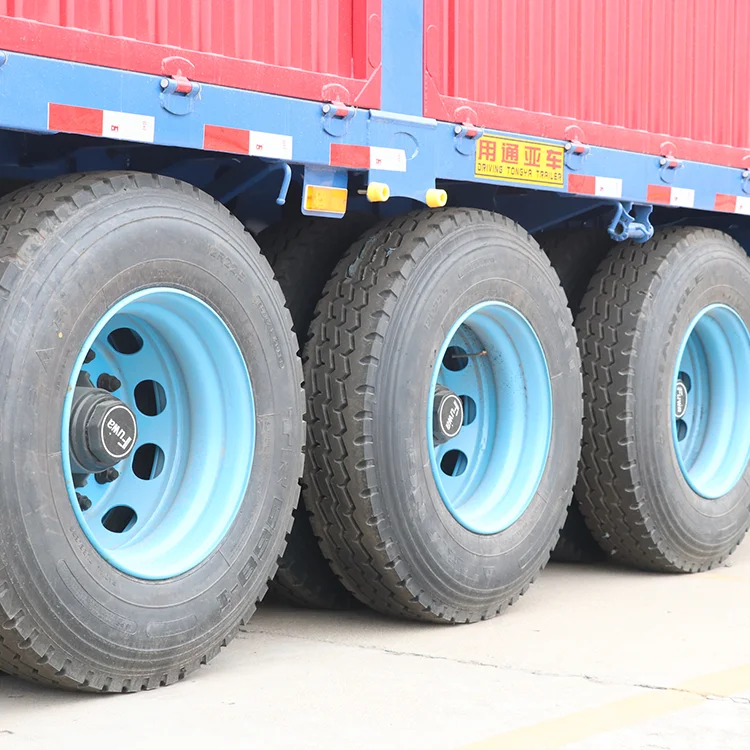

Tire | 12.00R22.5/ 315 80R22.5 | ||||||

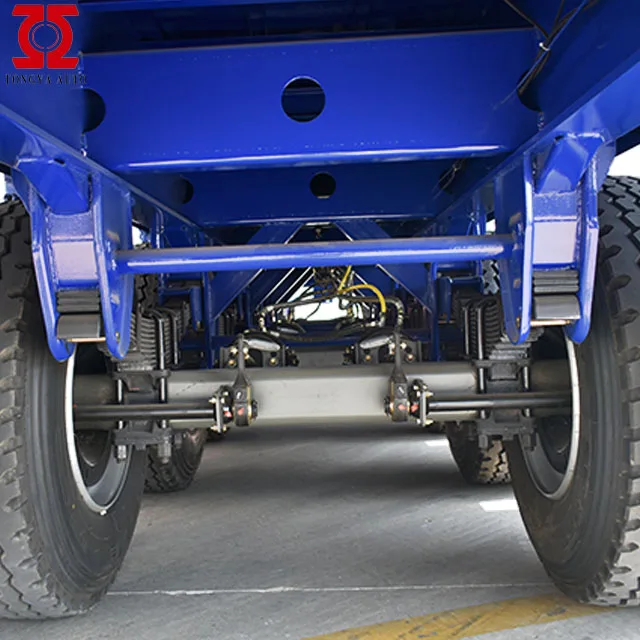

Suspension | Mechanical suspension (Germany Type or America Type) | ||||||
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 | ||||||
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type | ||||||

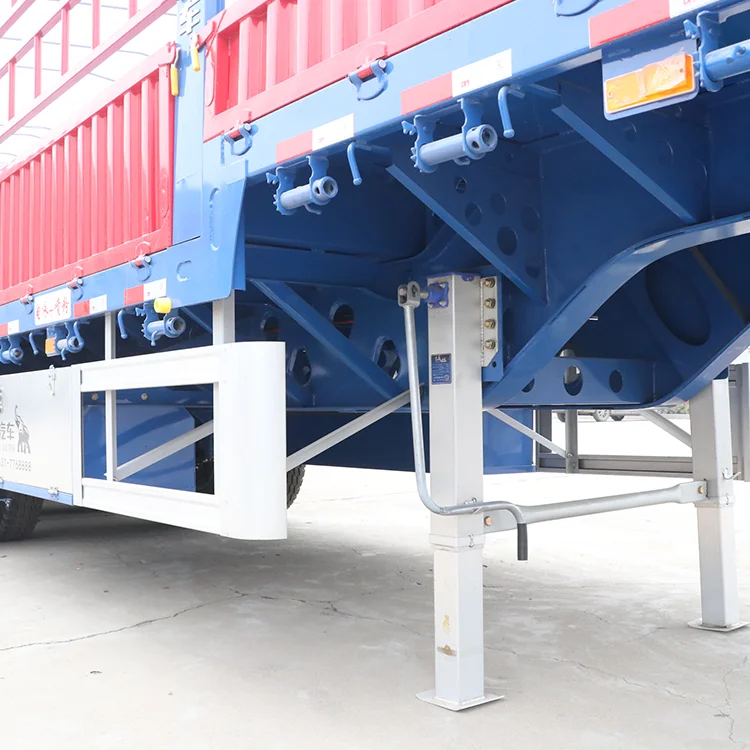

Support leg | JOST brand A300C or TONGYA 28Tons (Double speed) | ||||||

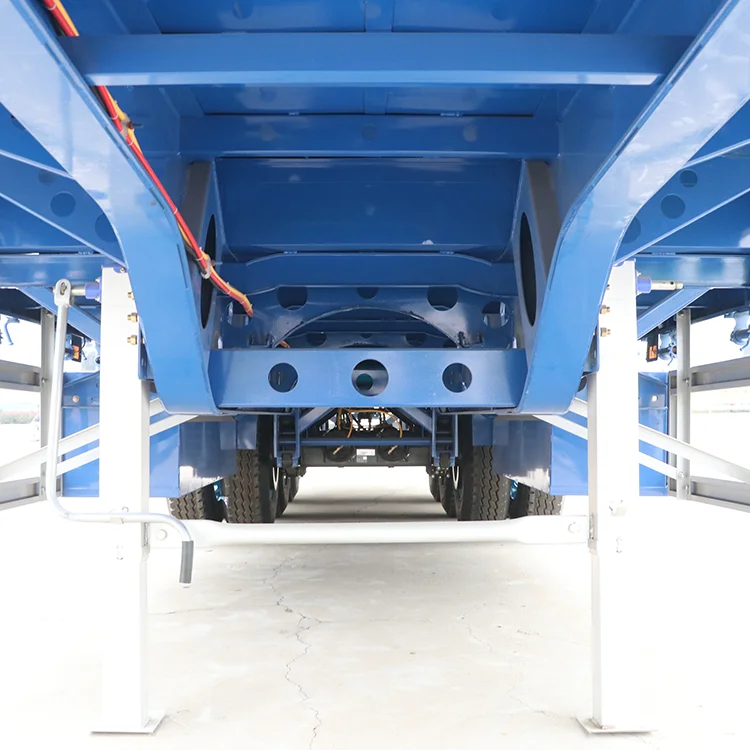

Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel. | ||||||
Side beam | 16mm or 18mm channel steel (Material is Q235steel). | ||||||

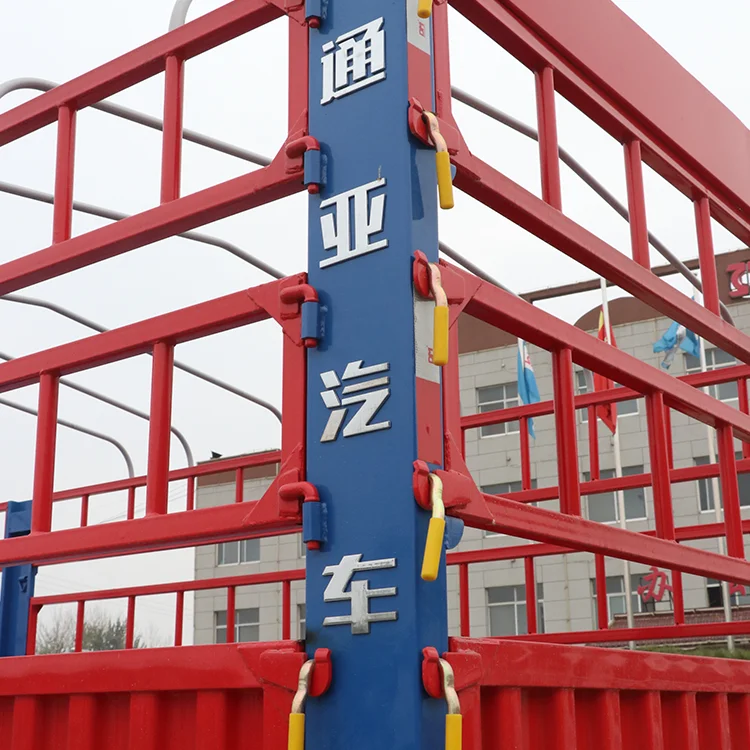

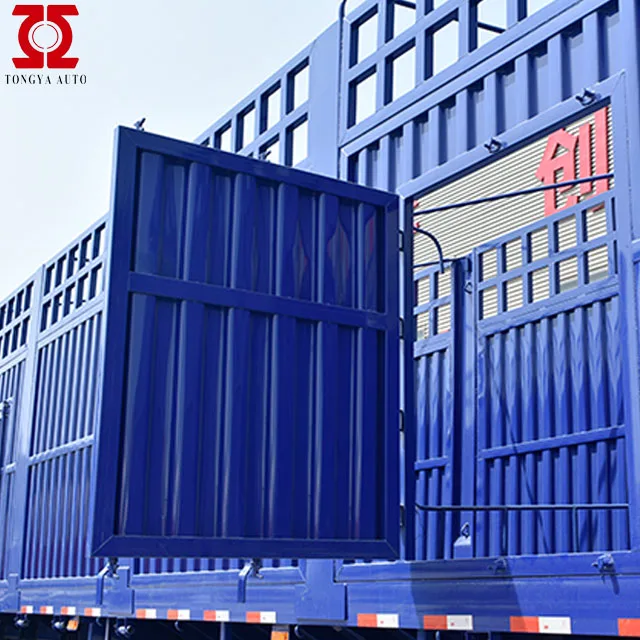

Side Wall | 1500mm-1800mm ，the open door can be choose freely. With 300-500mm height square tube or round tube | ||||||
Bottom Platform | 3mm-5mm thickness (According to the capacity which you loading for ) | ||||||
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; One piece of 45L air tanks | ||||||
ABS | Optional | ||||||
Valve | WABCO valve | ||||||
Light | LED light | ||||||
Voltage | 24V | ||||||
Receptacle | 7 ways (7 wire harness) | ||||||
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | ||||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||||||
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. | ||||||
Storage grid semi-trailer 4 axles
Tare Weight | About 10T | ||||||
Dimension | 13000mm*2490mm*2860mm (Outer side) | ||||||
Loading Capacity (T) | 80T | ||||||
Axle | 13 T/16T, FUWA /BPW /Huajing Brand; (optional) Two pieces | ||||||
Rim | 9.00-22.5 | ||||||
Tire | 12.00R22.5/ 315 80R22.5 | ||||||
Suspension | Mechanical suspension (Germany Type or America Type)/ Air suspension | ||||||
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 | ||||||
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type | ||||||
Support leg | JOST A300C or TONGYA 28Tons (Double speed) | ||||||
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel. | ||||||
Side beam | 16mm or 18mm channel steel (Material is Q235steel). | ||||||
Side Wall | 1800mm ，the open door can be choose freely. With 300-500mm height square tube or round tube | ||||||
Bottom Platform | 3mm-5mm thickness (According to the capacity which you loading for ) | ||||||
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; One piece of 45L air tanks | ||||||
ABS | Optional | ||||||
Valve | WABCO valve | ||||||
Light | LED light | ||||||
Voltage | 24V | ||||||
Receptacle | 7 ways (7 wire harness) | ||||||
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | ||||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||||||
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. | ||||||
specific parameters can be changed according to customer requirements
Related Products
Our service
Payment terms:
There are two method of payment way:
1. 30% contract value as the deposit by T/T, 70% contract value payoff before delivery time after production finished and inspection .( you can sent one technical person come to test our semi trailer after production finished).
2. 30% contract value as the deposit by T/T, 70% L/C at sight.
After-sales Service:
Out grantee term is 6 months. We will sent the engineer for mending the semi trailer for free within the six month , but you should pay the air-ticket fees go and back , and supply the food and room in your country .In our experience, the mending situation never happens before.
There are two method of payment way:
1. 30% contract value as the deposit by T/T, 70% contract value payoff before delivery time after production finished and inspection .( you can sent one technical person come to test our semi trailer after production finished).
2. 30% contract value as the deposit by T/T, 70% L/C at sight.
After-sales Service:
Out grantee term is 6 months. We will sent the engineer for mending the semi trailer for free within the six month , but you should pay the air-ticket fees go and back , and supply the food and room in your country .In our experience, the mending situation never happens before.

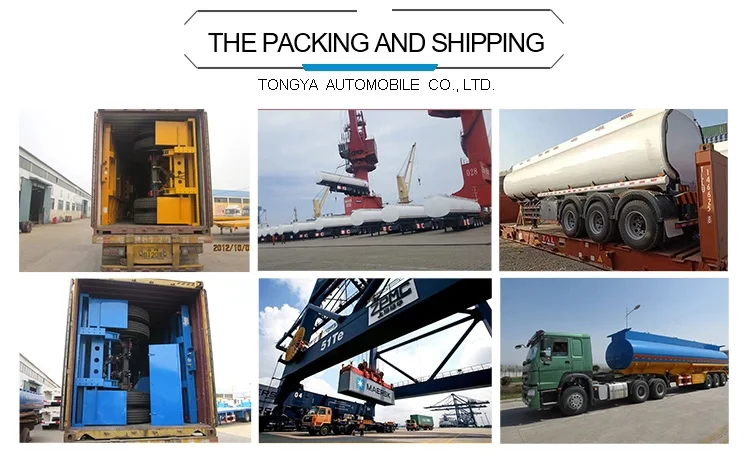

Packing&Shipping
FAQ
1.How about your price?
Although we are brand name products,but our prices are very favorable and competitive.
Although we are brand name products,but our prices are very favorable and competitive.
Customer from all over the world to purchase our products, because our best price.
2.What's your payment?
Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
3.Could you special design and produce for you？
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
4.Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
2.What's your payment?
Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
3.Could you special design and produce for you？
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
4.Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
Похожие товары

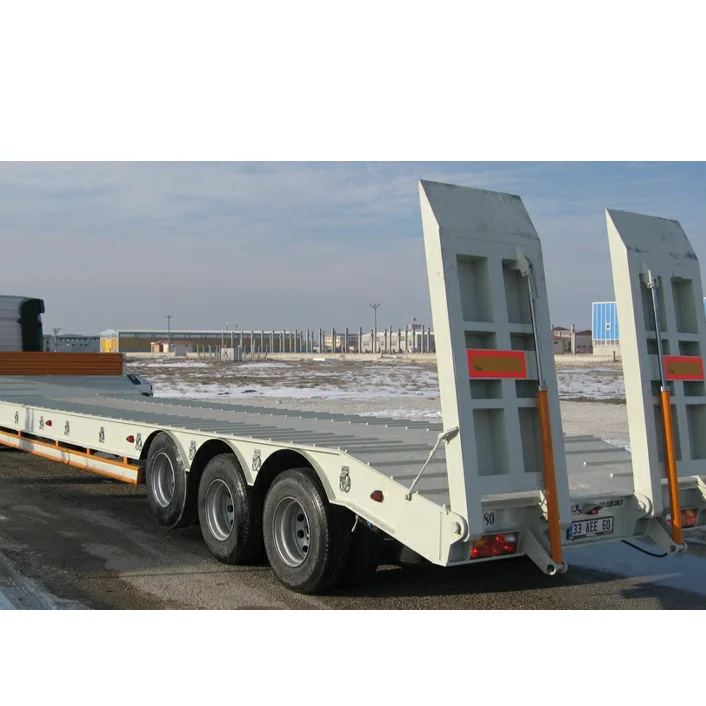

Прямая Заводская версия, специальный транспорт, 3-осевой 40 т, низкорамный прицеп, полуприцеп, прицепы из Китая
614 031,04 ₽ - 1 052 624,64 ₽
Китайский завод, б/у или новый трехосевой деревообрабатывающий прицеп, тележка, дорожная лесоматериалы, Лесной транспорт, полуприцеп на продажу
937 493,82 ₽
Китай, новый двухосевой 3/4, плоская кровать, 40 футов, толстый полуприцеп для продажи
438 593,60 ₽ - 548 242,00 ₽

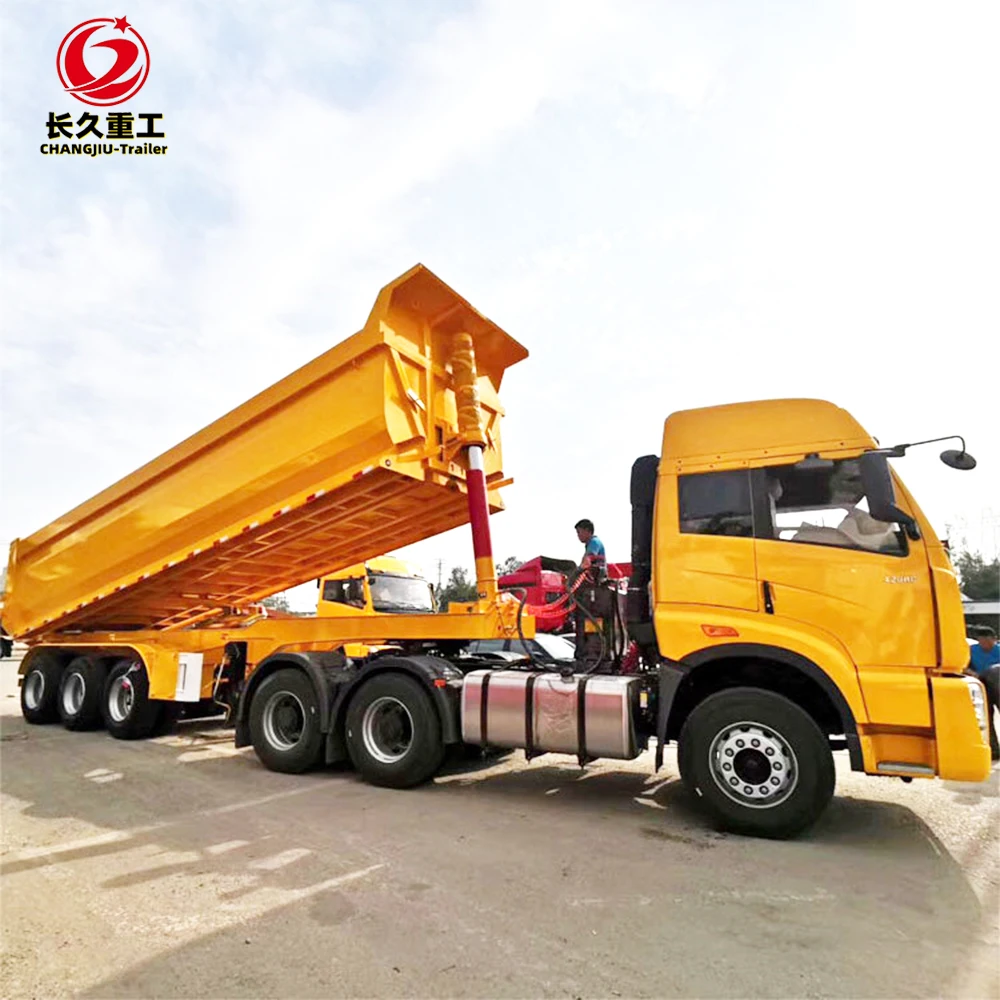

Лидер продаж, китайский бренд, 2 оси, 3 оси, гидравлический опрокидывающийся прицеп, 30 тонн, 50 тонн, полуприцеп, самосвал, полуприцеп
