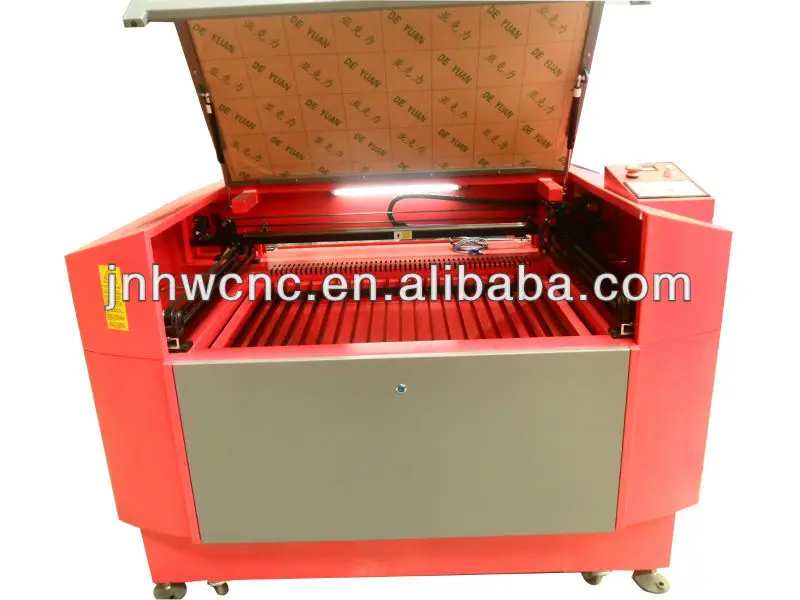

  companies looking for partners epilog laser engraver 3d crystal laser engraving machine price with ce certificate for granite

Features:

1.Square tube framework,higher strength than the ordinary ones,no causing quivering and resonance when works.

2.High quality water cooler,ensure stable laser power and prolong the life span of laser tube.

3.The "front" and "back" of our laser machine can be open, suitable for super-length material process.

4.Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively.

The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.

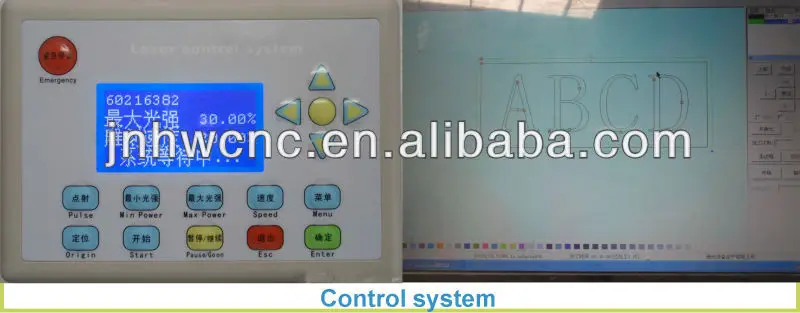

5.LCD control panel in English, convenience of operation control.

6.Imported linear bearing with high engraving precision.

7.Offline control system which can not only work without computer, but also connect to U disk, USB communication

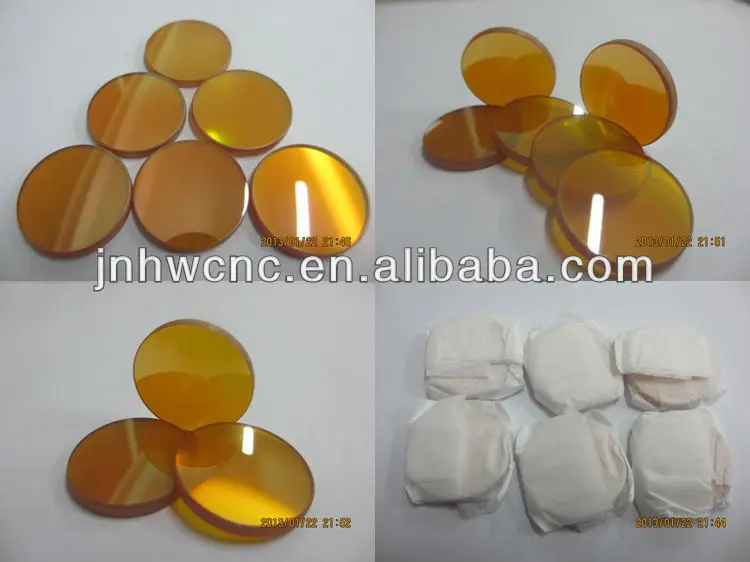

8.Imported metal mirrors, with good ability of reflection and focusing, long working life.

9.Automatic up and down table,the maximum up and down height can reach 350mm.

Parameter

Applications:

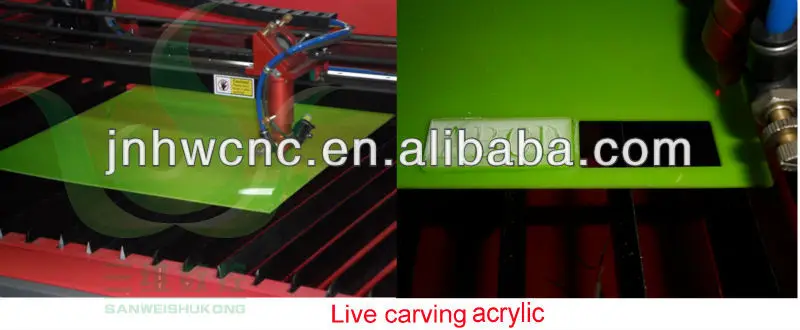

1.Advertising industry: large blister word cutting, organic glass engraving and cutting, engraving of double color board,scutcheon,crystal cup, authorize brand etc.

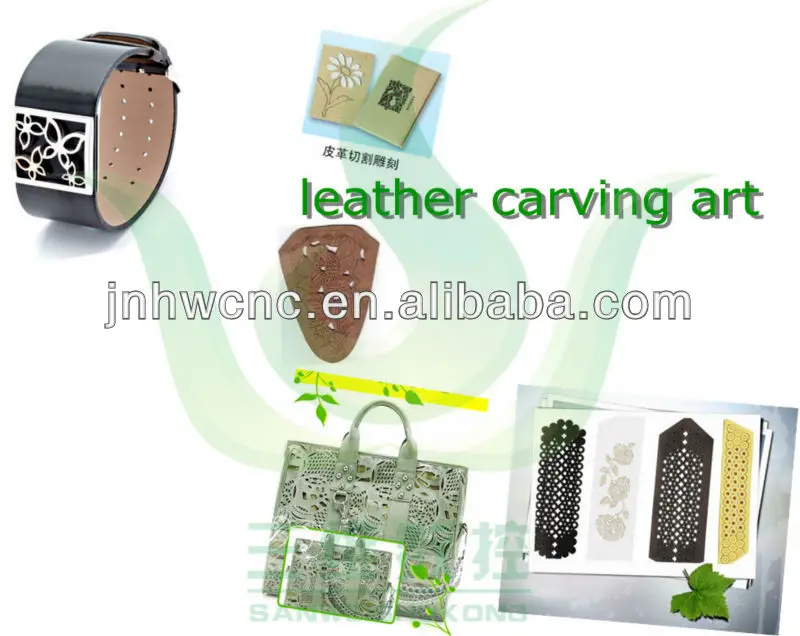

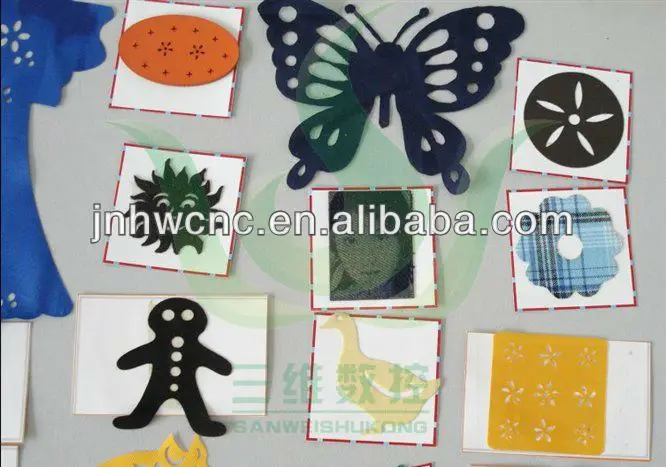

2.Leather and clothing industry: complex text and graphic engraving on leather,synthetic leather,leatheroid,cloth,fur and leather.Craft processing like cutting,carving patterns or designs on woodwork,hollowing out.Cutting of clothes,underware,home decoration,gloves,bags,shoes,hats,toys and other industries.

3.Art & Craft industry: engraving on marble, bone, bamboo craft, leather, shell, ivory and so on.

4.Model industry:cutting on architectural model, aviation and navigation model, and wooden toys.

5.Packing and printing industry: engraving and cutting of printing rubber plate, and cutting of sandwich plate and die board cutting.

6.Decoration industry: engraving and cutting on electric products and relevant materials.

7.The product labeling industry:Equipment nameplate,Anti-counterfeit marking ect.

8.Other industry: marble, granite, glass, crystal other decorative materials, carved markers, paper cutting, greeting cards other paper craft cutting.

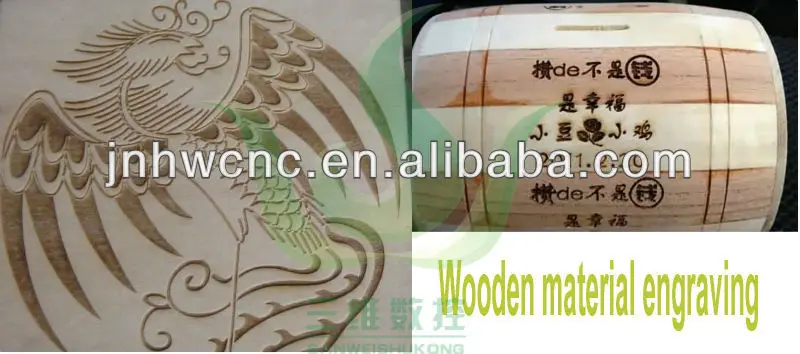

9.Applicable materials:Acrylic,wood planks(light planks,candlenut),bamboo ware,double color sheets,paper,leather, ox horns,resin,animal grease,ABS boards,lampshade, and other non-metal materials.

Optional parts

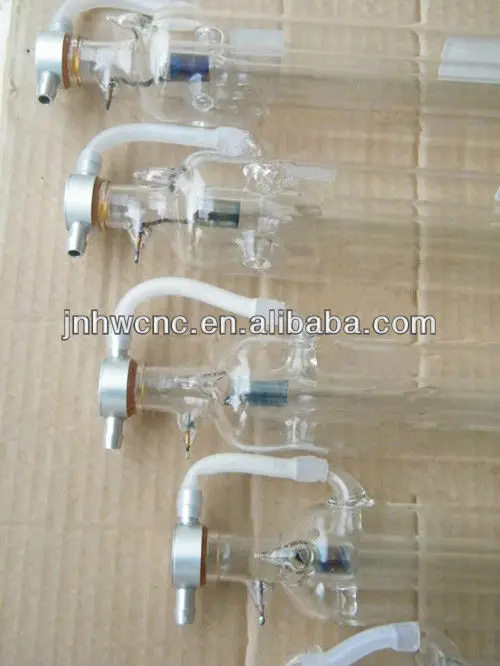

1.An extra laser tube (Laser tube is consumable, warranty is 8000 working hours.)

2.Motorized up and down platform(Cut or engrave more thick materials)

3.Rotary attachment (Cut or engrave cylindrical materials)

4.Leetro 6535 control card

5.Servo motor, imported from Japan

6.CW 3000/5000/5200 water chiller(Cooling performance better than water pump)

7.Auto-feeding device( For fabric, leather and more longer materials cut and engrave)

8.Auto-focus device

9.Water chiller

Standard accessories

Quality guarantee

1.Parts full testing

We carry out 100% quality check for our incoming parts,avoid any unconforming parts from entering into next step.

2.Laser tube testing

Every piece of laser tube and laser power supply are tested with power on-off status for at least 8 hours.

3.Mainboards and power supply testing

Aging testing for the mainboards and laser power supply in an oven at 50 degree centigrade for at least 4 hours.

4.Guide rail and guide supports testing

Adjust the flatness,distortion and straightness of the guide rail and the guide supports.Put the guide rail and the guide supports on marble table,and test with a dial indicator to make sure the tolerance is less than 0.05mm.

5.Transmitting parts testing

Check if the synchronous wheels and bearings are homocentric,turning flexibly,smoothly and the flopping error should be less than 0.02mm

6.Testing by autocollimator

The straightness,flatness and verticality of the guide rail are measured by Model 1401 two-dimensional precise autocollimator.

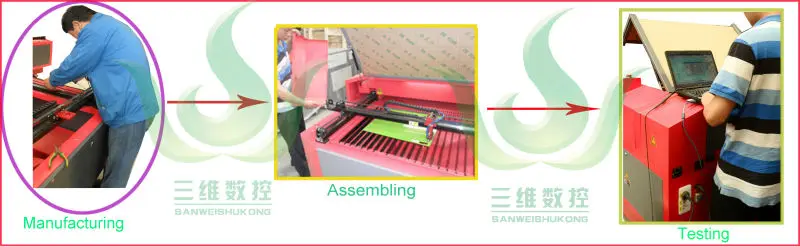

7.Production process control

Production inspectors’ round quality check in the manufacturing to control installation quality,mainly to check if the mechanical and electrical components,circuit are accordant with drawing requirements or not, and rectificate timely upon identifying problems.

8.Final testing before delivery

Each equipment is tested by cutting samples to check the uprightness and specifications before delivery,erro allowed is ±0.1mm.

Cutting circles of 2mm in diameter at the speed of 35mm/s distortion.
