4000BPH 4 полости Автоматическая выдувная машина до 2 литра ПЭТ бутылка Ханьюй

4000BPH 4 полости Автоматическая выдувная машина до 2 литра ПЭТ бутылка Ханьюй

Категория: >>>
Поставщик: ZHEJIANG HANYU AUTOMATION TECHNOLOGY CO. LTD

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Product Application

HY-4000 is the fastest liner blow molding machine in mainland of China by now. HY-4000 reaches around 4000BPH for 350ML bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.

HY-4000 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. HY-4000 consists of three main parts: preform loading system, Heater channel & blow station.

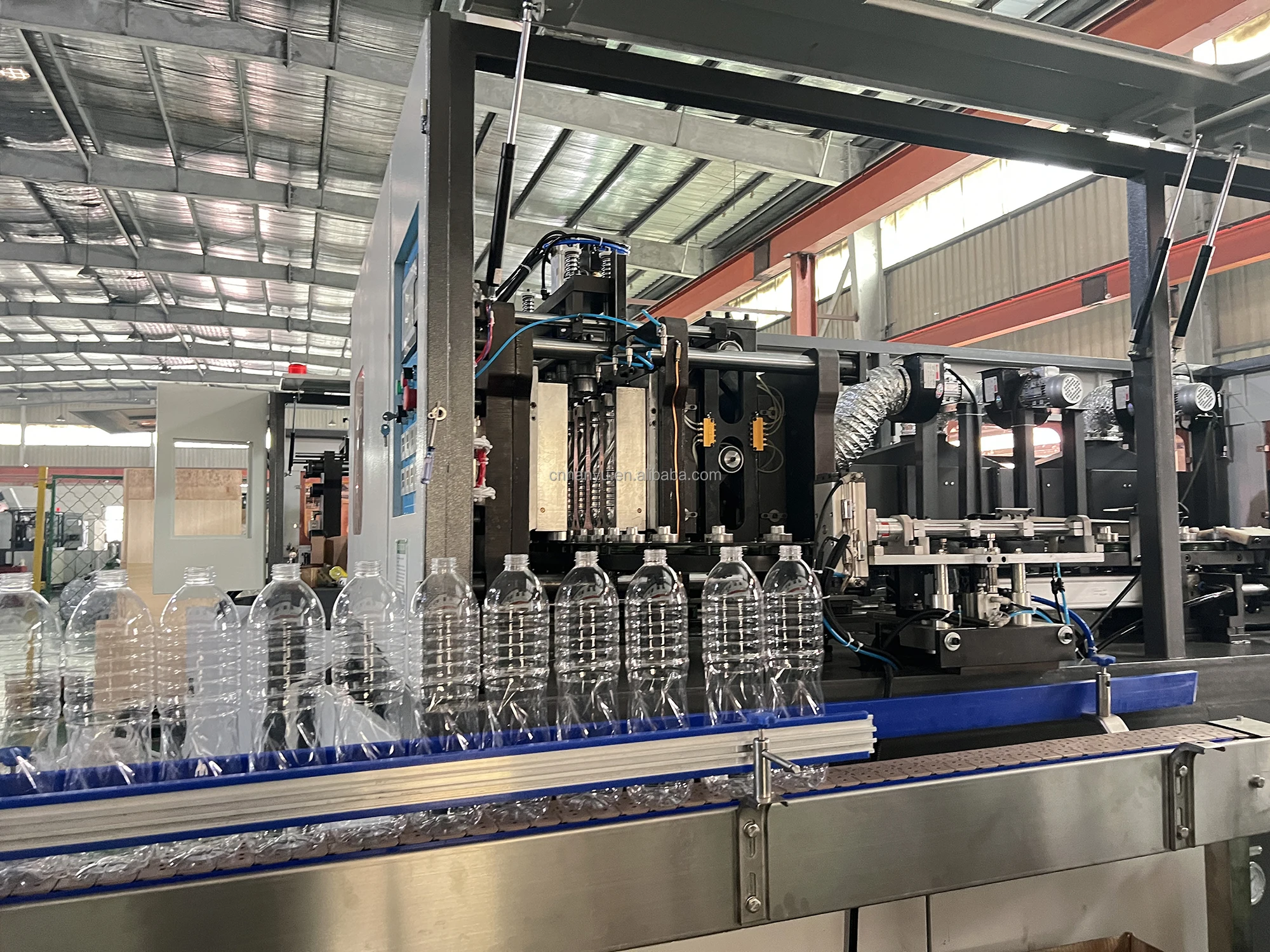

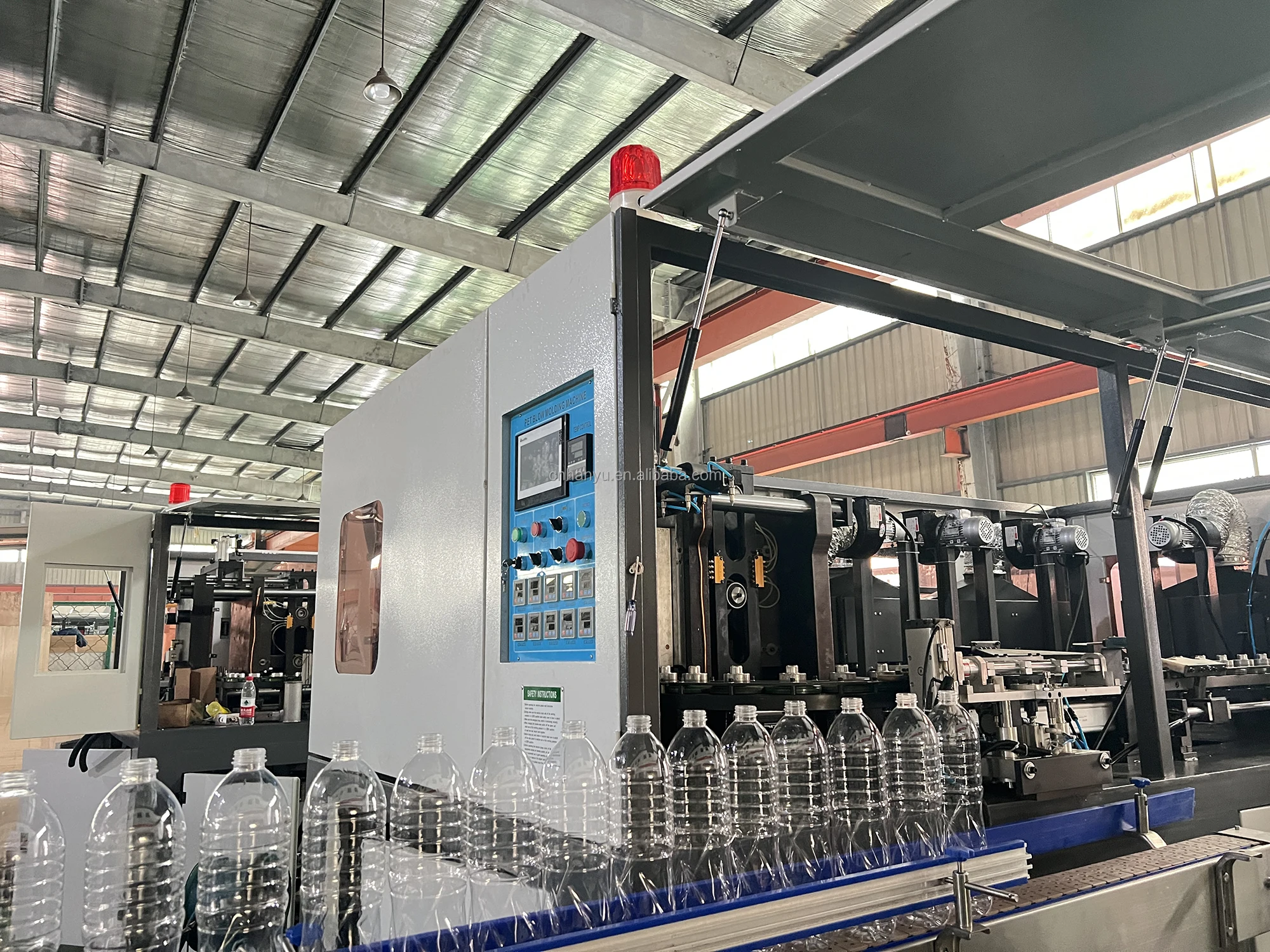

HY-4000 Fully-auto blow molding machine
CONTAINER	Max container volume	L	2
		Cavity		4
		Theoretical output	BPH	4000
ELECTRICAL	Heating power	KW	42
		Max heating power	KW	60
		Installed power	KW	64
COMPRESSEDAIR	Operating Power	MPA	0.7
		Air consuming	L/min	1400
		Blowing pressure	MPA	3.0
MACHINE	SIZE(LWH)	MM	360020002030
		Weight	KG	3500
		Clamping force	KN	400

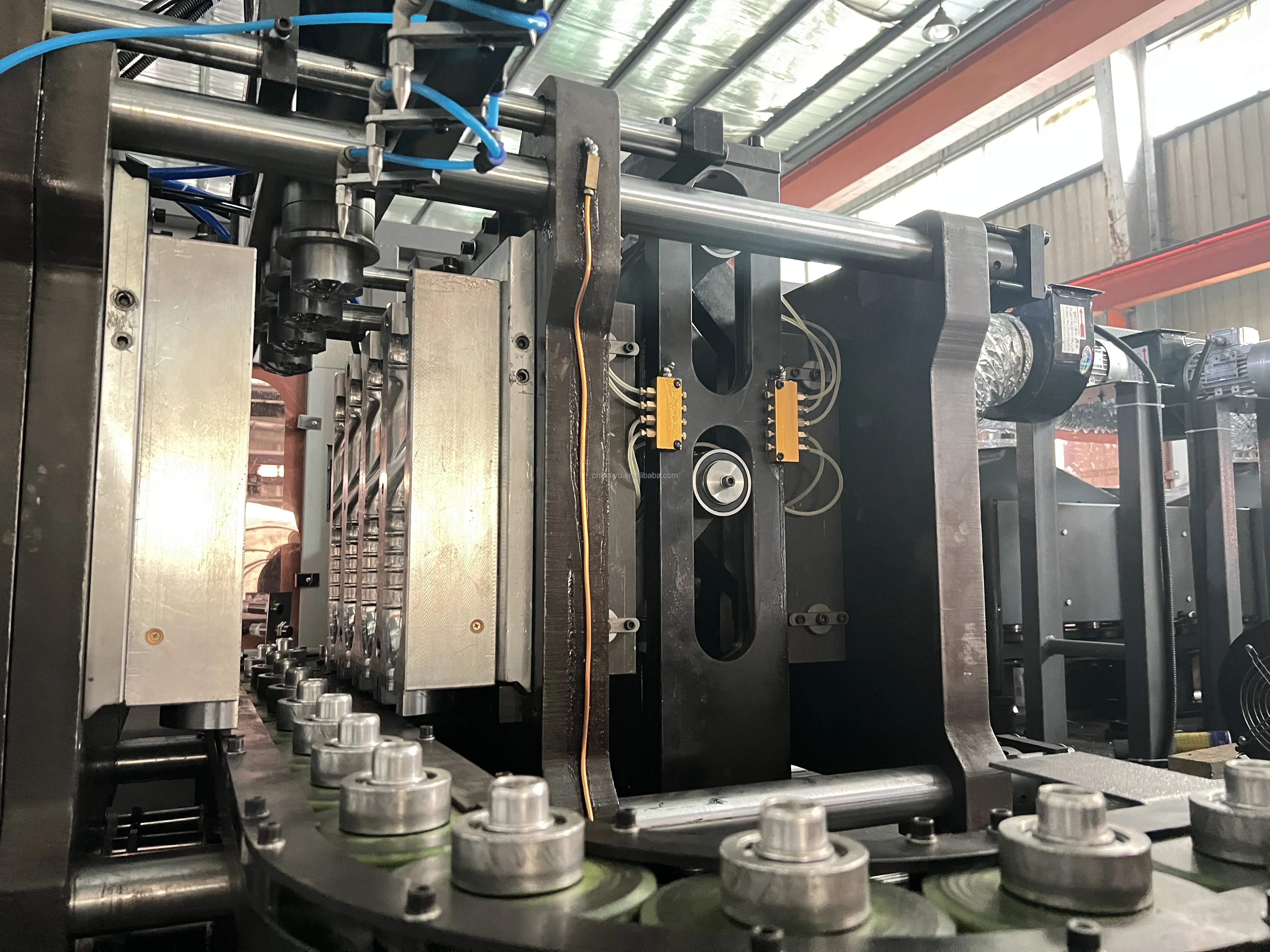

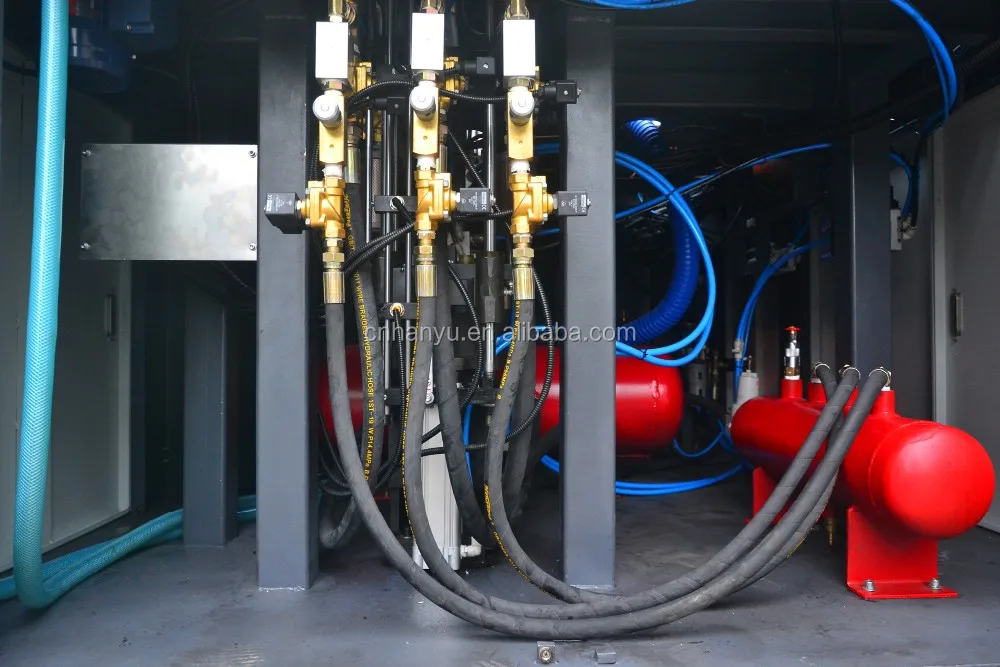

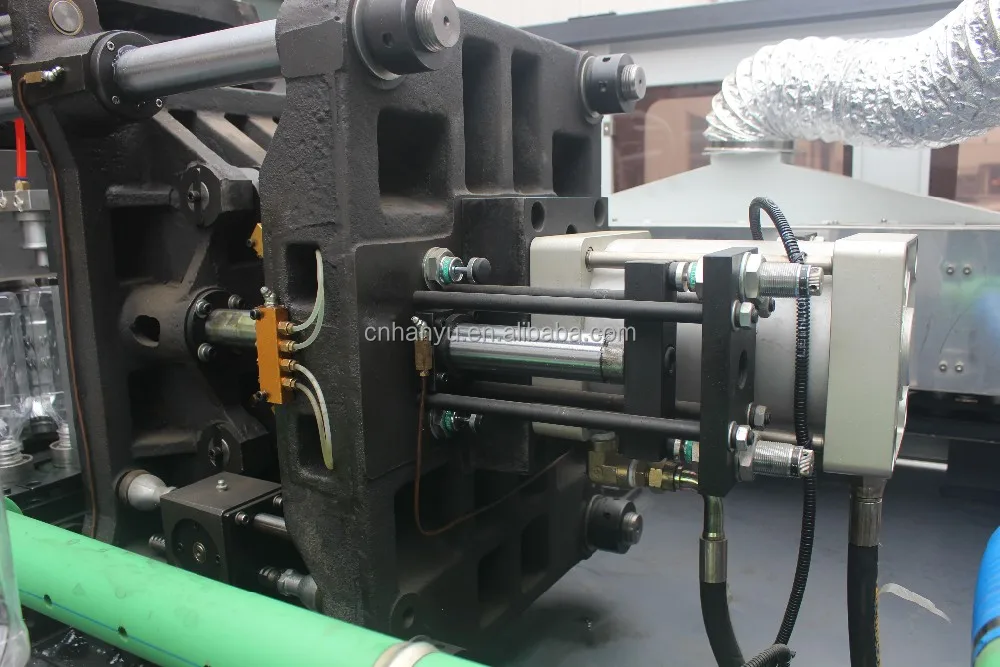

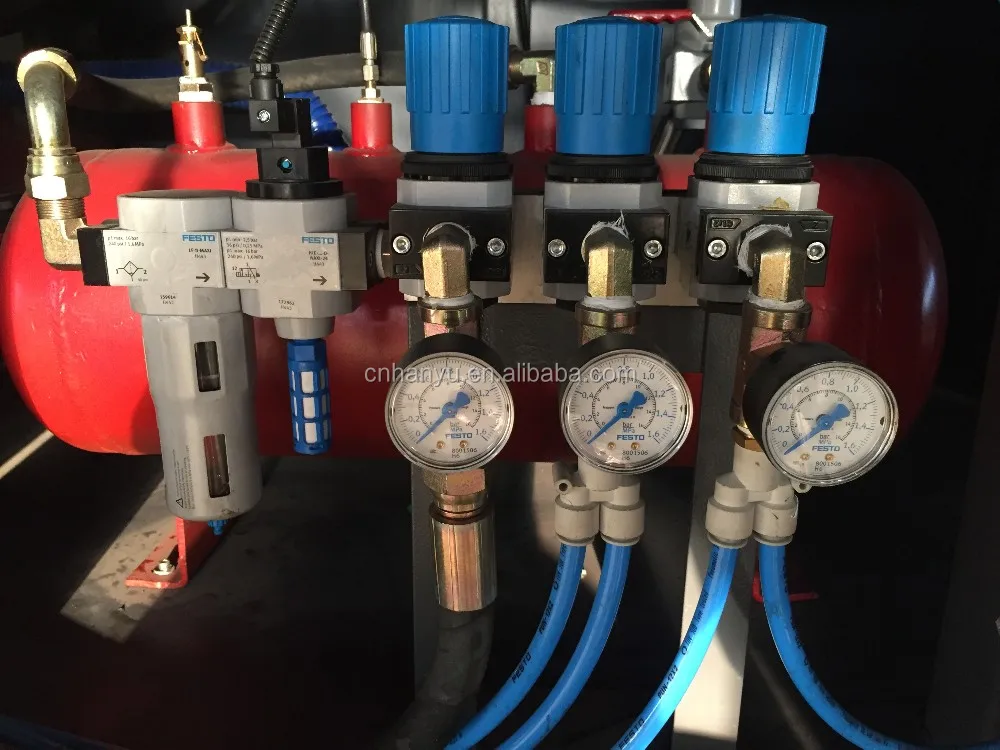

Detailed Images

Packing & Delivery

Packaging
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
