ZDW43J стальная листовая автоматическая машина для

Сохранить в закладки 907388532:


Цена:37 000,00 $ - 37 500,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


Machine Overview

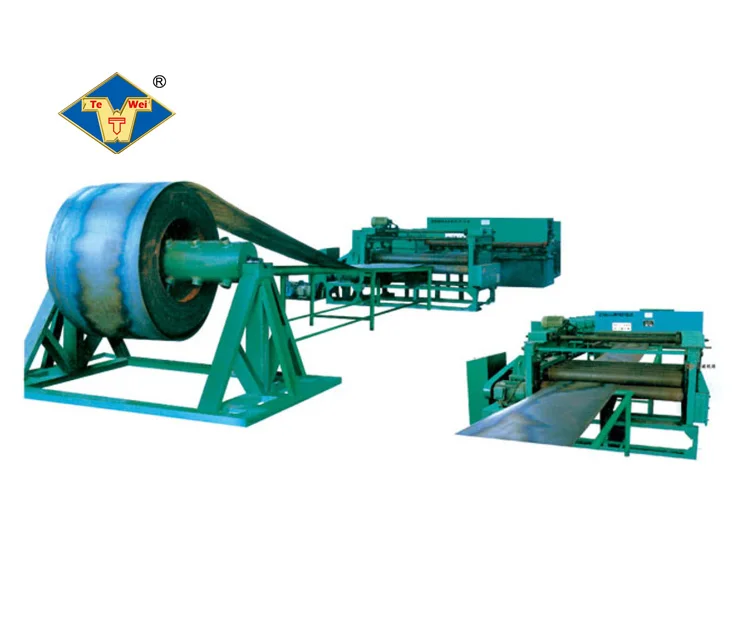

This Machine Used To Spread The Steel Coil, Leveling And Cut To The Request Size. After Manual Feed Into The Leveling Machine, As The Cutting Size, The Unit Will Finish The Leveling And Cutting Action.




Equipment Combination.
1).Decoiler---2).Side Guiding Unit---3).Leveling Machine---4).Cutting Machine---5).Stack Table---6).Electric System




Specification


SN
Name

Note
1
Coil Thickness

2~6MM
2
Max Processed Width

1800MM
3
Materials

Q235-A ΣB≤450MPA
4
Coil Weight

≤25000KG
5
Coil Diameters

Ø800~Ø1800MM
6
Plate Open Speed

125MM/S


7
Motor
Model
Y200l2-6


Power
22KW


Rev.
960R/MIN
8
Leveling Accuracy

≥2MM/M²
9
Machine Weight

13000KG


Spare Parts Suppliers


SN
Name
Spec.
Qty
Supplier
1
Reducer
50
1set
TAIXING
2
Main Motor
30 KW
1set
SIEMENS BADE
3
Adjustable Motor
3 KW
1set
SIEMENS BADE
4
Coil Motor
4 KW
1set
SIEMENS BADE
5
Shear Motor
5.5 KW
1set
SIEMENS BADE
6
Shear Blade
2032 MM
1set
SHANGHAI
7
Bearing
Full Set
1set
HAERBING
8
Electric Components

1set
SCHNEIDER


Certifications


1. Product design, manufacture, sales and service are in strict accordance with the standards of ISO9000 quality system.
2. Quality has Three Guarantees for one year and will provide spare parts and maintenance services for lifelong time.
3. Providing free training on buyer's operators and ensure they can handle the machine. Also we will be responsible for the
installation and commissioning.
4. When equipment arrives to the demander, do a good job of after sales service. Reply in 6 hours and get to the site within three working days.




Packing & Delivery




Company Profile


Established in 1992, Jiangsu Tewei Machine Tool Manufacturing Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of the whole set of pole production line. We are located in Yangzhou City Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different marks throughout the world.
We have over 120 employees, boast an annual sales figure that exceeds USD 17million and currently export 1:4 of our production worldwide. Our well-quipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching
Indonesia, Turkey, Russia, Australia, Vietnam, Kazakhstan, India etc.
If you are interested, please feel free to contact us.




FAQ


Q: Are you a factory or trading company ?
A: We are a factory with export licence.

Q: Where is your factory located ? How can I visit your company ?
A: In Yangzhou City, Jiangsu Province, China. There is airport in our city, about half an hour's drive. And our factory is near
Nanjing and Shanghai. Transportation is very convenient.

Q: If I want to start a light pole factory, can I get a whole machine line from you ?
A: Yes, we can make the whole light pole production line.

Q: What is your machine price level ?
A: Price is reasonable with good quality.

Q: What is your machine warranty ?
A: One year.

Q: Is engineer available to provide service abroad ?
A: Yes, we will provide installation and commissioning, also training.
