Product Description

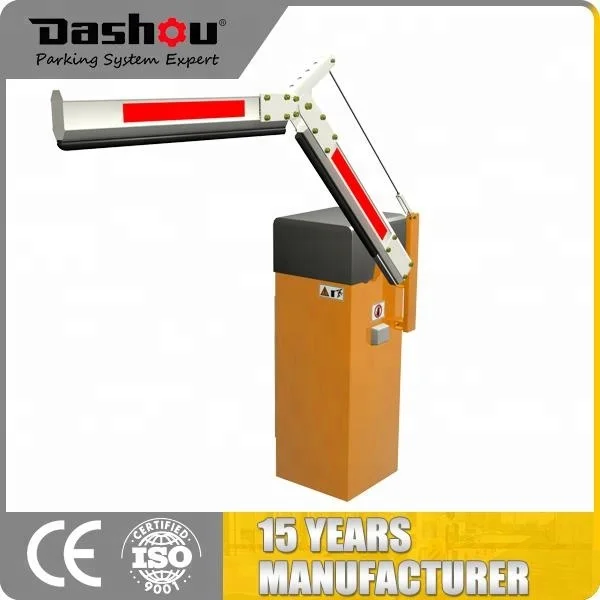

Cost Effective Chinese Max. 6m Arm Barrier For Car Park
This Car Parking Barrier provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping mall, exhibition center, hospital, airport etc.
1) Opening/closing time: 0.9~6 sec. adjustable
2) Max. 6m straight arm
Max. 5m folding arm

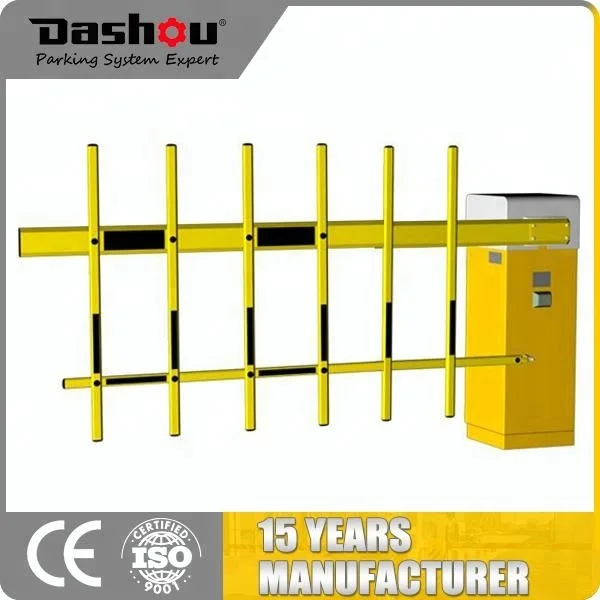

Max. 4.5m fence arm
3) Inclusive of arm, 2 remoter, air switch & push button
4) Exclusive of LED light bar, boom bracket and swing-off
5) Optional housing color: yellow or customized
6) Easily change different boom type (straight/crank/fence)
7) Boom direction is exchangeable
8) Price shown in this product for model PAB-BD-NSN only
Control Barrier On Smartphone (Optional)
Control the barrier on your smartphone via WIFI, also program the barrier on your smartphone such as opening/closing time setting. Dashou App should be installed in your smartphone, and Dashou WIFI module should be installed in barrier controller
TCP-IP Port for Easy Integration (Optional)
The barrier provides optional TCP-IP RJ45 port, which can integrate the barrier with your own system conveniently, so you can control the barrier by your own system. Dashou Ethernet module should be installed in the barrier controller, and communication protocol will be provided by Dashou
Free-maintenance DC Brushless Motor
10 million cycles MTBF & 100% duty cycle
10 million cycles MTBF & 100% duty cycle
Free-maintenance DC24V brushless servo torque motor ensures 10 million cycles MTBF long life span; 100% duty cycle makes barrier continuously work at 24*7 hours; Max. 50W super low consumption makes barrier environment friendly but outputs super strong torque
Manually Control When Power Is Off
If power supply is off, you can manually open/close the barrier gate by the black lever. Also boom can be manually locked in any position between horizontal and vertical by this level. Warning: Not allowed to use the function when power on, may hurt your hand and damage the motor.
Automatically Check Status & Report Error
Barrier system will automatically check its operation status and show errors code on its LED tube if a error occurred. This helps you quickly find out problem and find solution.
Boom Auto-reverse On Obstacle
While moving down, boom will automatically reverse immediately once it is obstructed by vehicle or pedestrian, which protects the vehicle or person. The sensitivity is adjustable.
LED Illumination Makes Boom Visible
LED Illumination bar can be installed onto boom to make boom visible in the night, so that drivers can view barrier and boom clearly. Also LED decorates barrier gate.
Backup Solar Panel or Lead-acid Cell
DC motor barrier can be powered by solar panel or lead-acid cell for back up power supply. Especially solar power is environment friendly which is good for earth.
56 Hours Aging Test Ensures Quality
All barriers will be executed aging test for 56 hours, automatically open and close without hanging boom every 10 sec. The qualified barriers will be moved to warehouse for keeping stock. If an order is coming, just hang boom to barrier and keep testing before delivery. This ensure both good quality and fast lead time.
Boom Swing-off Protects Boom & Vehicle
Boom will swing off 90 degree if it was hit by a vehicle, this is to protect both vehicle and boom. It is optional. You can easily add swing-off module to a barrier without swing-off.
Boom Direction Is Exchangeable
Without Replacing Any Part
In the past you have to keep stock for barriers with different boom direction as different sites may require different boom direction. But now boom arm direction can be exchanged easily at site without replacing any parts
More Features
2. Different types of boom can be changed without replacing any parts
3. Variable frequency controller automatically optimizes boom moving, ensures smooth moving without shake
4. Boom automatically open up fully in case of power failure (Optional)
5. Boom will be automatically locked when power is off (Can not work together with function 5 at the same time)
6. Safety for Vehicle--- Anti-hit by Loop Detector (Optional)
7. Safety for Vehicle--- Anti-hit by IR photocell (Optional)
8. Safety for Vehicle--- Anti-hit by "Opening Priority"
9. Automatically close in given time (Programmable)
10. Automatically close or open by loop detector (Optional)
11. Disable/enable function of “Alway-open Mode of remoter” on controller
12. Disable/enable function of “Memory of Repeated Opening”
13. Anti-condensation in cold climate
14. Simplified design, easy installation and maintenance reduces your labor cost
Specifications
Open/close time | 0.9~6 sec. adjustable |
Boom Arm | Max. 6mtr 45×100mm Aluminum alloy Octagonal boom Max. 3m round boom |
Power Supply | AC 220/110V±10%,50/60HZ |
Motor | 50W DC24V brushless servo torque motor |
Duty Cycle | 100% |
MTBF (Meantime before failuare) | 10 Million Cycles |
Controller | 80C51 MCU, 20MHz, PWM variable frequency servo controller board |
Remote distance | 20~50mtr. |
RS 485 interface | 9600bps, ASCII decimal encoded(optional) |
Housing material | 2mm cold-roller sheet |
Housing Painting | Powder coating, 10 years without rust,shedding and fading |
IP level | IP 54 |
Housing size (H*W*D) | 950mm×320mm×329mm |
Package size | 1100mm×480mm×430mm |
G.W | 46KG |
Operating temperature | -40°c -75°c |
Humidity | 10%-95% |
Contact us for Catalogue and pricelist of PAB-BD Beyond covers all models with different boom shape, boom length
(Max.6m) and opening/closing time (0.3~6 sec.).
PAB-E Economic barrier also be your economic choice.
Recommended Hot Sale Models
5 Million Cycles High Intensive
Intelligent Barrier Gate
Hot Sale Automatic Ticket Dispensing
Car Parking System
100% Accuracy Ultrasonic Sensor
Parking Guidance System
Waterproof Heavy Duty Remote Control
Car Parking lock
Company Profile
Xiamen Dashou Technology Ltd.
A leading manufacturer and solution provider for Vehicle Access Control System including Parking Management System, Parking Guidance System, Barrier Gate and Parking Lock with 20 years history.
The 5,000 sqm factory and office is equipped well with modern facilities and 100 skilled employees. We have passed the ISO9001:2015 quality management system. With strong R&D, new products are launched every quarter, and customization is available in a short time.

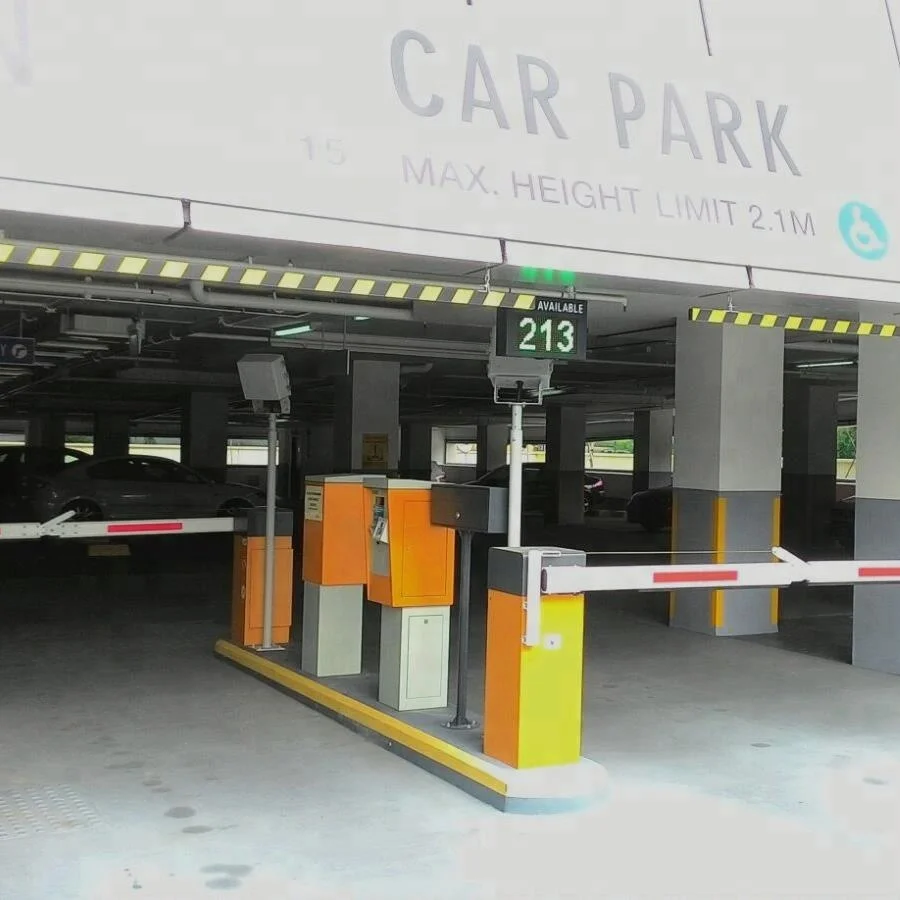

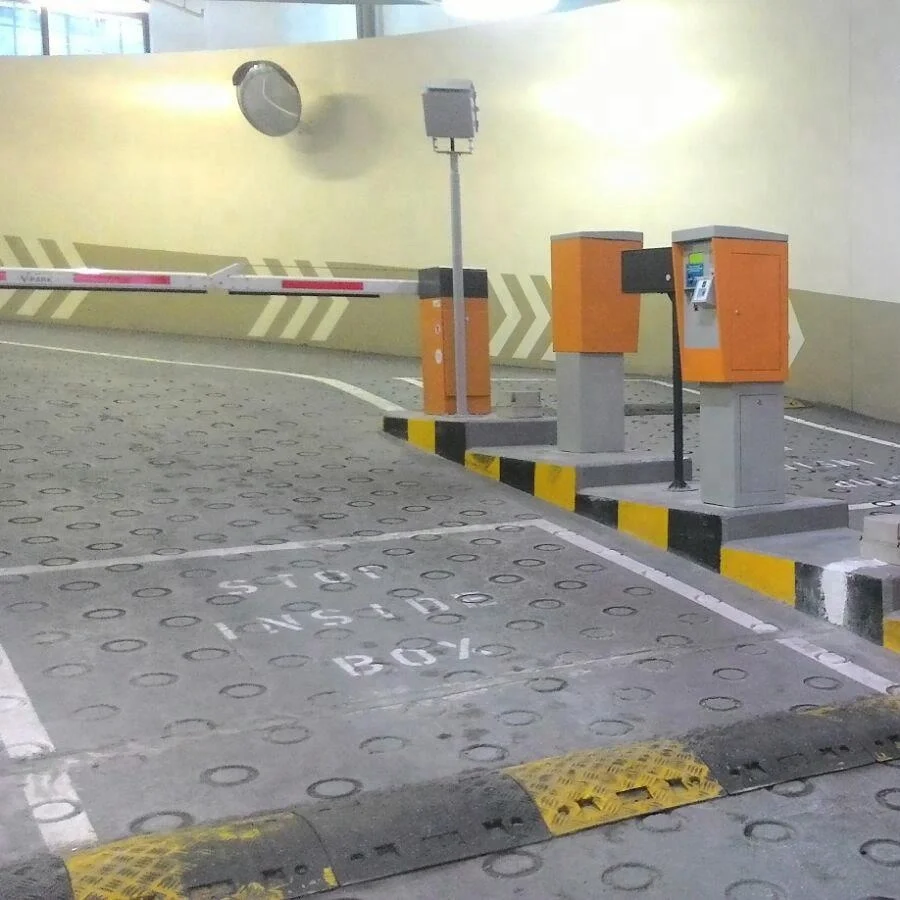

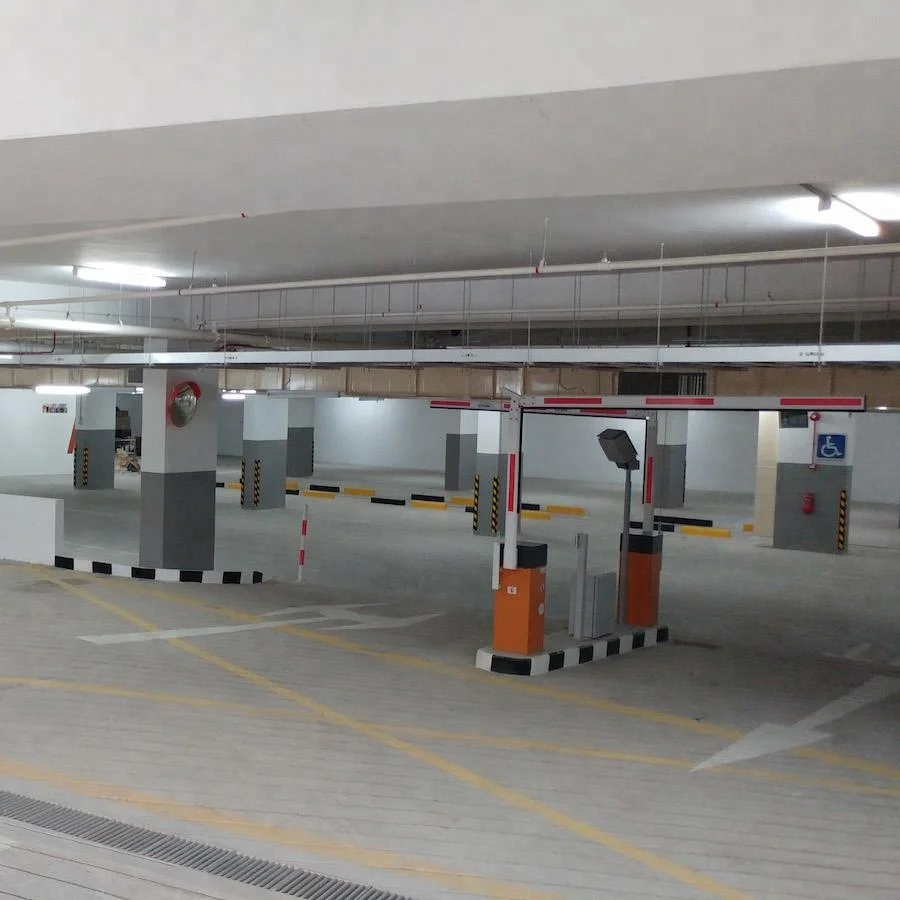

Worldwide Projects
Certifications
Exhibition & Clients
Terms & Conditions
1. Warranty: 1 year
2. Certificates: CE
3. MOQ: 1 set
4. OEM: Available
5. Lead time : 3~5 working days against payment
