SAIJIN Facility



Wenzhou SAIJIN 's autostaking operation houses high speed high precision stamping presses, which produce in-die staked terminals, springs, and other electrical contact assemblies. In the in-die staking process, bimetal or solid contact rivets feed from a feeder system into the progressive stamping die. The stamping die then stakes the rivet into place and simultaneously produces the completed part.

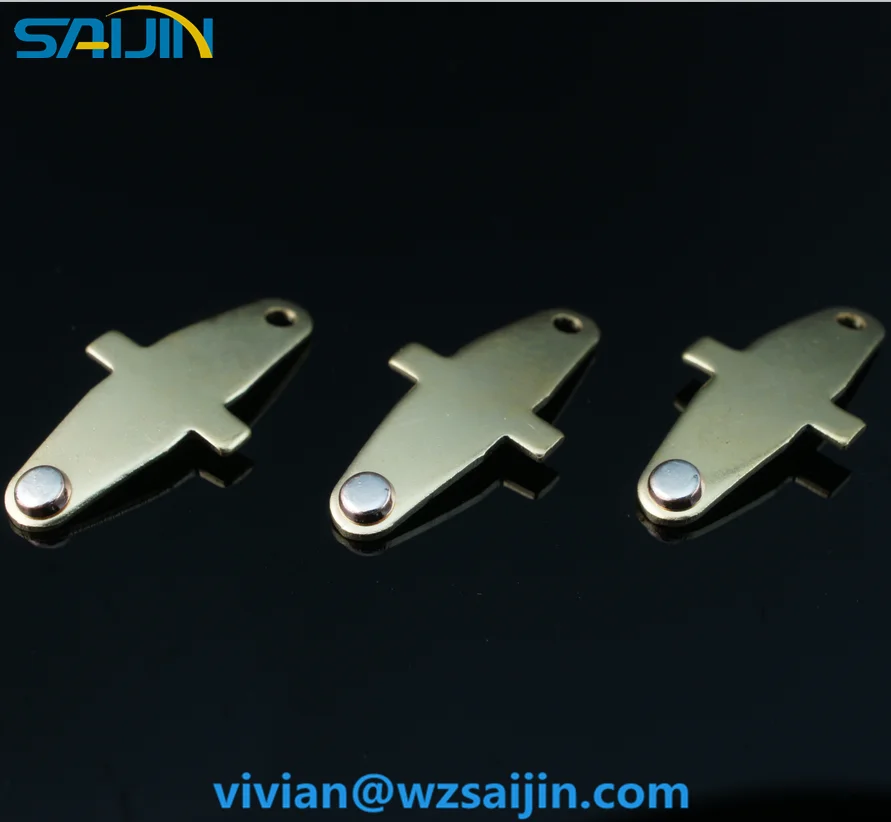

Autostaked parts



Autostaked parts are more consistent in quality than semiautomatic or hand staked parts. And autostaking production rates are thousands of parts per hour, which makes it a cost-effective assembly technology.

We make our own bimetal and solid cold headed electrical contact rivets in our SAIJIN factory ,  cold forming facility.

We have full die design and toolroom departments.



In our autostaking operation in SAIJIN, China, we have complete toolroom. We design and make our own dies and spares. All of our autostaking tools are "Class A" dies, designed for high precision stamping, so they will run consistently for millions of parts.

For lower production volumes or for prototyping, we offer low volume hand or semiautomatic production. In these cases, the dies are less expensive than the high speed automation dies.

Our production is controlled and supported by our quality system, which is certified to ISO9001: 2008, and is compliant with the automotive specific clauses of TS 16949 including PPAP, APQP, and FMEA.

We can help with part design.

  A client in the appliance industry approached Wenzhou Saijin Electrical Alloy Co,for the manufacturing of a brass staked assembly. Using the customer supplied drawings we were to manufacture the assembly, which was to be used within an appliance safety switch.

The manufacturing processes included auto staking, cold heading, and progressive die metal stamping. Equipment used in the process included a bimetal machine-composite contact and a 45 ton punch press.

The assembly was made using CDA 260 brass, the contact was composed of; 90% silver and 10% cadmium oxide on copper.

Upon completion of manufacturing, we performed contact torque and full dimensional testing. The client was extremely satisfied with all aspects of service and production, and we were commissioned to supply them with 1 to 1.5 million units per order of this brass staked assembly.

To learn more about this project, or for more information on our other products and services, please contact  VIVIAN(vivian(at)wzsaijin.com).

 Trade terms
1) Payment: T/T,L/C, western Union or Paypal

2) Delivery: 3-7 work days for sample, 12-15 work  days for products

3) Port: Wenzhou/Ningbo/Shenzhen

4) Logo/shipping marks: According to your requirement

5) Packaging: inner with plastic bag, external with carton. or as per customers requirement.

6) Shipping: By Express (EMS, DHL, UPS, ARAMEX), By Air or By Sea

Way of Testing   Rocker riveted brass parts Size:

Specification:

1.Certification: ISO9001, SGS, RoHS

2.Material: Brass ,Stainless steel  etc

3.Type: riveting parts, stamping parts

Characteristic:

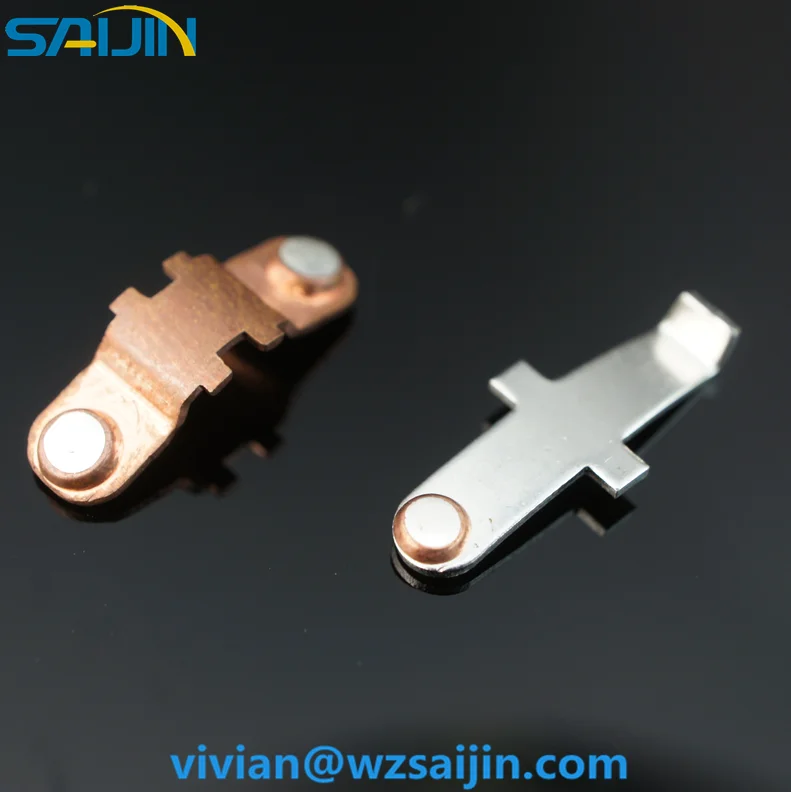

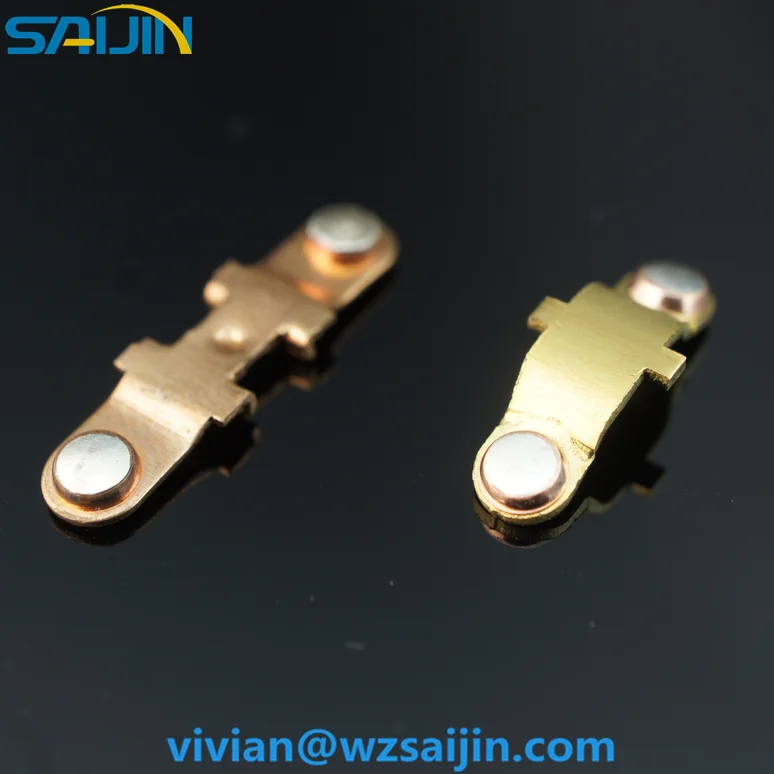

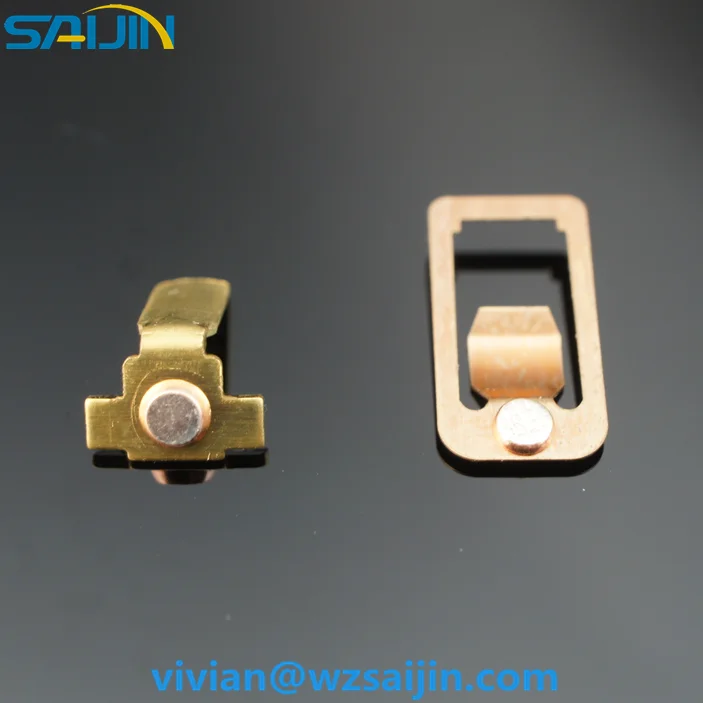

There are mainly three kinds of Contact spring :

(1) Riveting Parts: contact is riveted on copper component

(2) Welding Parts: sheet contact is welded on copper component

(3) Stamping Parts: precious clad metal is stamped into contact bridge component

Application:

Contact Components are widely used in low voltage electrical appliances and households, such as Switch Sockey, Relay, Thermal Controller Circuit Breaker Contactor Controller Timer, etc.

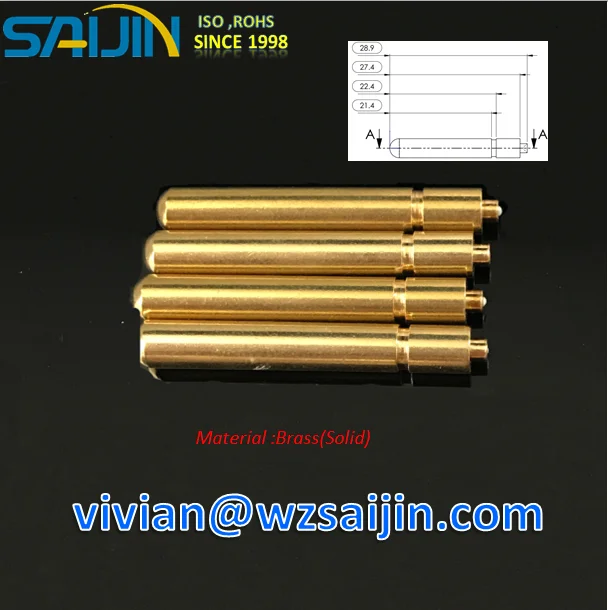

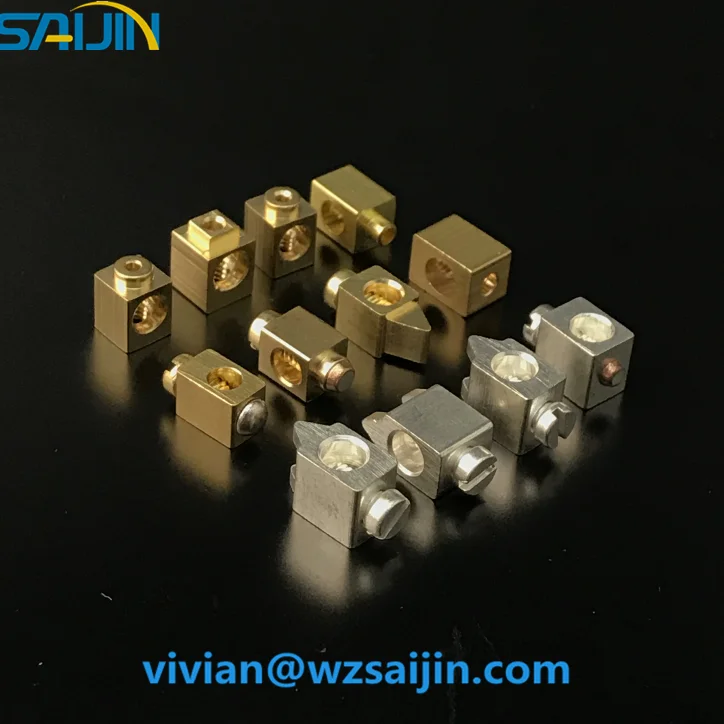

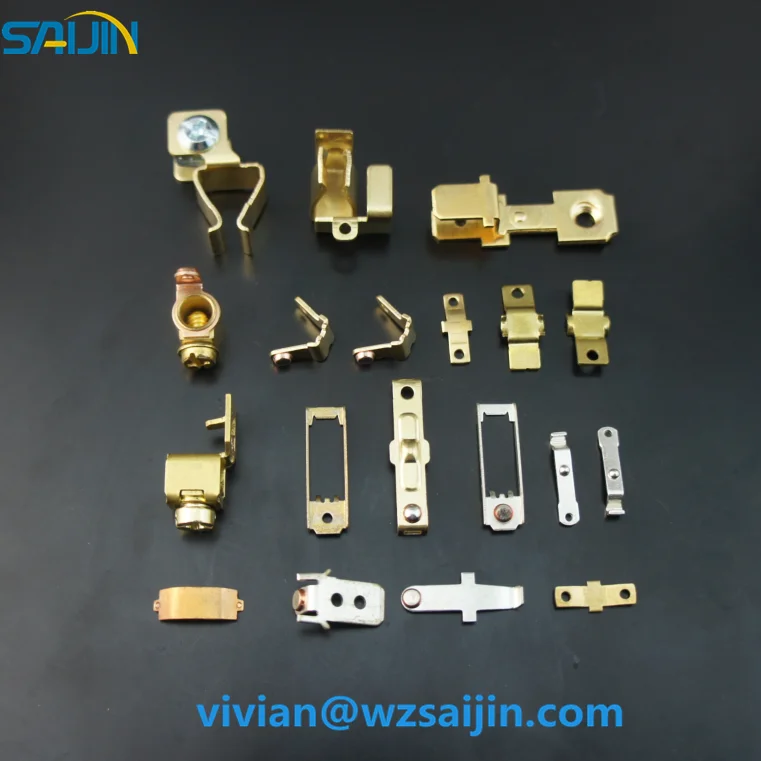

Our other parts:

Package:

Inner package: vacuum, Outer package: carton ,Then put into pallet

Customer design are welcome!

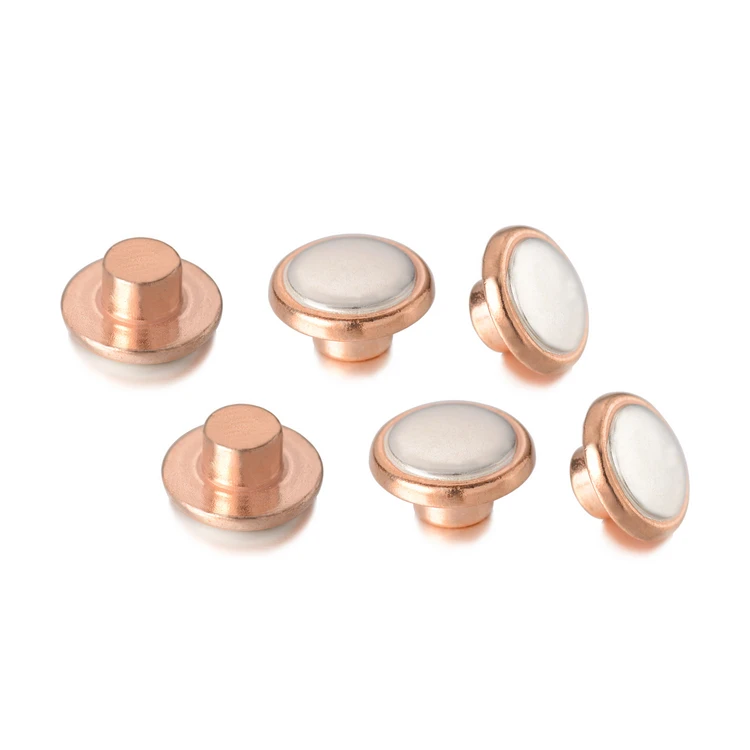

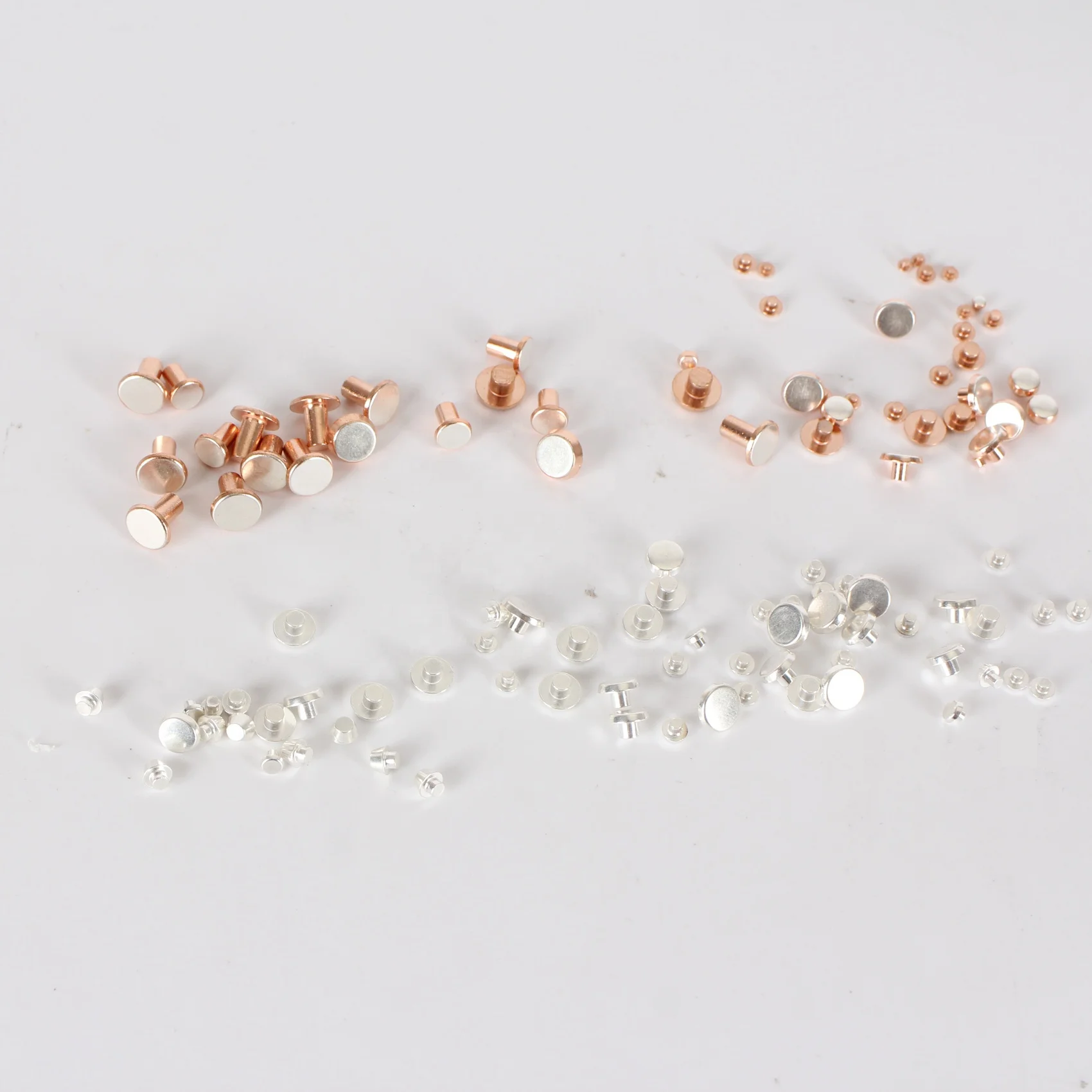

Wenzhou Saijin Electrical Alloy Co., Ltd has our own manufacturing base to supply series of Electrical contact rivets: such as solid contact rivet, bimetal rivet, tri-metal rivets and other special contact.

1.Certification: ISO9001, SGS,RoHS,VDE

2.Place of origin: Wenzhou,China(mainland)

3.Specification: All dimensions are fully according to customers requirements.
