Product Description

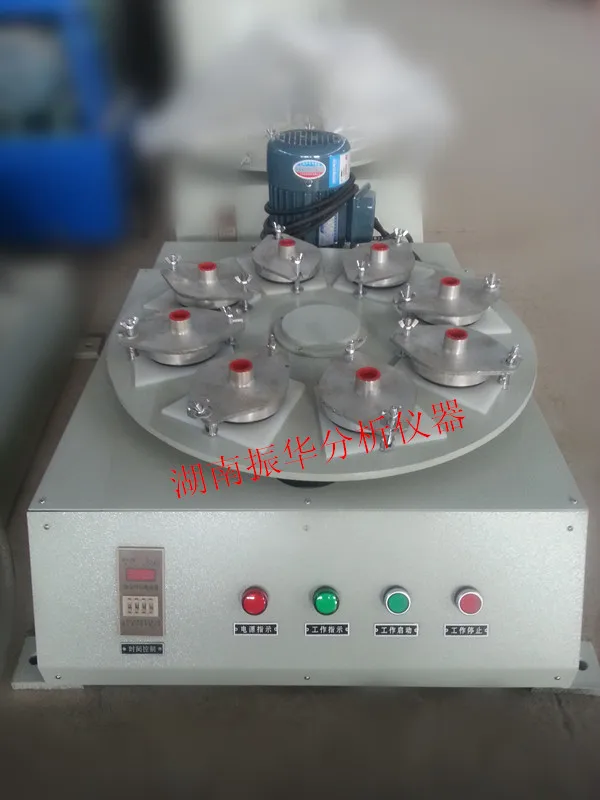

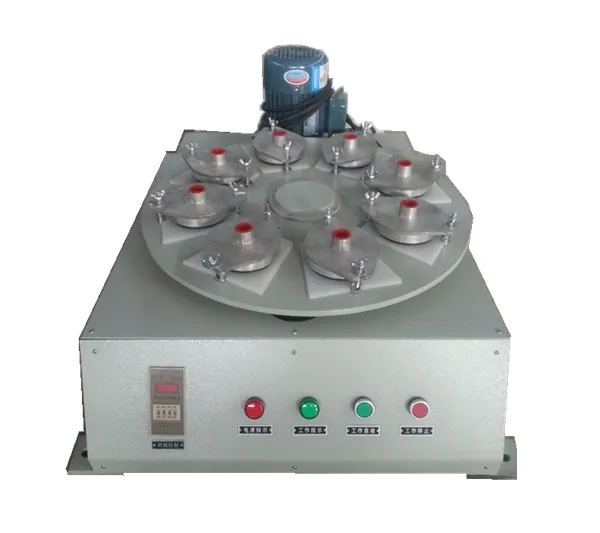

LM-8 Ceramic glazed tiles surface abrasion tester

This instrument is designed totally in line with the standard of ISO/DIS 10545/7-1994 determination of resistance to surface abrasion for glazed tiles test and GB/T3810.7-2006 ceramic glazed tiles abrasive resistance test method. Put a certain amount of abrasive materials on the surface of ceramic tiles glazes, make the abrasive materials grinding on the glazed tiles, eye measure and compare the difference of grinded sample glaze classification.

Wear visible trace degree(revs)	class
100	0
150	1
600	2
750,1500	3
2100,6000,120000	4
>120000and passed ISO 10545-14 pollution resistant determination	5

It applies to nationwide glazed ceramic tiles products manufacturing enterprises, The national quality inspection department, research institutions inspection and scientific research.

Main technical parameters:

1. sample size: 100*100(mm); can conduct 8 samples' abrasive test at a time

2. centre distance between supporting turnplate and each sample is 195mm, and the distance between adjacent two sample are the same

3. supporting turnplate rated revolution: 300±10%rp/min

4. eccentricity: e =22.5(mm)

5. metal fixture with rubber seal inner diameterΦ83, fixture inner space height is 25.5(mm), offered test area is 54(mm)²

6. motor power: 1.1kw

7. power supply: 380V±10%, 50HZ±10%(three-phase four wire)

8. provide abrasive materials each piece of sample required as the following table

Abrasive materials	specification	Quality(g)
Steel ball	5mm	70.00±0.50
Steel ball	3mm	52.50±0.50
Steel ball	2mm	43.75±0.10
Steel ball	1mm	8.75±0.10
F80 White corundum abrasive	1kg

Main Product

Thermal analysis instrument

Ceramic tile testing equipment

Glass testing instrument

Thermal conductivity instrument

Packaging & Shipping

1 Delivery date: 5days

2.Payment terms: TT 100% in advance.

3.Package: standard exporting plywood case.

shipping

Our Services

Contract execution

² Machine production will be arranged strictly according to the contract;

² Machine photos will be sent to you for inspection during production;

² Send customs clearance documents by DHL;

² Update latest news after delivery and prepare customs clearance;

After-sale service

² 12 months warranty except for wear parts;

² Broken spare parts (except for wear parts) will be sent for free due to quality problems;

² In time response to customers technical problems;

² New products update for customers' reference
