YTO-X1254 Tractor with Cabin





1. Why choose us?


FOTMA is the leading and professional supplier in China for 16hp-440hp tractors and various kinds of agricultural implements!
FOTMA has over than 17 years experience with tractors and agricultural machine!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 13 year Gold Member at Made In China!
FOTMA is 15 year Gold Member at Alibaba!

2. Product description
The YTO X704 tractor is developed on the basis of the Italian wheeled tractor chassis technology, adopting the British technology-based engine. The machine body has a streamline configuration. The tractor has a low fuel consumption and a desirable power economic efficiency. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate.

As one of the leading Chinese agricultural machinery brand, YTO tractors cover 17~200 horsepower wheeled tractors and 70~150 horsepower crawler tractors as well as their farm implements. In addition, it also produces harvest machinery of various models and types which are used for wheat, rice, corn, etc. It provides complete sets of equipment which are used for plowing, seeding, harvesting and field management. Its marketing and service networks cover various places of China, and moreover, it has established factories, plants, field offices, sales and service agencies in Asia, Europe, Africa, North America, South America and Australia, etc.

YTO Tractor was first built in 1955 and as the birthplace of the first tractor of China in 1958, was called to be the Kingdom of Tractors. After continuous efforts by several generations of staff for more than fifty years, it has now developed into a modern enterprise which can be able to provide series of agricultural machinery, construction machinery, power machinery, vehicle and spare parts & components. YTO brand was awarded as the Famous Brand of China by China Administration for Industry and Commerce in 1999, and won the prize of "China Top Brand" in 2006. In 2005, the sales volume of tractors is up to 164, 000, taking the first place in the same industry; The sales volume of farming construction machinery taking the first place in the same industry with 5480; 75, 000 diesel engines, being the first in off-road diesel engine industry; And the road roller takes the second place with the sales volume of 2050 rollers.

3. Features
1. It is equipped with wet disc brakes, ensuring desirable braking performance and high reliability.
2. It adopts the planetary end transmission and double action clutches.
3. It is applicable to paddy fields and dry farmlands.
4. It adopts the engagement sleeve gear shifting and force and position combined regulation.
5. It is large in wheel span and axle base, heavy in dead load, and desirable in chassis stability.
6. It is equipped with safety anti-toppling shelf for optional assemblage.

4. Technical parameters














































































































Engine



Emission stage



Euro IIIA



Type model



Perkins 1104D-E44TA



Features



4-cyl,in-line,water-cooled,turbo-charged,air-air intercooler



Rated power



92/125 KW/PS



Displacement



4400 cc



Rated speed



2400 r/min



Transmission System



Gears(Forward/Reverse)



12F+4R



clutch



12-inch,dry,double-action,independent control



Range of speed(F/R)



2.34~30.55/5.04~14.27 km/h



Overall Dimension



LXWXH



5000X2330X2960 mm



Min operable mass



4600kg



Min ground clearance



465mm



Machine body



Wheelbase



2688.5mm



Front/rear tread



1822~2153/1662~2262mm



Standard tire size



14.9-26/18.4-38 inch



Steering radius



7.0m



Gear pump output capacity



50min



Lifting force(taken 610mm behind the lower suspension point)



28kN



Tilling depth control method



Integrated draft and position control and float control



Rated PTO revolution speed



540/1000 r/min



PTO power



79.5/108kw/ps



Rated traction force



26KN



Electrical system voltage



12V

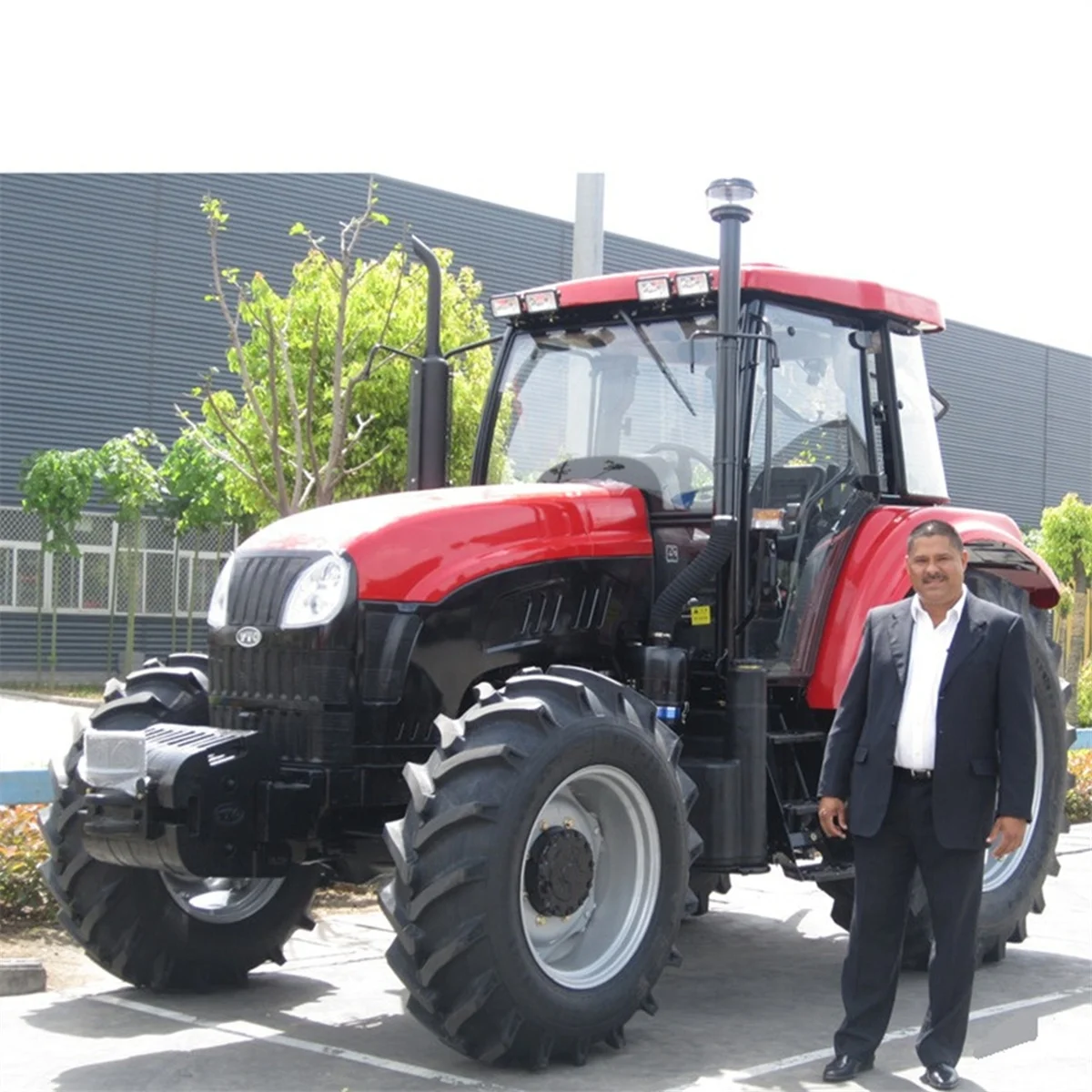

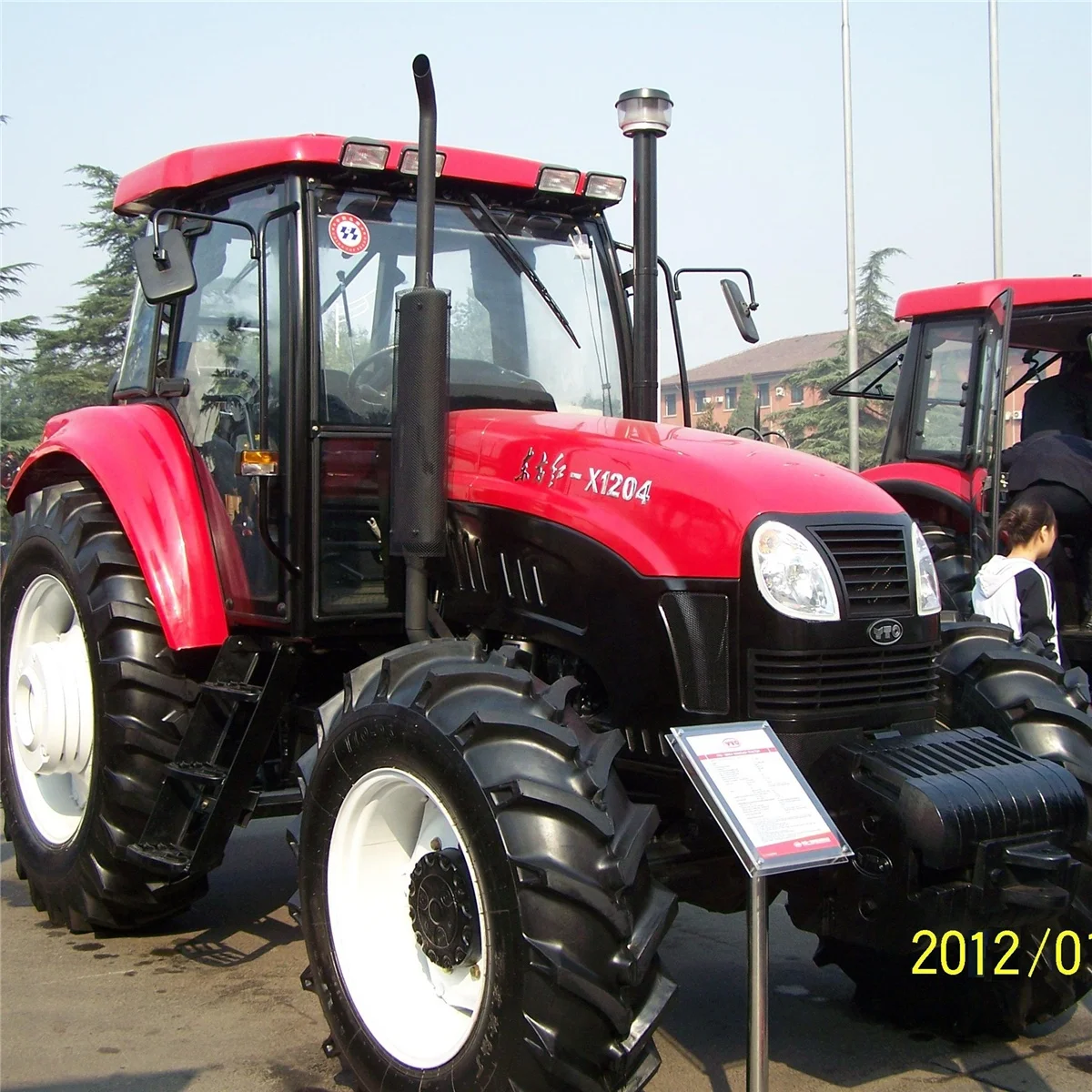

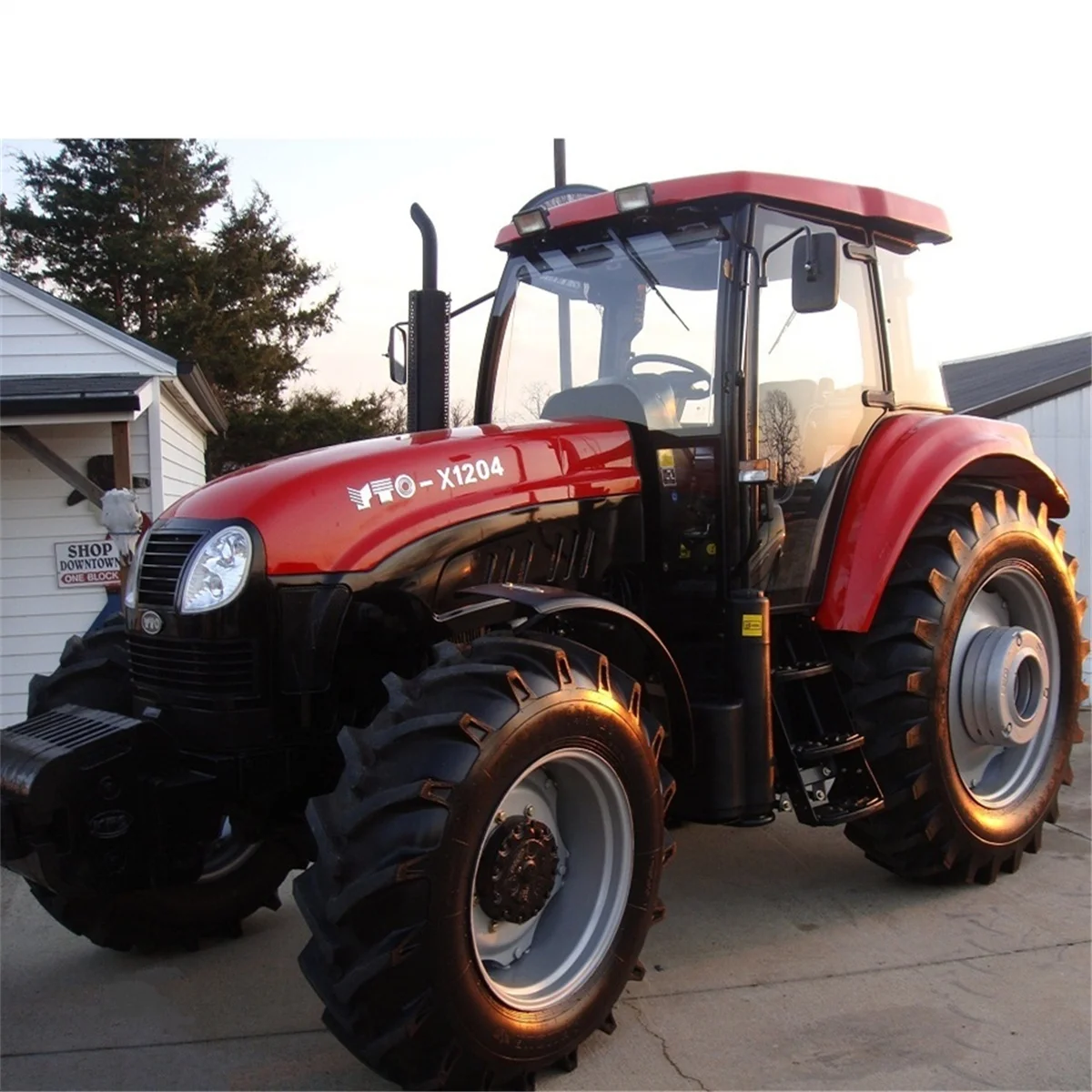

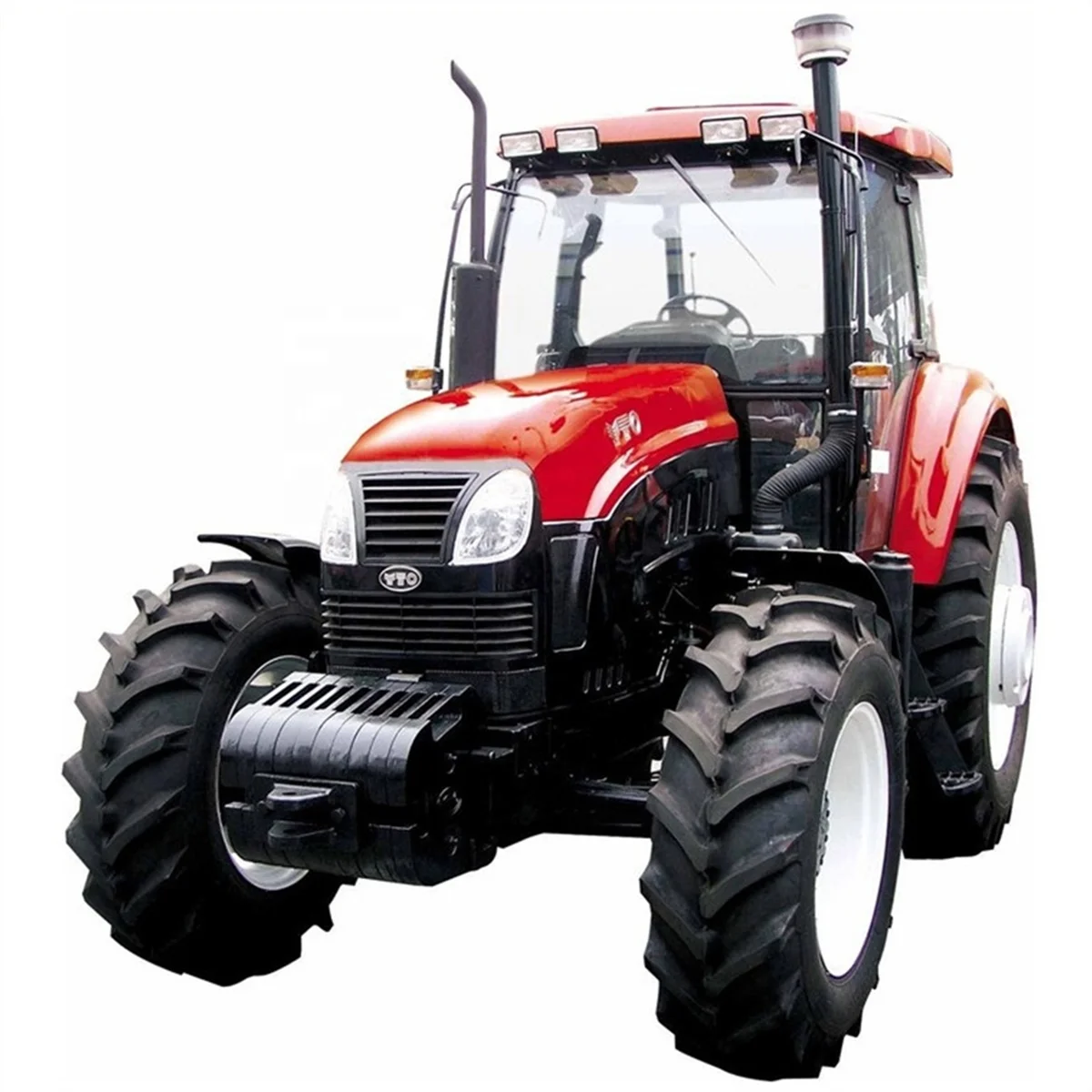

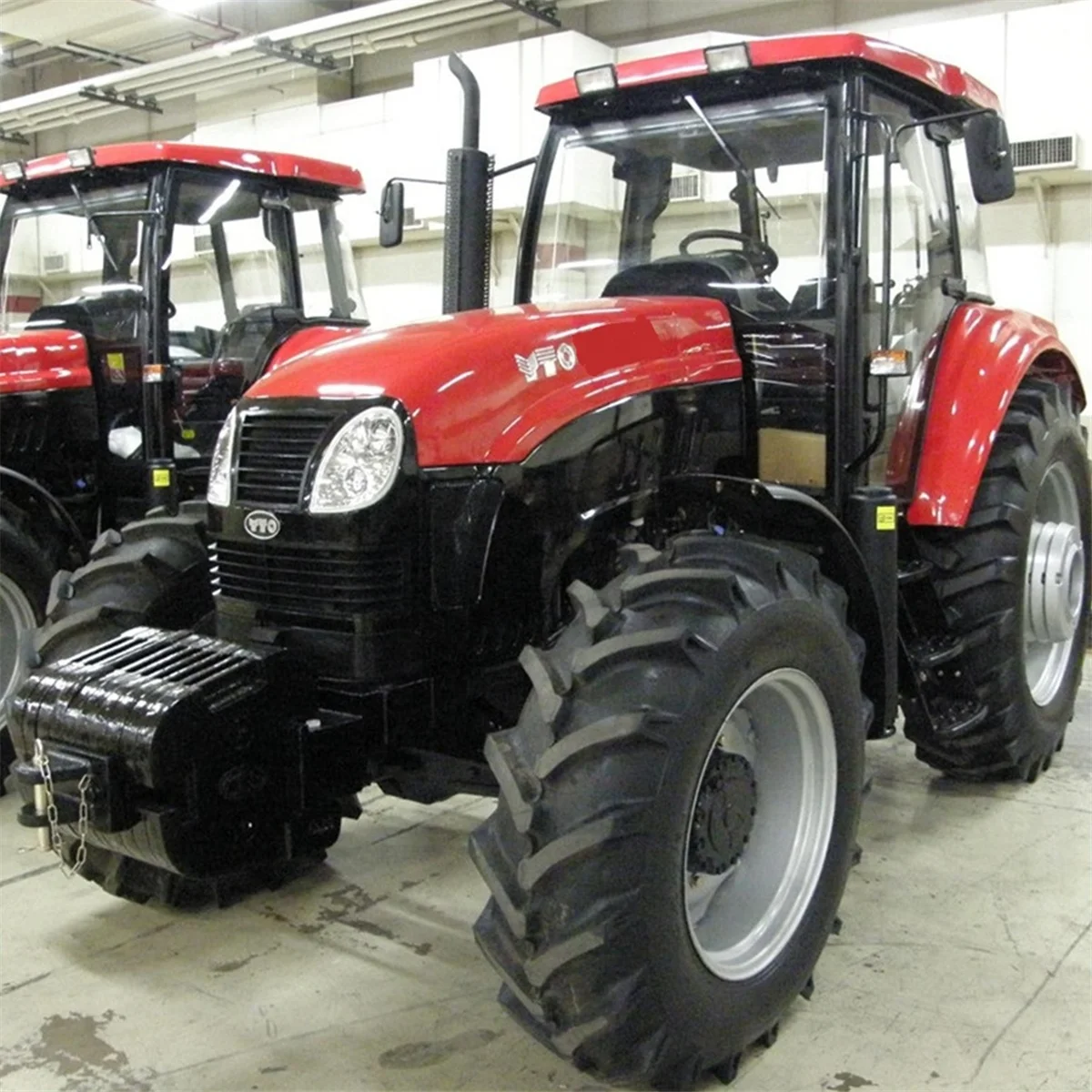

5. Photos


yto 1254 with canopy 600.jpgYTO_X1254_Tractor_EEC 600.jpgYTO1254 with cabin 600.jpgYTO-X1254 with ROPS 600.jpg


YTO 1254 600x800.jpgYTO 1254  600x450.jpg







6. Agricultural implements





7. Payment
If you would like to get an offer or place an order, Contact us with the products name, model, quantity desired or a description if not listed in our website. All of our prices are for dealership based on wholesale purchase. We offer various payment options such as Wire Transfer (T/T), Letter of Credit at sight,  Paypal, Westunion etc.

8. Shipment
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

9. Contact us
Ms. Mavis Zheng
Hubei FOTMA Machinery Co., Ltd
Add: No. 52 Guanggu Avenue, Hongshan, Wuhan city, Hubei Province, P.R.China.


Tel: +86 17740672791, +86 27 67845266
