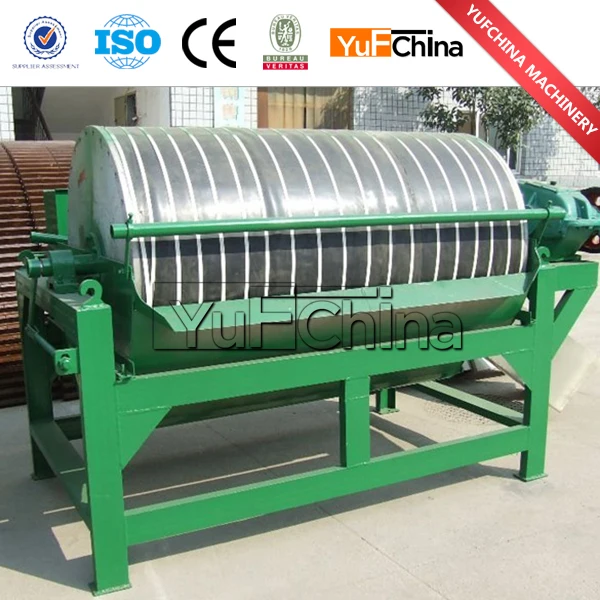

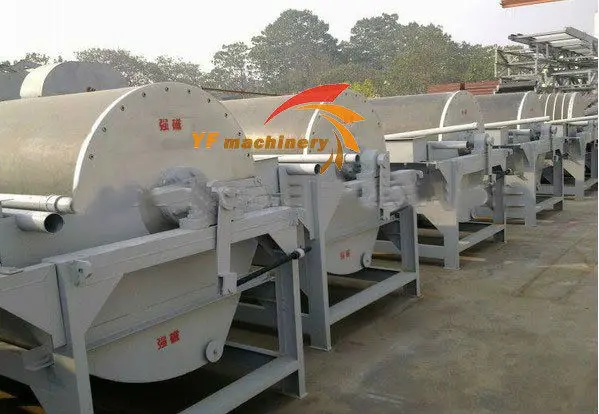

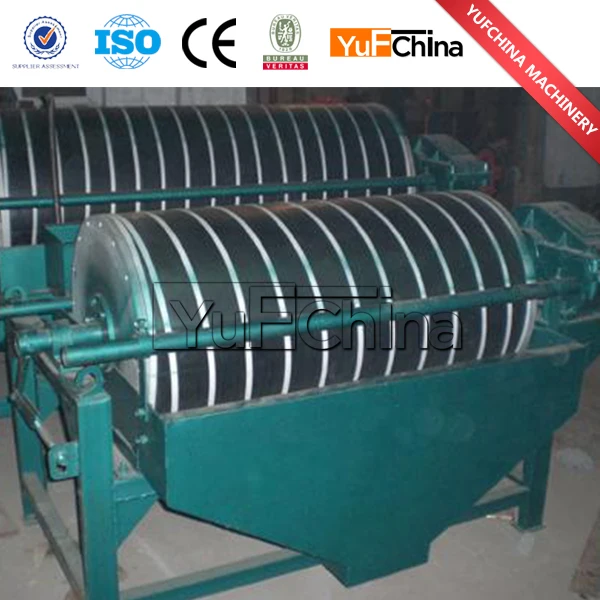

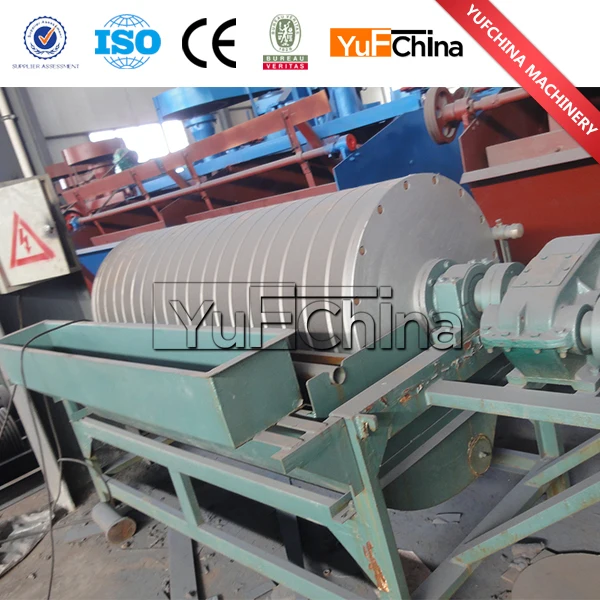

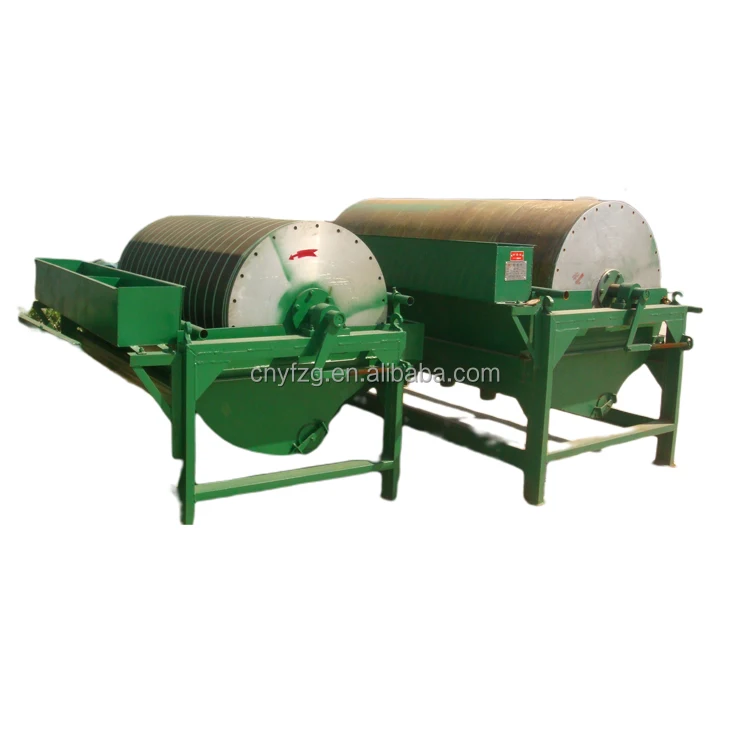

Mineral Magnetic Separator for magnetite ore, nickel ore, ilmenite processing

What is the Magnetic Separator?

The Magnetic Separator can separate the raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force. Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency. The Magnetic Separators are available in cyclic design with process vessel diameters from 220 mm to 3,050 mm with the size between 6-0mm    Mineral magnetic separator for Iron ore, Ilmenite, Chromite, Pyrite, Zircon and Rutile, Monazite, Tungsten ore, Tin

What is the composition of Magnetic Separator?

 Magnetic separator mainly consists of magnetic , drum, separation trough, gearing, and feeding , discharging ,and overflowing device. According to the different specific susceptibility, it makes use of magnetic force to separating the various minerals. When the pulp ores enter into separation area, the strong magnetic minerals will be absorbed on the surface of the drum under the force of the magnetic fields, and then be leaded into the Concentrates mouth along the rotary of the drum. As been away of the magnetic system, it will be discharged into concentrated trunk by the water, At the same time, the matrix and the weak magnetic minerals will inflow the tailings discharging mouth against the rotation direction of the cylinder, under the flow of the pulp ore in the tank     Mineral magnetic separator for Iron ore, Ilmenite, Chromite, Pyrite, Zircon and Rutile, Monazite, Tungsten ore, Tin

What is the Working Principle of Magnetic Separator?

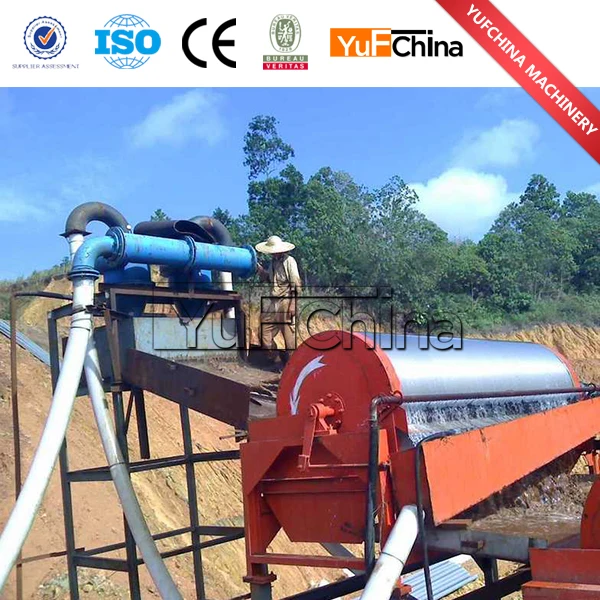

When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.    Mineral magnetic separator for Iron ore, Ilmenite, Chromite, Pyrite, Zircon and Rutile, Monazite, Tungsten ore, Tin

What ar the Applications of Magnetic Separator?

Nickel and Cobalt Ores Mining &Dressing Magnetic Ore Separator is applicable for wet magnetic separation of materials such as magnetite, pyrrhotite, roasted ore and ilmenite whose size is less than 3 mm and also used for iron removal operation of materials such as coal, nonmetalliferous ore and construction material and so on.     Mineral magnetic separator for Iron ore, Ilmenite, Chromite, Pyrite, Zircon and Rutile, Monazite, Tungsten ore, Tin

What are the Characteristics of Magnetic Separator?

Magnetic system of Magnetic Ore Separator adopts high quality ferrite material or is compounded with rare earth and magnetic steel. Average magnetic intensity on the surface of cylinder is 100~600 mT. According to the user’s need, magnetic system with many different kinds of surface intensity such as fair current, half reverse flow and counterflow can be provided. This magnetic

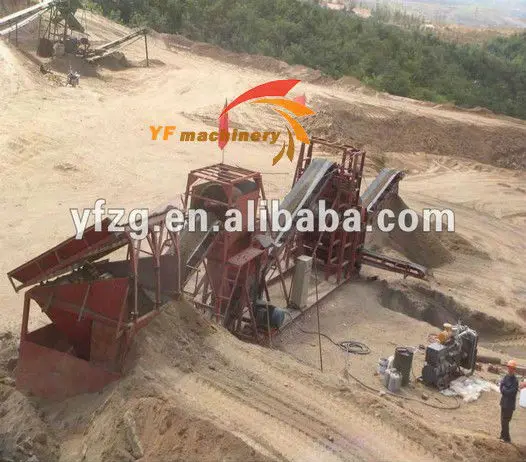

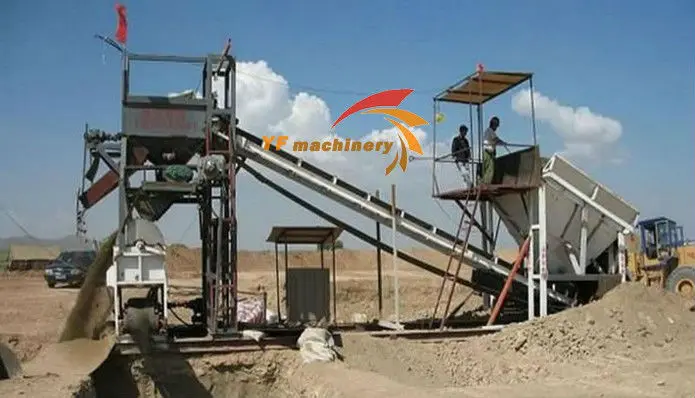

separator has the charateristics of single structure, large capacity, easy operation and maintenance.  300-500 TPH Iron ore processing line Sea river sand iron concentrate line magnetic separator     Mineral magnetic separator for Iron ore, Ilmenite, Chromite, Pyrite, Zircon and Rutile, Monazite, Tungsten ore, Tin

What are the specialties of Yufeng CTB series Magnetic Separator?

In our company, the type of the wet permanent magnet drum is the new device with high-efficient separating ability, and the magnetic system all adopt high-performance and superior materials of rare earth NbFeB and ferrite, through the artful and opening magnetic path design, the magnetic induction can achieved above 0.8t in cylinder separation, it is about 3-5 times compared with the general magnetic machine, reaching the magnetic level of the electromagnetic separators. Besides, the body adopts the materials of wear resistant stainless steel, and the minerals will be evenly sent into the upper by the vibrator feeder vibrator feeder, and the non-magnetic minerals will be separated from the rotating cylinder, and the magnetic minerals will be absorbed ,and the separating scale will easily ,precisely separate the magnetic and non-magnetic materials.    Mineral magnetic separator for Iron ore, Ilmenite, Chromite, Pyrite, Zircon and Rutile, Monazite, Tungsten ore, Tin

What are the advantages of the Magnetic Separator?

This equipment has advantages of  large capacity, wide range of the sorting minerals grade, high precision and non-clogging separation, Simple structure, convenient maintenance, power consumption is only for electromagnetic strong magnetic separators of 20%. No water area of selected iron homework; Refractory material and other materials for removing iron homework. Selecting iron procession in no-water area; removing iron procession of the refractory and other materials.    Mineral magnetic separator for Iron ore, Ilmenite, Chromite, Pyrite, Zircon and Rutile, Monazite, Tungsten ore, Tin

Technical Parameters of Magnetic Separator

Training & service

Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide 2-years warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

Yufeng 8000~16000 Gauss magnetic separator machine

Why choose Yufeng Company

We are manufacturer in Zhengzhou, which serves as the largest base of Chinese industrial technology, and the busiest container port in the world. The competition in this city is severe, only companies with ending technology, stable workforce, and effective cost management could survive. With 25 years of efforts and innovation,our company is now a leading brand in China.

Affordable, high-quality machines. Our highly competitive price relies upon our ability to minimize our costs, of which our

competitors don’t.

1. We are factory(NOT Dealer)

2. We own our factory & Land (NOT Rent)

3. Staff reside in factory(Stable Workforce)

Producing high-quality and reliable machines is always our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost, instead we manufacture our machines to supply you the best need.

ZHENGZHOU YUFENG HEAVY MACHINERY CO., LTD

We can design flowchart and layout according to customers' need.If you want to learn more information,please contact us any time.

...
