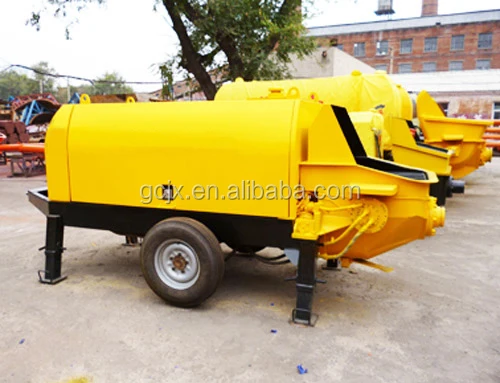

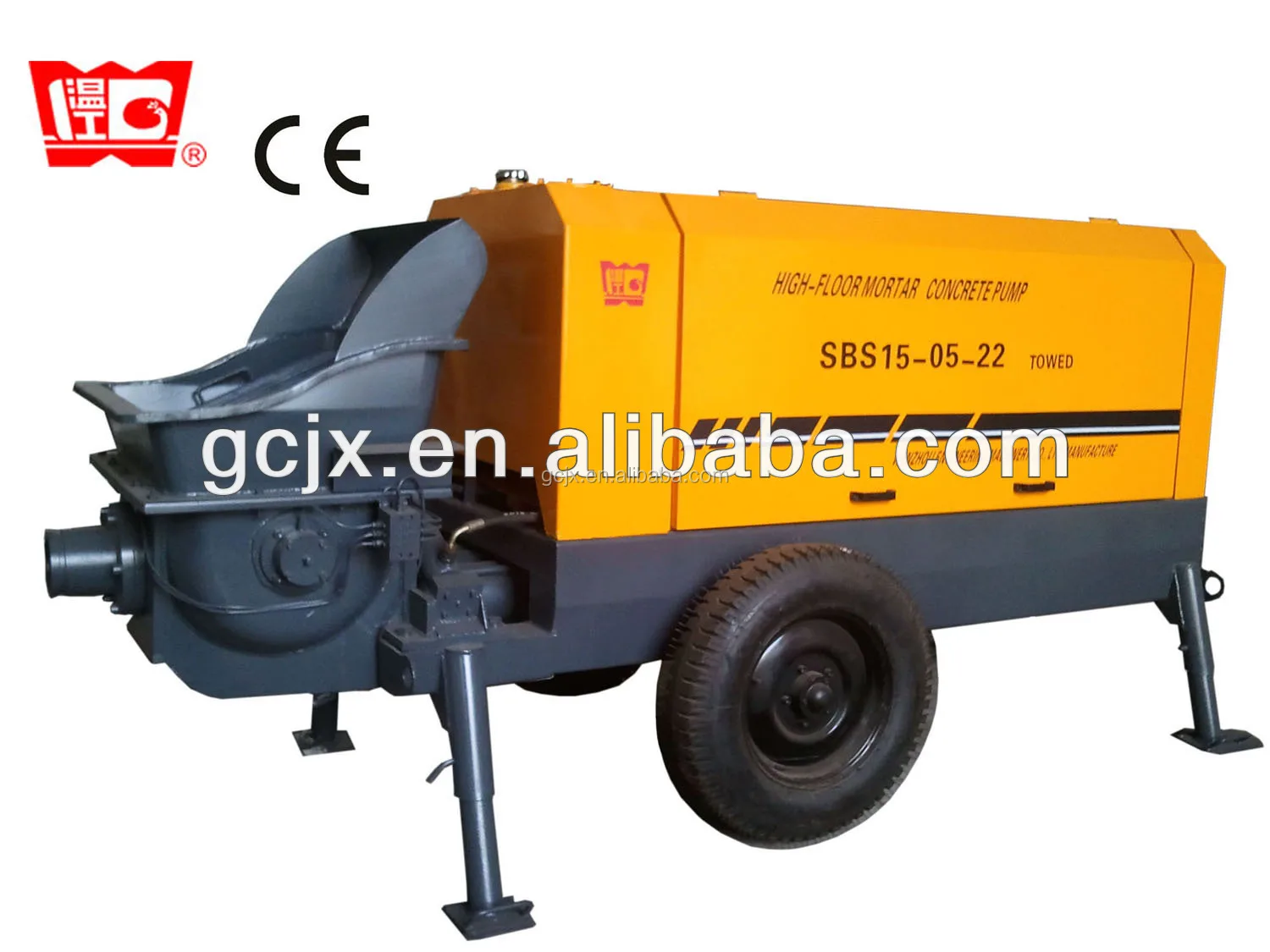

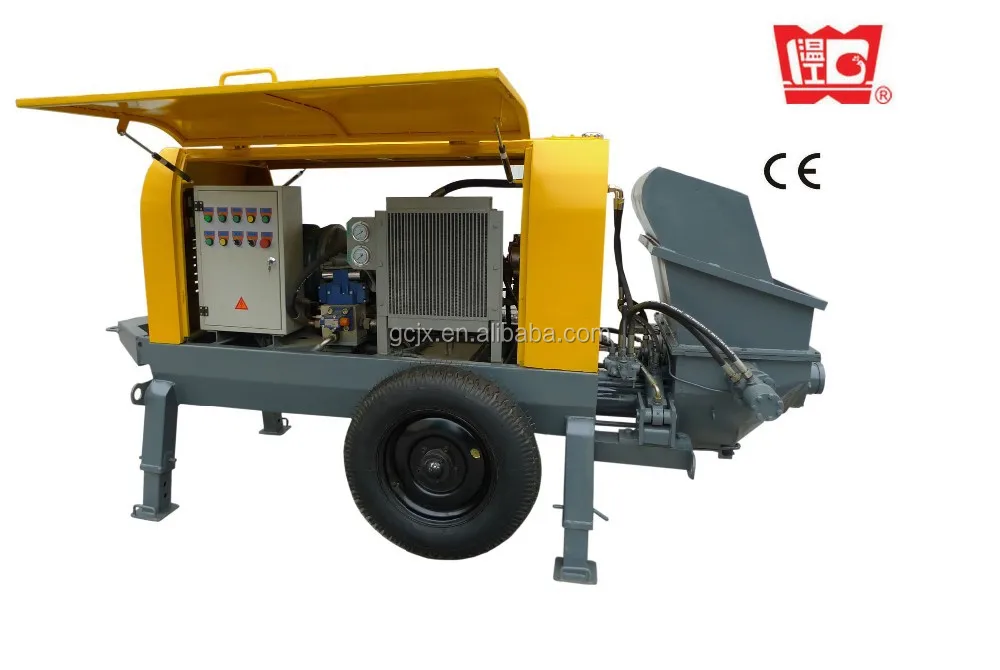

BS30-09-37 Electric small concrete pump for sale
Application
1.deliver warm or lightweight insulation foam cement, mortar, small aggregate concrete;
2.deliver and spray fire protection, thermal insulation material;
3.deliver and spray ecological environment in the green soil;
4.deliver and spray the plain concrete, fiber concrete in various projects construction;
5.pressure grouting for various kinds of foundation piles.


Main technical parameters
| Items | Units | BS30-09-37 |
| Theoretical maximum throughput | m3/h | 20 |
| Maximum pumping pressure | MPa | 9/4 |
| Theoretical maximum vertical delivery distance | m | 80 |
| Theoretical maximum level delivery distance | m | 300 |
| Maximum aggregate sizes | mm | 20 |
| Land-slide degree | cm | 12--23 |
| Delivery hose inside diameter | mm | 100/70 |
| Qty of delivery cylinder | pc | 2 |
| Concrete cylinder inside diameter × stroke | mm | Φ120×700 |
| Hydraulic oil tank capacity | L | 165 |
| Feeding height | mm | 1100 |
| Feeding hopper capacity | m3 | 0.3 |
| Motor electric power | kw | 37 |
| 3-phase Voltage & frequency | 380V,3-phase,50HZ | |
| Dimensions (L × W × H) | mm | 3700×1500×1600 |
| Weight | kg | 20001480 |
1. Main components parts pictures shown as below:

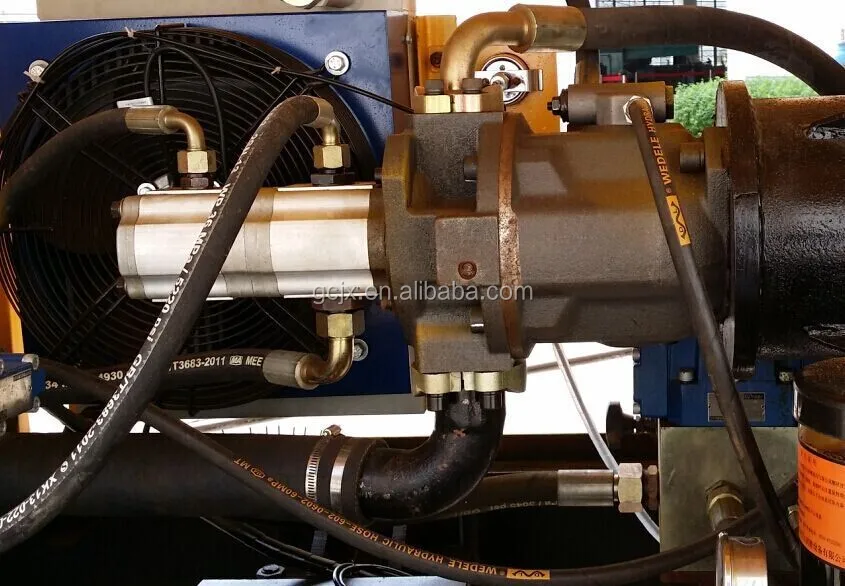

a. Hydraulic pump and Cooling System

b. Hydraulic directional valve system

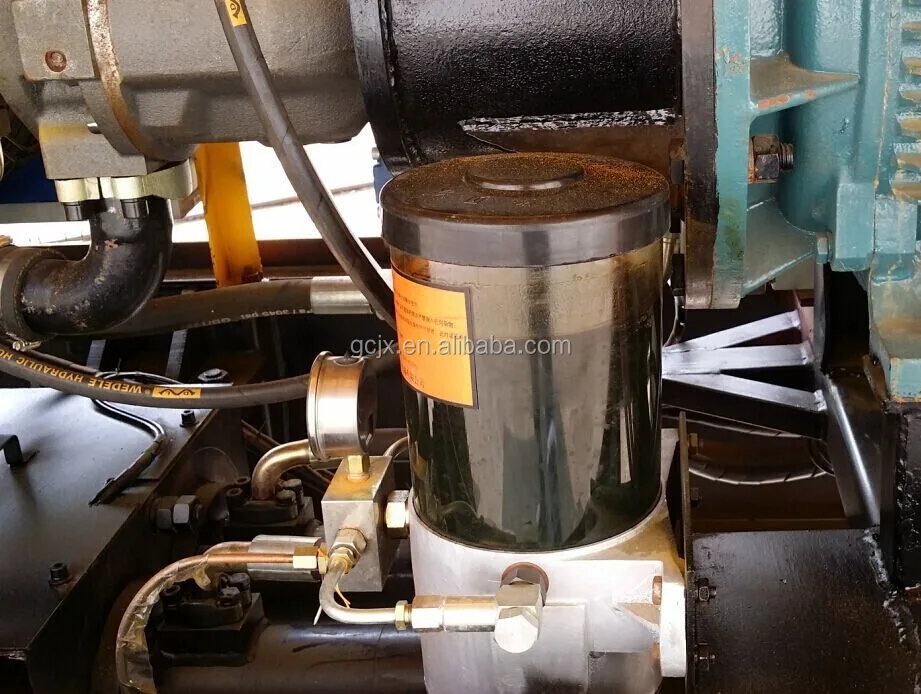

C. Hydraulic lubrication system

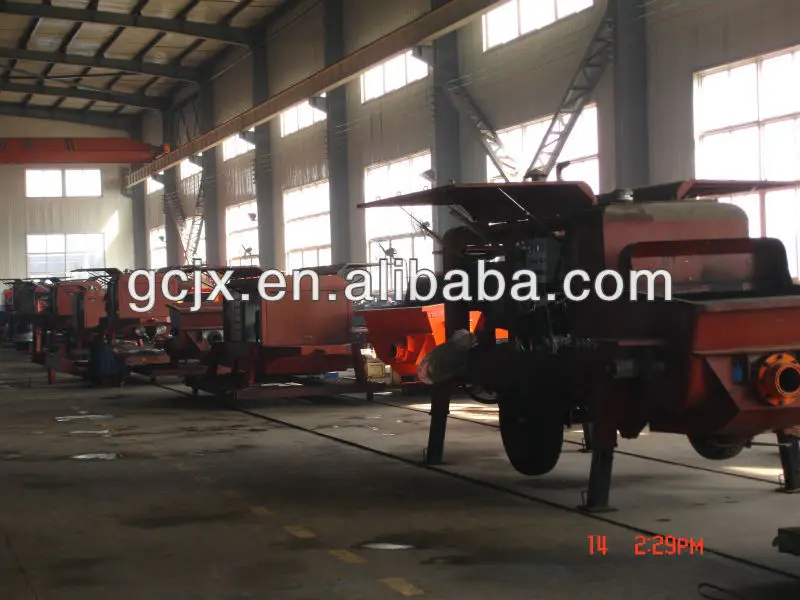

2. Our concrete pump workshop, we can produce 300-500sets per month and export to different countries in the world.

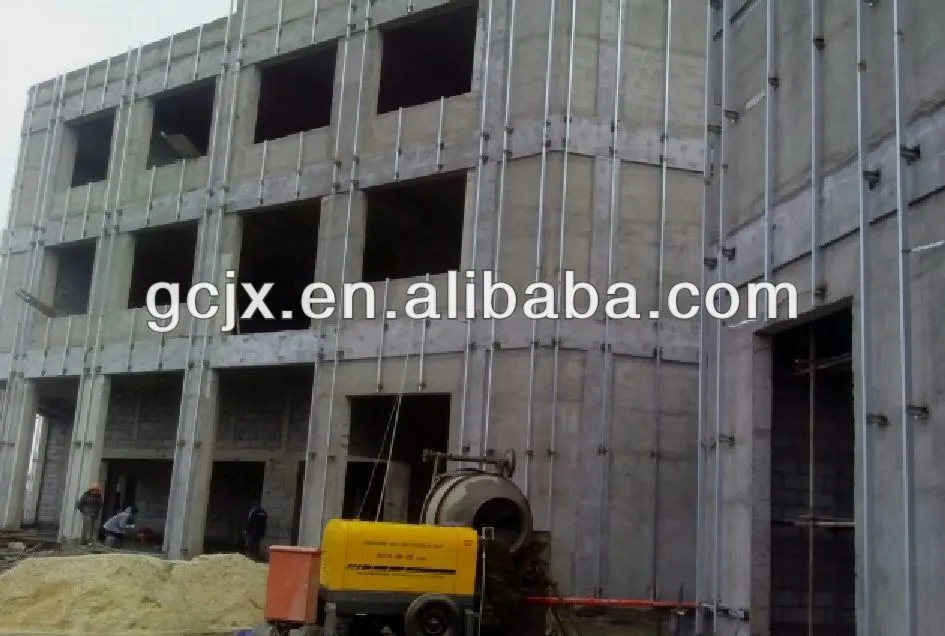

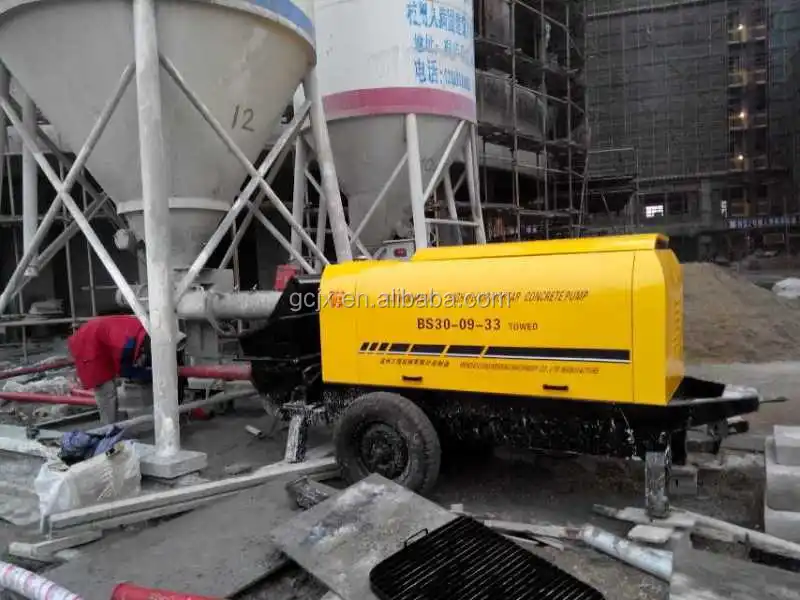

3. The concrete pump is used for pumping fine concrete and mortar which have been used for 3years in Philippines and Malaysia.


4. Customer visit our factory for concrete pump

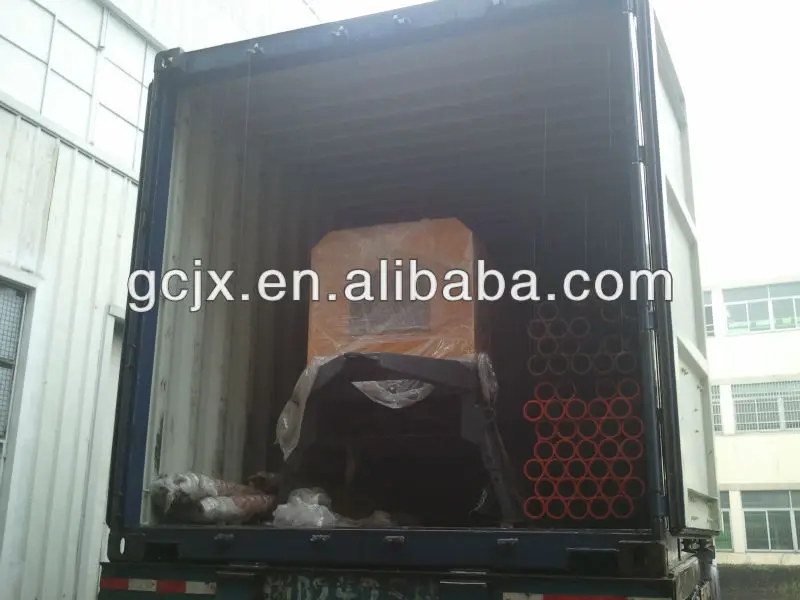

1. It's packed into 20ft container and export to Philippines.

Wenzhou Engineering Machinery Co., Ltd. is a member of China Construction Machinery Association, China Bulk Cement Association of Popularization & Development, is the first batch of key enterprises in Zhejiang Province. It is leader of China's mortar spraying technology, and recognized as one of the scale of strong enterprises for the manufacture of mortar spraying machine.
Wenzhou Engineering Machinery Co., Ltd. has been committed to the manufacture of concrete machinery for such a long time, based on the domestic leading technology, relying on international cooperation R & D advantages, together with Germany NORD, CELLMANN and other famous companies to import advanced management concepts and management models, improved product quality management system. Following the ISO9001 quality management system, and with full implementation and effective operation of it, we are able to ensure product’s quality and stability.
Our products are renowned because of high quality and a famous brand at home and abroad. In the 1970s, our company introduced the German plunger type, squeeze type, Screw concrete transportation, Mortar spraying technology into China. And nowadays the continuation of the current concrete pump, mortar spraying machine products from the Chinese market has expanded to Europe, South America, North America, Australia, the Middle East, Southeast Asia, Africa and other regions and countries. Our products with high quality and reliable performance services are popular with the trust of users around the world. Now we have been formed the ability that our annual output of various types of mortar spraying machine reaches 12000 sets.

Welcome to our factory!!!
It would be our great honor to show & test our machine for you.

***Clients from AUE/Saudi Arabia/Franch/ Chile/ India visited our factory.

***Exhibition every year---Welcome to our fair
