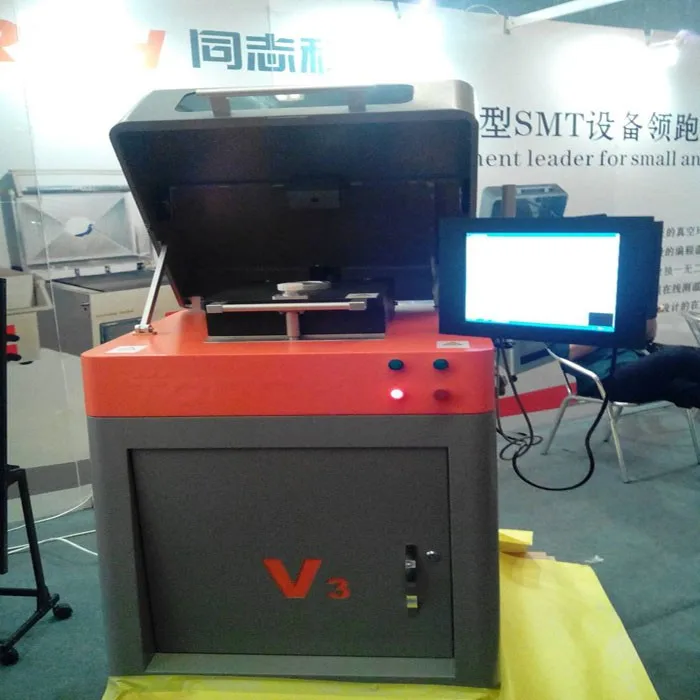

TORCH Small Vacuum eutectic machine V4 for high power laser and UVLED light source Model: V3/V4/V5
Product introduction:
- The name Laboratory vacuum reflow welding V3/V4/V5 is called according Vacuum , means professional industrial Vacuum reflow oven .
- Why chose Vacuum reflow oven? Recently ,the main welding tool is soldering iron ,reflow oven ,wave solder machine or other welding machine , and later update to Nitrogen reflow oven .But some welding , need high requirement of welding ,like material testing , Chip packing , Power equipment, Automotive products, Train control , Plane system, aerospace system, which need avoid the Empty and oxidation of welding. German vacuum reflow welder is the unique choice to reduce empty and oxidation. German vacuum reflow welder can make sure high quality of welding. Vacuum welding is the new technology in Germany , Japan, USA.
- Application of industry: Military enterprise , Research institutes ,University, Aerospace , and it’s the best choice for R&D , Process research .
- Application of field : suit for no defect welding and perfect no flux welding in Chip and PCB Board ,cover and board ,like IGBT package ,solder paste process ,laser diode package , IC package,MEMS and vacuum package .
- German vacuum reflow welder is the necessary equipment in Military enterprise, Aerospace in USA , European, also get university application in Chip package, electronic welding.
Feature of laboratory vacuum reflow welding:
- Vacuum welding environment , can be up to 10-3mba (Molecular pump 10-6mba is optional)
- Low active flux welding environment

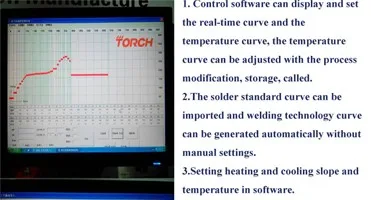

- Touch screen control and professional software, get perfect operation .
- 40 sections programmed temperature control system , can set perfect welding profile carve .
- Temperature setting used touch control model , and can be pulled the carve by hand.
- Unique water cool system , realize the fastest cooling.
- 4 temperature testing. Realize the measurement of temperature uniform in welding zone. Supply professional reference in process testing .
- Formic acid, nitrogen or other Inert gas suit for special welding process.
- Patent design in online real video system , can take video of every process and provide good reference for quality tracking , perfect data support in researching of welding and test in materials .
- Highest temperature :450 degree Celsius (higher temperature is optional) ,meet all soft welding needs.
- View window on the cover.
- 8 safety system monitor and protect system (Overtemperature protection , The temperature security protection , air pressure protection ,water pressure protection, safety operation protection ,water cool protection, liquid volume protection , power off protection )
Technical parameter of laboratory vacuum reflow welding:
Model No | V3 | V4 | V5 |
process chamber size | 280mm*260mm | 380mm*310mm | 500mm*380mm |
Power | 4KW | 5KW | 10KW |
Height of oven | 80mm (other height is optional) | ||
Temperature range | up to 350-450°C | ||
Interface | serial port /USB | ||
Control way | 40 sections temperature control + vacuum pressure control | ||
Temperature curve | Can save 40 sections temperature curve | ||
Power supply | AC220V, 25-5A | ||
Standard configuration of laboratory vacuum reflow welding :
Main body | V3/V4/V5 |
V-TSC | Torch screen computer |
V-TC | 4 thermocouple to measure on device , for external measurement tool |
V-PC | Pressure control |
V-WC | Closed loop water cooling system |
V-TTM | 4 real temperature test mode |
V-VPT | Vacuum pressure transfer |
V-IG | Inert gas or nitrogen control |
V-WB | Water box |
V-Cool water machine | Cool water machine |
Options and accessories of laboratory vacuum reflow welding:
V-MPC | Chemcial resistant diaphragm pump for vacuum up to 10 mbar with manometer |
V-RVP | Rotary vane pump for vacuum up to 10-3mbar |
V-HVP | Turbomolecular pump system for vacuum up to 10-6mbar |
V-FA | Formic acid module (integrated in machine) |
V-PS | 110V power supply |
Standard spare part of laboratory vacuum reflow welding:
| Main body | 1 set |
| Touch screen control computer | 1 set |
| Temperature control | 1 set |
| Pressure control | 1 set |
| Closed cycle water cool system | 1 set |
| 4 real temperature test mode | 1 set |
| Vacuum pressure transfer | 1 set |
| Inert gas or nitrogen control | 1 set |
| Water box | 1 set |
| Cool water machine | 1 set |
Optional spare part of laboratory vacuum reflow welding:
Corrosion resistant diaphragm pump (10mba)
Rotary vane pump (10-3mba)
Whirling molecular pump (10-6mba)
Formic acid(for V serial oven)
Component fixer
110V power supply
