Trolley to transport locomotives TTL25
- Category: Railway Parts & Accessories >>>
- Supplier: FOUNDATION CENTER FOR SUPPORT OF SMALL AND MEDIUM-SIZED BUSINESSES IN THE IRKUTSK REGION
Share on (10000000523315):
Product Overview
Description
Products Description

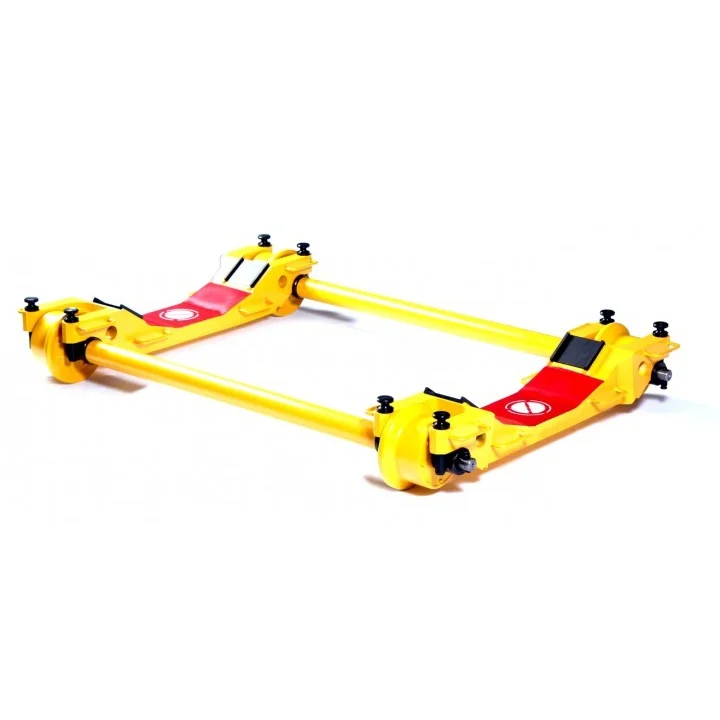

Trolley to transport locomotives TTL25 | ||||||||

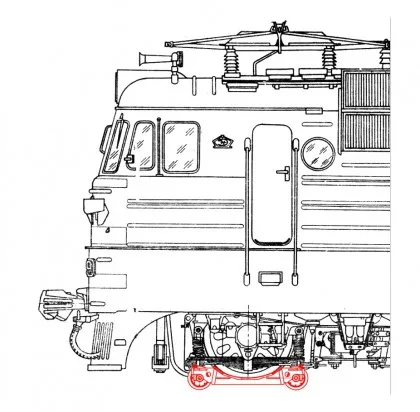

Used for delivering locomotives to the nearest place of repair in the case of axle locking or fracture.
For carry convenience, the structure of the truck is modular. The heaviest element (the load-bearing beam) has four carrying handles. For the sake of simplification and acceleration of the assembly of the truck, its structure excludes thread connections.

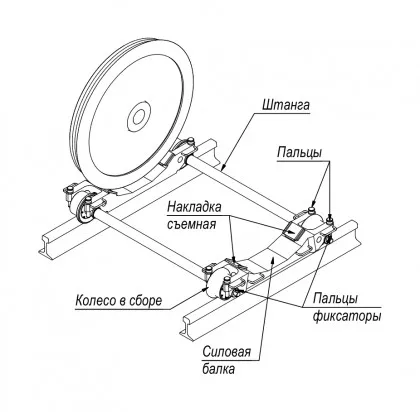

Weight of structural elements:
Wheel assembly: 33 kg, 4 pcs.
Load-bearing beam: 100 kg, 2 pcs. Rod: 60 kg, 2 pcs.
Removable cover plate: 1.3 kg, 4 pcs.
Lifters: 1.2 kg, 8 pcs.
Holder pin: 0.15 kg, 4 pcs.
Total: 464 kg
Wheel assembly: 33 kg, 4 pcs.
Load-bearing beam: 100 kg, 2 pcs. Rod: 60 kg, 2 pcs.
Removable cover plate: 1.3 kg, 4 pcs.
Lifters: 1.2 kg, 8 pcs.
Holder pin: 0.15 kg, 4 pcs.
Total: 464 kg

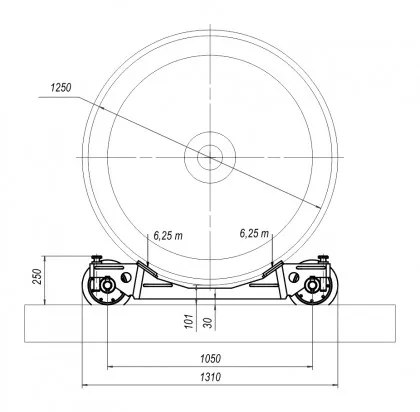

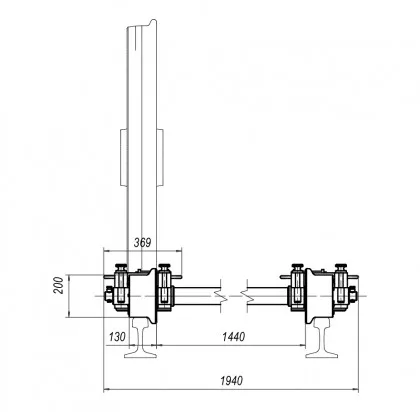

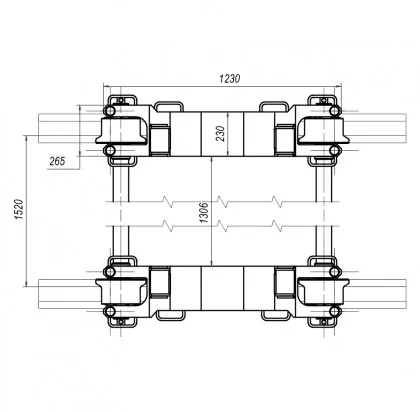

Model | Сapacity, ton | Rate, max, km / s | diameter of the wheels of the locomotive, mm | Dimensions (BxLxH), mm | Weight, kg | ||||
TTL25 | 25 | 15 | 1250 | 1940 | 1310 | 280 | 464 | ||
