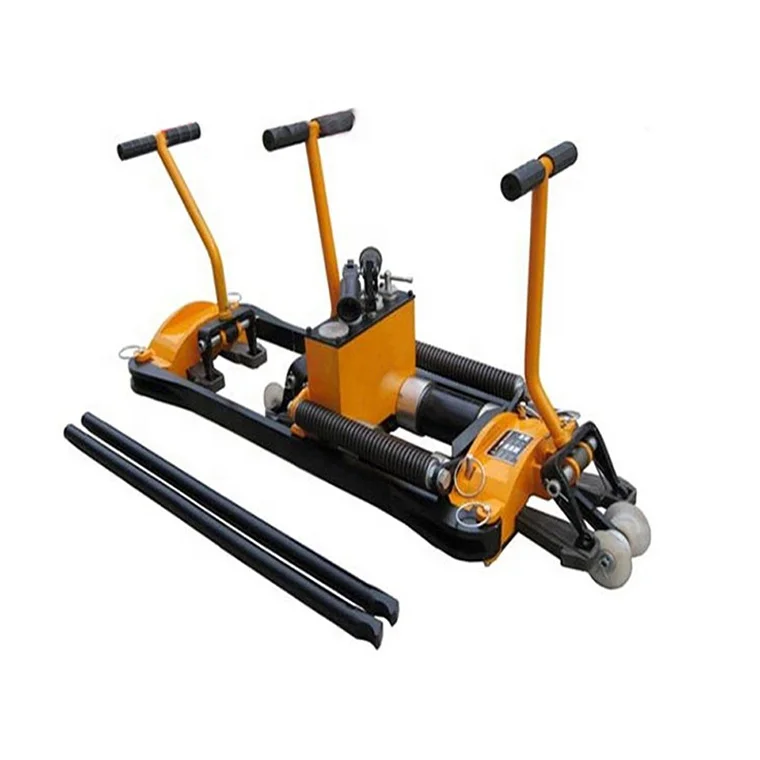

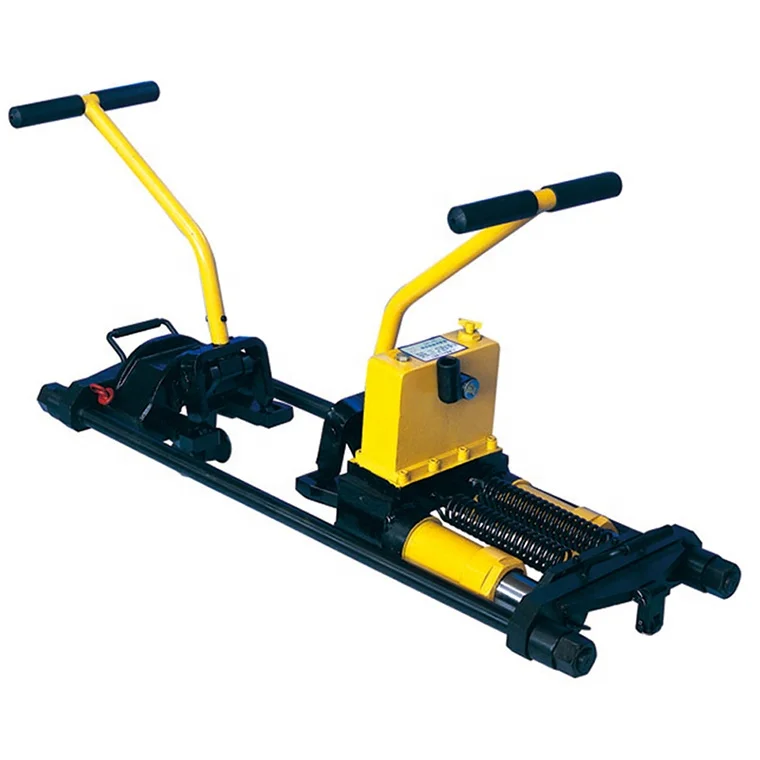

Railway Tools Hydraulic Rail Gap Adjuster Rail Joint Regulating Machine (62345894759)

Share on (62345894759):


Price:
Price in USD:Details

Quantity:


Product Overview

Description


 (1)


 Hydraulic Rail Joint Introduction


YTF400 rail gap adjuster (regular), the maximum pushing force is 40tons,at the normal situation,it could push 4-5 sets 12.5m 60kg/m rail,or it could push 2sets 25m 60kg/m rail.zmwm07


Rail gap will change because of the weather and driving factors.


In order to get well the rail gap’s size,it need to adjust rail.


For YTF400 rail adjuster,it could adjust 50kg/m,60kg/m,75kg/m rail.


Hydraulic Rail Joint Parameter






















































Model



 YTF400



1 Rated Thrust



 400kN



2 Operating Stroke



 140mm



3 Working cylinder rated pressure



 52Mpa



4 No load efficiency



 2.2mm/a reciprocating



5 Working cylinder quantity and inner diameter



 2xφ70mm



6 Plunger pump quantity and inner diameter



 4xφ16mm



7 Working cylinder gross capacity



 1115.8 cubic centimeter



8 Net weight



 70Kg



packing case weight



 20kg



9 Machine size mm



 920* 320* 370mm



10Packing size mm



 1050* 420* 430mm

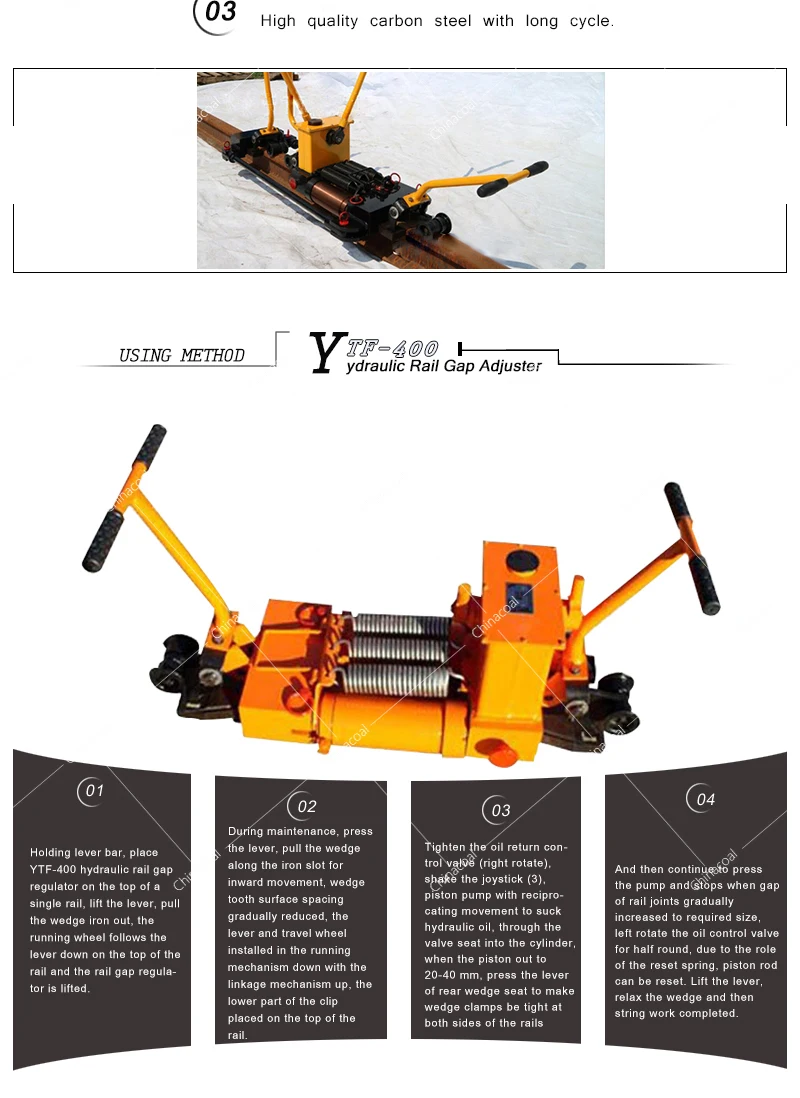

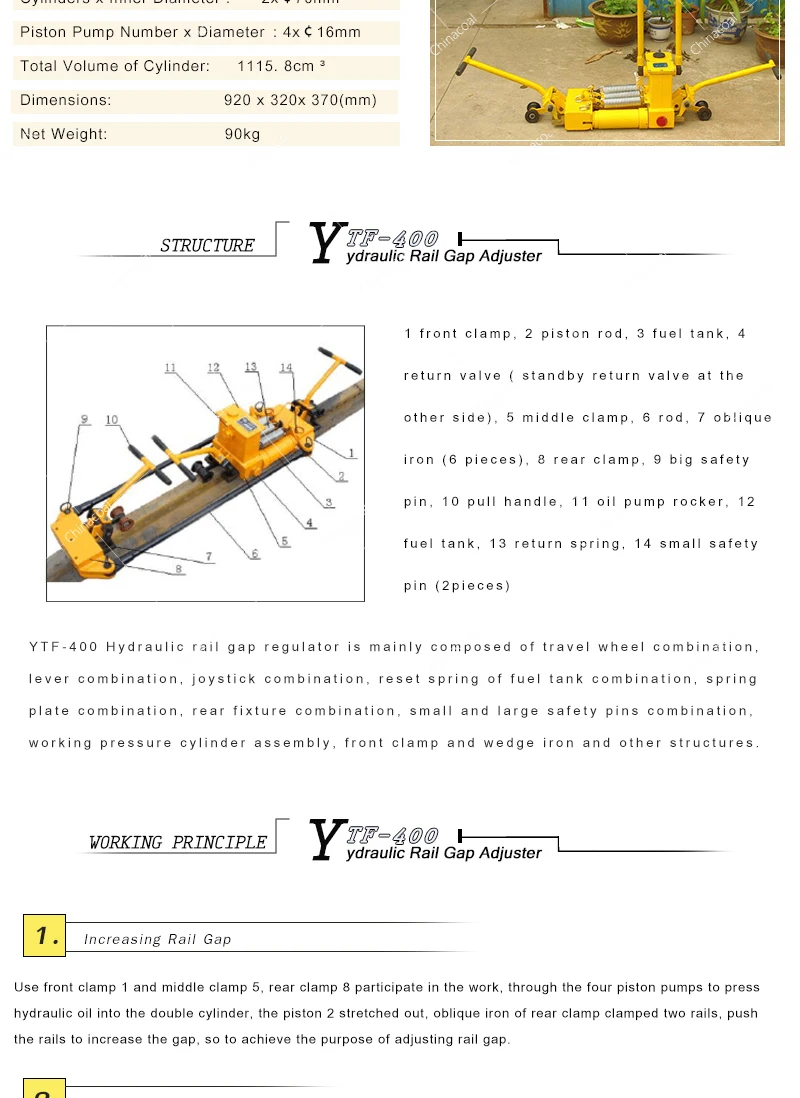

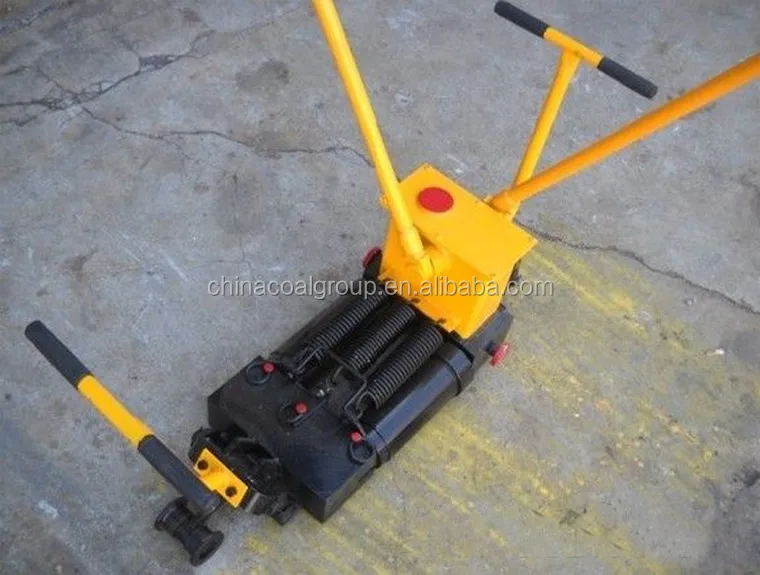

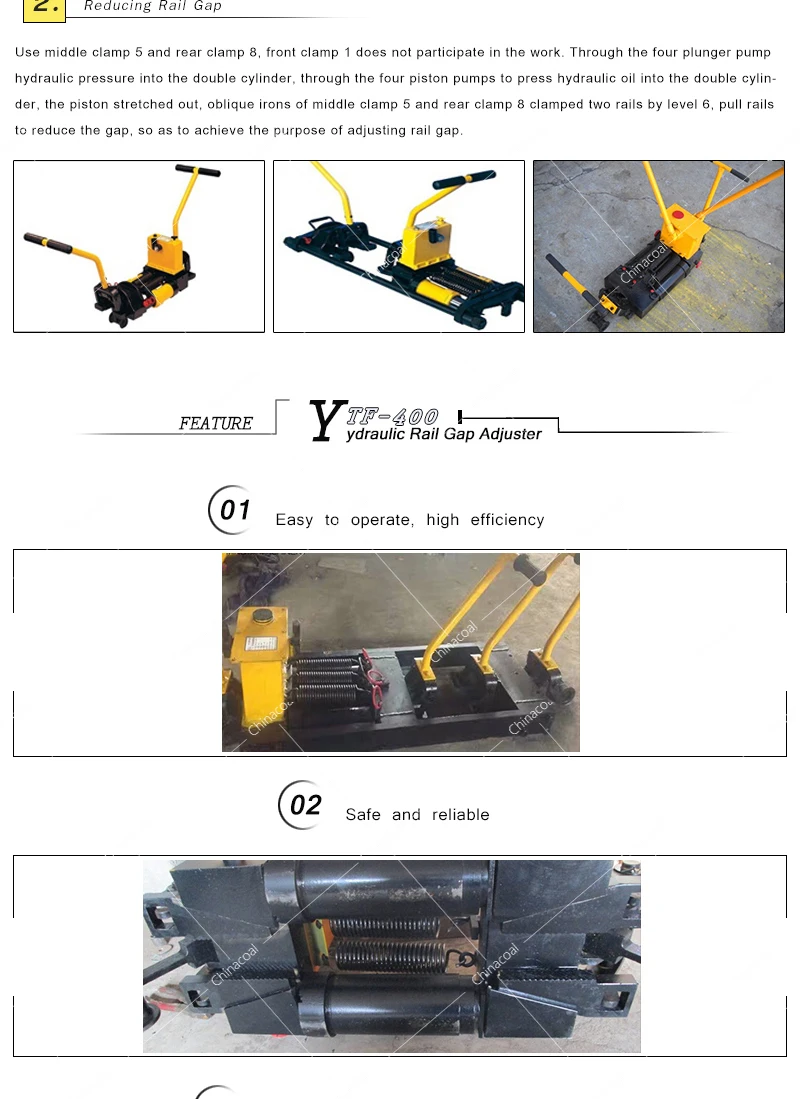

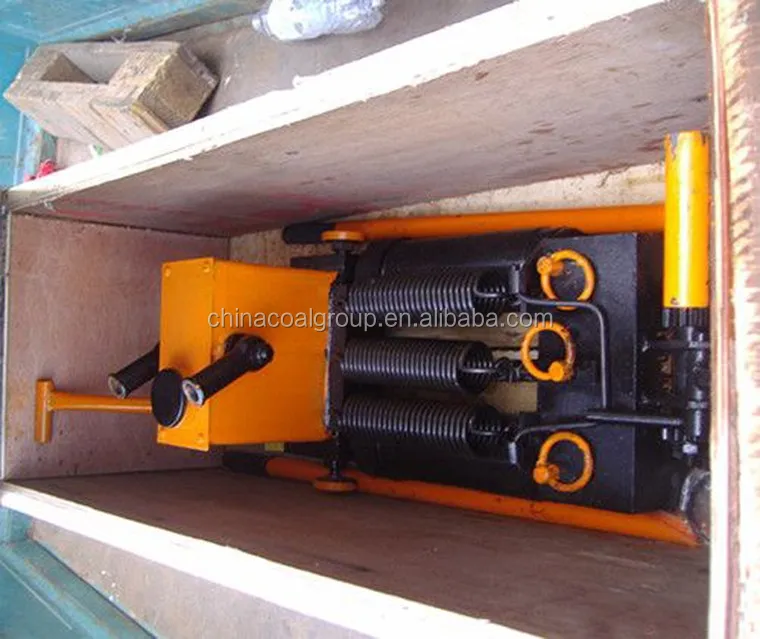

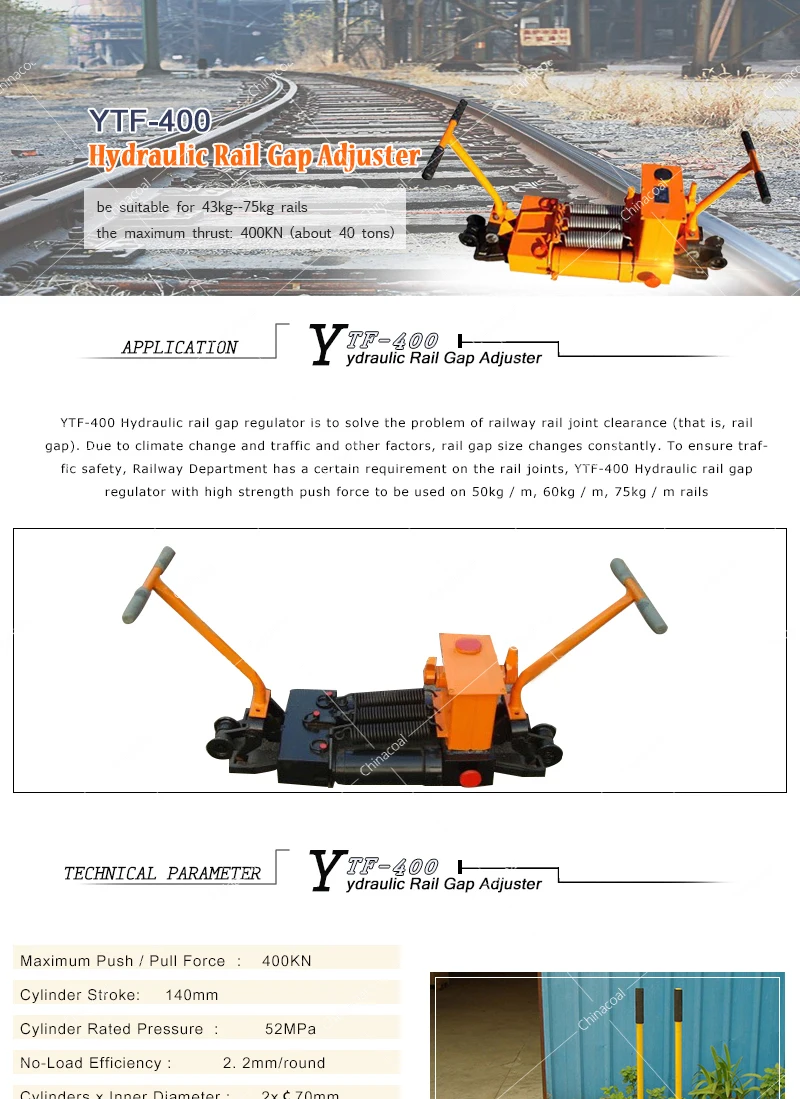

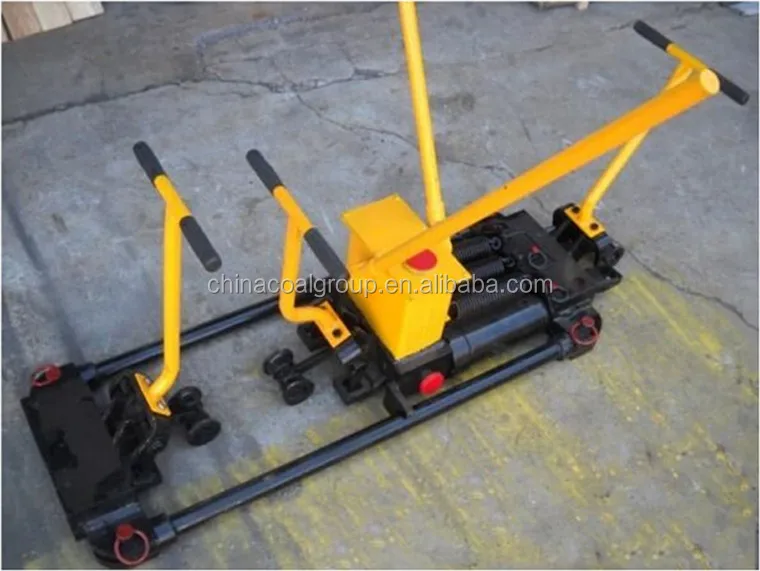

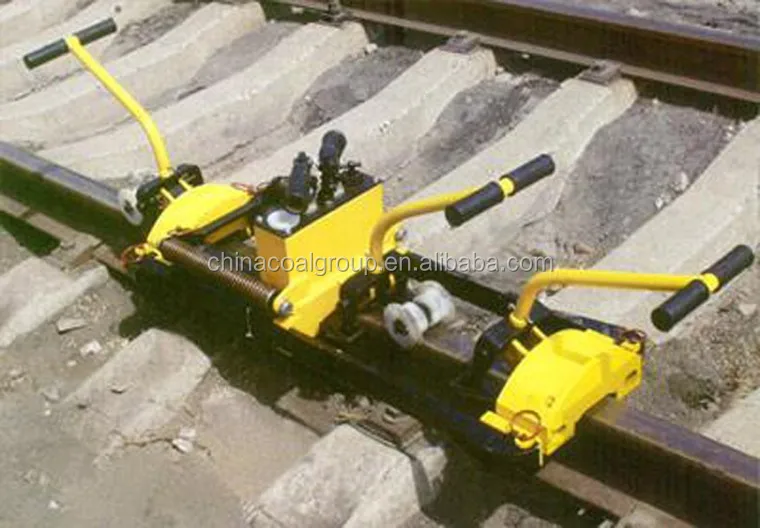

Hydraulic Rail Joint Photos400KN Railway Joint Squaring Tool, Rails Adjuster400KN Railway Joint Squaring Tool, Rails Adjuster400KN Railway Joint Squaring Tool, Rails Adjuster400KN Railway Joint Squaring Tool, Rails Adjuster (1) (2) (3) (4)
