COMORK CNC Grinding Machine 15KW Spindle Motor
COMORK CNC Grinding Machine 15KW Spindle Motor
COMORK CNC Grinding Machine 15KW Spindle Motor
COMORK CNC Grinding Machine 15KW Spindle Motor
COMORK CNC Grinding Machine 15KW Spindle Motor
COMORK CNC Grinding Machine 15KW Spindle Motor
COMORK CNC Grinding Machine 15KW Spindle Motor

COMORK CNC Grinding Machine 15KW Spindle Motor

Share on (10000000935173):


Price:$1.00

Quantity:


Product Overview

Description



Grinding Your Device, Shining Our Dream

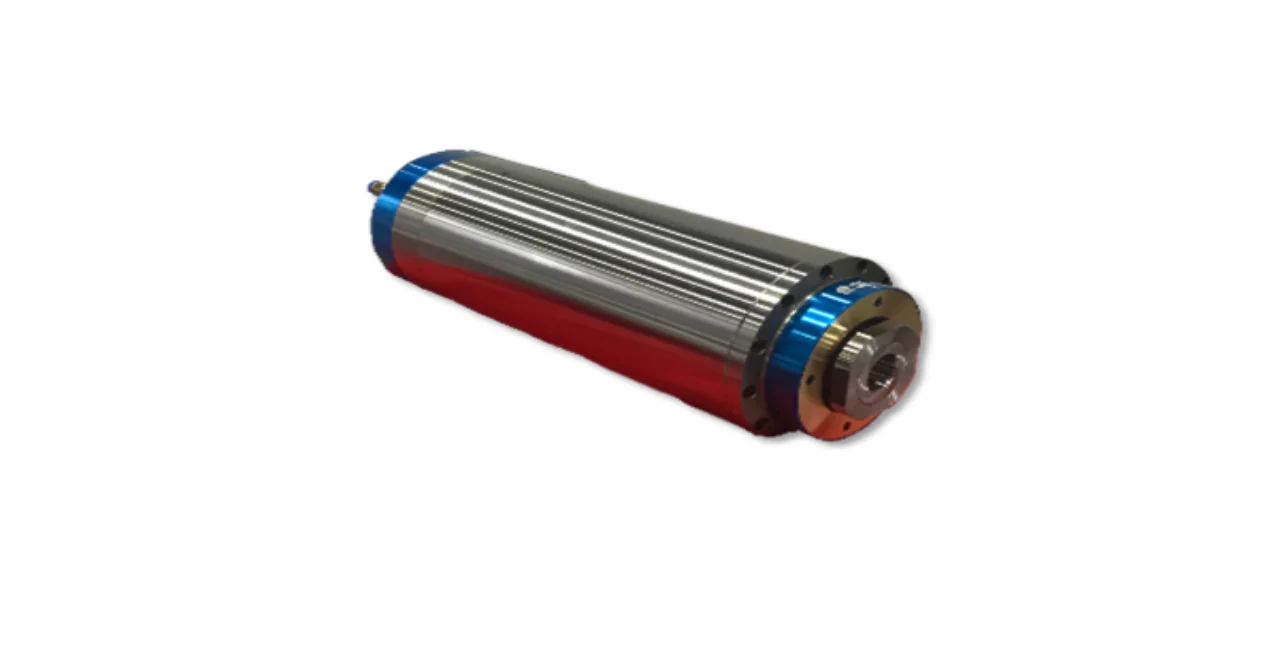

CNC Grinding Machine Built-In Spindle

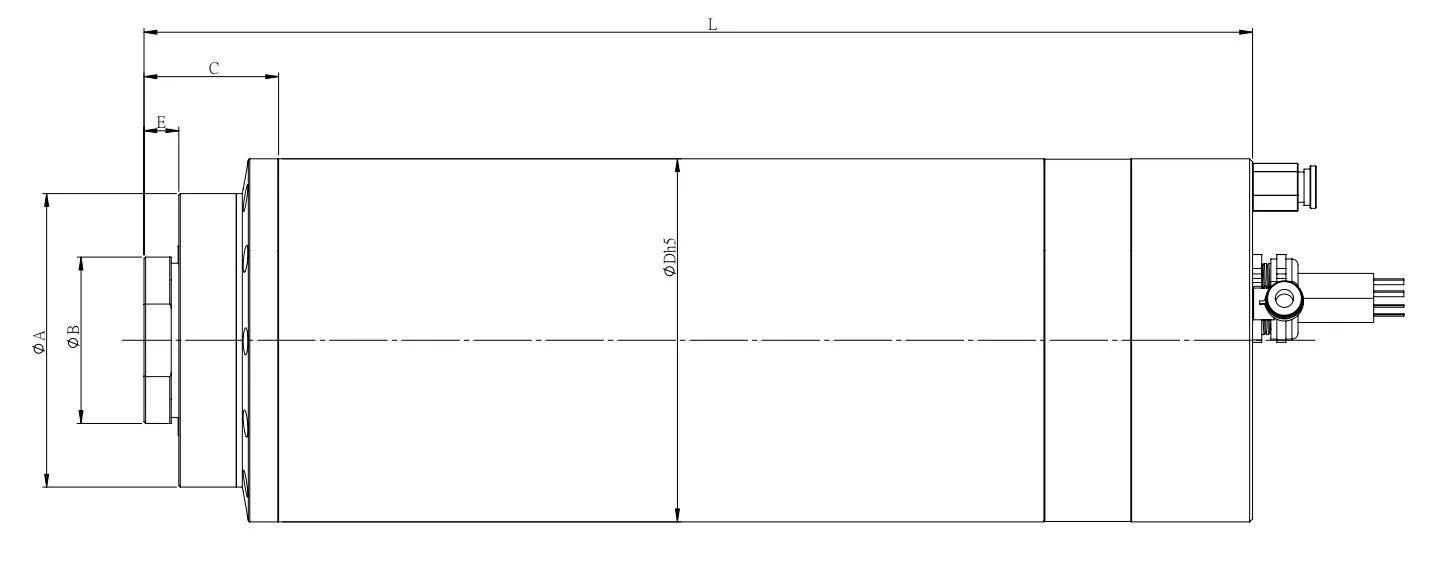

PRODUCT SPECIFICATIONS


Built-In Spindle




Type
CF-1230
CF-1290
CF-12120
φA
97
65
60
φB
60
24
20
C
44.5
44.26
40
φD
120
120
120
E
11.5
7
7
L
366.5
224.26
210
Highest speed
30000
90000
120000
Lubrication type
Grease
Oil-mist
Oil-mist
Voltage
380
220
200
S1 Current
32
17
10
S1 Power
15
4.2
2.5
S1 Torque
4.9
0.5
0.2
Rod adapter type
HJND-21
DV-8C
HJND-60


Built-In Dressing Spindle




Type
CF-80-160
Highest speed
16000
φA
76
Lubrication type
Grease
φB
40
Voltage
380
φC
36.6
S1 Current
2.6
φD
80
S1 Power
1
φE
10
S1 Torque
0.62
φL
213.3




ADVANTAGE


․Built-in spindle can get better space utilizatios, noise reduction, without transmission mechanism.

․Spindle material is SNCM220, spindle quill and most of parts are SCM440 to reach the best rigidity.

․Equipped with an internal liquid circuit to cool the motor and bearings, effectively suppressing spindle heating, ensuring
stability and accuracy.

․Avoid the transmission mechanism of traditional spindle’s disadvantage like vibration, noise and occupy the space.

․High variable speed, adaptable to different materials and various sizes and sizes, and increase the production capacity of themachine.

․Replacing the design of the transmission mechanism can reduce the damage rate, the use of consumables and the maintenance cost.

.Increase the efficiency of grinding hard materials.


Recommend Products


GJ-400A
GJ-400B
GO-350


G0-354
GO-356
GJ-412


Belt Driven Spindle
Built-in Motor Spindle
Precision component manufacturing


Our Advantages



Curved surface
Use our Know-how which is our independent development pictoprogramming and processing.
Enhance the technology of grinding field.

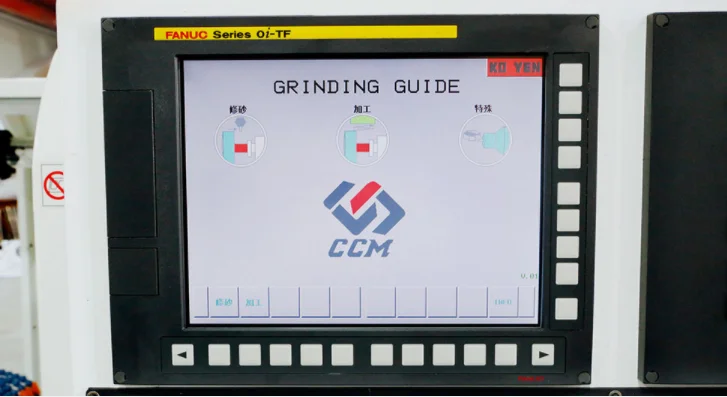

Pictogramming
Original pictograming based on FANUC system ,all controls are clearly and engoromically arranged,an important role is played by the manual control unit ,which facilitate setup close to the grinding process.
And built-in security settings and error warning,prevent new wrokers keyin error,so new wrokers also can finish setup procedure
and manufacture.


Multifaceted processing
Take controller special software and design,to grinding complex workpiece and multifaceted processing can do once and for all.
Make sure of high efficiency and high degree of precision,both lower the cost of manufacturing.


Acoustics monitoring system
Reduce wheel dressing cycle time, improve wheel dressing efficiency and stability.
Prevent wheel crash,increase spindle and wheel service life.
By monitoring grinding quality,assured machining accuracy.


Manufacturing Process


Standardizing Manufacturing Process
All the machine and after services are follow these rule, then whole of the handover machine process it's finish.
