ctb A2-4 cnc turning spindle motor
US $1500-$3100
Engraving machine spindle 40000RPM motor spindle 2.5KW ISO20 Drilling Routing Spindle
- Category: Machine Tool Spindle >>>
- Supplier: Guangdong,Xingtuo,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Please Attention
OUR COMPANY OFFER YOU:
1.FACTORY DIRECT PRICE.
2.NICE QUALITY.
3.QUICK SHIPPING WITHIN 15 DAYS.
4.NO MOQ, 1PC OK. SMALL ORDER WELCOME.
5.ONLINE PAYMENT.
6.WE OFFER OEM SERVICE.
7.AFTER SALES SERVICES 24/7

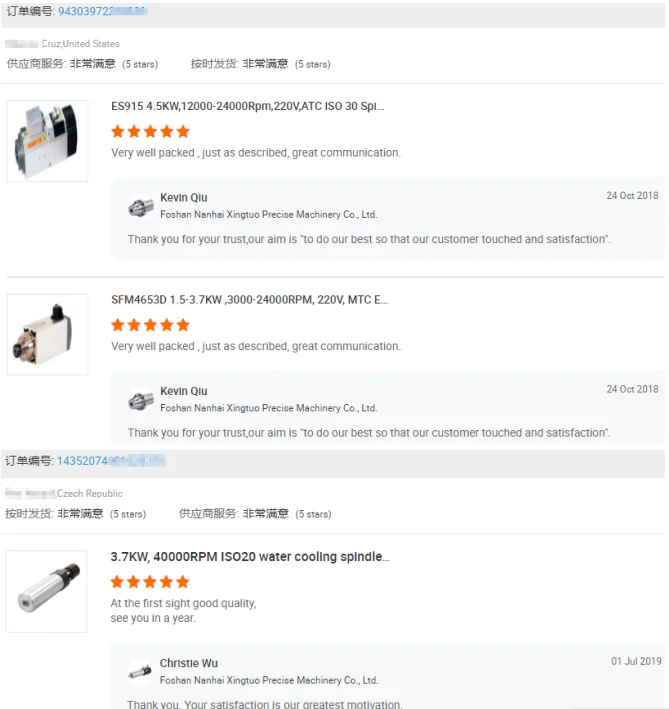

Customer comments
OUR COMPANY OFFER YOU:
1.FACTORY DIRECT PRICE.
2.NICE QUALITY.
3.QUICK SHIPPING WITHIN 15 DAYS.
4.NO MOQ, 1PC OK. SMALL ORDER WELCOME.
5.ONLINE PAYMENT.
6.WE OFFER OEM SERVICE.
7.AFTER SALES SERVICES 24/7
Customer comments
Motor power | KW | 2.5 |
Rate voltage | V/AC | 380（3~） |
Max speed | Rpm | 40000 |
Max current | A | 4.8 |
Max frequency | Hz | 1333 |
Torque | N·M | 0.6 |
Specification | ||||||||||
Cone at the end of the shaft pulsates | mm | ≤0.001 | Tooling releasing air pressure | Kgf/cm² | 5.6-6.0 | |||||
Tooling change method | ─ | ATC | Air cutain presssure at front end | Kgf/cm² | ≈2.0 | |||||
Tooling pulling force | N | ≥1100 | Tooling back air pressure | Kgf/cm² | ─ | |||||
Tooling connection | ─ | ISO30 -ER16 | Cooling | ─ | Water Cooling | |||||
Encoder | ─ | Sine-Cosine1Vpp (optional) | coolant pressure | Kgf/cm² | ≥2.5 | |||||
Approach switch | ─ | PNP on | Bearing lubrication method | ─ | Grease | |||||
Balance level | ─ | G1 | Install method | ─ | Clamp | |||||
Vibration Value | mm/s | ≤0.8 | Weight | Kg | 7.65 | |||||
- Advance/Features：
· Reasonable structure desgin ,simple and compact configuration ,easy to take apart.
· High precision.high inflexibility ,high efficiency,long operation life.
· With high grade size .shape,.position precision,and quality of surface .
· Enough abrasive resistance ,vibration resistance,stable size.
· Work stable ,low noise,enough fatigue strength

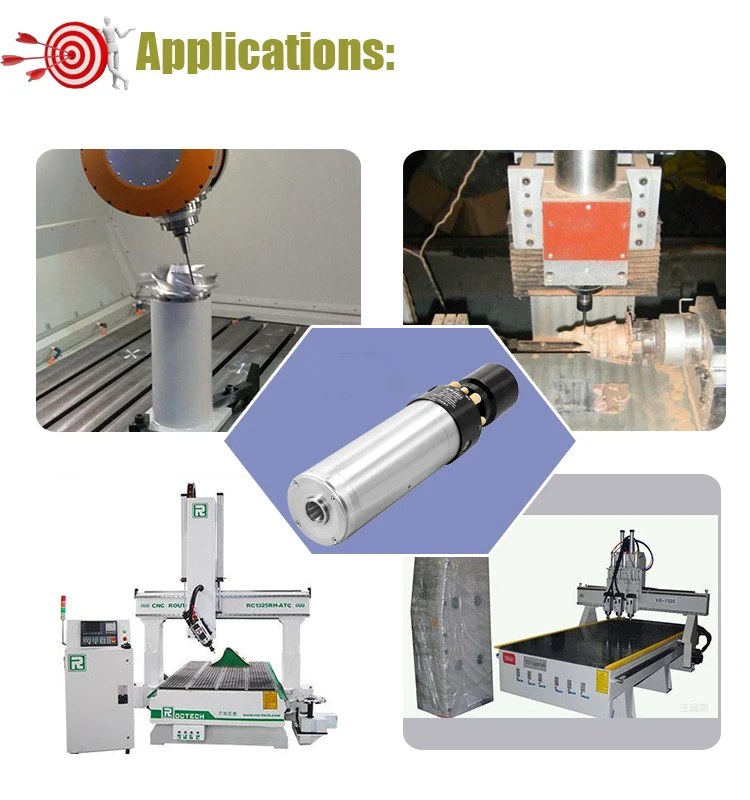

Application area:
· High precision.high inflexibility ,high efficiency,long operation life.
· With high grade size .shape,.position precision,and quality of surface .
· Enough abrasive resistance ,vibration resistance,stable size.
· Work stable ,low noise,enough fatigue strength
Application area:
Suitable for high speed and high precision milling, drilling and tapping of metallic and non-metallic materials.

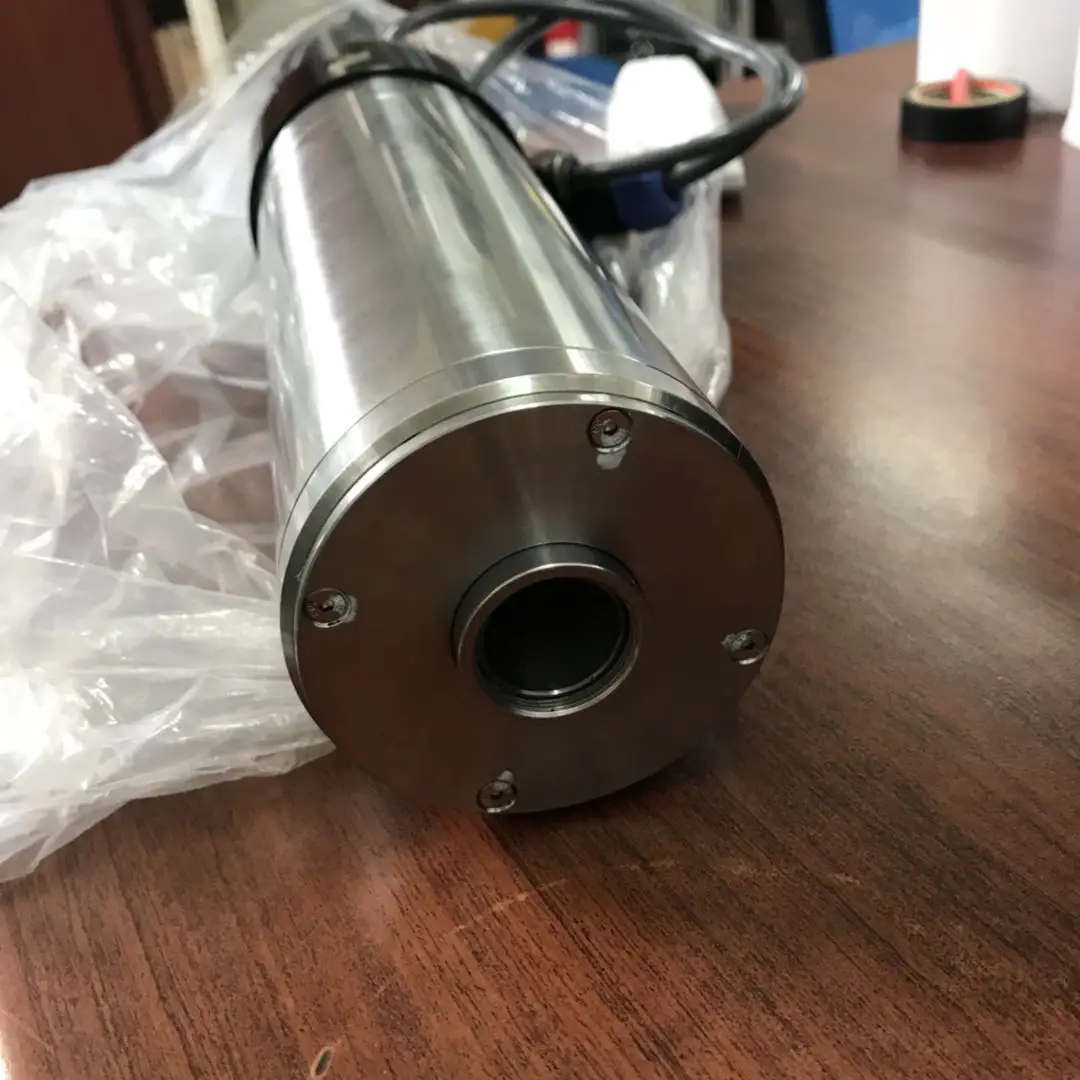

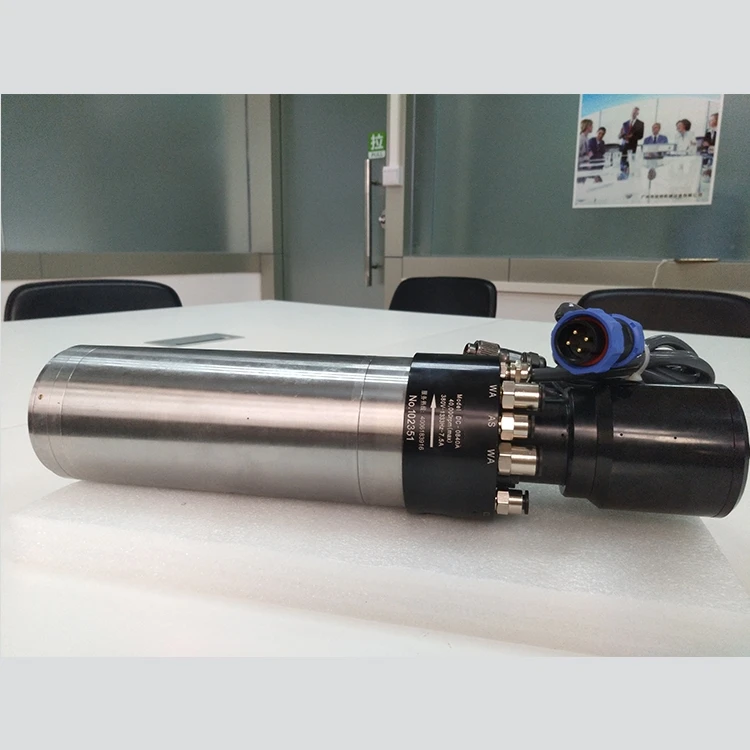

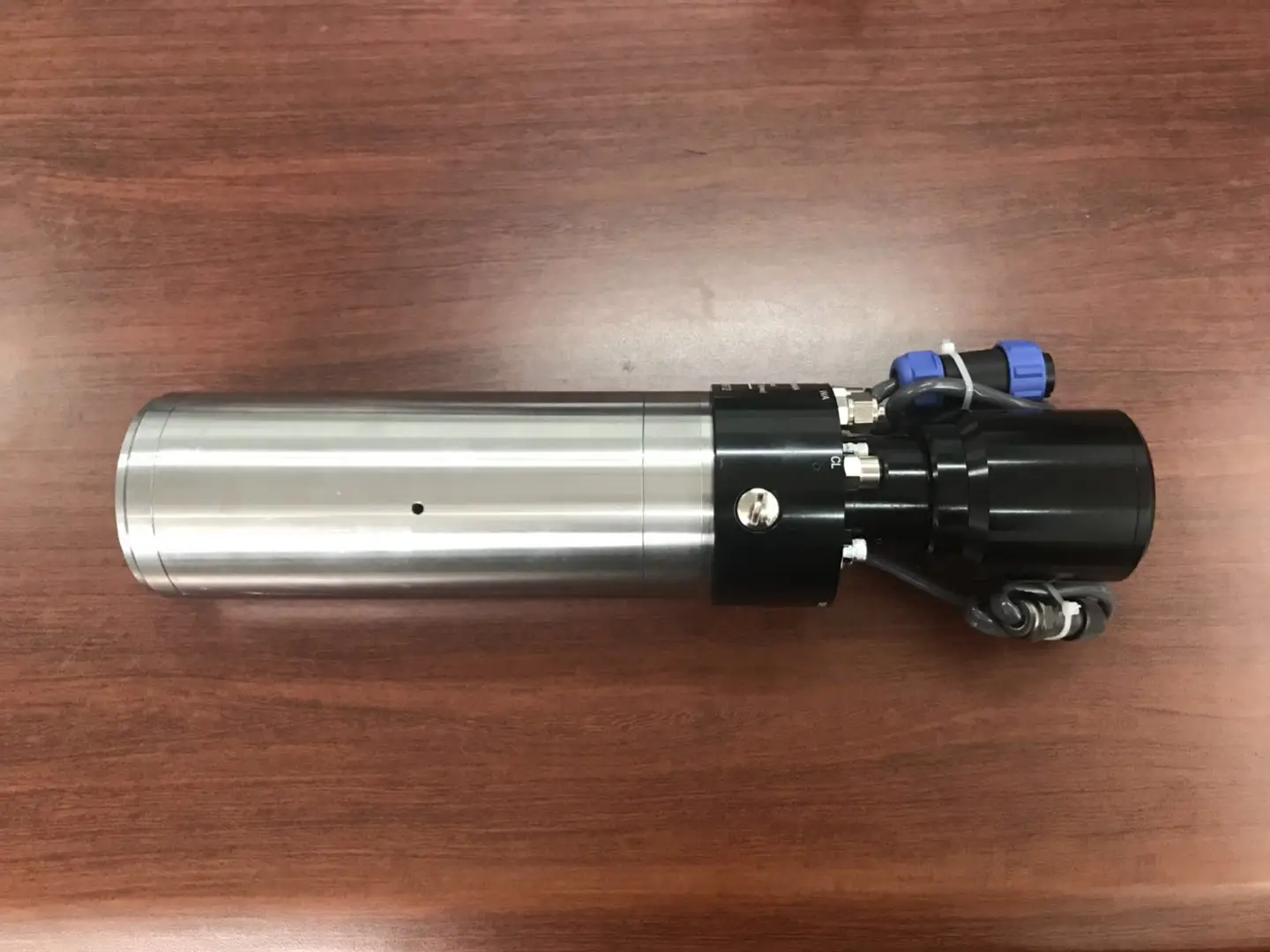

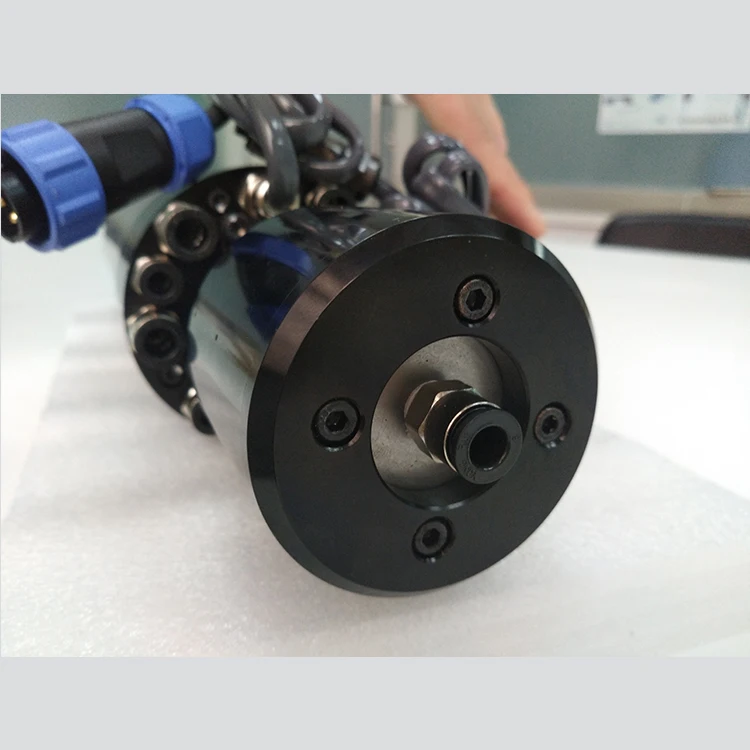

Detailed Images
Related Products
Company Introduction
