Glass fiber epoxy resin laminated board for electrical insulation
- Category: Insulation Materials & Elements >>>
- Supplier: YUTAKA CORPORATION
Share on (10000001163984):
Product Overview
Description
Products Description
GLASS FIBER EPOXY RESIN LAMINATED BOARD
Product Details
GLASS FIBER EPOXY RESIN LAMINATED BOARD has excellent electrical insulation performance, moisture resistance, dimensional stability, chemical resistance, adhesion properties, and especially alkaline resistance.
GLASS FIBER EPOXY RESIN LAMINATED BOARD is the material with the highest strength among FRP (Fiber Reinforced Plastics).
It has high strength and can be used as a structural material.
Size of Blank Material :
Thickness : 0.3～100mm
Length X Width : 1000X1000 mm, 1000X2000 mm
Applications :
Electrical insulation material for electric equipment
Electrical insulation material for heavy electric machinery
Alternative products to metal products
Heat (Thermal) insulation board for plastic injection mould (mold)
Heat (Thermal) insulation board for plastic injection molding machine
Delivery Form of GLASS FIBER EPOXY RESIN LAMINATED BOARD :
Please choose from among the following three types of the delivery form of GLASS FIBER EPOXY RESIN LAMINATED BOARD.

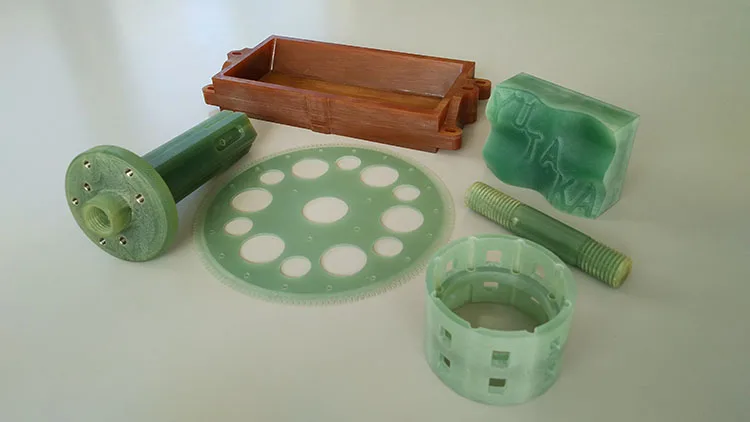

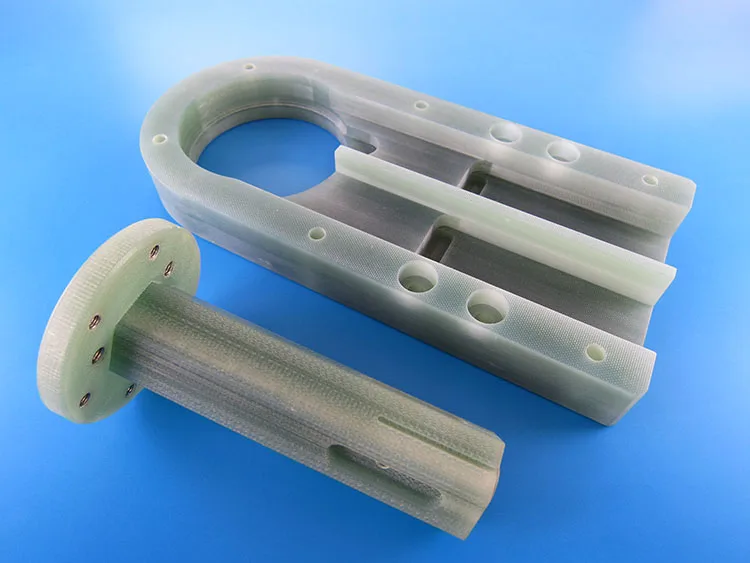

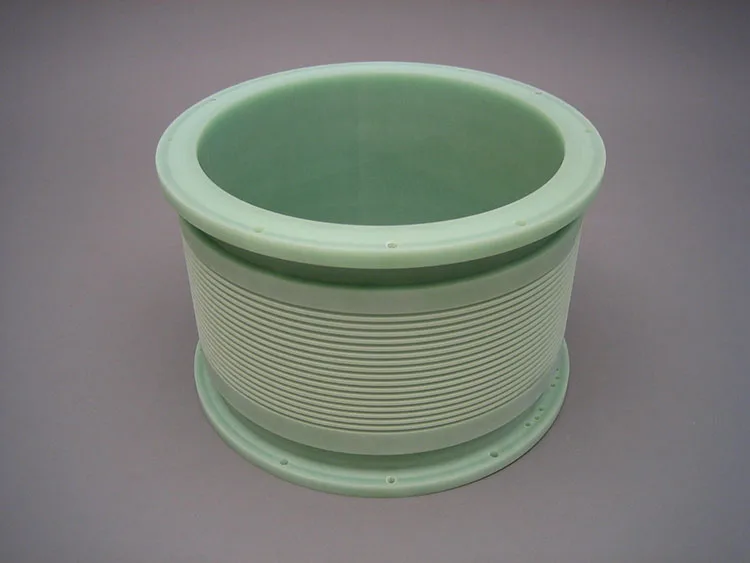

Finished Product
Finished product after machining such as cutting, grinding and drilling based on your drawing will be supplied.
Board Cut to Specified Dimensions
Board without machining such as drilling, etc. and in the form of simply cutting the material according to the specified dimensions will be supplied.
Blank Material
Blank material without any machining will be supplied.
GLASS FIBER EPOXY RESIN LAMINATED BOARD is the material with the highest strength among FRP (Fiber Reinforced Plastics).
It has high strength and can be used as a structural material.
Size of Blank Material :
Thickness : 0.3～100mm
Length X Width : 1000X1000 mm, 1000X2000 mm
Applications :
Electrical insulation material for electric equipment
Electrical insulation material for heavy electric machinery
Alternative products to metal products
Heat (Thermal) insulation board for plastic injection mould (mold)
Heat (Thermal) insulation board for plastic injection molding machine
Delivery Form of GLASS FIBER EPOXY RESIN LAMINATED BOARD :
Please choose from among the following three types of the delivery form of GLASS FIBER EPOXY RESIN LAMINATED BOARD.
Finished Product
Finished product after machining such as cutting, grinding and drilling based on your drawing will be supplied.
Board Cut to Specified Dimensions
Board without machining such as drilling, etc. and in the form of simply cutting the material according to the specified dimensions will be supplied.
Blank Material
Blank material without any machining will be supplied.
Our Advantages
1.MACHINABLE
Can be machined by using Machining Centers and NC lathes
2.EXCELLENT ELECTRICAL INSULATION PERFORMANCE
Insulation resistance : 106～108 MΩ
3.HIGH MECHANICAL STRENGTH
Compressive strength : 400～500MPa Bending strength : 400～500MPa
Can be machined by using Machining Centers and NC lathes
2.EXCELLENT ELECTRICAL INSULATION PERFORMANCE
Insulation resistance : 106～108 MΩ
3.HIGH MECHANICAL STRENGTH
Compressive strength : 400～500MPa Bending strength : 400～500MPa
Product Paramenters
Units | GLASS FIBER EPOXY RESIN LAMINATED BOARD | |
Heat Resistant Temperature | MV/m | 20～30 |
Insulation resistance | MΩ | 106～108 |
Bending Strength | Mpa | 400～500 |
Compressive Strength | Mpa | 400～500 |
Izod impact strength | J/cm | 5～6 |
Heat Resistant Temperature | degrees celsius | 120 |
Coefficient of Thermal Conductivity | W/m・k | 0.3 |
Specific Gravity | 1.75～1.95 | |
Water Absorption | ％ | 0.1 |
Listed values are measured, it is not a guaranteed value.
Heat resistant temperature is for reference only, and varies depending on the operating conditions.
Company Introduction
We are experts in manufacturing and supplying plastics, ceramics and heat(thermal) insulation/heat(thermal) resistant materials products mainly for machinery parts.
We use machine tools such as Machining Centers and NC lathes to process a variety of plastics, ceramics and heat(thermal) insulation/heat(thermal) resistant materials.
Our product line encompasses a wide range of plastics, ceramics and heat (thermal) insulation materials and we are especially adept at using materials that are difficult to machine including the following ;
1.Heat (thermal) insulation and heat (thermal) resistant materials (rigid heat insulation boards that are generally made of glass fiber, cement and mica as the main raw material)
2.Composite of glass fiber or carbon fiber and plastics (FRP, GFRP and CFRP).
3.Fine ceramics
We use machine tools such as Machining Centers and NC lathes to process a variety of plastics, ceramics and heat(thermal) insulation/heat(thermal) resistant materials.
Our product line encompasses a wide range of plastics, ceramics and heat (thermal) insulation materials and we are especially adept at using materials that are difficult to machine including the following ;
1.Heat (thermal) insulation and heat (thermal) resistant materials (rigid heat insulation boards that are generally made of glass fiber, cement and mica as the main raw material)
2.Composite of glass fiber or carbon fiber and plastics (FRP, GFRP and CFRP).
3.Fine ceramics
