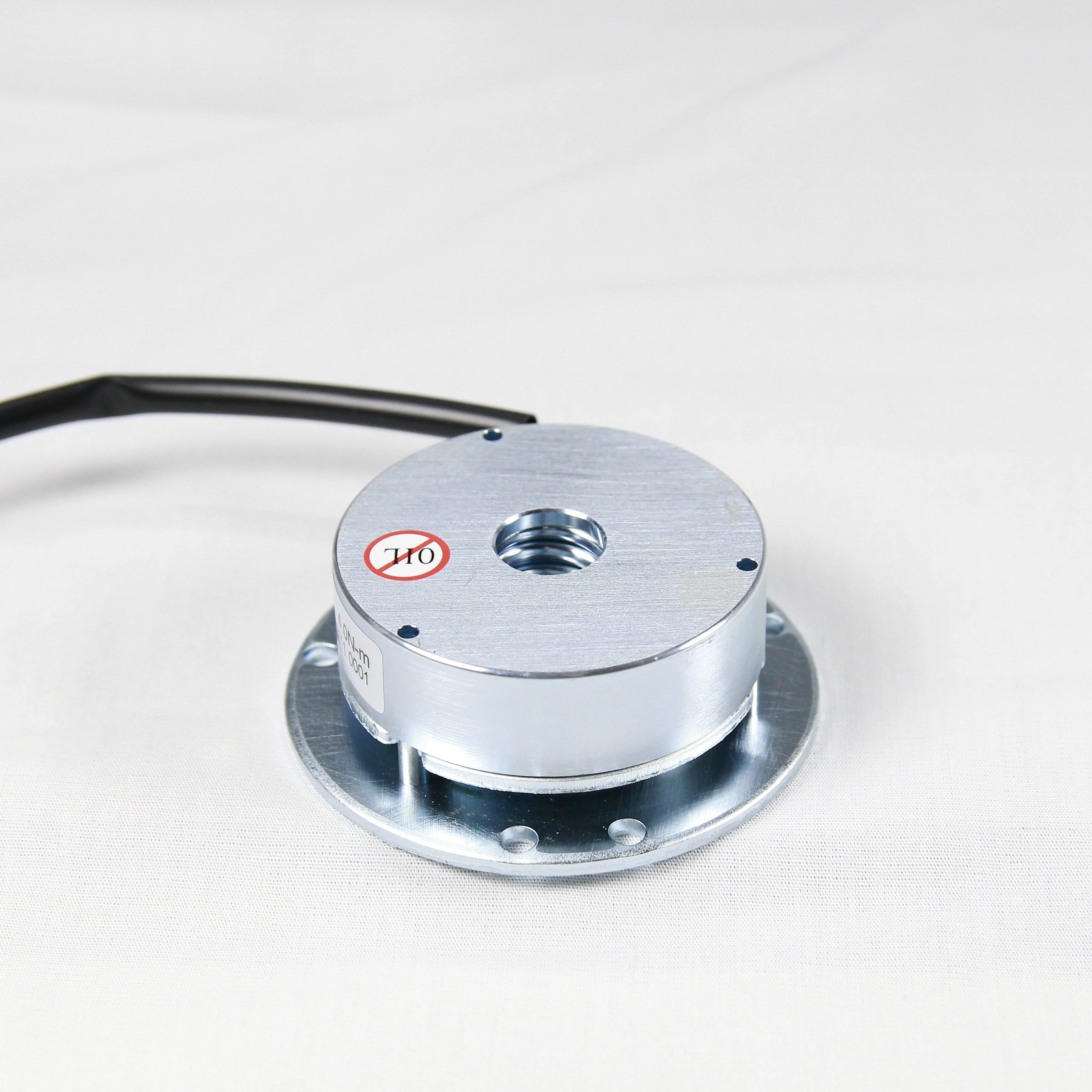

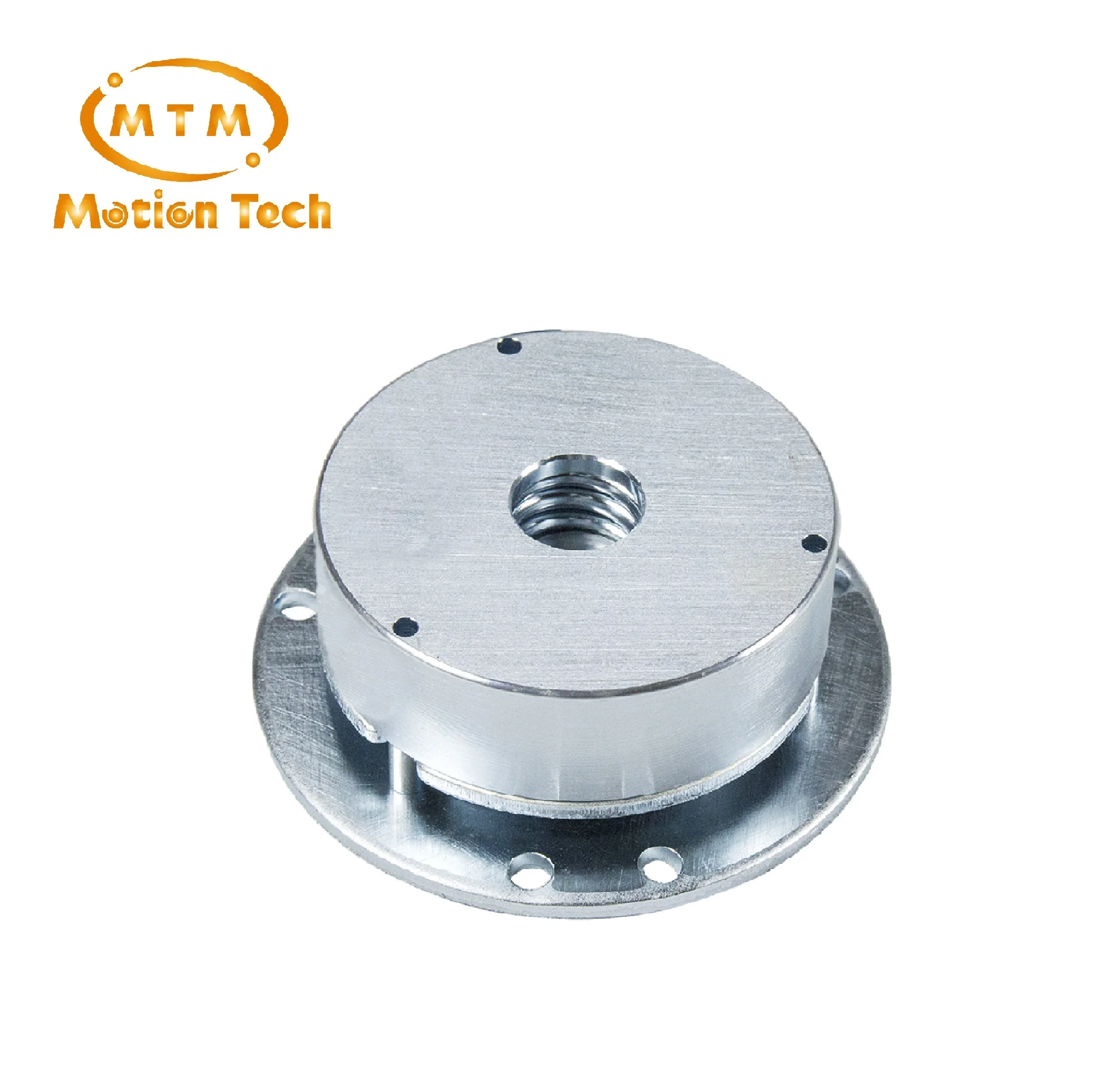

[MTM] 24V 4N.m Electromagnetic power off industrial clutch brake for motor Made in Taiwan
- Category: Industrial Brake >>>
- Supplier: MOTION TECHNOLOGY ELECTRIC & MACHINERY CO. LTD.
Share on (10000001605014):
Product Overview
Description
Product Overview
MTM adopts DC brake, low noise, and can be applied to a variety of power sources in conjunction with changes in connection. The braking force is high, the motor brake is flexible, and the continuous endurance for emergency stop and start-stop is extremely strong, and it prevents mechanical reversal and heavy load with large inertia from stopping in a short time.
Product Description
Title goes here.

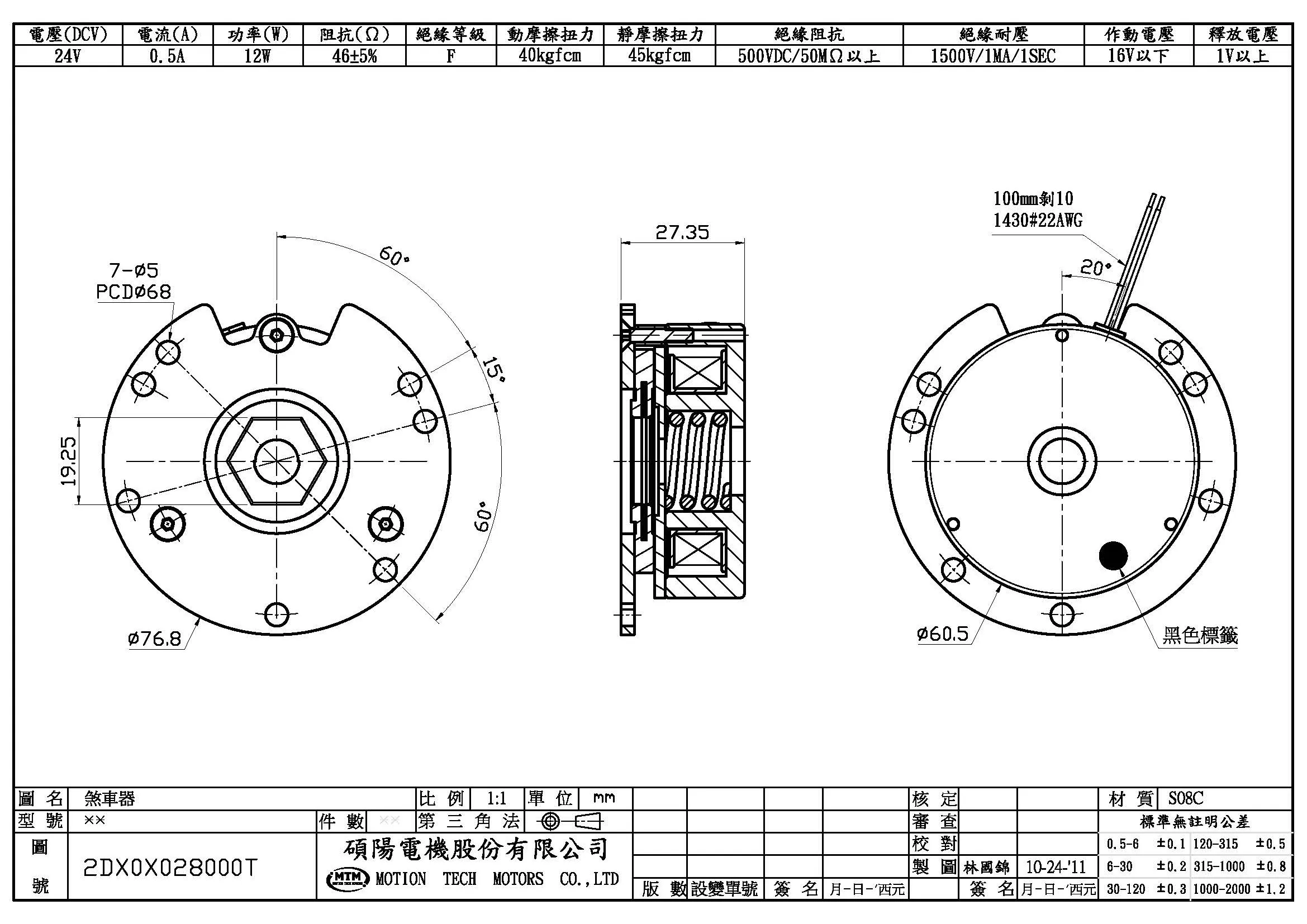

Voltage: 24V
Current: 0.5A
Power: 12W
Torque: 4N.m
Resistance: 46(Ω)
Actuation voltage: 16 V or less
Release voltage: 1V above
Current: 0.5A
Power: 12W
Torque: 4N.m
Resistance: 46(Ω)
Actuation voltage: 16 V or less
Release voltage: 1V above
Product Paramenters
Certifications
About Brush Series
Brush DC Motor
Standard DC63 products:20~100W
Standard DC71 products:30~300W
Standard DC82 products:80~450W
Standard DC90 products:80~500W
Standard DCA5 products:200~900W
Standard DCC4 products:200~1200W
Standard DC71 products:30~300W
Standard DC82 products:80~450W
Standard DC90 products:80~500W
Standard DCA5 products:200~900W
Standard DCC4 products:200~1200W
Standard EC63 products:80~270W
Standard EC71 products:80~300W
Standard EC82 products:150~500W
Standard EC90 products:120~600W
Standard EC92 products:250~600W
Standard EC94 products:250~500W
Standard ECA0 products:500~900W
Standard ECA5 products:500~950W
Standard ECC4 products:350~1300W
Standard EC71 products:80~300W
Standard EC82 products:150~500W
Standard EC90 products:120~600W
Standard EC92 products:250~600W
Standard EC94 products:250~500W
Standard ECA0 products:500~900W
Standard ECA5 products:500~950W
Standard ECC4 products:350~1300W
Standard SC63 products:80~270W
Standard SC71 products:100~300W
Standard SC82 products:150~450W
Standard SC90 products:250~500W
Standard SC92 products:300~500W
Standard SC94 products:250~500W
Standard SCA5 products:500~950W
Standard SCC4 products:600~1300W
Standard SC71 products:100~300W
Standard SC82 products:150~450W
Standard SC90 products:250~500W
Standard SC92 products:300~500W
Standard SC94 products:250~500W
Standard SCA5 products:500~950W
Standard SCC4 products:600~1300W
Applications
Brush motor is our root, Servo motor and brushless motor is our future.
The main product of MTM is for vehicles with low voltage DC power. If you are looking for a DC power servo motor, BLDC, brush motor or gearbox, MTM is your best choice.
Packing & Delivery
Company Profile
About MTM
ISO 9001, ISO 14001 AUTHORIZED.
Motion Tech is the leading role in motor industry in Taiwan and leading brand of medical electric wheelchair, E-scooter all over the world. We devote to manufacture PMDC motors and BLDC motors since 2002.
Motion Tech is the leading role in motor industry in Taiwan and leading brand of medical electric wheelchair, E-scooter all over the world. We devote to manufacture PMDC motors and BLDC motors since 2002.
The main products of MTM is power module which included motor, gearbox and motor controller. MTM provide customization service which included design, test and manufacture to create a product with quality, efficiency and reliability.
