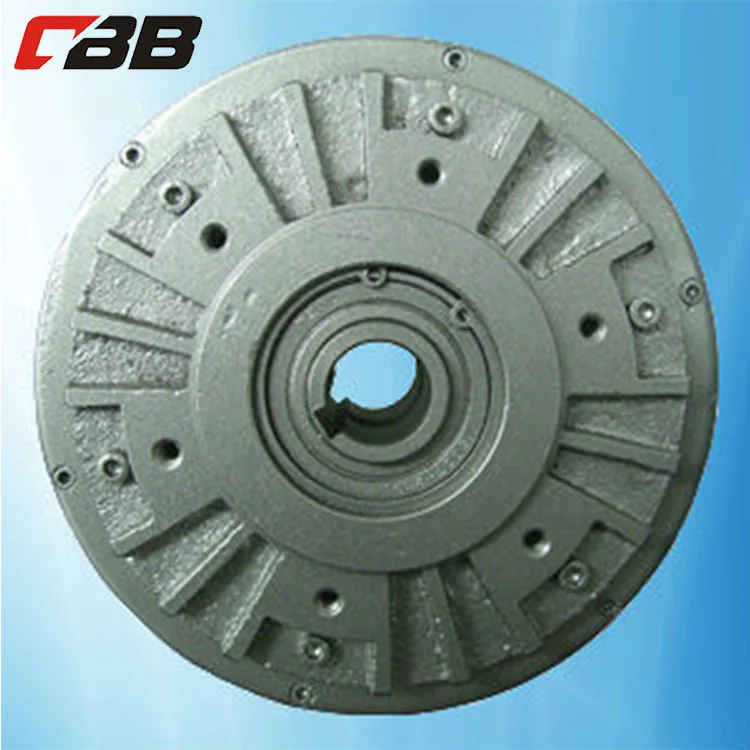

1.Magnetic powder brake is applied in unreeling. Match with tension controller to use.
2.Summary: the magnetic powder clutch and magnetic power brake are utilise magnetic powder under the galvanomagnetic effect to transfer torque.
3. It has advantages of magnetizing current and transmit linear relationship and rapid response speed, simple structure, no impact, no vibration and no noise, no pollution .
4.It is a multi-purpose, superior performance of automatic control components, widely used in various industries of machinery loading, brake and compressing loading system and rewinding tension control winding.
Model
Torque (Nm)
Power (w)
Voltage
Rotation speed
Weight(kg)
Magnetic powder(g)
FZ12K-3
12
120
24
1000
4
20
FZ25K-3
25
150
24
1000
7.2
30
FZ50K-3
50
200
24
1000
11.6
60
FZ100K-3
100
300
24
800
19.2
110
Question:
Can you customized the rolls for me if I provide the size or drawing?
Answer:
Yes! All the rolls and shafts are customized for every customer.
Question:
I need the roll which diameter not included in your list, can you produce?
Answer:
Yes! We can produce all sizes of rolls.
Question:
What is the minimum order of the rolls?
Answer:
The minimum order is only 1 piece.
Question:
What is the delivery time of the roll?
Answer:
According to the quantity you order, mostly is within 30 working days.
Question:
Can you provide any sample for checking?
Answer:
Yes! We can supply the sample, you pay for the cost of shipment.
