42U 600*800 networking rack server cabinet mesh door handle lock
US $180.00-$220.00
19' 42U Network cabinet sever rack accept customized cabinet 18U 22U 27U 32U
- Category: Network Cabinets >>>
- Supplier: Ningbo,Lingtong,Telecom,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Specification
item | value |
Certification | ce, RoHS, TUV |
Private Mold | Yes |
Products Status | Stock |
Cabinet Standard | International Standard, 19inch Standard |
Material | SPCC Cold Rolled Steel |
Size | 42U server rack |
Place of Origin | ZHE |
Brand Name | Lingtong |
Material Thickness | 1.5 Mm SPCC |
OEM Server | Accept |
color | White |
Feature：
19 inch width standard;Static Loading:1000kg(on the adjustable fet)
Degree of Protection：IP20
Removable Side Panels, side locks optional;
Knock off hole for entering cable on both top cover,bottom panel,real panel;
Turning angle of front door is over 180 degrees；
Removable Side Panels, side locks optional;
Knock off hole for entering cable on both top cover,bottom panel,real panel;
Turning angle of front door is over 180 degrees；
Easy mounting installation；
Unassembled package saving shipping space；
fan,shelf,PDU are optional；
Unassembled package saving shipping space；
fan,shelf,PDU are optional；
High-density vented front and rear door with hexagonal holes;

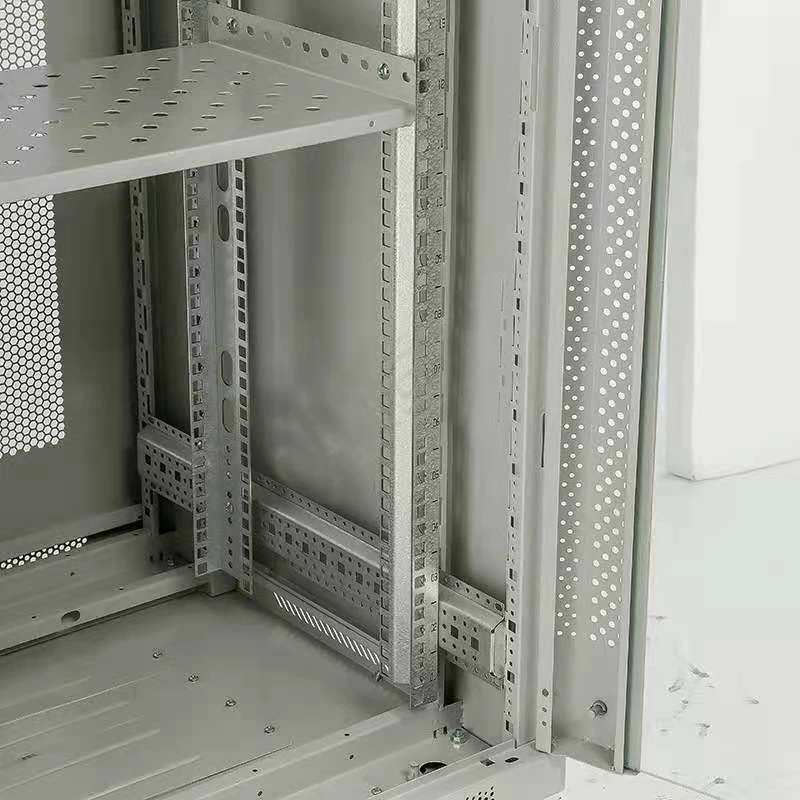

Mounting Angle

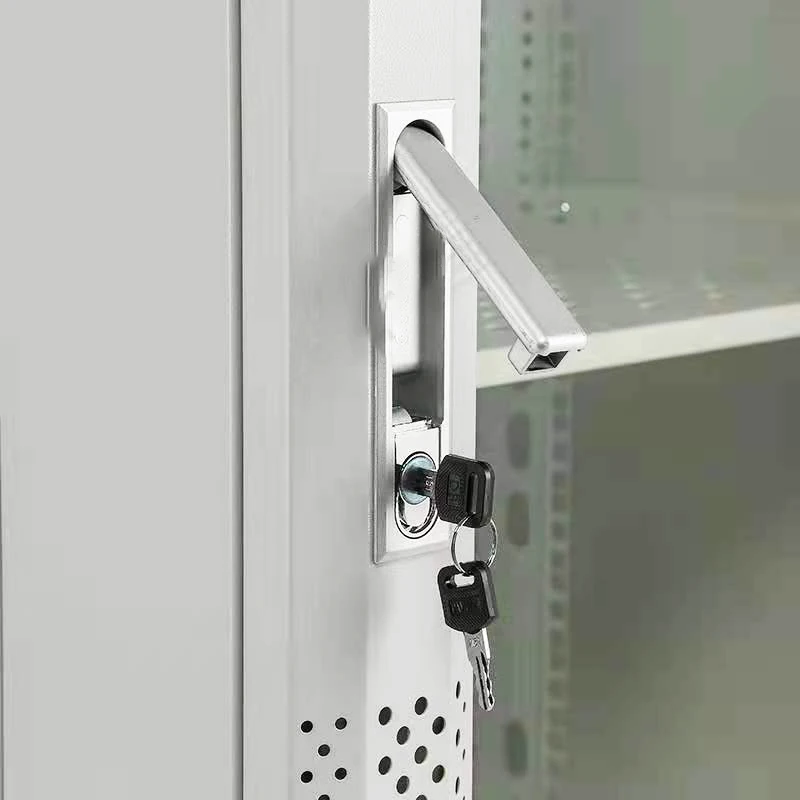

Doorknob
L-bracket
OPTIONAL ACCESSORIES

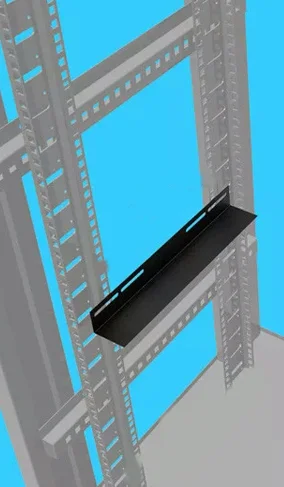

L Shelf
PDU
Fixed Shelf
1/2/4 Fans
Grounding Copper bar
Inlet hole cover

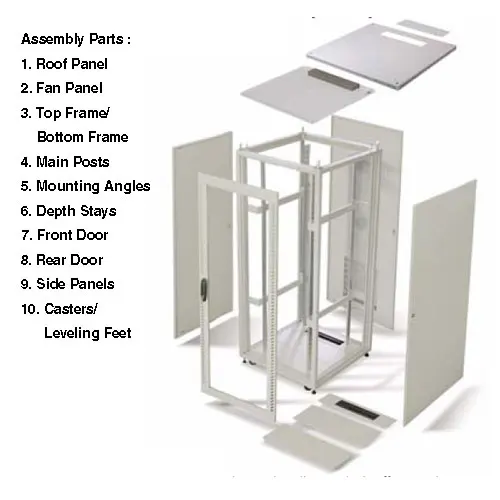

Quantity | Material | Surface Finish | ||
Mounting profile | 4 | piece | SPCC cold rolled steel t2.0 | Powder coated |
Mounting rail | 4/6 | piece | SPCC cold rolled steel t1.2 | Powder coated |
Frame | 2 | piece | SPCC cold rolled steel t1.2 | Powder coated |
Front door | 1 | piece | Single open mesh vented door t1.2 Double open mesh vented door t1.2 5MM toughened glass door/SPCC t1.2 | Powder coated |
Back door | 1 | piece | Single open mesh vented door t1.2 Double open mesh vented door t1.2 | Powder coated |
Side panel | 2 | piece | SPCC cold rolled steel t1.2 | Powder coated |
Top cover | 1 | piece | SPCC cold rolled steel t1.2 | Powder coated |
Bottom panel | 1 | piece | SPCC cold rolled steel t1.2 | Powder coated |
Castors | 4 | |||
Leveling feet | 4 | |||
Lock | 2 | |||
M6 Square nut | 30 | Color Zinc | ||
M6 B-head screw | 30 | Color Zinc | ||
Allen wrench | 1 | Color Zinc |
Related Products

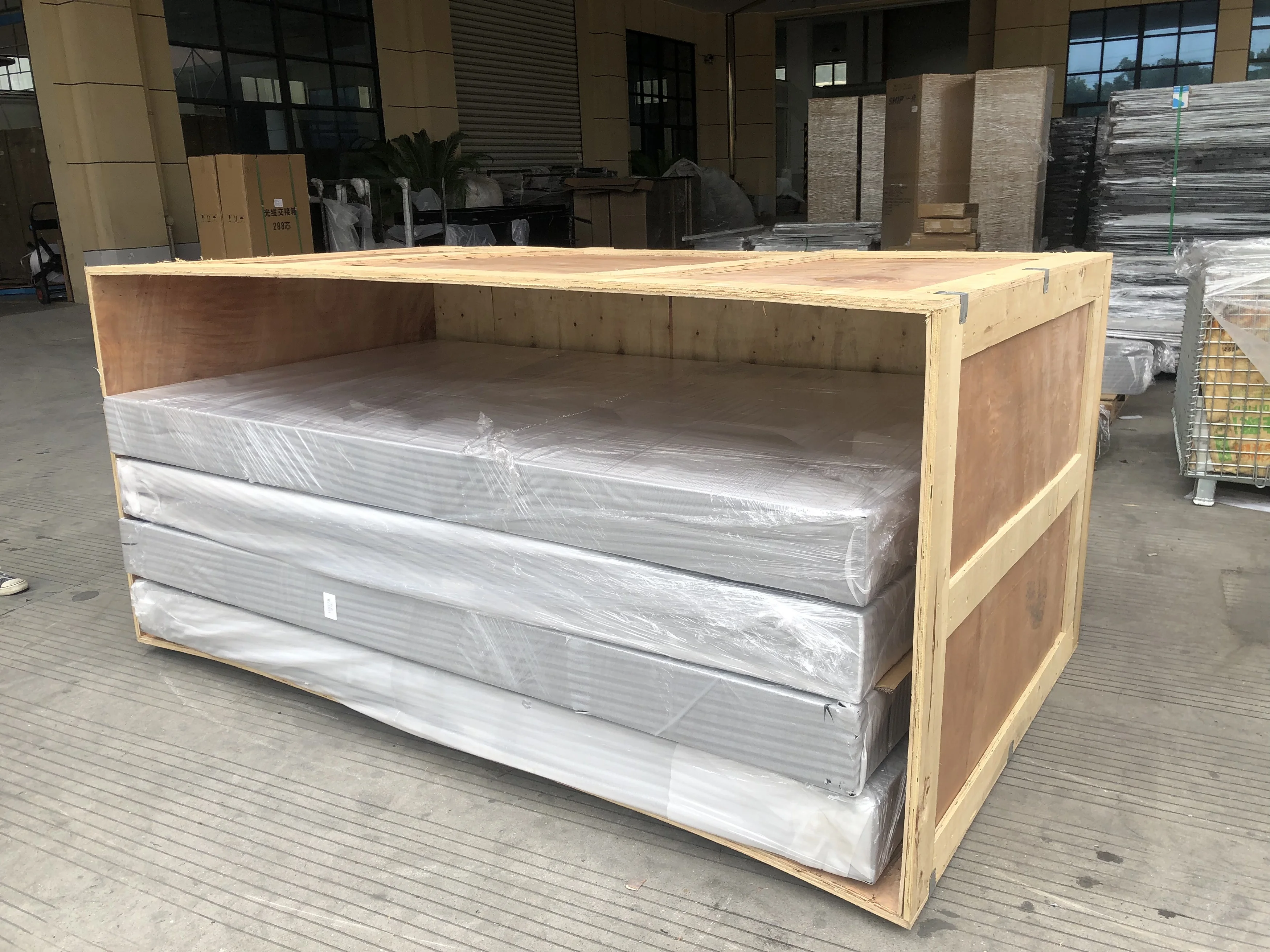

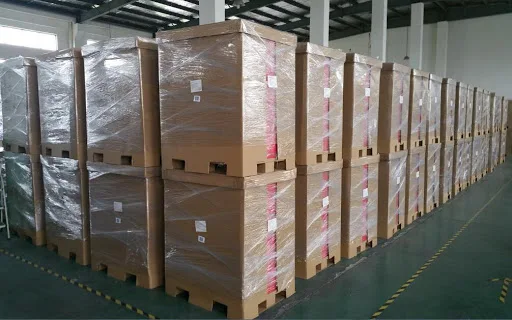

Packing&Shipping
Processing:

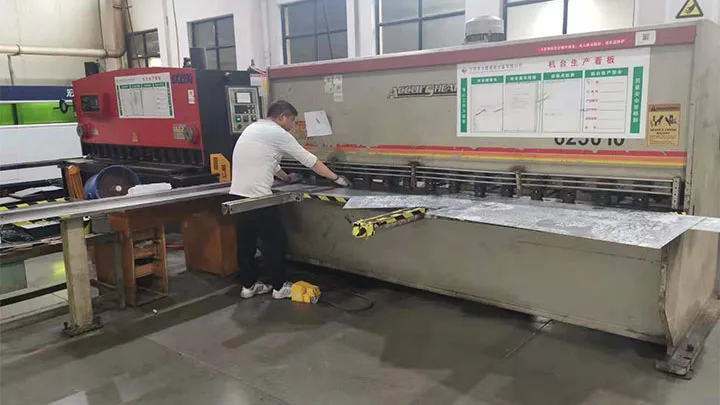

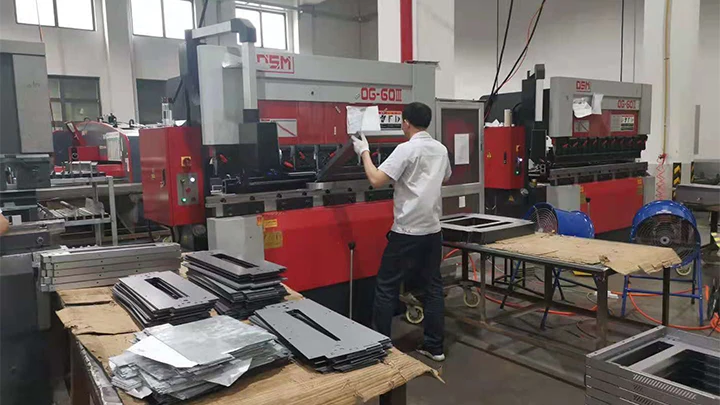

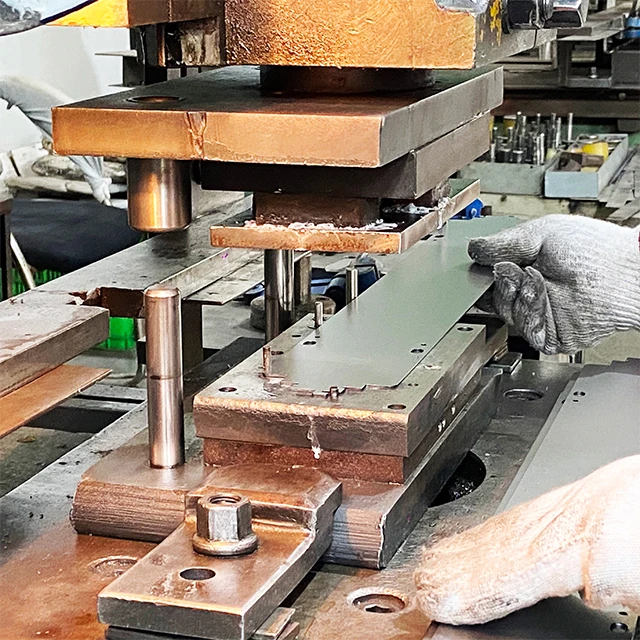

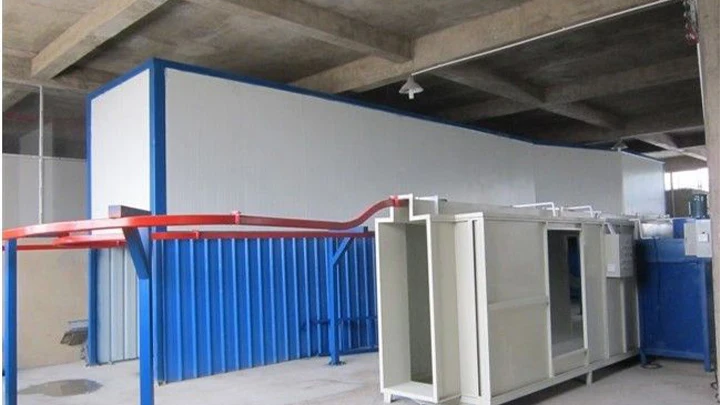

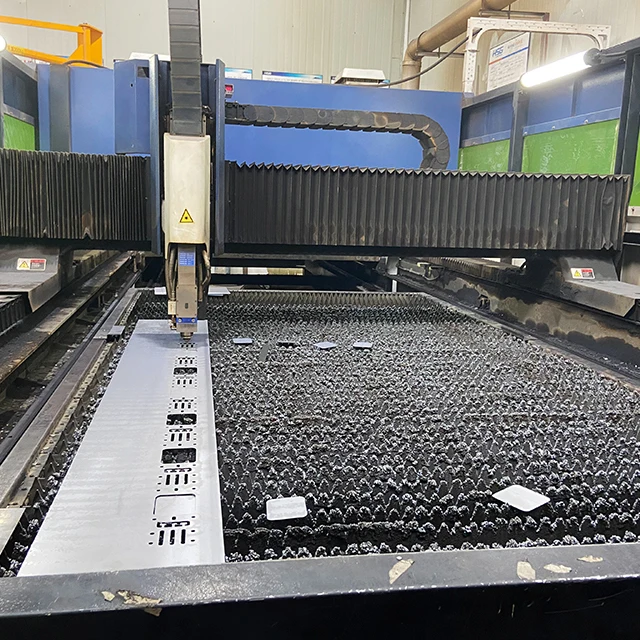

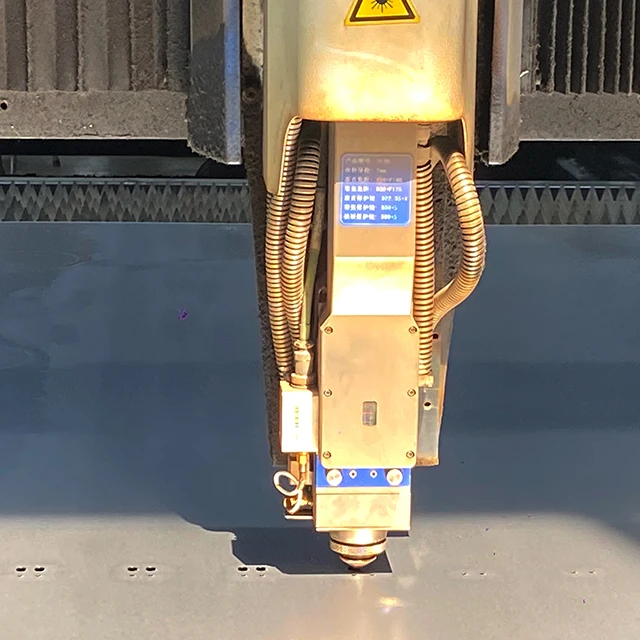

1.Cutting 2. CNC punching 3. Bending 4.Welding 5. Spraying 6.Assembling 7. Test 8.Packaging and warehousing
Company Introduction

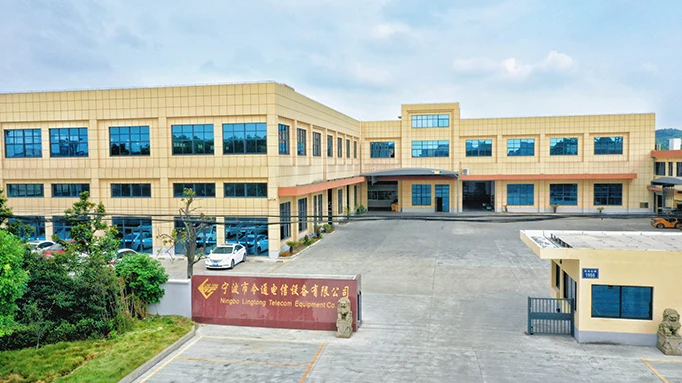

Ningbo LingTong Telecom Equipment Co., Ltd. was founded in 1998 and is located on the beautiful coast of the East ChinaSea---Ningbo, Zhejiang. With 10,000 m2 modern standard workshop building and a production and technical team of more than 300 workers, it is a national high-tech enterprise integrating R&D, production, sales, design, construction, and operation and maintenance, which focuses on modular data center infrastructure solutions and services.

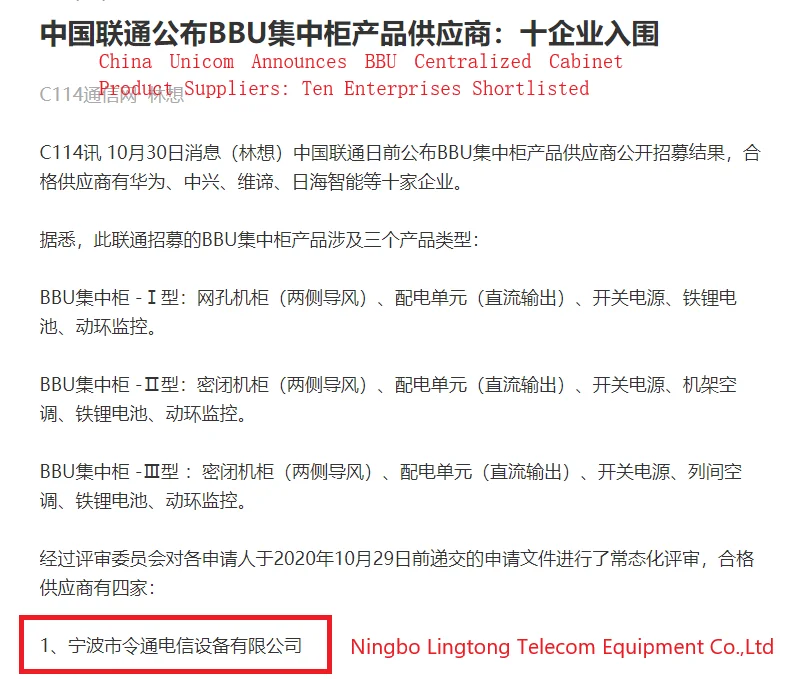

In the Chinese market, we are the supplier of the three major telecom operators, China Mobile, China Telecom and China Unicom, and also provide supply to China Tower, ICT equipment vendors and schools .
In the Chinese market, we are the supplier of the three major telecom operators, China Mobile, China Telecom and China Unicom, and also provide supply to China Tower, ICT equipment vendors and schools .
FAQ
Q: Are you a factory or a trading company only?
A:We are a professional manufacture firm, your One-Stop-Manufacture For All Your Telecommunication Solution Needs..And More
Q: Is the free sample available?
A:Yes. of course, we are glad to supply the free sample immediately.
Q: What's your warranty?
A: More than 10 years warranty
Q: How's your QC?
A:We do have a professional QA&QC team. Weekly reports to the QC manager regarding incoming material quality, processing quality, testing result, existing problems during work, proposal to other department etc
Q:What's the delivery time?
A:Depend on your quantity, as the regular specification for one 40 feet container will be 20 days. Of course. if it's urgent. We can help to arrange it accordingly.
Q:Can you supply OEM products with my brand,and my logo?
A:Yes, depend on annual volume ordered.
Q:Can I become an exclusive distributor of your products in my area?
A:Yes, it is possible. Please contact us for more detail.
Q:Do you have any cooperation experience with famous companies ?
A: Yes we are the supplier of the three major telecom operators, China Mobile, China Telecom and China Unicom, and also provide supply to China Tower.
Q:What can I do, if I want to know more?
A:We are a professional manufacture firm, your One-Stop-Manufacture For All Your Telecommunication Solution Needs..And More
Q: Is the free sample available?
A:Yes. of course, we are glad to supply the free sample immediately.
Q: What's your warranty?
A: More than 10 years warranty
Q: How's your QC?
A:We do have a professional QA&QC team. Weekly reports to the QC manager regarding incoming material quality, processing quality, testing result, existing problems during work, proposal to other department etc
Q:What's the delivery time?
A:Depend on your quantity, as the regular specification for one 40 feet container will be 20 days. Of course. if it's urgent. We can help to arrange it accordingly.
Q:Can you supply OEM products with my brand,and my logo?
A:Yes, depend on annual volume ordered.
Q:Can I become an exclusive distributor of your products in my area?
A:Yes, it is possible. Please contact us for more detail.
Q:Do you have any cooperation experience with famous companies ?
A: Yes we are the supplier of the three major telecom operators, China Mobile, China Telecom and China Unicom, and also provide supply to China Tower.
Q:What can I do, if I want to know more?
A:Please contact our sales department. or call Jack directly. Mobile/WeChat/WhatApp:+86 18058530099.
