Product Overview

Description




Over 10 years experienced team to offer quality Product & OEM/ ODM Service






Features\t\t\t\t
10.1" Windows 10 Rugged Tablet PC
• 10.1 inch 16:10, 1920x1200
• RAM/ROM 4GB/64GB
• Screen resolution UXGA 1080*1920, 500nits
• 4G LTE/WIFI/GPS/BT
• Support RJ45, RS232, USB 2.0, Micro USB

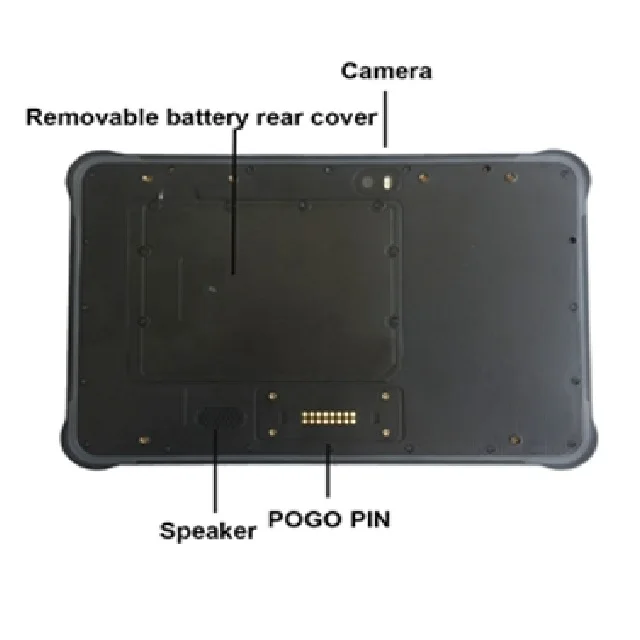

• Back pogo pin for extend, bottom pogopin for docking station
• Windows 10 Pro/ Home


COM
1x RS232
LAN
1x RJ45
USB
3x USB 2.0
Operation System
Support Win 7/ Win 8/ Win 10/ Linux etc.
size
475.2* 296.2*56.5mm
colour
Silver
Product Features
1. Full IP65 sealed stainless steel 304 enclosure, true flat design, round corner design.
2. Air valve design, keep air pressure balance inside and outside, anti fogging.
3. Industrial LCD panel, wide viewing angle, high brightness, true color.
4. True flat multi-touch P-Cap or single-touch Resistive with high sensitive & fast response.
5. Optical bonding technology to enhance display readability.
6. Embedded or Core i3/i5/i7 CPU fanless design, 7x24 continuous operation.
7. SUS304 or SUS316 stainless steel with acid-resistant, alkali-resistant, corrosion-resistant.
Material
SUS304 stainless steel
Selling Units
Single Unit
Single package size
640*480*180mm
Single gross weight
12KG


Model Number: UMST-11W


Basic Parameters
OS
Windows 10 Pro
CPU
Intel cherry trail Z8350
RAM/ROM
4GB/64GB
LCD
10.1 inch1920*1200；500 nits sunshine readable
Touch screen
5 point touch, Glove touch, Water touch,
Camera
5M/13M
Power and battery
Battery total capacity 10500mAh 8400+2100, 3.7V
play video 8 hours, working 10 hours charging 4 hours.
3.5*1.35mm, 5V 3A DC in put
WWAN
4G LTE, 3G WCDMA, GSM
4G Fre:
FDD: B1,B2, B3,B5, B7, B8, B12， B20
TDD: B38,B39,B40,B41
B34
WCDMA:B1, B8
TD-SCDMA: B34, B39
GSM/GPRS/EDGE
GPS
baidou,GPS, glonass
Wifi
802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G
BLUETOOTH
4.0 version
NFC
13.56 MHz, distance 5cm or above
SPEAKER
1.5 watt
Sensor
1. light sensor
2. acceleration/gravity
Size
275*178*18mm
Multi-media
(Hardware decoding)
Photo Viewer
BMP, JPG, GIF, PNG
Video Format
MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format
MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS
Language
Multi language

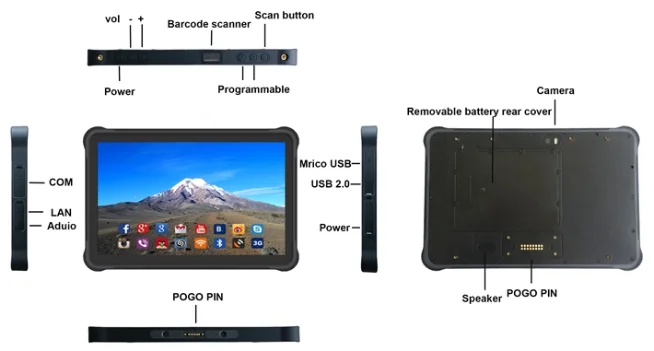

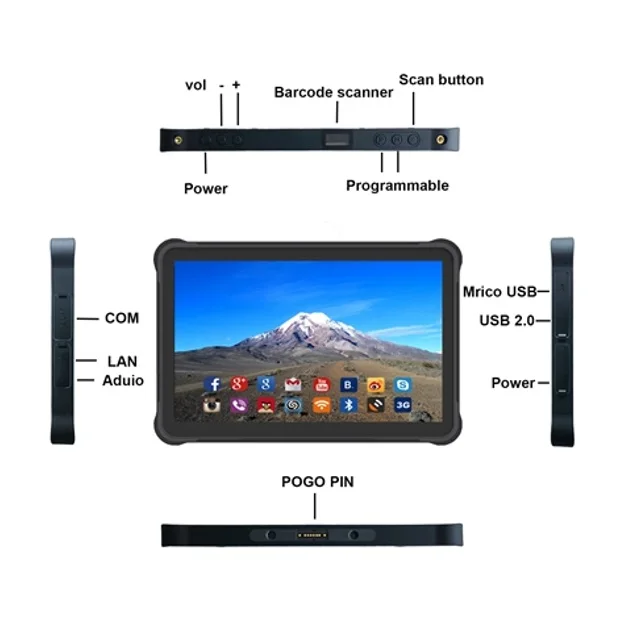

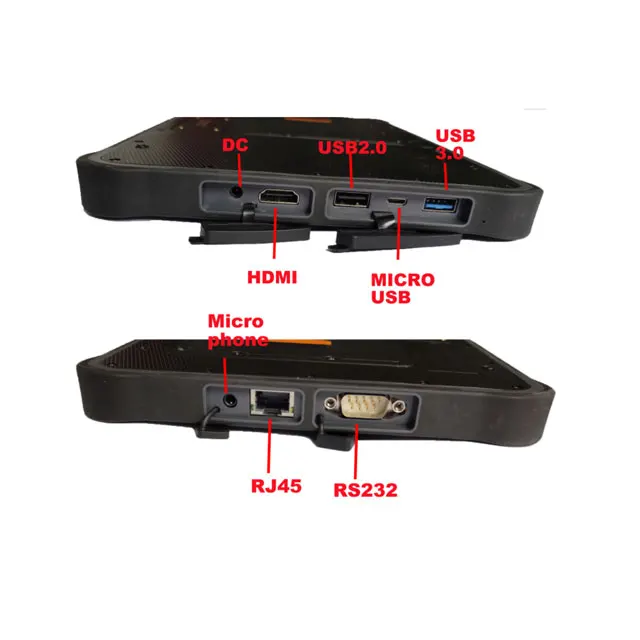

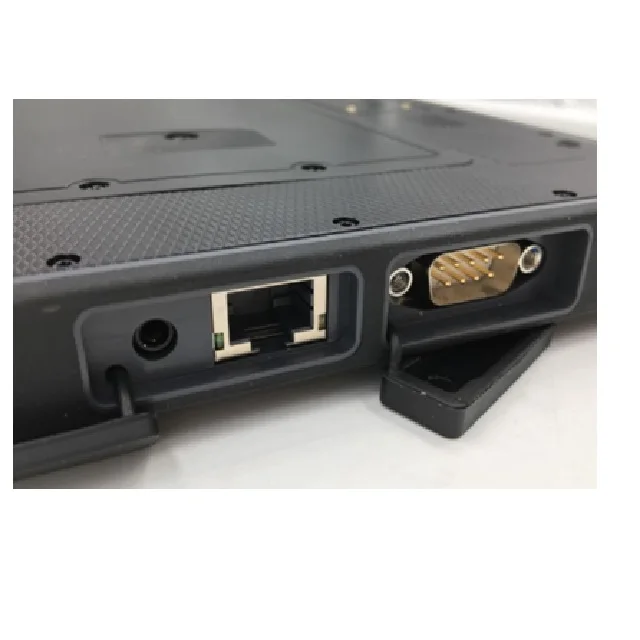

Interface
in/out port
1.USB*2
2. Micro USB*1
3. RJ45*1
4. bottom pogopin*1, USB and serial
5. back pogopin*1
6. DC*1 3.5*1.35
7. microphone+earphone
8. mini HDMI
9.RS232*1
Pogopin definition
1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)
Casing material
ABS/PC
Button
V+ -, Power, P, F, H
2D barcode module
honeywell N3680
Fingerprint
support
Accessories
1. USB cable
2. charger
3. handstrap
4. car holder
5. docking station
6. car charger
7. white box, no logo
Proof rate
1. water proof IP65
2. Drapping proof 1.2 meter
Certification
1. 810G
2. CE,FCC
Temperature
1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
Multi-media
Photo Viewer, BMP, JPG, GIF, PNG
Hardware decoding
Video Format, MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS
Audio Format
Language
Multi language
Interface (I/O)
1. Normal USB*1
2. Micro USB*1
3. RJ45*1
4. Bottom pogopin*1, USB and serial
5. Back pogopin*1
6. DC*1 3.5*1.35
7. Microphone+earphone
8. Mini HDMI
9. RS232*1
Pogopin definition
1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V OUT)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， )
VESA hole 75*75mm or 90*90mm
Casing material
ABS/PC/Rubber TPU/aluminum
Button
V+ -, Power, P, F, H
2D barcode module
Honeywell N3680
Fingerprint module
LD-8800-M
Accessories
1. USB cable
2. Charger
3. Handstrap
4. Car holder
5. Docking station
6. Car charger
7. White box, no logo
Proof rate
1. Water proof IP65
2. Drapping proof 1.2 meter
Certification
1. 810G
2. CE,FCC
Temperature
1. Storate temperature -25 to 80 degree
2. Operation temperature -20 to 60 degree


Product Outlook












( BIS ) Beyond Info System emerged from the idea of ( SPEC )
Serving, Protecting, Entertaining, Connecting people. Our main purpose is to serve worldwide customers to provide global village living environment life easier, safer and happier. BIS have extensive experience and professional research with development team specializes in the design and manufacturing industrial PC products as Multimedia AIO System, Embedded Box PC, AIO Touch Panel PC/Monitor, Service KIOSK. BIS allies with local partners to promote various products as we believed local people whom do local business is the best for end users. Asides from developing hardware for ODM/OEM and system integrators worldwide, we are also expertise in electronics parts which able to assist you to source for proper supplement. Please empower BIS to bring benefits to your business, we truly believe you would be satisfied by our passion, efficiency, competitive and services.








1.All in One system Pioneer: BIS is a high-tech enterprise specializing in research, development & Manufacturer of modern education equipments and multimedia product series. With intensive investment and a professional research and development team, we have obtained the leading position in All in One PC industrial sector in Taiwan & China and become one of the best suppliers in this field around the world.

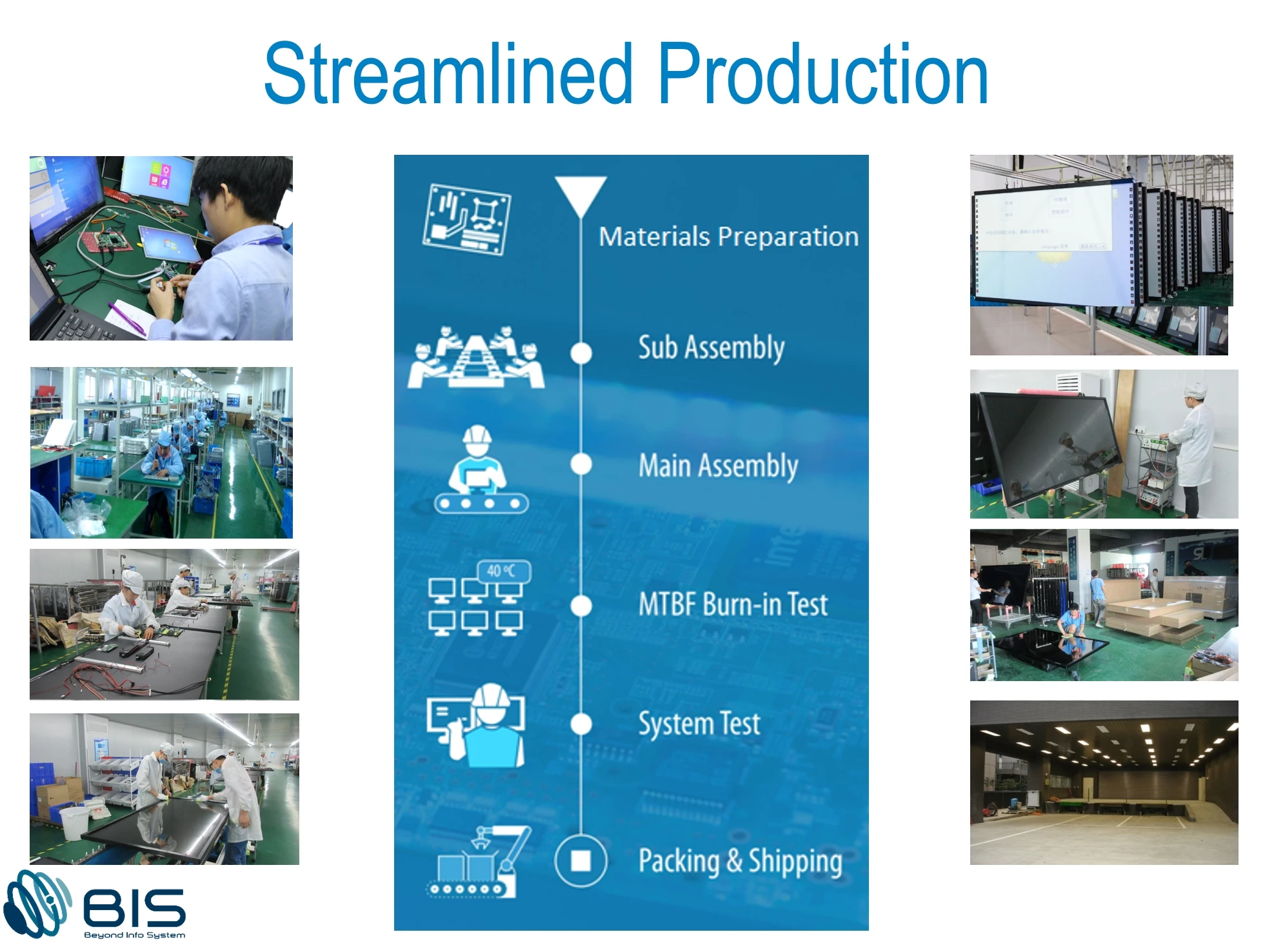

2.Streamlined production: From design, production to after-sales service, the comprehensive and complete integration brings customers high quality service and products. The System test confirms functionality of all systems before packing. We’ve created appropriate programs to ensure quality in all functions of systems. All defective systems are screened at system test then re-run after repair.

3.Core value: With BIS you will enjoy One Stop Service
Our principal of working attitude is to support our partners to solve their matters, we provide “One Stop Service” philosophy from initiate design, implement manufacture, quality control and cost reduction. We are also expertise in electronics parts which able to assist you to source for proper supplement and manage to resell your excess inventory.














1. who are we?
We are based in Taiwan, China, start from 2019,sell to South Asia(12.00%),Western Europe(11.00%),Southeast Asia(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Industrial Panel Pc,Industrial Monitor Display,Industrial Box PC,Kiosk,Rugged Handheld

4. why should you buy from us not from other suppliers?
1.10 years experienced R & D capacity to design and develop quality products with advanced technology
2.Flexible customization service at short lead time
3.Cost efficiency for various quality product range
4.Short lead time offered

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish
