industrial dust proof high brightness 17 inch LCD all in one Android computer with resistive touchscreen panel PC Android OS (62407615651)

Share on (62407615651):


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

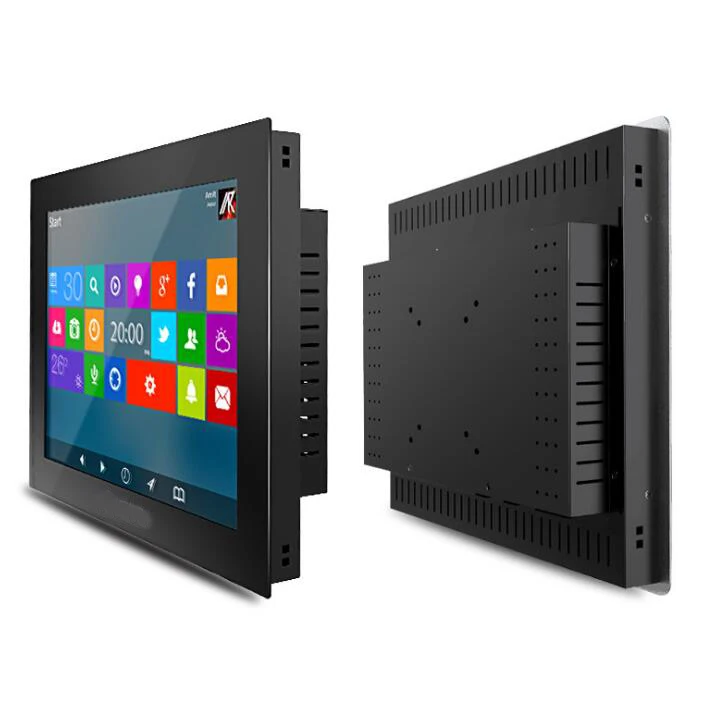

industrial dust proof high brightness 17 inch LCD all in one Android computer with resistive touchscreen panel PC Android OS



Display Panel Details
display panel brand
LG,Samsung,AUO,Chimei,etc... original brand new & grade A+
Size
7 inch to 55 inch
Customize Frame Color
Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
body material
Durable aluminum frame & tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
PC configuration
Chipset:
RK3288 RK3399 RK3399 pro...... as options
Chipset Frequency:
quard core/octa core upto 2Ghz
Operation System
Android 6.0 / 7.0 / 8.1 OS as options
Ram:
1GB DDR3 SDRAM (16G max)
Memory:
16GB /32GB as optional
WiFi
150Mbps 802.11b/n/g Wifi Integated
PC configuration
Audio
Realtek HD ALC662 HD
Line-In/Line-Out/Speaker out with 1W AMP Circuit
Ethernet ports
Realtek RTL8111EL PCI-E Gigabit Ethernet LAN RJ45 port
VGA ports
Default *1 (options)
COM ports
Default *2 COM (options)
USB ports
Default *4 USB (3*USB2.0; 1*USB3.0) (options)
Touch Screen
TouchScreen Type
Resistive(4-wire/5-wire); capacitive; SAW/IR as options
TouchScreen interface
Serial (RS232) or USB or COM as options
Surface Hardness
Mohs' Number 7; Transmittance >75%
Power Supply
Input Voltage
DC12V or 24V
Output Rating
≦20W
Environmental
Work Temperature
-20 ~ 60°C (-4~140°F)
Storage Temperature
-30 ~ 80°C (-22 ~ 176°F)
Relative humidity
5~95% (Non condensation)
Shake: SSD applied
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock: SSD applied
10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
EMC
CE/FCC Class A
Water-proof
Front panel IP65


Features.

Our industrial panel pc are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.

Our industrial pc provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel pc have 8 inches to 55 inches



Specialties.

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing

2. Exceptional quality and highly engineered industrial monitors

3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc

4. All steel construction designed for harsh and industrial environments

5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis

6. Meets NEMA 4/4x/12 and IP65 standards

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)

8. Accuracy in high-use applications

9. Supports Windows, Linux OS, Android, Mac OS, Ubuntu, Android

10. CE, FCC, RoHS, ISO9001:2008 compliance.

11. VGA, DVI, support HDMI, AV, S-Video, BNC multiple inputs/outputs optional

12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running





Product Details


Front Surface IP65 protection grade




Desktop mounting.

Wall mounting type.



Embedded type.

Desktop type.





Packing & Delivery




Our Service


Warranty:  12 months warranty & Life-time maintenance

Trade Terms: EX-Works, FOB, C&F, CIF, DP, DA

Payment terms : T/T bank wire, Western Union, PayPal, L/C, MoneyGram, Cash, Trade assurance.

Shipping: By sea, by air and by international express ......



Certifications




FAQ


1) Q:What is the minimum order quantity?

A:  Qty: 1 unit. Different order quantity different price.


2) Q:What payment methods your company accept?

A:We accept most often payment methods,but mainly accept bank wire transfer T/T, L/C at sight, Western Union.


3) Q:How long is the warranty time for your products?

A: We warranty 1 year for all of our products and supply life-time maintenance.


During 1 year warranty period, for small part defective,we will send replacement parts for free of charge to customers,so customers can replace defective parts by new parts by themselves. We also will pay for shipping cost. For big defective problem,customers have to ship back defective units to us and we will repair or replacement for them for free of charge. Customers will pay for shipping cost from their address to China and we will pay for shipping cost from China to customers' address.

For life-time maintenance (out of 1 year warranty period),any defective parts or units,customers will pay for replacement parts and shipping cost.We will charge a bottom cost for parts.

The man-made damage and misusing damage is not under warranty.


4) Q:I haven't done business with your company before,how can i trust your company?

A:Our company is a registered golden member on Alibaba sit for more than 7 years. We have many business partners and order histories all over the world.


5) Q:what's the shipment terms and delivery time of your company?

A: It depends on order quantity, shipping address and shipping methods.


6) Q:Do you give any discount ?

A: Different order quantity different price. We will always offer customers the lowest price based on the best quality.


7) Q:I would like to ask you if it's possible to have my logo on the product.

A: Logo printing service is available.
