1.5 Inch Very Small Lcd Screen JHD144B2605
US $0.01-$1.00
Touch screen tft lcd 7 inch with 24RGB interface 800x480 Resolution IPS 250 nits tft lcd 7 inch LCD Display Panel
- Category: LCD Module >>>
- Supplier: Shenzhen Leadtek Electronics Co. Ltd.
Share on (10000002884731):
Product Overview
Description
Product Description
Product description
*7inch color screen,support 262K color display,display rich colors
* 800(RGB)x480 resolution, clear display
* Using RGB interface
* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
* Long term stable production and guaranteed supply
* 800(RGB)x480 resolution, clear display
* Using RGB interface
* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
* Long term stable production and guaranteed supply
Production Overview
LCD type | 7’TFT |
Dot arrangement | 800(RGB)x480 |
Display mode | IPS / Transmission / Normally black |
Viewing Direction | 80/80/80/80 |
Module size | 180 (H) x 119 (V) x13.8(D) |
Active area | 154.08 (H) x 85.92 (V) |
Interface | 24RGB |
24RGBOperating temperature | -10°C ~ +60°C |
Storage temperature | -20 °C~ +70°C |

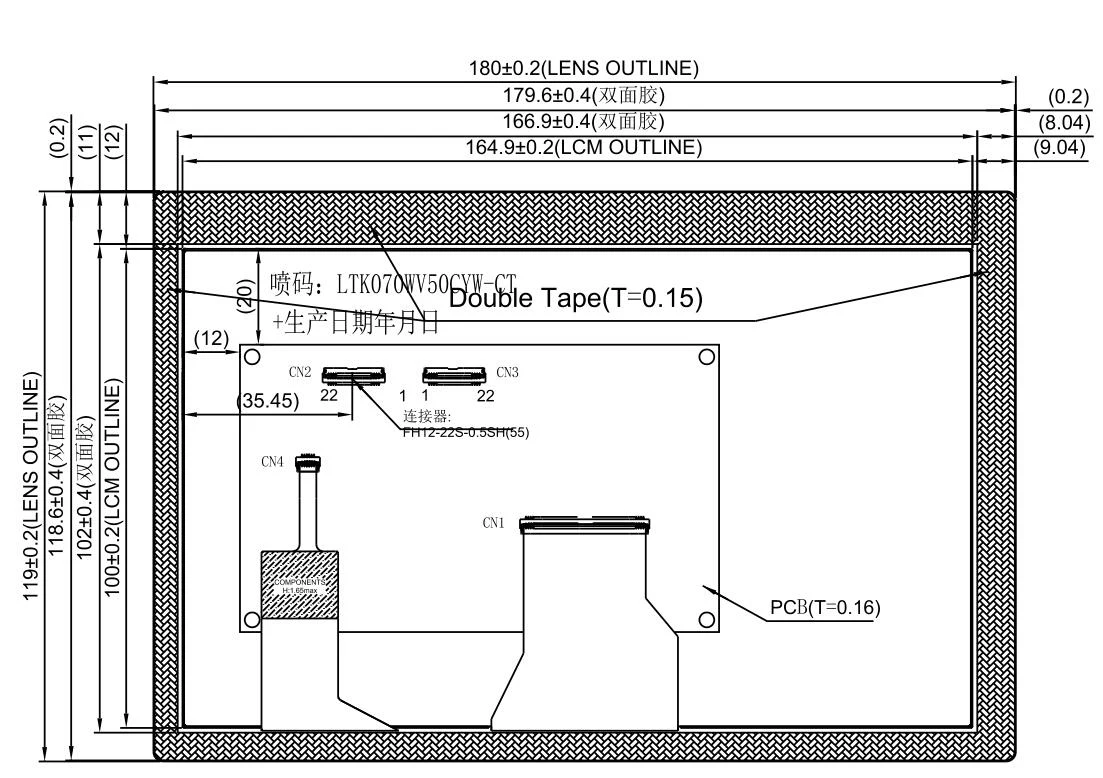

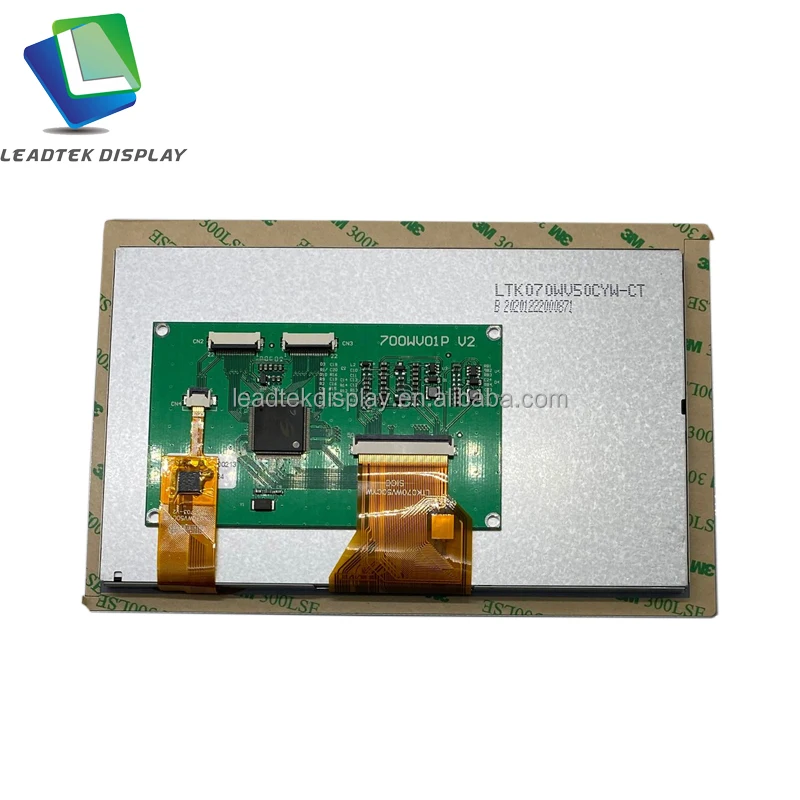

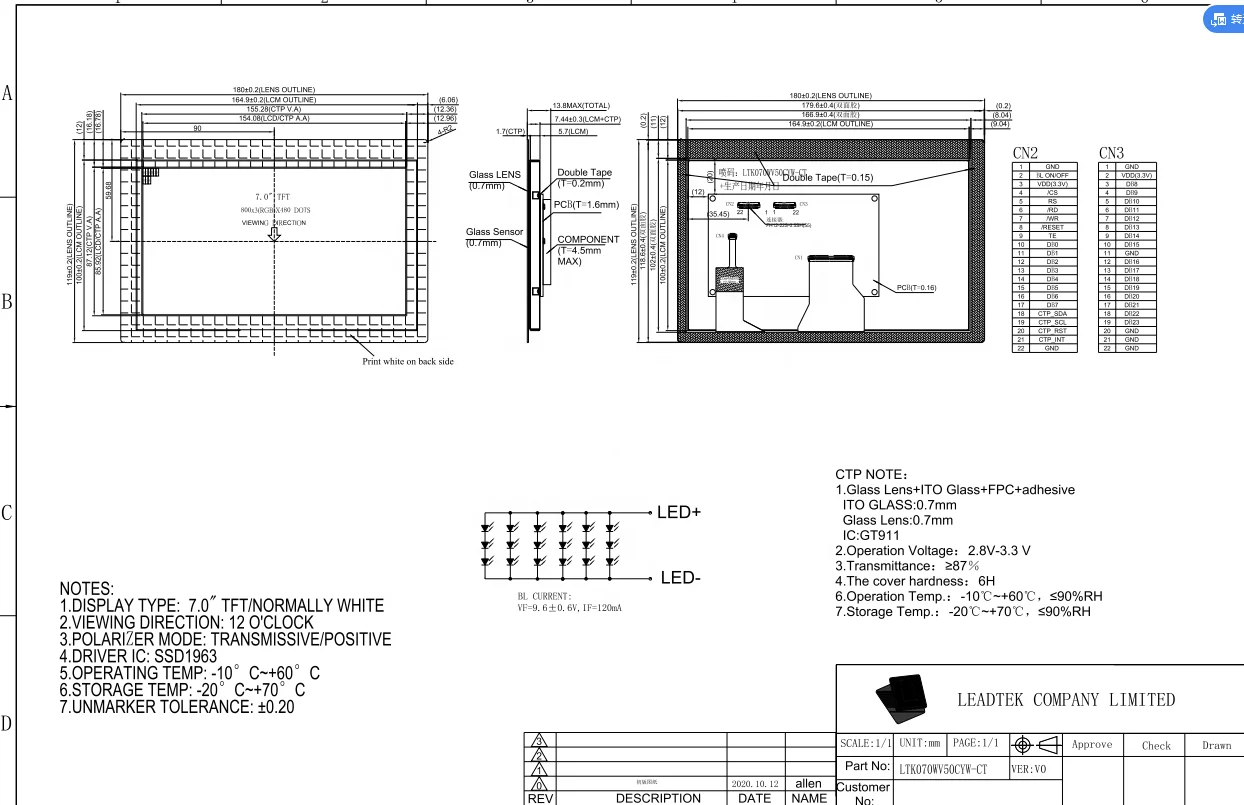

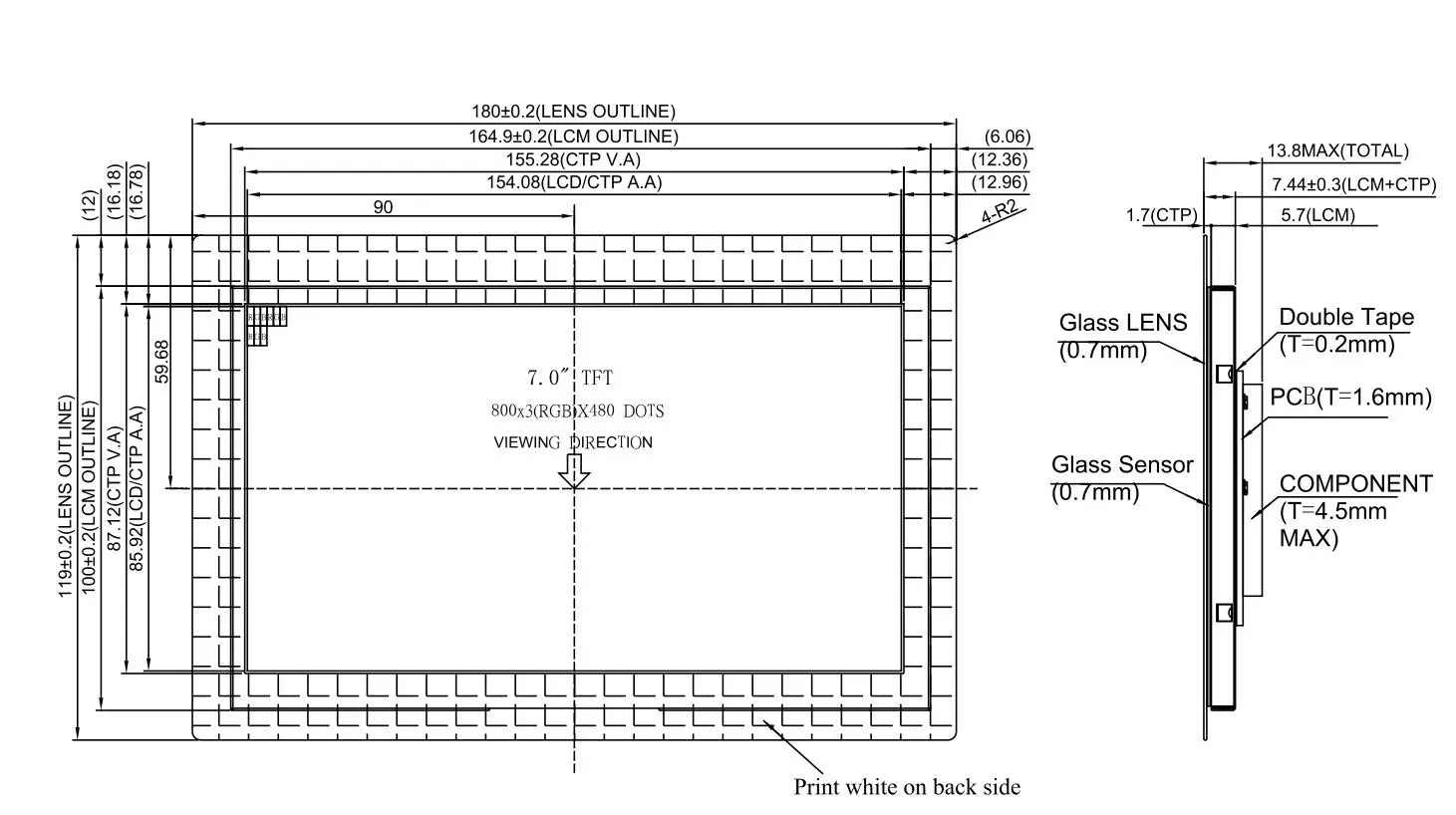

Detailed Images
Company Profile
LEADTEK COMPANY LIMITED is a national high-tech enterprise which established in year 2015. We are committed to research and development, manufacturing and sales of LCD screens, touch screens and comprehensive display solutions. All our products have passed CE, RoHS, FCC and ISO 9000 certification.
Leadtek manufacturing centers are located in Fuyong, Shenzhen and Dalang, Dongguan, FAE and Sales technical support centers are located in Bantian, Shenzhen. Our production plant area is 30,000 square meters and the number of employees is 300. In the future, we will strive to build a high-tech enterprise with global influence, diversified business and market, and build a globally competitive LCD brand.
Leadtek Vision: Display Smart Life Leadtek Mission: People-Oriented, Continuous Innovation, and to provide best display solutions to each of our customer
Leadtek manufacturing centers are located in Fuyong, Shenzhen and Dalang, Dongguan, FAE and Sales technical support centers are located in Bantian, Shenzhen. Our production plant area is 30,000 square meters and the number of employees is 300. In the future, we will strive to build a high-tech enterprise with global influence, diversified business and market, and build a globally competitive LCD brand.
Leadtek Vision: Display Smart Life Leadtek Mission: People-Oriented, Continuous Innovation, and to provide best display solutions to each of our customer
VR
Production process
Leadtek Display products Application
Leadtek Display Certificates
Leadtek Display Exhibitions
