Полипропиленовый Ловец песка 720*520*420 мм серии OVP 1,0 90 «Стандарт» для фильтрации сточных вод
- Category: Water Treatment >>>
- Supplier: StroiSnabResurs LLC
Share on (10000002886147):
Product Overview
Description
Product Description
Sand catcher OVP 1,25-90, Water purifier from SAND MODEL OVP 1,25-90
DESCRIPTION
Sand catcher OVP 1,25-90
The design of the sand catcher OVP 1,25-90 provides tightness, compactness, excellent price-quality ratio.
The sand catcher OVP 1,25-90 is installed under the sinks or directly next to it.
The OVP sand catcher is an equipment used for filtering wastewater at catering enterprises, workshops, as well as in laboratory rooms from insoluble mechanical contaminants. The OVP sand catcher cleans wastewater from small and large insoluble mechanical contaminants after washing vegetables, fruits, berries, studies related to concrete, sand, asphalt and other areas of industry and production. Specifications: Capacity, m3 / h: 1.0, Peak discharge, l: 90, Inlet height, mm: 350, Outlet height, mm: 320, Width, mm: 520, Length, mm: 720, Height, mm: 420, Weight, kg: 10, Completeness - quick-release tray for collecting large garbage, separation plates (2 pcs), inlet / outlet pipes 50 mm (110 mm), sealed lid, rubber seal, 6 locks
THE PRINCIPLE OF OPERATION OF THE SAND CATCHER

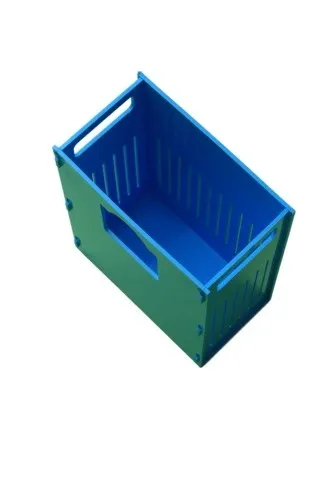

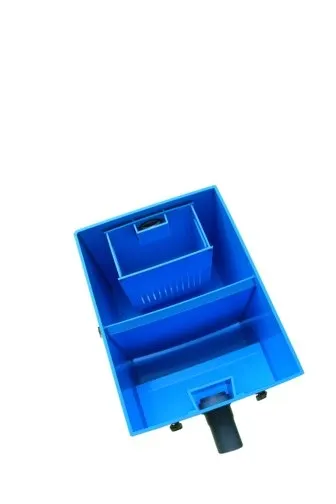

Waste water flows through the inlet pipe into a removable tray, where large debris is separated. A removable limiter is built into the inlet pipe, which allows you to control and evenly distribute the flow of incoming water. Then the flow enters the separation chamber, where small solid debris particles are deposited.
In the settling chamber, the final separation of solid particles from water occurs due to the difference in specific gravity. The purified water enters the general network through a distribution pocket that prevents solid particles from entering the sewer system.
In the settling chamber, the final separation of solid particles from water occurs due to the difference in specific gravity. The purified water enters the general network through a distribution pocket that prevents solid particles from entering the sewer system.
Specification
Capacity, m3/h: | 1,0 |
Peak discharge, L: | 90 |
Entrance height, mm: | 350 |
Exit height, mm: | 320 |
Width, mm: | 520 |
Length, mm: | 720 |
Height, mm: | 420 |
Weight, kg: | 10 |
Complete set | quick-release tray for collecting large garbage, separation plates (2 pcs), inlet / outlet pipes of 50 mm (110 mm), sealed lid, rubber seal, 6 locks, polypropylene thickness of 6 mm |
Recommend Products
Company Profile
"Ecoseti" LLC - is a manufacturer of sewage treatment equipment. We produce oil and sand catchers, sorption filters for gas stations, shopping centers and car washes. We offer a range of grease traps for public catering facilities: from small traps that is beneath your sink to industrial ones. Since last year we've been successfully manufacturing aeration and sewage stations, septic tanks for private households, which purify up to 95%. We also produce plastic swimming pools, fully equipped cellars, tanks for storing liquids and caissons.
The production of equipment began in 2014. Over the years we have been able to gain a reputation not only as a reliable supplier of plastic products, but also as a qualified manufacturer. Therefore, we carefully monitor both the process of goods production and test samples in our own laboratory, but also guarantee the high quality of raw materials because we have been cooperating only with reliable suppliers for years.
Eco-networks. Manufacturer of grease traps, septic tanks, plastic products
The production base of the Ecoset company is located in the city of Cheboksary, Chuvash Republic at the address: 75 Grazhdanskaya str – it is a modern and technological extrusion equipment, processing machines (cutting, welding, extrusion), as well as production including:
- extrusion welding site;- heat treatment site;
- more than 5 assembly sites;
- storage facilities;
- the laboratory.
