machines for manufacturing baby diapers, diaper making machine, diaper machine

Share on (10000002991721):


Price:

Quantity:


Product Overview

Description





Product Description


Product type
I shape baby diaper
Design speed
800pcs/min
Stable speed
600pcs/min
Machine System(For new machine)
Customized
Option A: Mitsubish
Option B: Simons
Glue machine
Customized
Option A: Chinese glue machine(Cost-effective)
Option B: Nordson machine
Web guide
Customized
Option A: Chinese web guide
Option B: BST web guide(or other brand)
Passing rate
≥ 98% (Not include the glue applicator, Auto Splicing)
Electric wire
3×120mm2+1×50mm2+1×25mm2
Compressed Air supply
0.6-0.8Mpa
Working space
39m*9m*5m(L*W*H)

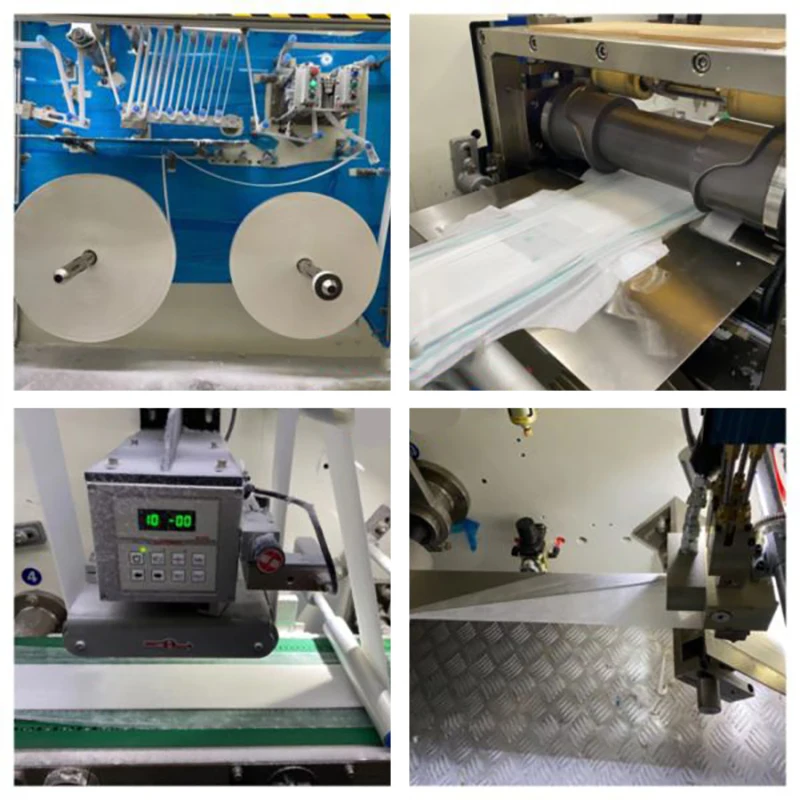

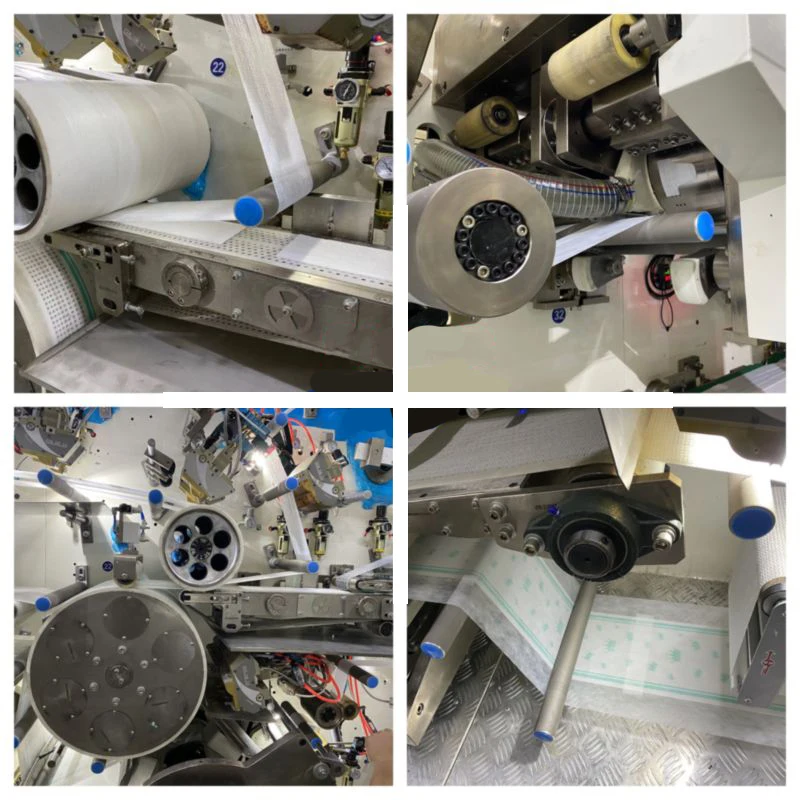

* Inverter drive, PLC control with touch screen
* Raw materials tension control and auto splicing
* Quality control system with reject for defective products
* Pulp unwinding stand
* Cell mill with single in-feeding pulp
* Single drum forming for constant core formation
* SAP applicator
* Tissue wrapping device
* Core embossing unit
* Core cutting unit
* ADL splitting device
* Elastic ribbon unwinding unit
* Back sheet & NW lamination device
* Elastic waistband applicator
* Frontal tape applicator
* Side tape applicator
* Leg cuff applicator
* Anatomic (R) cutting unit
* Longitudinal folding device
* Final cross cutting unit
* Tri-folding device
* Reject gate
* Bag type dust collection system
* Safety door
