Air Cooling SJ150 EVA Kneading Compounding Machine
Technical Parameter
| SJΦ150 EVA Air Cooling Granule Line | |||
| No. | Item | Description | Specification |

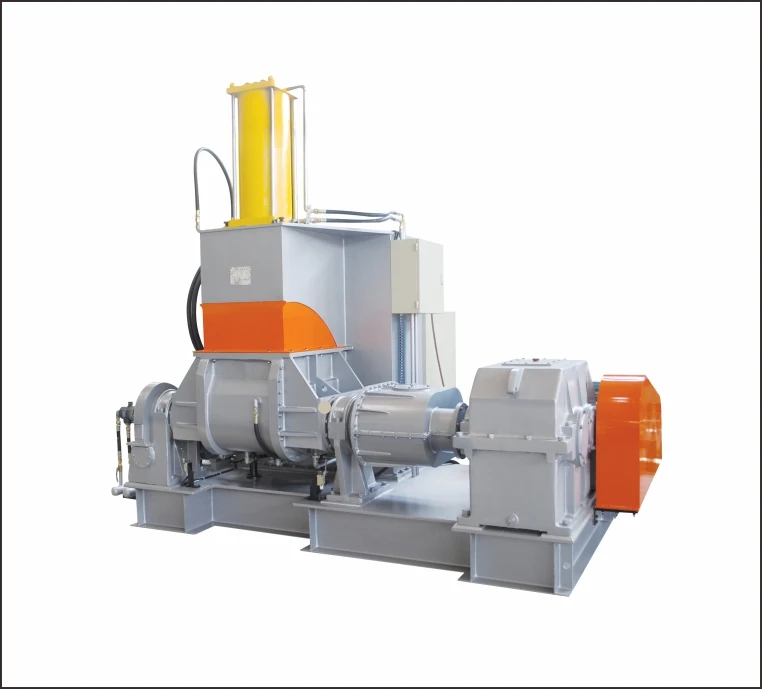

| 1 | Kneader(optional) | Model | X(S)N-75L |
| Capacity | 75L | ||
| Actuating motor power | 110kw | ||

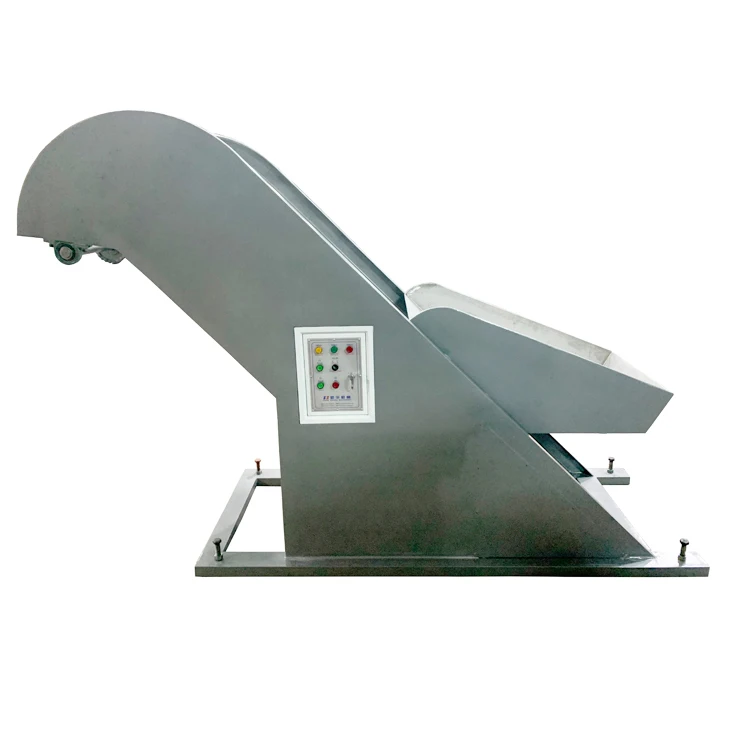

| 2 | Bucket conveyer for EVA | Material | Stainless |
| Motor Power | 1.5kw | ||
| Bucket dimension | 700*600*300mm | ||
| 3 | Mixing roller(optional) | Model | XK-400 |
| Diameter of roller | 400mm | ||
| Main motor power | 45kw | ||
| 2 | Main extruder | Screw dia | Φ150mm |
| Screw Speed | 0-50r/min | ||
| Main motor power | 55kw (all with inverter) | ||
| Feeder motor power | 7.5kw (all with inverter) | ||
| Cutter motor power | 2.2kw (all with inverter) | ||
| Heat power | 11kw | ||
| Gear box | oil bath lubrication,hardened gear reducer | ||
| Cutting system | air cooling | ||
| Auto thermo control | 5 zones | ||
| Screw/barrel material | 38CrMoAIA | ||
| Barrel cooling system | water cooling | ||
| Granule diameter | 3-5mm | ||
| Output | 500-550kg/h | ||
| Overall dimension (L*W*H) | 4500*2000*1600mm | ||
| Weight | 2800kg | ||

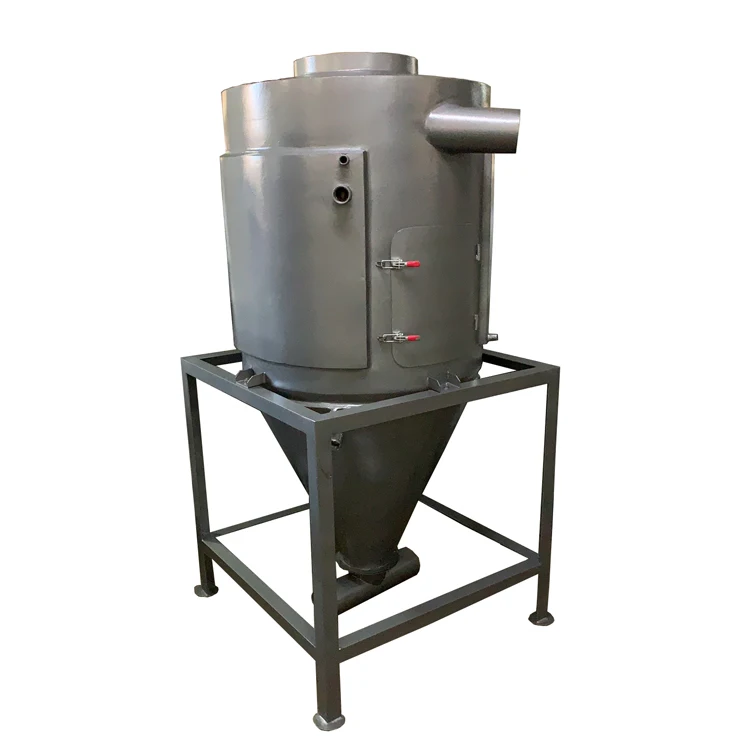

| 3 | Whirlwind cooler | a. Cooling tank diameter | Φ650*1set |
| b. Cooling tank diameter | Φ850*2sets | ||

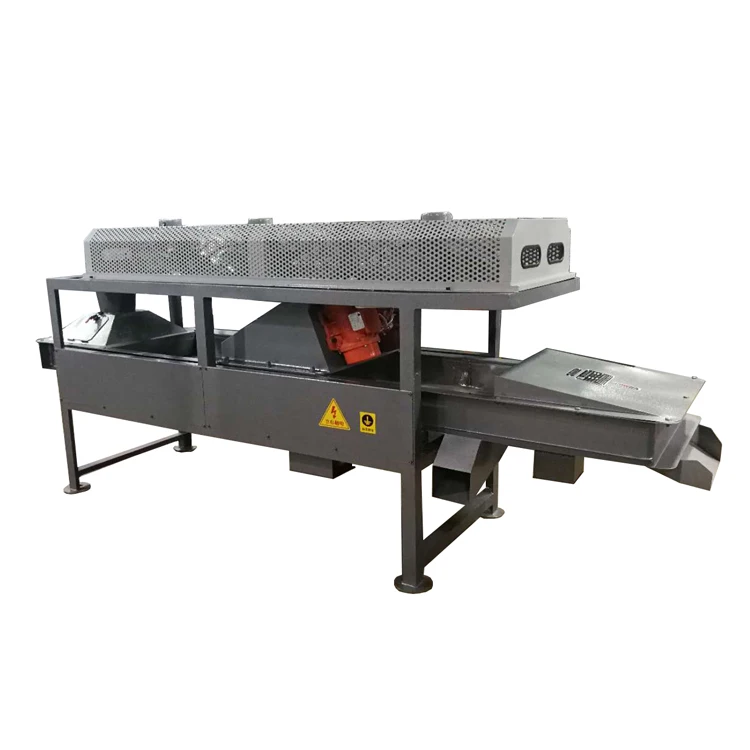

| 4 | Cooling conveyer | Length and width | 4200*610mm |
| Thermal Design Power | 4.5kw | ||
| Material | Stainless | ||
| 5 | Blender | Capacity | 1000L |
| Spindle speed | 10r/min | ||
| Motor power | 11-4kw | ||
| 6 | Air machine | Motor power | 4.0kw |
| Screw speed | 2880r/min | ||
| 7 | Air machine | Motor power | 5.5kw |
| Screw speed | 2880r/min | ||
Product Description
This granule line is specialized for making EVA granules. When with the same specification kneader and mixing mill, they form a complete assembly line, which consists of plasticizing, extrusion, granulizing, cooling, filtration and packing. We have make some special designs to avoid EVA changing to forming.
The whole production line:
Kneader - Bucket Conveyer - Mixing Roller - Extruder mainframe - Auxiliary Cutter - Whirlwind Cooler(1st Process) - Cooling Conveyer - Whirlwind Cooler(2nd Process) - Mixing machine(blender) - Final prodcts.
