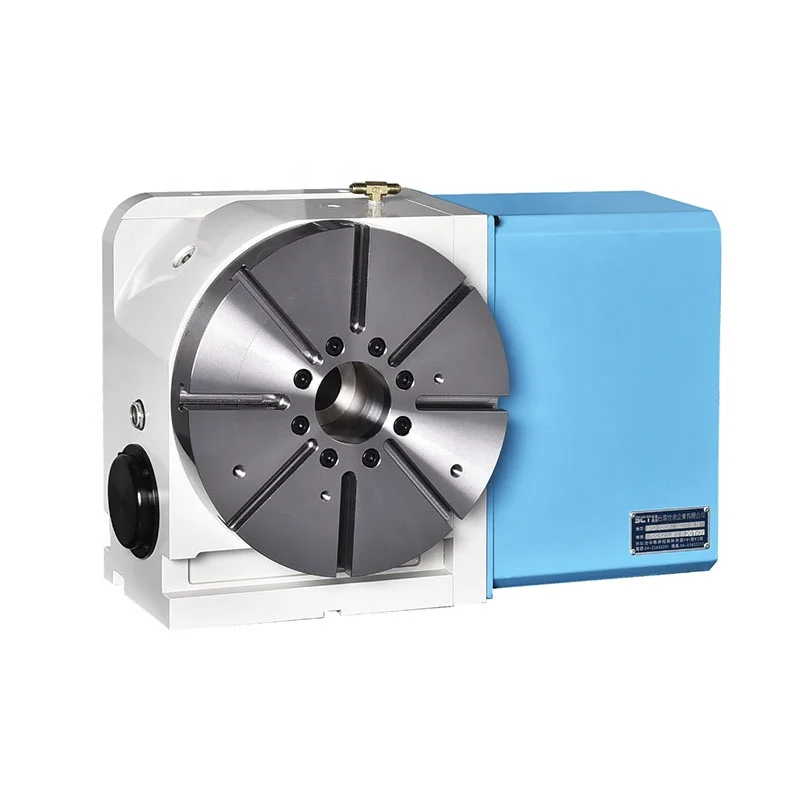

High Precision Cnc Milling Machine Controller Hydraulic Pressure Brake 4th Axis Rotary Table

Product Overview

Description





Feature:





1. This 4 Axis CNC rotary table use imported  precision dual-lead worm, turbine,



turbine with aluminum bronze alloy,ensure the transmission positioning  in high



 precision accuracy.



2.The turbine size nearly the disc size and the steel rigidity is better 30%~50%



than similar products.



3.The bearing used cross roller bearings,improved the the rotary table’s rotation



accuracy and rigidity. It can be maintained long time processing and no need  to



worry make defective workpiece.









Specification



The Disc diameter	200mm
The disc spindle center hole	50H7mm
The disc spindle center through hole	45mm
Vertical placement center height	160mm
T-slot width of the rotary shaft disc	12H7
Guide block width	18H7
Working applicable environment temperature	18~40 degree
Pressure of the locking device	5(pneumatic)25(hydraulic) kg/cm2
The mini angle of equal division	0.001degree
Total gears rate	1/72
Max speed of the rotary disc	3000 RPM  X
	4000 rpm   66.6
Division precision	15”
G.W weight	65kg
