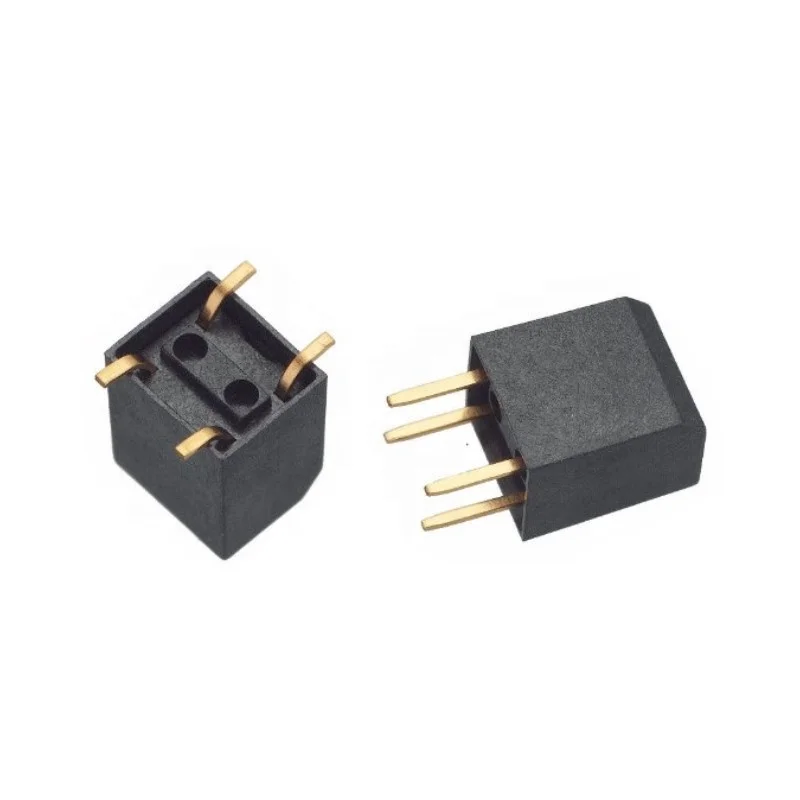

Omnidirectional Vibration Detector Switch GPS Sensor VBS061100

Function
Omni-directional Vibration Detecting

Specification
Type : DIP

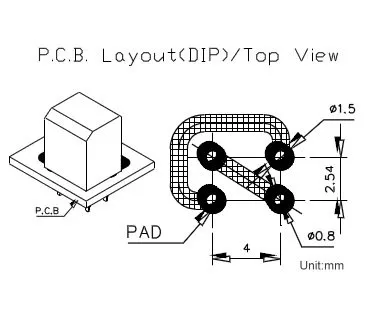

Both suitable for Vertical and Horizontal PCB.

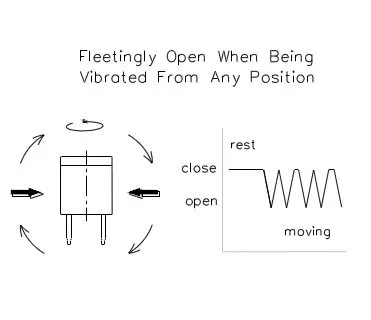

Description: Ball-ContactThe VBS061110 acts like a normally closed switch which chatters open and closed as it is tilted or vibrated. Note that the VBS061110 is not guaranteed to be closed --- occasionally the sensing mechanism may remain open when at rest. The engineer should design his or her software to look for high-to-low and low-to-high edge transitions rather than an open or closed state of the switch.

Feature
1. Housing made of high insulation plastic material, free from electric conduction and rust problem.
2. Gold-plated ball and terminals, low possibility of oxidization.
3. All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
4. Simple ON and OFF signals, easy for design.
5. RoHS compliance, an ideal substitute for mercury switch.
6. A more economical vibration detection option than IC design solution.

Current/Voltage Suggested

Electrical Characteristics

Mechanical Characteristics

Note
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

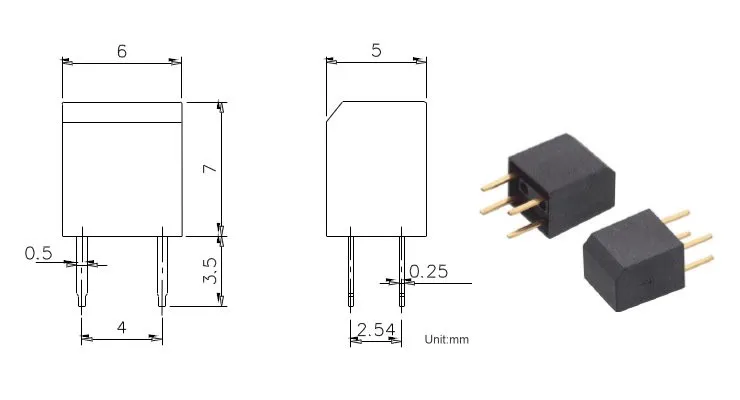

Dimension of VBS061110
All MADE IN TAIWAN and EXAMINED before shipment

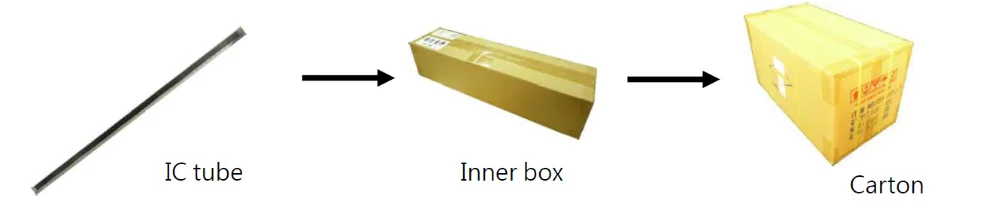

Packing of VBS061110
All made in TAIWAN and EXAMINED before shipment
