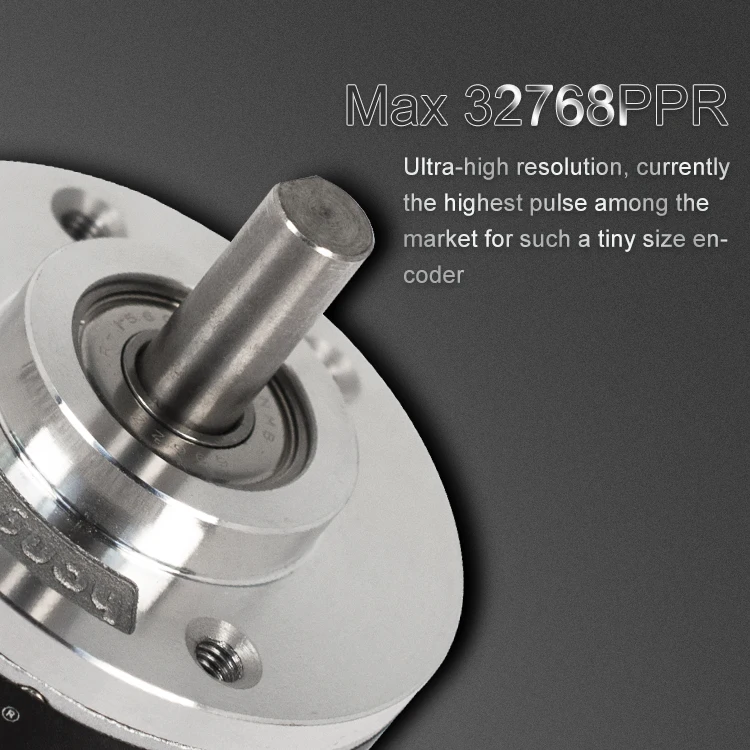

100/200/360/400/600/1000P/R кодер DC 5V 24V 100P 200P 360P 600P 1000P инкрементный поворотный кодер AB 2 фазы 6 мм вал (1600874903218)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Products Description














Details Images




Model Selection Guide






Product Paramenters


Brand
HENGXIANG
Encoder type
Incremental encoder
External diameter
38mm
Thickness
28mm
Shaft length
13mm
Solid Shaft diameter
6mm(D shape)
Resolution
50;60;66;100;200;250;300;360;400;450;500;512;
600;720;750;800;900;1000;1024;1200;2000;2048;2500;
3600;4000;4096;4800;5000;7200;8192;10000;16384
20000;28800;32000;32768
Output mode
NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Reverse polarity protection
Short circuit protection
Output phase
Phase A,B,Z,A-,B-,Z-
Outlet type
Radial cable 7 Axial Cable
Protection grade
IP50 & IP65
Cable length
1000MM
package
Carton box
Net weight
About 120g (with package)
starting torque
less than 4.4X10-3 N.m
Intertia moment
less than 1.5x 10-6kg.m2
Shaft load
Radial 30N; Axial 20N
Top REV
6000RPM ;IP65≤4000r rpm
Environmental temperature
Operating:-20 ~+90°;storage:-25 ~+95°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)
490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Alminium alloy
Cable length
1000mm(cable with shielding)
Certification
CE


About Factory




Our Certifications


CE/ATC/ISO/QMS/INVENTIONS OF PATENTS
Awarded 3 invention patents and 17 utility model patents, CE-ATC certificate, ISO quality management system certificate, QMS quality management system certificate, pioneer enterprise and other honorary enterprise certificates
We have passed the national quality management system certification and all the inspected projects meet the requirements, possessing professional production qualifications.
