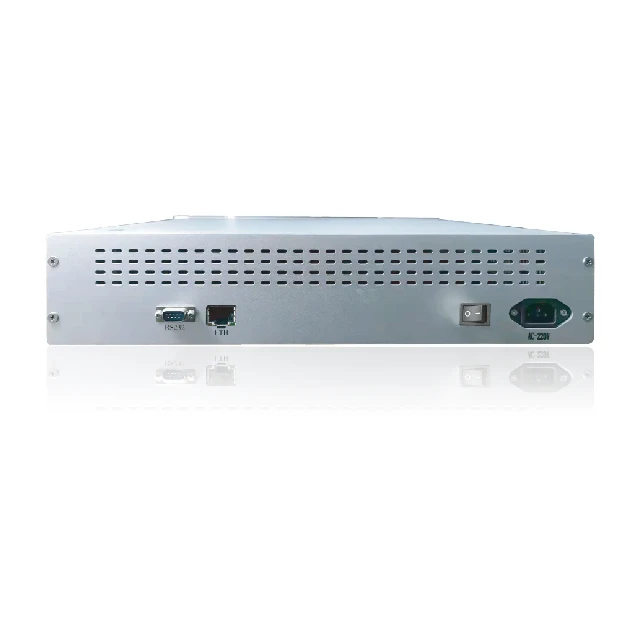

Опорные РЧ генераторы для измерения электроники и калибровки времени, акселераторы управления аэрокосмической системой
- Category: Signal Generators >>>
- Supplier: KPK TRANSPORT L.L.C
Share on (10000007244933):
Product Overview
Description
Product Description
Feature
● Extreme low phase noise (<20fs @3GHz)
● Multi-Frequency combination (from 71.4MHz to 4GHz)
● Selected OXCO and temperature compensation
● Fan-out option, keep amplitude and phase consistency
● Eth/RS232
● Multi-Frequency combination (from 71.4MHz to 4GHz)
● Selected OXCO and temperature compensation
● Fan-out option, keep amplitude and phase consistency
● Eth/RS232
Application
● Electronics measurement and calibration
● Timing system
● Accelerators control
● Aerospace
● Timing system
● Accelerators control
● Aerospace
Electric
Power Supply | 220V, 50 W , typical |
Operating Temperature | -40℃ to 60℃ |
Signal Output | SMA or BNC, customized |
Impedance | 50Ω |
Cooling | Fan |
Crate | 19”, 1U |
Output Signals
Channel | 1 to 12 output + 1 ref. Customized channels number |
Output frequency Range | 71.4MHz to 4GHz |
Ref. Frequency | 71.4MHz to 120MHz |
Temperature Stability | 0.014dBm/℃ |
Specification
Frequency | 100MHz |
=1s | ≤2x10-12 |
=10s | ≤3x10-12 |
=100s | ≤6x10-12 |
=1000s | ≤3x10-12 |

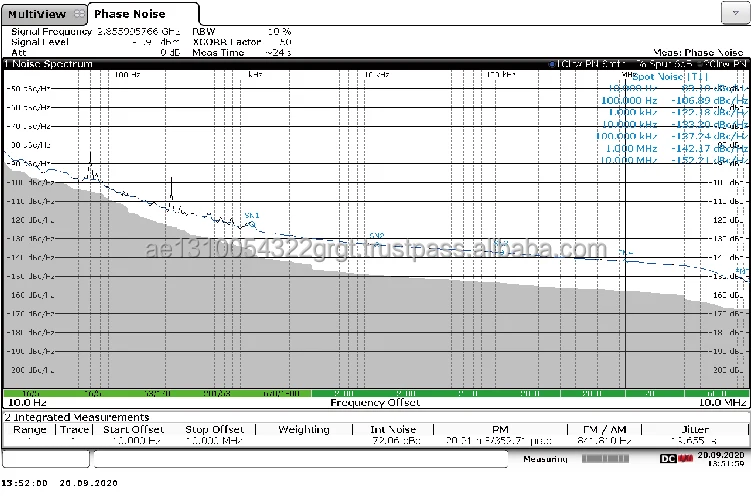

Frequency | 100MHz |
1Hz | 108 dBc |
10Hz | 130 dBc |
100Hz | 145 dBc |
10kHz | 158 dBc |
Amplifier and Distribution (Fan-out)
Consistency of output signals: <0.2db
Consistency of output signals: <0.2db
Power (dBm) | Jitter (fs) | Frq. stability (2 hours) | Amp. Stability (2 hours) |
-1.91 | 19.655 | 45Hz | 0.02dBm |
