Высокоточный портативный источник тока напряжения, регулируемый выходной диапазон 0 ~ 10 В/0 ~ 20 мАч генератор сигналов
Высокоточный портативный источник тока напряжения, регулируемый выходной диапазон 0 ~ 10 В/0 ~ 20 мАч генератор сигналов
Высокоточный портативный источник тока напряжения, регулируемый выходной диапазон 0 ~ 10 В/0 ~ 20 мАч генератор сигналов
Высокоточный портативный источник тока напряжения, регулируемый выходной диапазон 0 ~ 10 В/0 ~ 20 мАч генератор сигналов
Высокоточный портативный источник тока напряжения, регулируемый выходной диапазон 0 ~ 10 В/0 ~ 20 мАч генератор сигналов
Высокоточный портативный источник тока напряжения, регулируемый выходной диапазон 0 ~ 10 В/0 ~ 20 мАч генератор сигналов
Высокоточный портативный источник тока напряжения, регулируемый выходной диапазон 0 ~ 10 В/0 ~ 20 мАч генератор сигналов

Высокоточный портативный источник тока напряжения, регулируемый выходной диапазон 0 ~ 10 В/0 ~ 20 мАч генератор сигналов

Share on:


Price:11,14 $ - 13,00 $
Price in USD:Details

Quantity:


Product Overview

Description

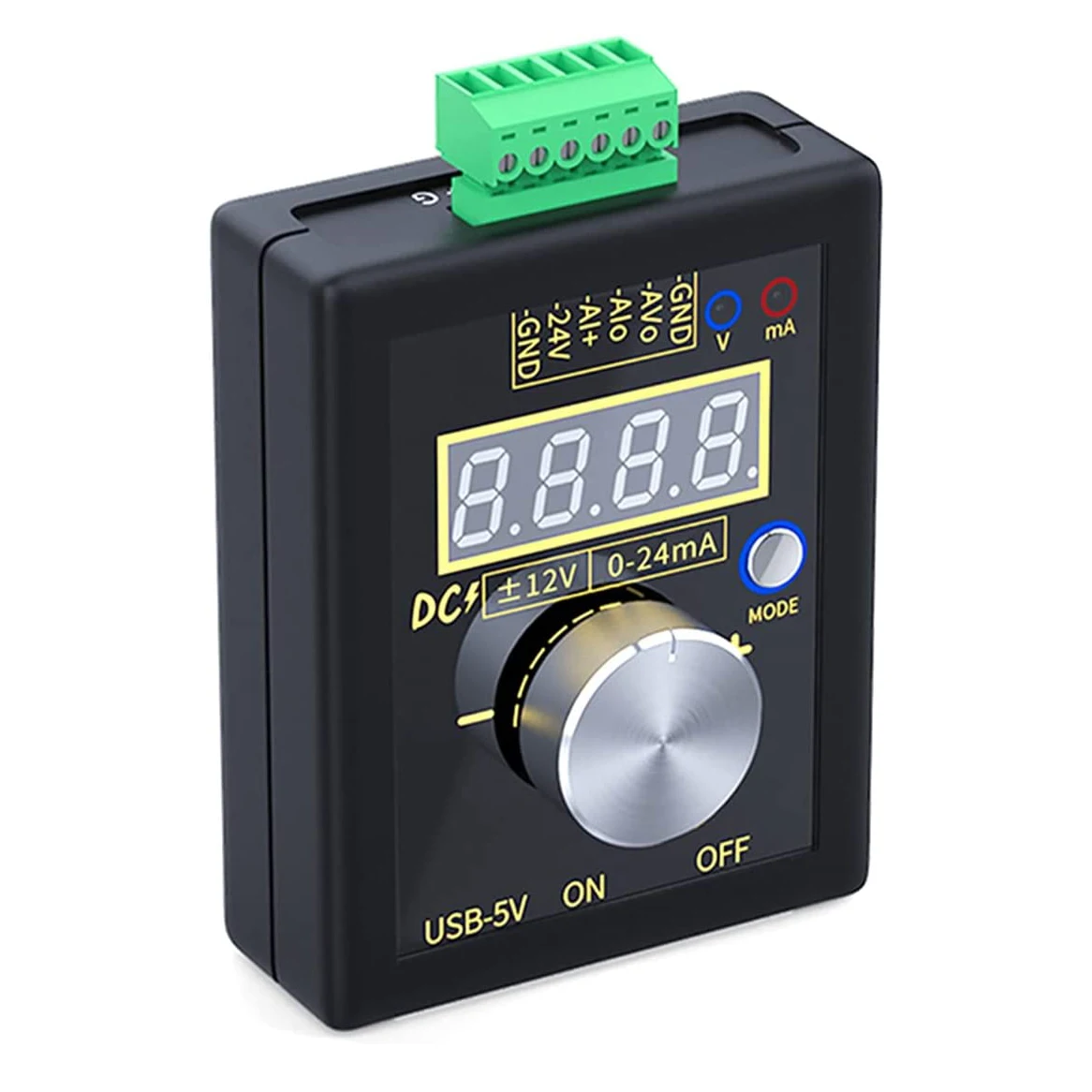

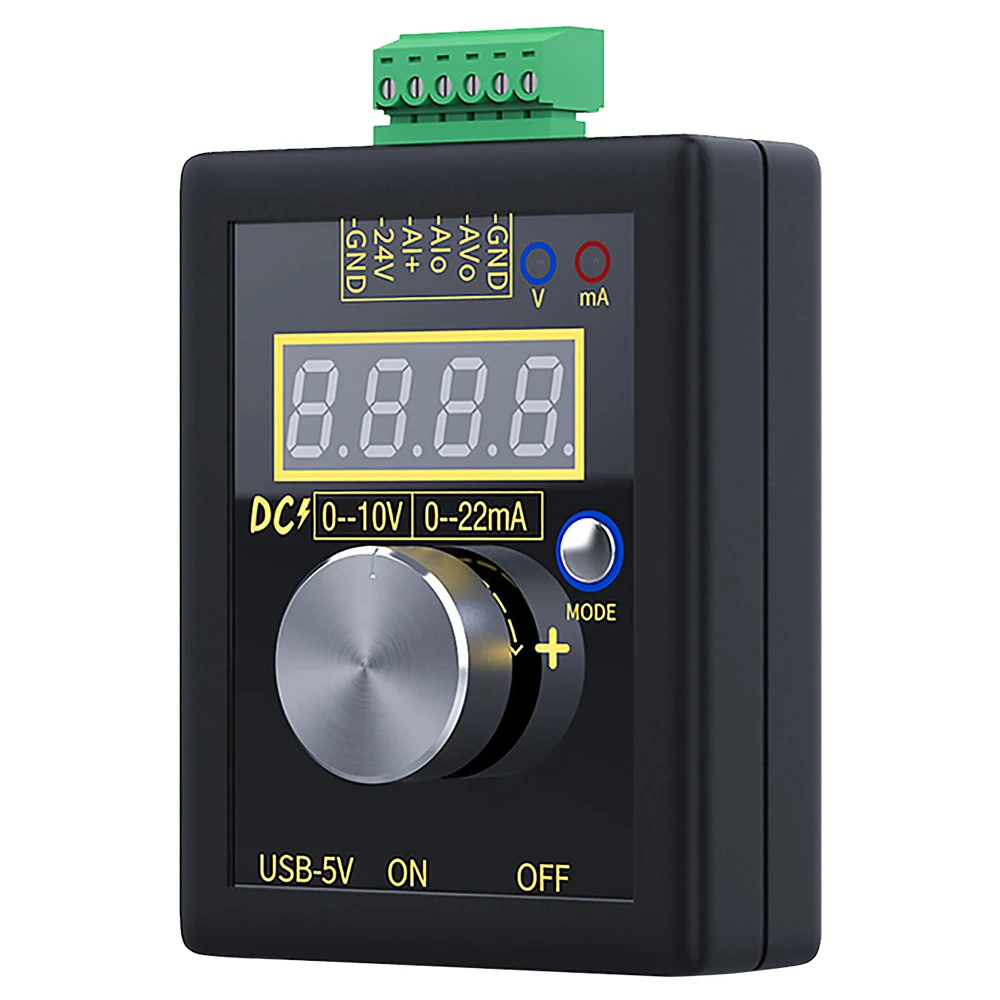

SG-002 Signal Generator

Portable Home Functional Testing Tools Signal Generator High Accuracy Handheld Analog Voltage Current Debugging Source Calibrator

The SG-002 is a voltage and current source signal generator,which has the output range 0~10V/0~22mAh,the most commonly used electrical test instrument for electrical engineering and technical personnel during the installation,debugging,overhaul and maintenance of electrical equipment on site.It is also widely used in scientific research,teaching experiment and other fields.


NOTE:This Signal Generator DO NOT come with the Output Leads,Wiring Required


Specifications
Product Name
Signal Generator
Item Name
Voltage&Current Debugging Source
Style
Mini Style/Hand-held
Material
ABS+Aluminum+LED+Electronic Parts
Dimensions
70mm(L)*27mm(W)*90mm(H)
Display Method
4-digits LED
Voltage Output Range
DC 0~10V
Voltage Output Error


±0.01V
Current Output Range
DC 0~20mAh
Current Output Error
±0.01mAh
Adjust Method of Output
By Encoder Knob
Adjustable Range per Circle
30 Pulses
Powered By
Built-in 3.7V/1100mAh Battery
Type of Charge Interface
Mirco-B
Each Set Includes
1 piece SG-002 Signal Generator,No any other accessories



·This signal generator is a commonly used electrical test equipment for electrical engineering and technical personnel during the installation, debugging, overhaul, and maintenance of electrical equipment on site.

·USB universal interface can be connected to bank, recharger, computer USB port, and so on.

·4-digits high definition digital tube, the display brightness is uniform and adjustable (1-8 brightness).

·Aluminum knob cap, electroplated buttons, quality film, charging indicator, battery switch. Pluggable terminal blocks, safe and convenient wiring.

·Powered by rechargeable 3.7V/1100mAh battery.



·Can be used as the most commonly used electrical testing instrument for electrical engineering technicians to install, debug, overhaul and maintain electrical equipment.

·This signal generator has pluggable terminal blocks and is safe and convenient for wiring, which is the best choice for on site debugging.

·Equipped with a 4 digit high definition digital tube, the display brightness is uniform and adjustable. And also equipped with electroplated buttons and charging indicator lights.

·There are three power supply modes, which can be connected to mobile power supply, charger, computer USB port, etc.

·Small in size, light in weight,easy to carry,can be carried around,simple to operate and convenient to use.
