Product Overview

Description





Professional Factory Supply BT40 Hydraulic Chuck
Tool Holders for CNC Machine

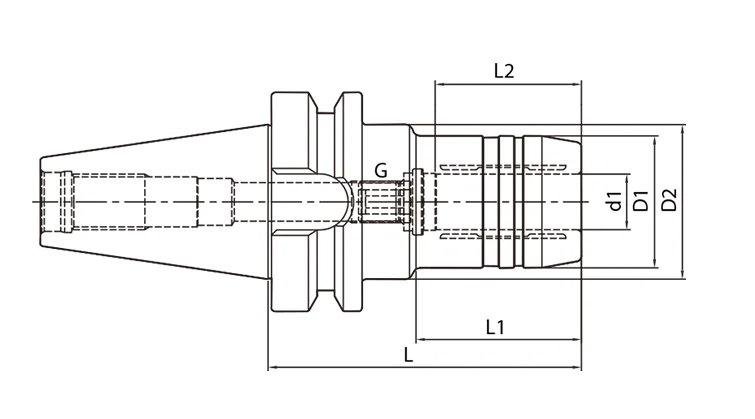

PRODUCT MODEL


Check clearly before purchase






Size
d
D
D1
L
L1
L2
Screw
BT30-HY06-70
6
26
44.5
70
29.5
27
M5x0.8
BT30-HY08-70
8
28
44.5
70
30
27
M6x1.0
BT30-HY10-75
10
30
44.5
75
31
32
M8x1.0
BT30-HY12-85
12
32
45
85
45
37
M10x1.0
BT30-HY14-85
14
34
45
85
45
37
M10x1.0
BT30-HY16-90
16
38
45
90
50
42
M10x1.0
BT30-HY18-90
18
40
45
90
50
42
M10x1.0
BT30-HY20-90
20
42
45
90
50
42
M6x1.0








BT40-HY06-90
6
26
44.5
90
43
27
M5x0.8
BT40-HY08-90
8
28
44.5
90
44.5
27
M6x1.0
BT40-HY10-90
10
30
44.5
90
44.5
32
M8x1.0
BT40-HY12-90
12
32
44.5
90
44.5
37
M10x1.0
BT40-HY14-90
14
34
44.5
90
44.5
37
M10x1.0
BT40-HY16-90
16
38
44.5
90
47.5
42
M12x1.0
BT40-HY18-90
18
40
44.5
90
47.5
42
M12x1.0
BT40-HY20-90
20
42
44.5
90
47.5
42
M16x1.0
BT40-HY25-100
25
50
60
100
47.5
48
M16x1.0
BT40-HY32-105
32
60
-
105
-
55
M16x1.0








BT50-HY06-90
6
26
44.5
90
34
27
M5×0.8
BT50-HY08-90
8
28
44.5
90
34
27
M6×1.0
BT50-HY10-90
10
30
44.5
90
34
32
M8×1.0
BT50-HY12-90
12
32
44.5
90
34
37
M10×1.0
BT50-HY14-90
14
34
44.5
90
34
37
M10×1.0
BT50-HY16-90
16
38
44.5
90
34
42
M12×1.0
BT50-HY18-90
18
40
44.5
90
34
42
M12×1.0
BT50-HY20-90
20
42
44.5
90
34
42
M16×1.0
BT50-HY25-105
25
57
63
105
52
48
M16×1.0
BT50-HY32-115
32
64
75
115
62
55
M16×1.0


PRODUCT INFORMATION





  • BT-HY INTRODUCTION


Material:Alloy steel
Hardness:HRC55-60
Runout: 0.003 mm
Cooling: AD; AD/B can be made by request.
Balancing:G2.5/25000RPM;Balancing G6.3 can be made by request.
Features:Hydraulic, Collet Rapid Tool Changing, 360° Clamping
Usage: for clamping tools with straight collets or clamping same diameter cutting tools directly.

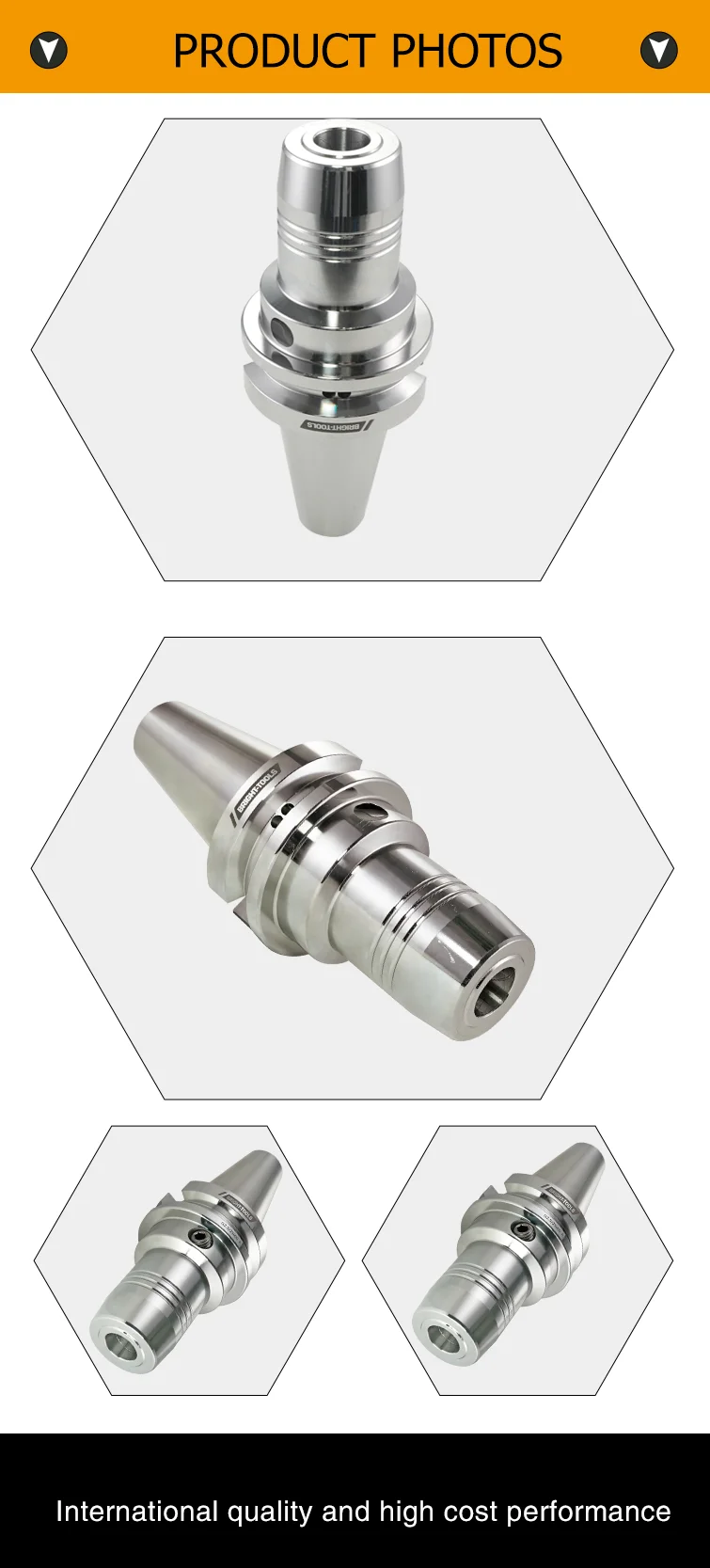

PRODUCT PHOTOS

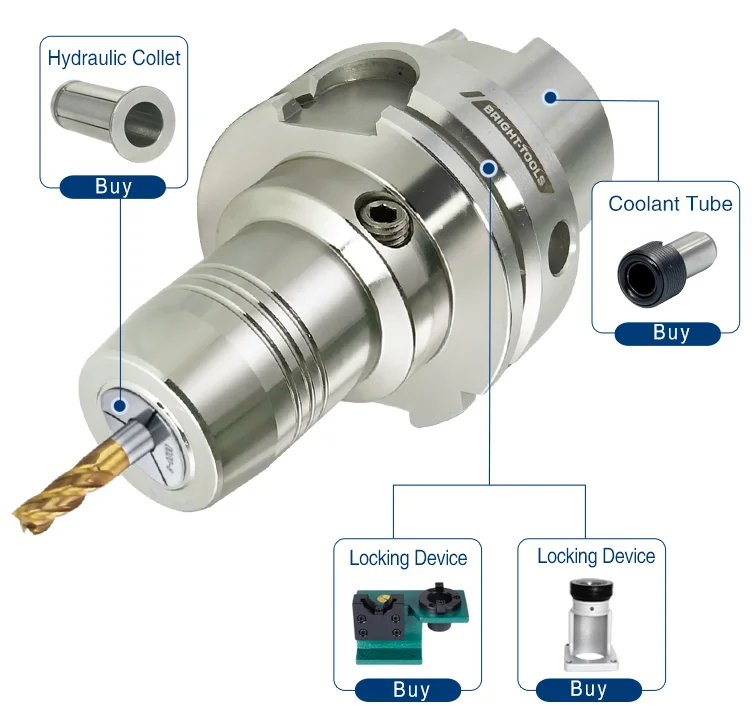

PRODUCT DETAILS

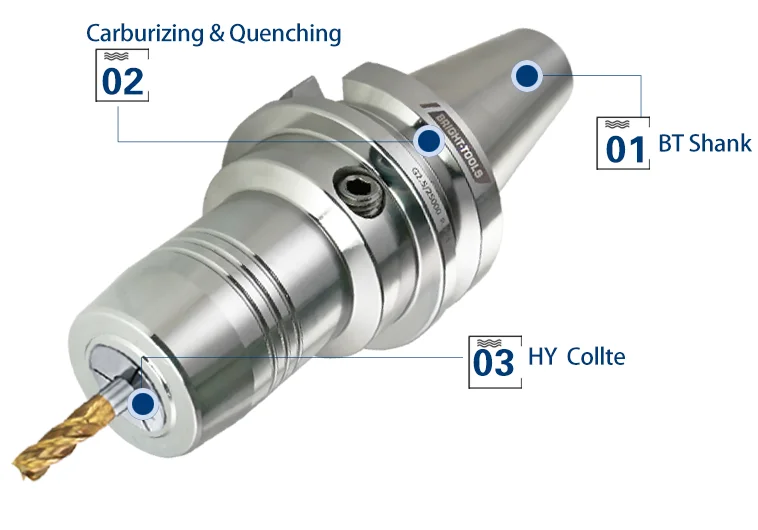

PRODUCT STRUCTURE






Jinjie Machinery International Quality High Cost Performance


Also we can be drawings or samples processing. If you are interested, my contact information is at the bottom of this page,please contact us.


About BRIGHT-TOOLS


Shandong Jinjie Machinery Co., Ltd. was established in 2006, with advanced equipment and exquisite workmanship, it can produce BT,NT, HSK, SK, CAT, GOST and other standard CNC tool holder, collets, pull and other tool accessories.
The products have been sold to more than 60 countries and regions, and have been well received by domestic and foreign customers.












Exhibition




FAQ


1、Are you a factory or a trading company?
BRIGHT-TOOLS is a professional manufacturer of tool holders, mainly producing BT DIN CAT HSK VDI BMT series tool holders.
2、What is your price?
Our prices may vary based on availability and other market factors. After your company contacts us for more information, we will send you an updated price list for the handle.
3、Do you have MOQ?
Yes, we require a minimum order quantity for all international orders. If you want to resell but in much smaller quantities, we recommend checking out our website: www.bright-tools.com.
4、Can you provide the inspection report of the tool holder product?
Yes, the three-coordinate inspection report and dynamic balance inspection report of the tool holder are available, which are according to the customer's requirements.We can provide most documents for tool holders, including country of origin and other required export documents.
