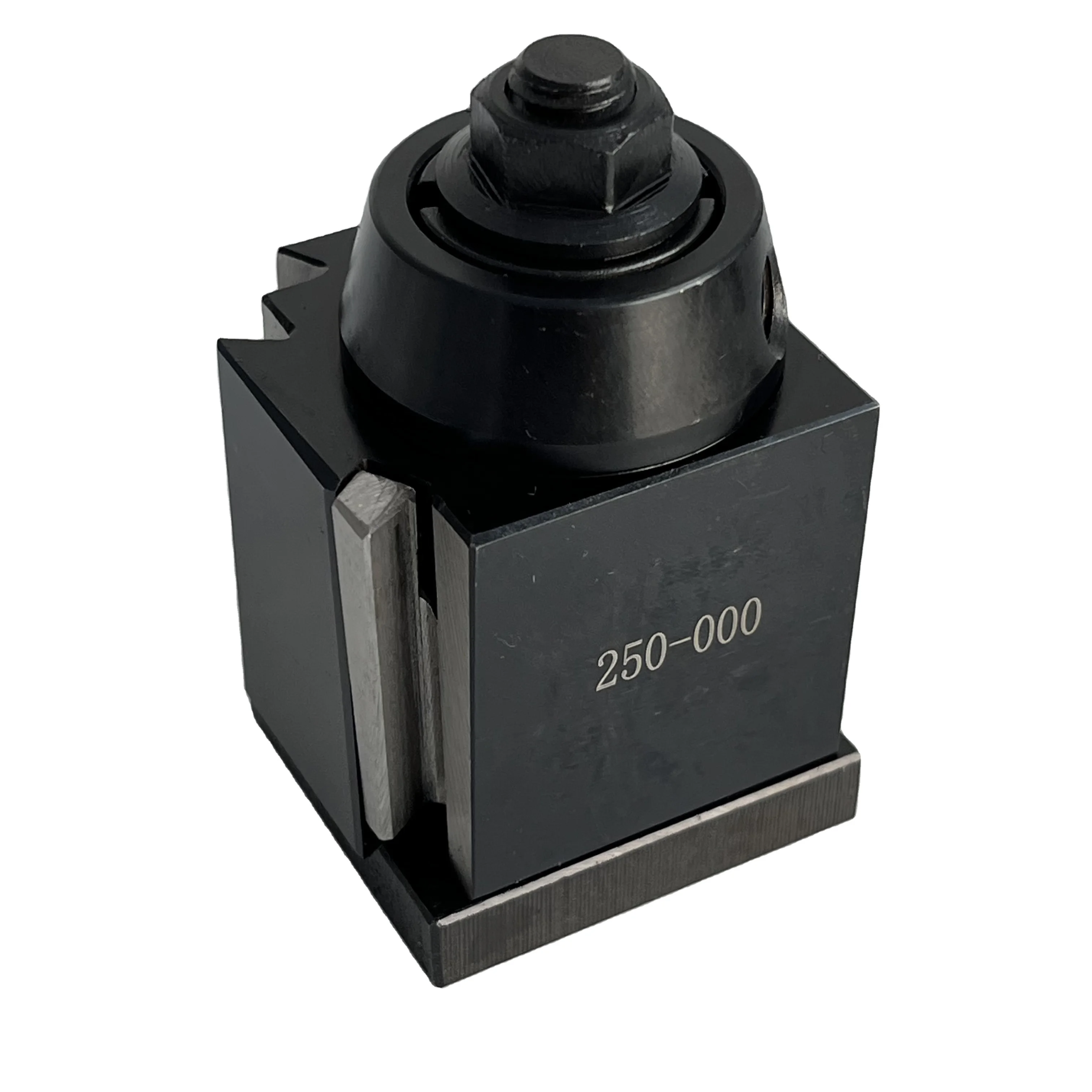

America type wedge type quick change tool post and holders:
1)it is main parts of normal lathe
2)change cutter quickly
3)high accuracy for fix-postion

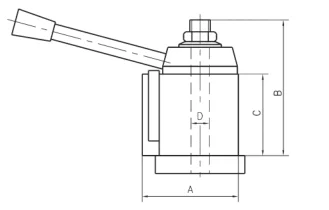

| order no. | A(in) | B(in) | C(in) | D(in) | Swing dia(in) | Wt(kg) |
| 250-111 | 2-1/2 | 3-7/8 | 2-1/4 | 9/16 | 12 | 2.23 |
| 250-222 | 3 | 4-5/8 | 2-3/4 | 5/8 | 10-15 | 4.00 |
| 250-333 | 3-1/2 | 5-1/8 | 3 | 3/4 | 13-18 | 5.72 |
| 250-444 | 4 | 6-1/4 | 3-5/8 | 7/8 | 14-20 | 10.01 |
Wedge type tool post sets include:1pc tool post,5 tool holders.
| order no. | each set includes | weight/kg |
| 250-111-00 | 250-111.250-101,250-102,250-104,250-107,250-110 | 5.00 |
| 250-222-00 | 250-222,250-201,250-202,250-204,250-207,250-210 | 7.85 |
| 250-333-00 | 250-333,250-301,250-302,250-304,250-307,250-310 | 11.33 |
| 250-444-00 | 250-444,250-401,250-402,250-404,250-407,50-410 | 20.76 |
