Product Overview

Description



Product Description


FD 24602 are composed of vinylidene fluoride (VDF) and hexafluoropropylene (HFP). Copolymers are the standard type of FKMs showing a good overall performance.
General properties of FD 26402 were listed below:
* Excellent mold release
* Excellent mold flow
* Good compression set
* Processing : transfer molding , injection and compression molding.

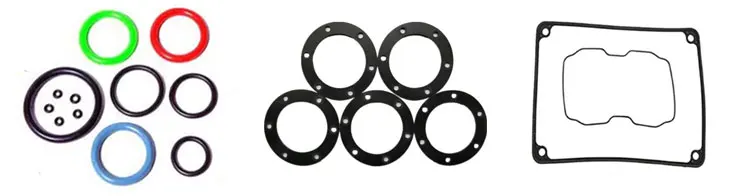

FD 24602 can be used for oring gasket and other rubber parts.





FD 2617P
FD 26401
FD 26402
FD 2640B
FD 2655
Fluorine Content
66
66
66
66
66
Mooney Viscosity ML(1+10)121ºC
35
42
42
30
55
Density 23ºC (g/cm³)
1.81
1.81
1.81
1.81
1.81
MDR 6 min at 177 °C arc 0.5 °
Min torque (N*m)
0.15
0.14
0.16
0.12
0.22
Max torque (N*m)
1.9
2.5
2.35
2.45
2.4
Ts2
1′02″
1′30″
1′20″
1′32″
1′16″
T90
2′10″
3′20″
3′00″
3′20″
2′40″
Press cure: 10 min at 170 °C, post cure: 24 h at 230 °C
Tensile strength (Mpa)
≥14.5
≥16
≥15
≥13.5
≥18
Elongation at break (%)
≥270
≥210
≥200
≥220
≥220
Hardness ShoreA
76
79
77
78
76
compression set (%) 200ºC 70H Compressibility 20%
≤14
≤12
≤13
≤14
≤14


Please contact our customer service get detailed spec
Mailbox: metal@fudichem.com




Application


Because of the outstanding performance FKM were widely used in different area, including the following:
* Chemical process and petroleum refining, where they are used for seals, pumps, gaskets and so on, due to their resistance to chemicals;
* Analysis and process instruments: diaphragms, cylindrical fittings, hoops, gaskets, etc.
* Semiconductor manufacturing;
* Food and pharmaceutical, because of their low degradation, also in contact with fluids;




Advantage


FUDI dedicate in fluorine material solutions for more than 20 years.Our product ranging from basic chemical material to fluorine product, such as FKM FVMQ FFKM PTFE HNBR AEM and different kind of processing chemical.
We focused on continuous improvement on four sectors to deliver competitive products.

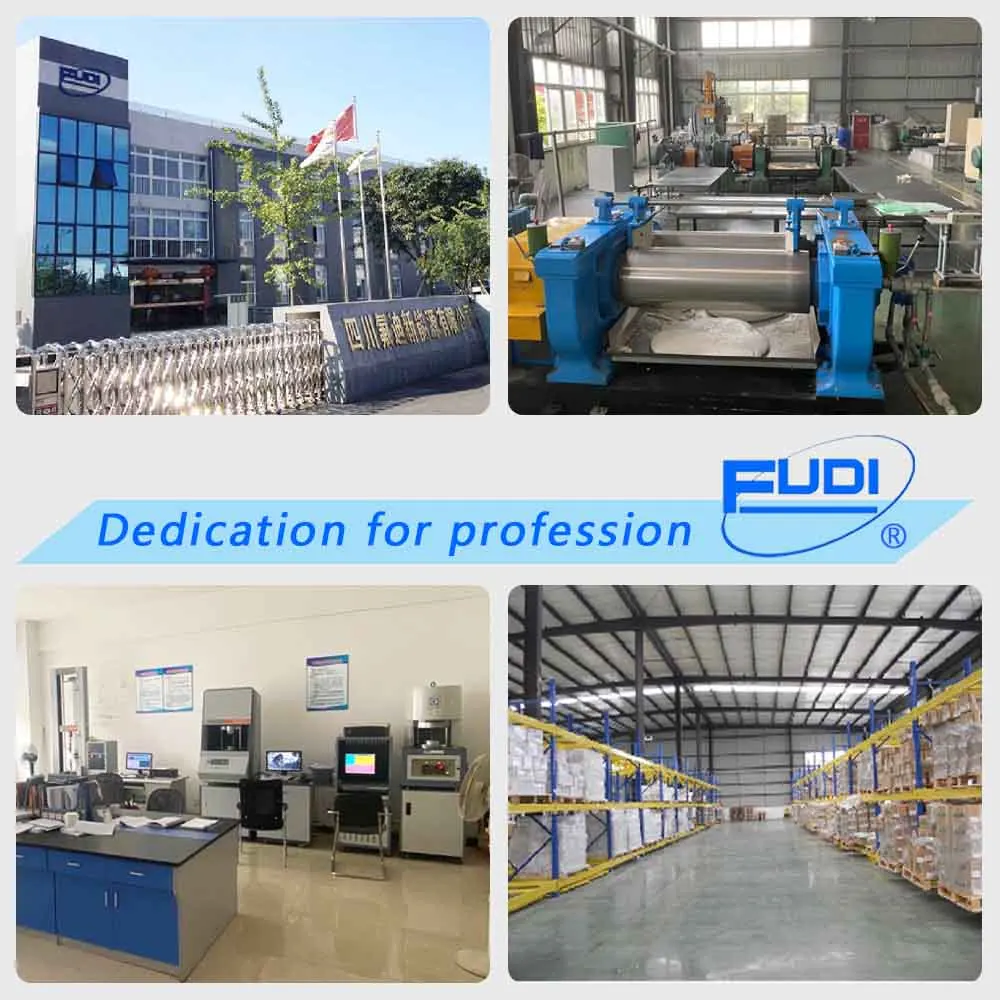

About FUDI


Sichuan Fudi New Energy Co., Ltd was found in 2001.FUDI dedicate in fluorine material solutions for more than 20 years.Our product ranging from basic chemical material to fluorine product, such as FKM FVMQ FFKM PTFE HNBR AEM and different kind of processing
chemical.
Our factory located in Chengdu,Sichuan, China. Covering over 30000 square meters.More than 50 technician and experienced employee were served in FUDI.We have 1000T capacity of different kind of fluorine material.




Packing & Shipping


FUDI cooperate with professional logistic company shipping our good world wide.
