Oil seal Oring gasket cure incorporated FKM precompound fluoroelastomer copolymer FPM Rubber material chemical resistant
- Category: Fluorocarbon Rubber >>>
- Supplier: Sichuan Fudi New Energy Co. Ltd.
Share on (10000007565089):
Product Overview
Description
Product Description

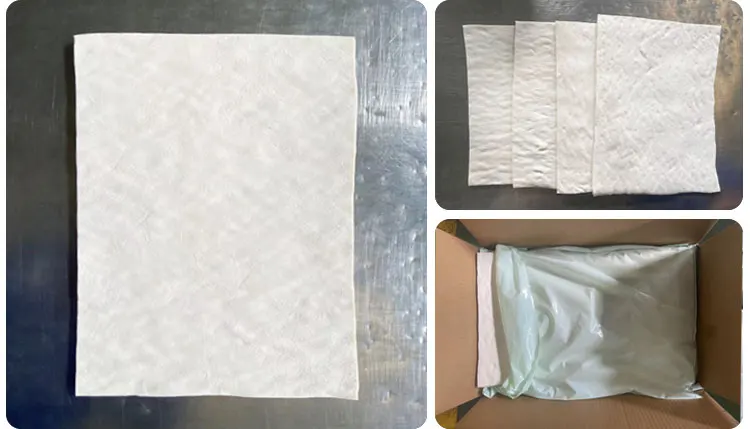

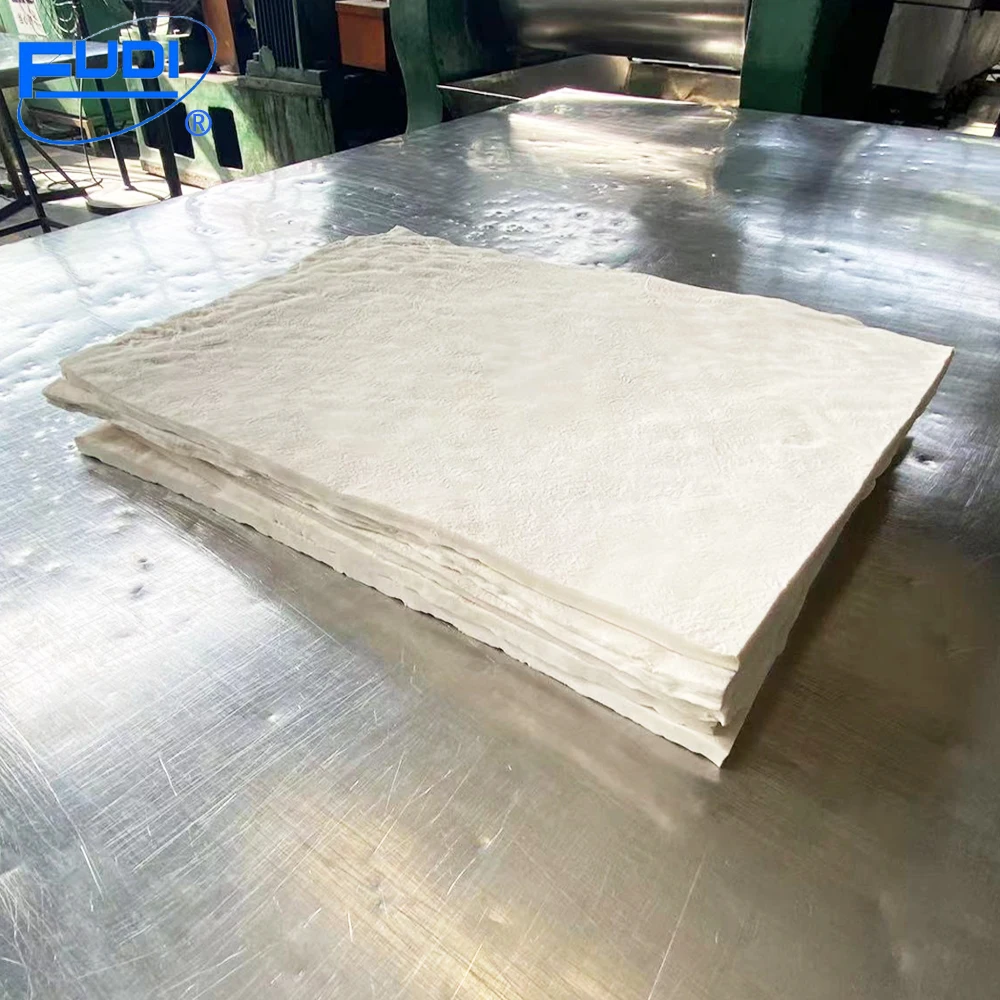

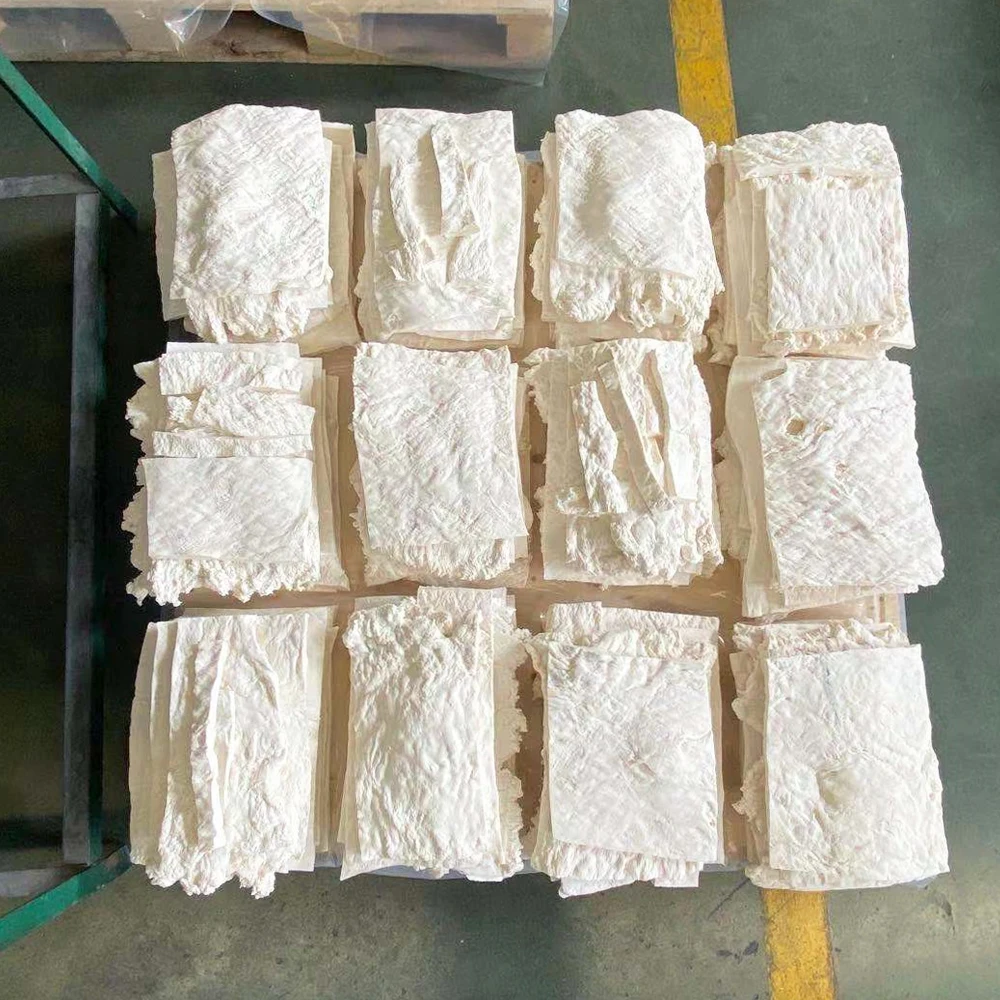

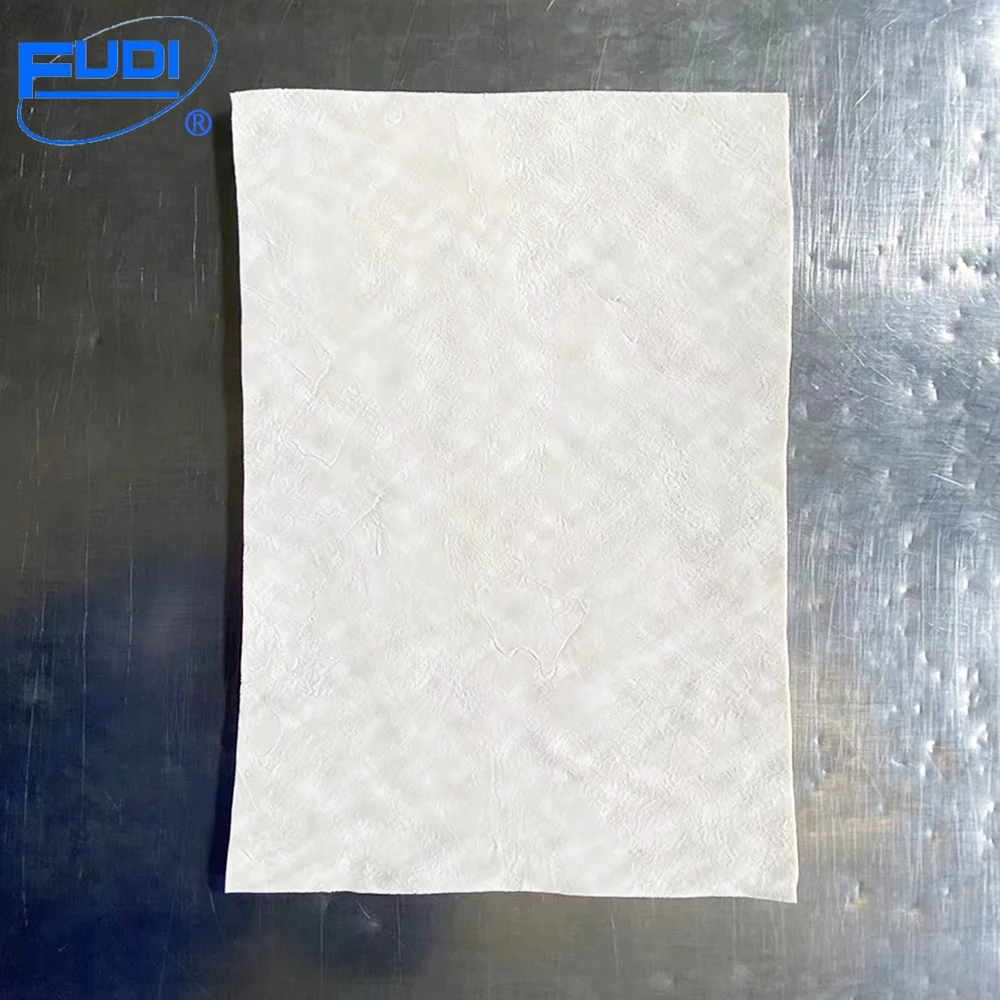

FUDI supply commercial FKM rubber as an alternative to genuine Viton® rubber.
FD 2617P are composed of vinylidene fluoride (VDF) and hexafluoropropylene (HFP). Copolymers are the standard type of FKMs showing a good overall performance.
FD 2617P use Bisphenol AF vulcanize mechanism which provides superior rubber-to-metal bonding properties. general properties of FD
2617P were listed below:
* Excellent mold release
* Excellent mold flow
* Good compression set
* Strong adhesive to metal
* Processing : transfer molding , injection and compression molding.

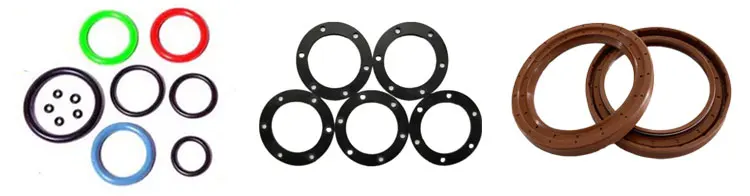

FD 2617P can be used for oil seal , oring and other rubber parts.
FD 2617P | FD 26401 | FD 26402 | FD 2640B | FD 2655 | ||||||
Fluorine Content | 66 | 66 | 66 | 66 | 66 | |||||
Mooney Viscosity ML(1+10)121ºC | 35 | 42 | 42 | 30 | 55 | |||||
Density 23ºC (g/cm³) | 1.81 | 1.81 | 1.81 | 1.81 | 1.81 | |||||
MDR 6 min at 177 °C arc 0.5 ° | ||||||||||
Min torque (N*m) | 0.15 | 0.14 | 0.16 | 0.12 | 0.22 | |||||
Max torque (N*m) | 1.9 | 2.5 | 2.35 | 2.45 | 2.4 | |||||
Ts2 | 1′02″ | 1′30″ | 1′20″ | 1′32″ | 1′16″ | |||||
T90 | 2′10″ | 3′20″ | 3′00″ | 3′20″ | 2′40″ | |||||
Press cure: 10 min at 170 °C, post cure: 24 h at 230 °C | ||||||||||
Tensile strength (Mpa) | ≥14.5 | ≥16 | ≥15 | ≥13.5 | ≥18 | |||||
Elongation at break (%) | ≥270 | ≥210 | ≥200 | ≥220 | ≥220 | |||||
Hardness ShoreA | 76 | 79 | 77 | 78 | 76 | |||||
compression set (%) 200ºC 70H Compressibility 20% | ≤14 | ≤12 | ≤13 | ≤14 | ≤14 | |||||
Please contact our customer service get detailed spec
Mailbox: metal@fudichem.com
Application
Because of the outstanding performance FKM were widely used in different area, including the following:
* Chemical process and petroleum refining, where they are used for seals, pumps, gaskets and so on, due to their resistance to chemicals;
* Analysis and process instruments: diaphragms, cylindrical fittings, hoops, gaskets, etc.
* Semiconductor manufacturing;
* Food and pharmaceutical, because of their low degradation, also in contact with fluids;
* Chemical process and petroleum refining, where they are used for seals, pumps, gaskets and so on, due to their resistance to chemicals;
* Analysis and process instruments: diaphragms, cylindrical fittings, hoops, gaskets, etc.
* Semiconductor manufacturing;
* Food and pharmaceutical, because of their low degradation, also in contact with fluids;
Advantage

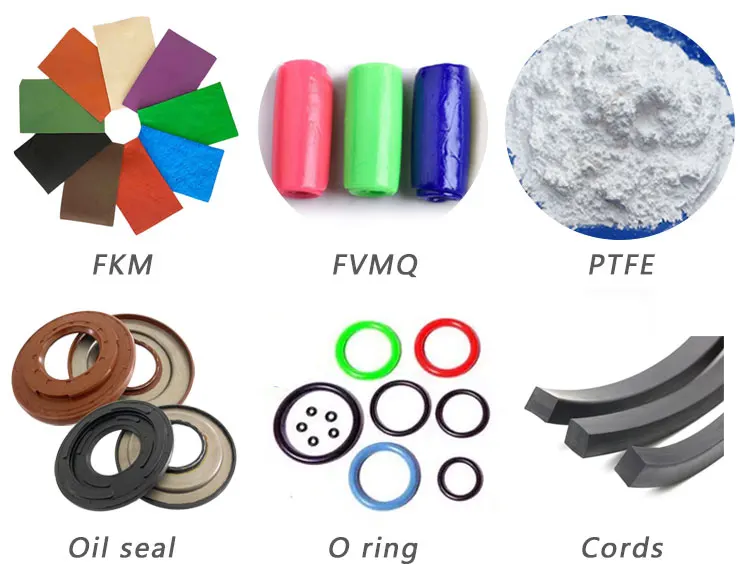

FUDI dedicate in fluorine material solutions for more than 20 years.Our product ranging from basic chemical material to fluorine product, such as FKM FVMQ FFKM PTFE HNBR AEM and different kind of processing chemical.
We focused on continuous improvement on four sectors to deliver competitive products.
We focused on continuous improvement on four sectors to deliver competitive products.

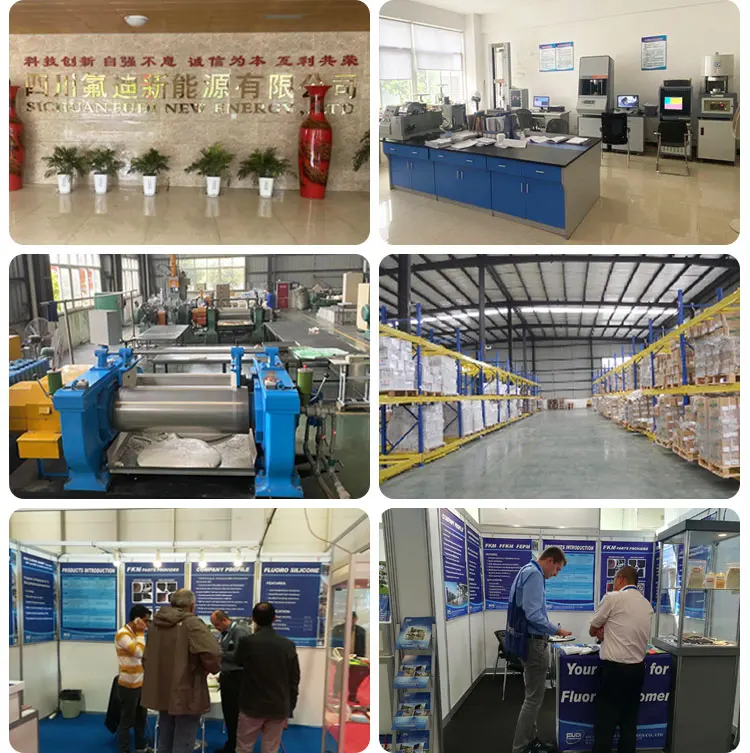

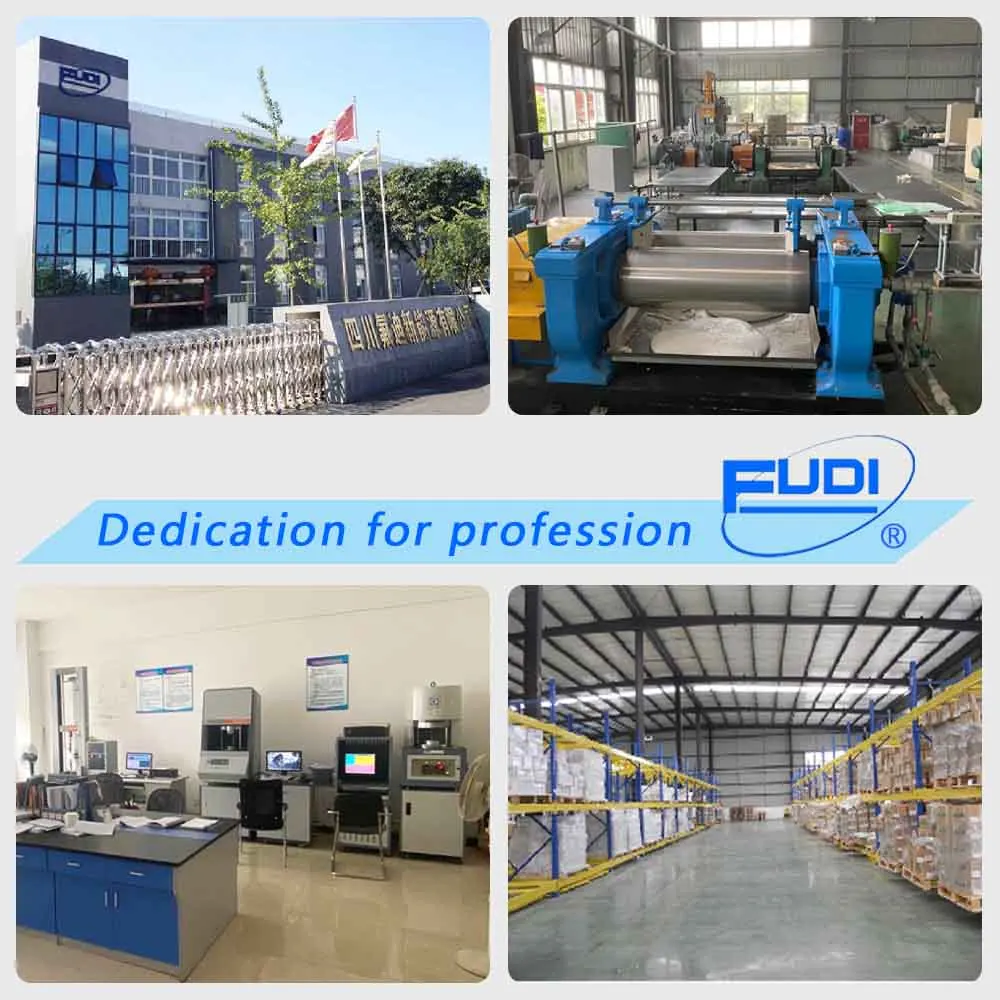

About FUDI
Sichuan Fudi New Energy Co., Ltd was found in 2001.FUDI dedicate in fluorine material solutions for more than 20 years.Our product ranging from basic chemical material to fluorine product, such as FKM FVMQ FFKM PTFE HNBR AEM and different kind of processing chemical.
Our factory located in Chengdu,Sichuan, China. Covering over 30000 square meters.More than 50 technician and experienced employee were served in FUDI.We have 1000T capacity of different kind of fluorine material.
Our factory located in Chengdu,Sichuan, China. Covering over 30000 square meters.More than 50 technician and experienced employee were served in FUDI.We have 1000T capacity of different kind of fluorine material.
Packing & Shipping
FUDI cooperate with professional logistic company shipping our good world wide.
