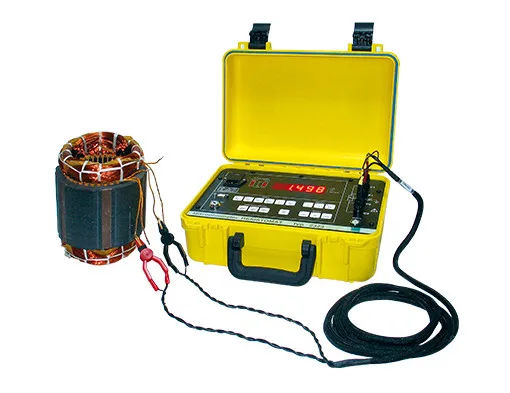

Appropriate to very low resistance measurement in field, measuring current up to 10 A, High resolution up,accuracy 0.15% rdg.

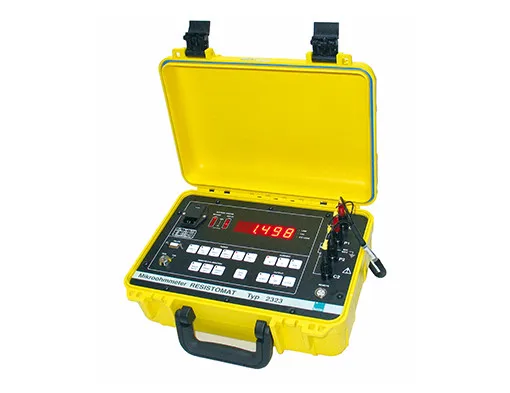

This portable, battery-operated microohmmeter is a practical instrument for low resistance measurement in the field. It is of rugged construction, contained in a sealed ABS plastic case with lid and carrying handle, ideal for use in the production and any other working field or test and service facilities. The documentation of the measuring values is effected via RS232 interface directly to an external printer or PC. Further it is possible to perform single measurements via an external start switch.

Typical applications are measurements on:
- Engine and transformer windings
- Electrical connectors
- Heating elements
- Connections on power rails
- Wires and cable drums
- Quality of soldered and welded joints
- Switching contacts

Four-wire technology in accordance with KELVIN eliminates transition and lead resistance.

Any of the 8 measuring ranges can be selected by a key on the membrane keyboard. The measuring results are displayed on a 6000 counts LED display. The measuring terminals are protected up to 415 volts rms.
By forward and reverse current measurement with automatic average a thermocouple compensation can be realized which is inevitable for certain measurements.

The digital calibration of this instrument is activated by a key on the front panel.

The integrated rechargeable battery allows measurements up to 10 hours.

Features:
- Mains rechargeable battery operation
- 6 ranges from 600 microΩ to 60 Ω
- High resolution up to 0.1 microΩ
- Measuring current up to 10 A
- Input protected up to 415 Vrms
- Rugged industrial design
- RS232 data output

Characteristics:

Pictures:
