3a spst soldering terminal on off latching push button switch waterproof ip67
- Category: Switches >>>
- Supplier: Zhejiang Toowei Electronics Co. Ltd.
Share on (10000007921673):
Product Overview
Description
Products Description
A4126series waterproof push button switch, protection degree reach IP67, installation size is 12mm. According to the material, it has metal push button switch and plastic push button switch. All the switches has self-locking and momentary two different kinds. If equip with LED light, color can be customized based on the customer's request.
It widely used in beauty equipment, small yacht, lamps, medical equipment, military communication intelligent network equipment and the other instruments.

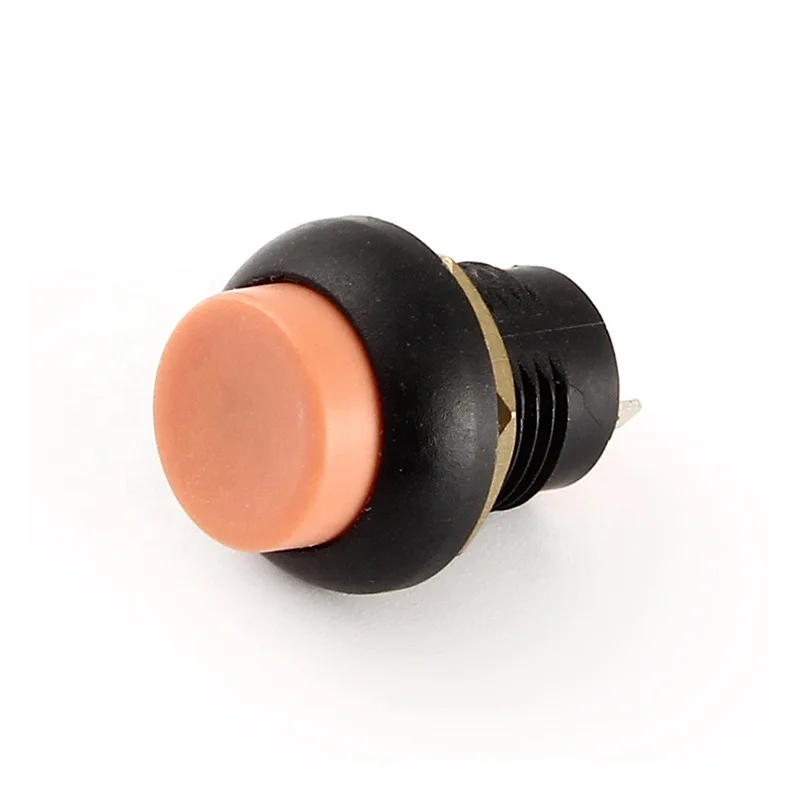

Product name | 3a spst soldering terminal on-off latching push button switch waterproof ip67 |
Part number | 4126.8105.38 / 4126.8205.38 |
Function | latching/momentary |
Installation size | 12mm |
Button form | 3# button form |
Button color | Orange button color |
Ternimal form | 2 soldering terminal |
Button Color Optional | Red, Black, Grey, Blue, Orange, Yellow, Green, White |
Light Color Optional | Red, Green, Yellow, Blue, White |
Shell material | Black plastic |
Details Images

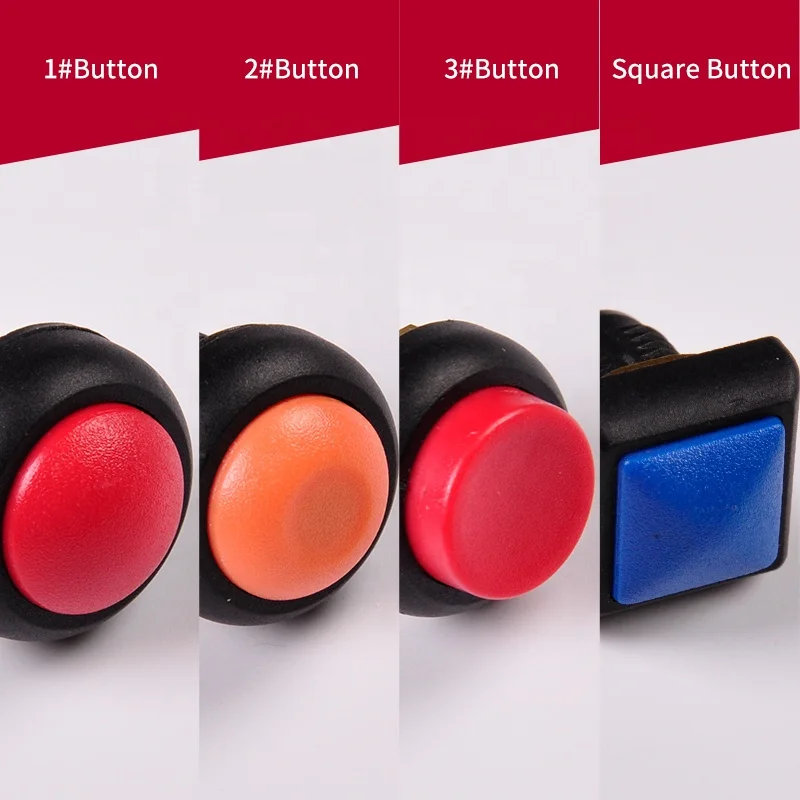

Four button shapes option

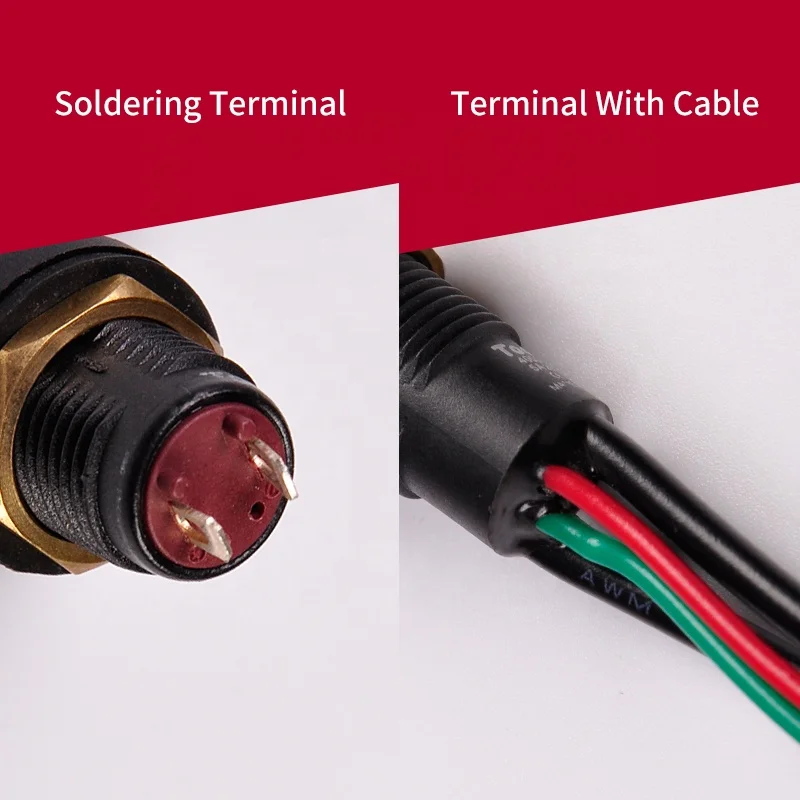

Two Terminal form option
Product Paramenters
2. Contact resistance ≤50m Ω
3. Rated current 3A, rated voltage 250VAC
4. Insulation resistance ≥100m Ω/min
5. Withstand voltage: AC 1000V(50~60hz)/min
6. Solderability: soldering iron 340°±5°/1-2s
7. Solder resistance: soldering iron 340°±5°/3-5s
8. Durability : Electrical life 50000 times, Mechanical life 100000 times
9. Protection degree: IP67
10. Base Material: Dupont Nylon PA66+20% glass fiber
11. Installation size: 12mm
12. Self-locking, momentary
