Product Overview
Description
HI, welcome
HI ;You can bring your pictures to make an inquiry?
If you need other specifications, please remember to write to me or contact to discuss.
functional descript

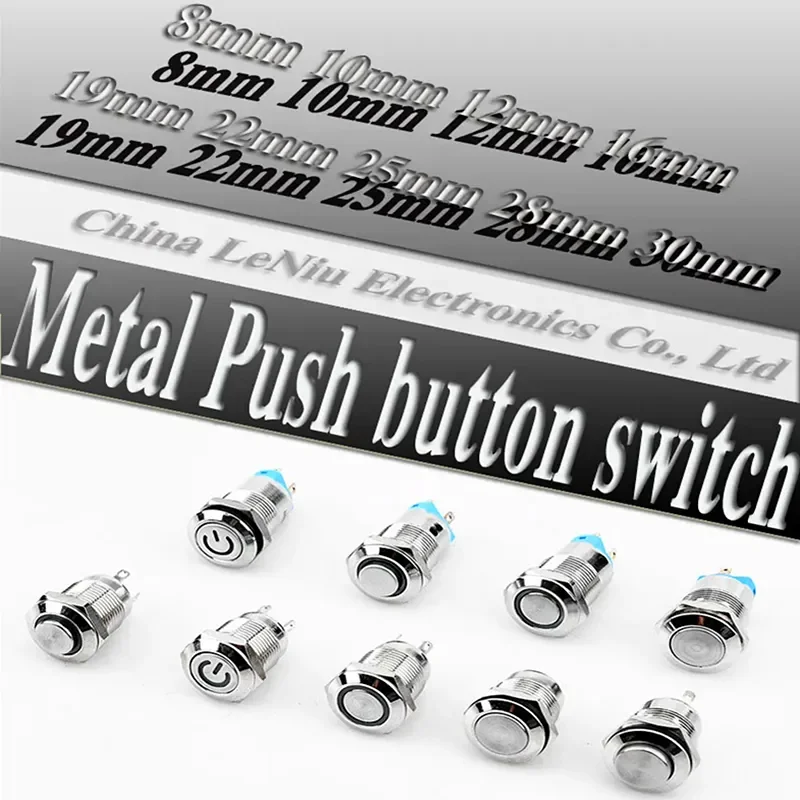

Metal Push Button Switch | |
Mounting hole size : | 8 / 10 / 12 / 16 / 19 / 22 / 25 / 28 / 30 / 40 MM |
Switch value: | 3V/6V/12V/24V/110V/220V DC |

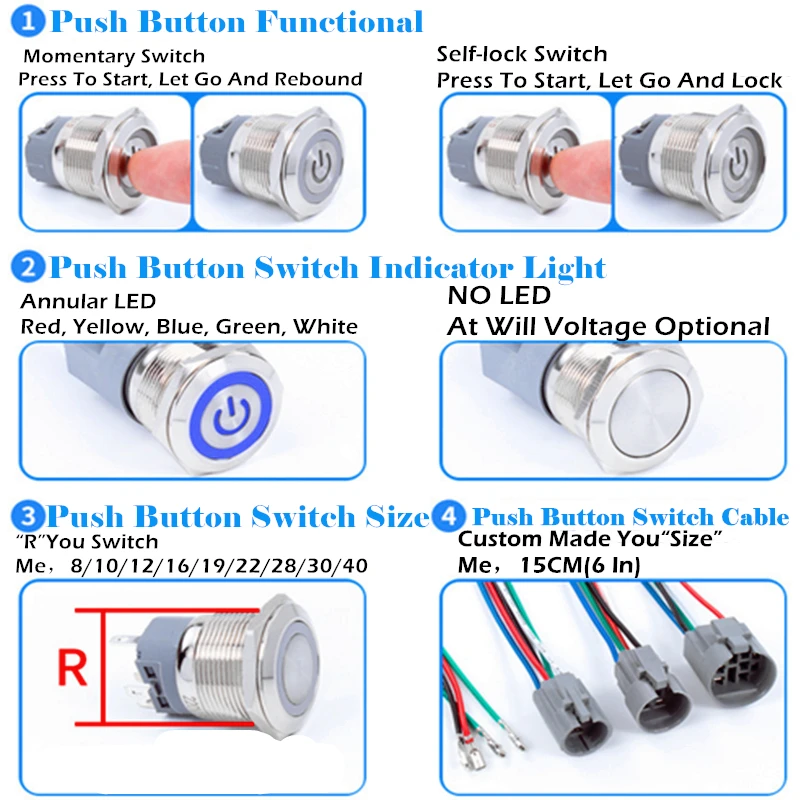

Operation type: | Momentary / Self-lock / ON-OFF / ON-ON / Normally Open
|
Contact configuration: | 1NO,1NC |
Head shape: | Touch,/Tact/Tactile/Flat Head, High-Head, Round Head |

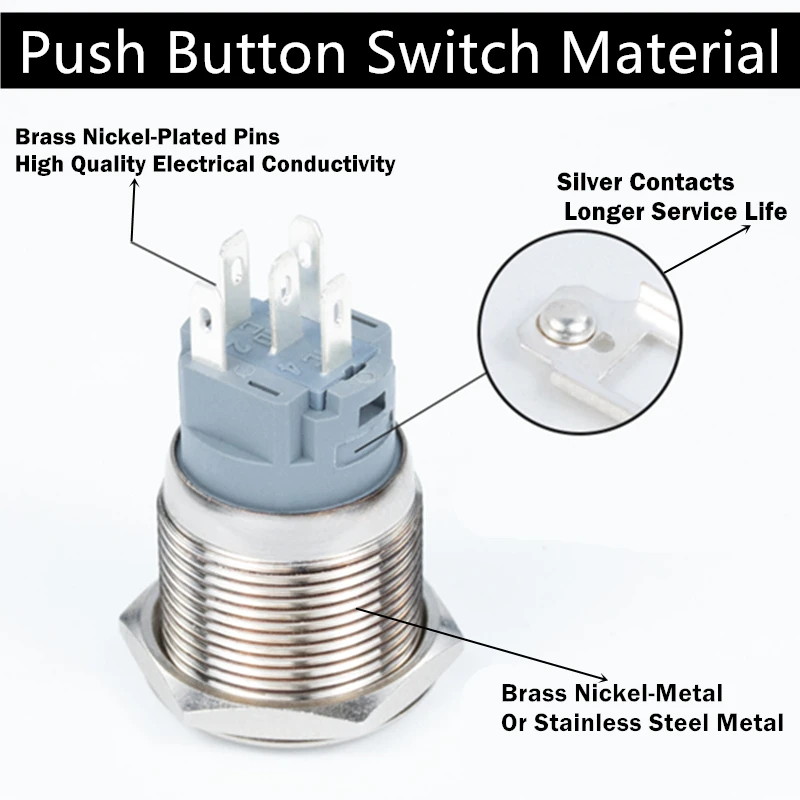

Crust material: | Nickel-plated Brass / Stainless Steel |
Terminal type: | Pin terminal |
Electrical life : | ≥50,000 times |
Mechanical life: | ≥1,000,000 times |
Operation temperature: | -40℃~+80℃ |
Contact Resistance: | ≤50mΩ |
Insulation Resistance: | ≥1000mΩ |
Operation stroke: | 0.5mm, 3mm,-- |

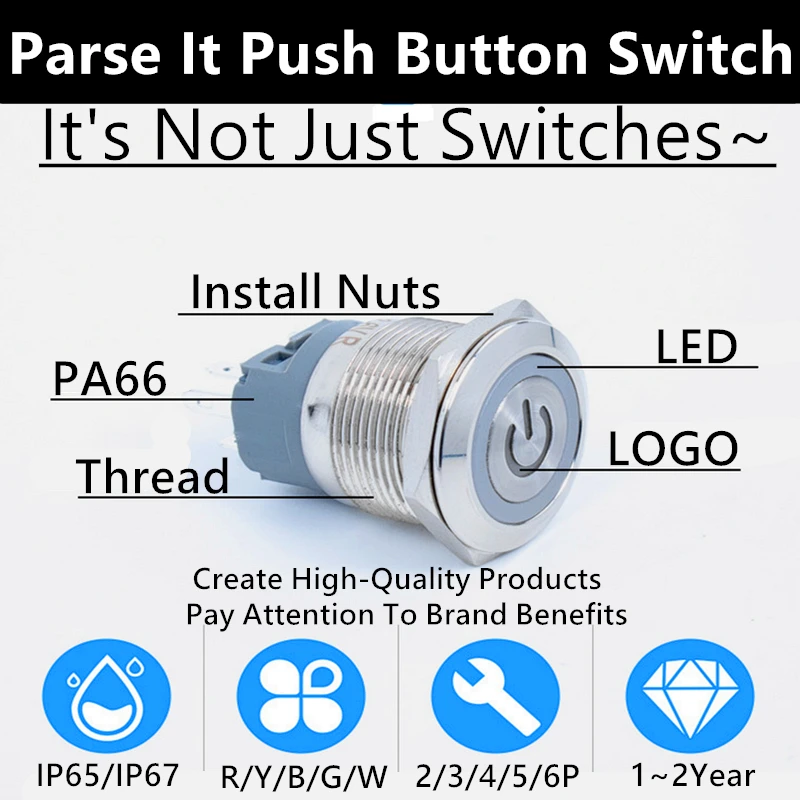

Protection grade : | IP65 / IP66 / IP67 |
Contact material: | Silver alloy |

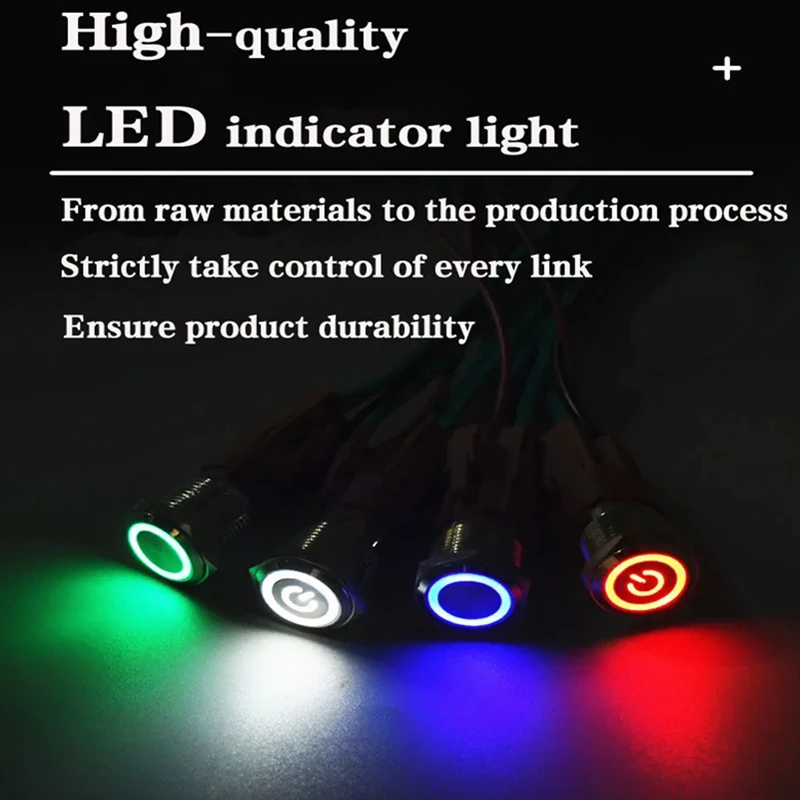

Led life: | 50,000 hours |

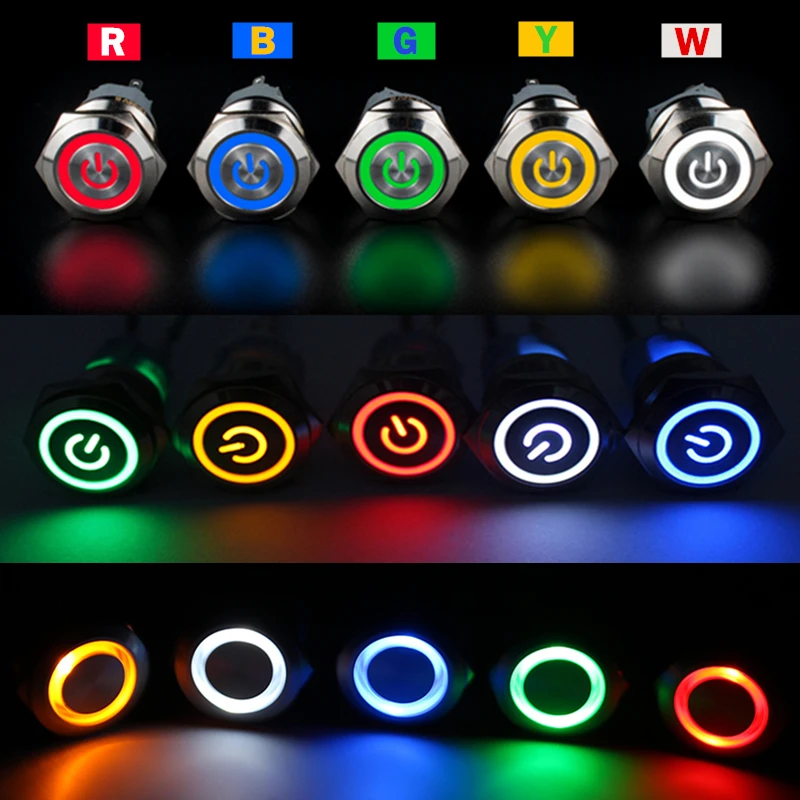

product display
Flat head without led light :A
Flat head with ring light :B
Raised head without led light :C
Raised head with ring light :D
Flat head with power light :E
Flat head with power + ring light :F
Raised head with power + ring light :G
Raised head with power light :H
OUR ADVANTAGE
Factory display
PACKAGE&SHIPMENT
