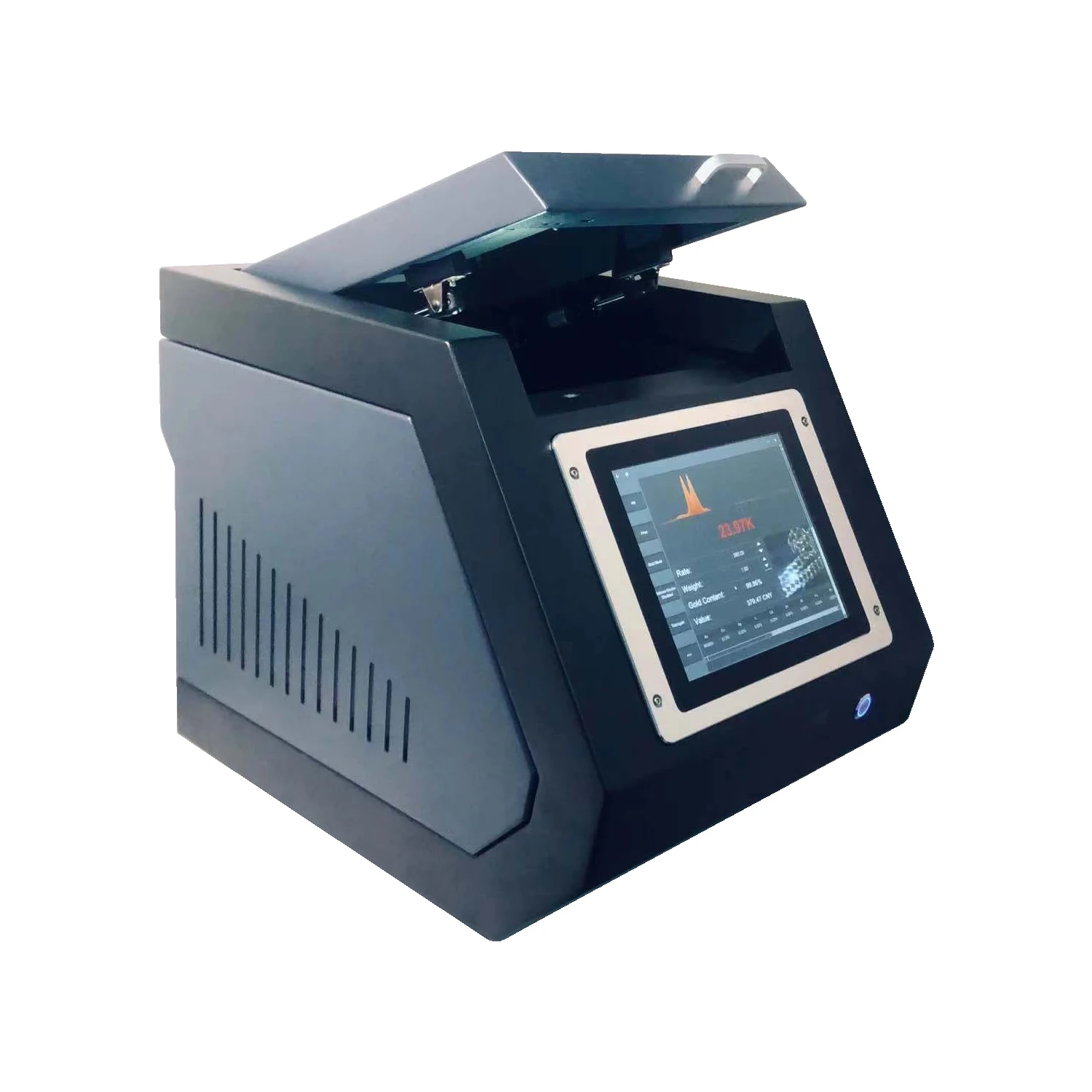

Energy Dispersion X-ray Fluorescence Spectrometer (NAPCO8200)

Working principle

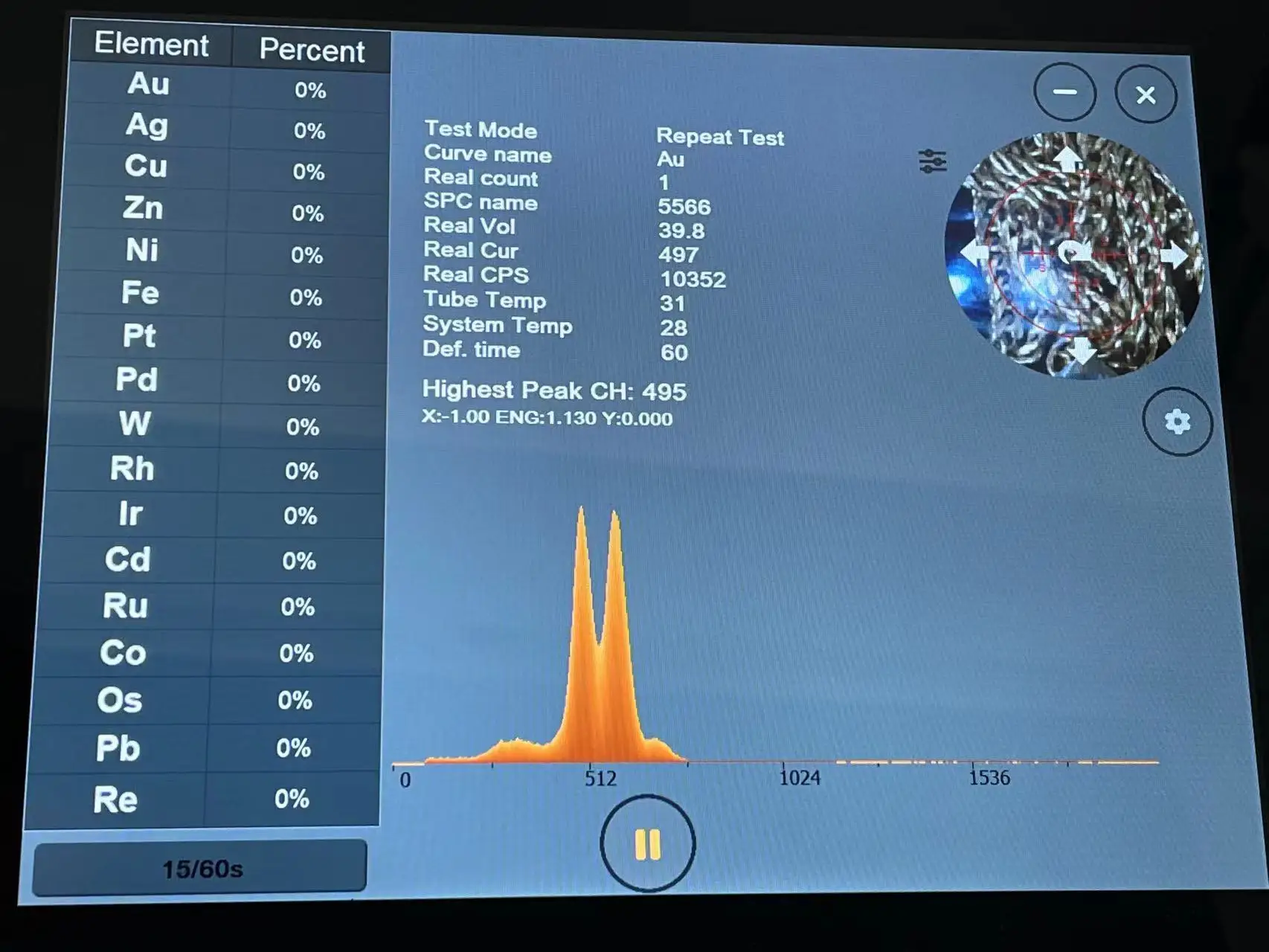

The original X-ray is produced by an X-ray tube and high voltage is irradiated on the sample after being properly filtered by the optical filter. The characteristic X-ray (called X-ray fluorescence) of the elements contained in the sample is stimulated. X-ray fluorescence spectra were obtained by using X-ray detectors with high energy resolution. Different elements formed different spectral peaks on the spectra. The strength of the spectral peak is directly proportional to the content of elements in the sample. The computer analyzes the energy spectrum detected by the detector. The types of elements contained in the sample are qualitatively analyzed by the position and shape of the spectral peak.

Application
NAPCO8200 energy dispersive X-ray fluorescence spectrometer (XRF)
Fast, precise, and non-destructive metal testing for jewelry retailers, jewelry manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories, and tertiary institutions

Introduction

NAPCO8200 is integrated into an industrial computer with an industrial motherboard & multi-point hand touch. Providing the best operation experience. It is designed exactly to security standards with active radiation protection, high voltage protection, and X-ray tube overheating protection. Warm-up and anti-interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrums, and to add accuracy and stability.

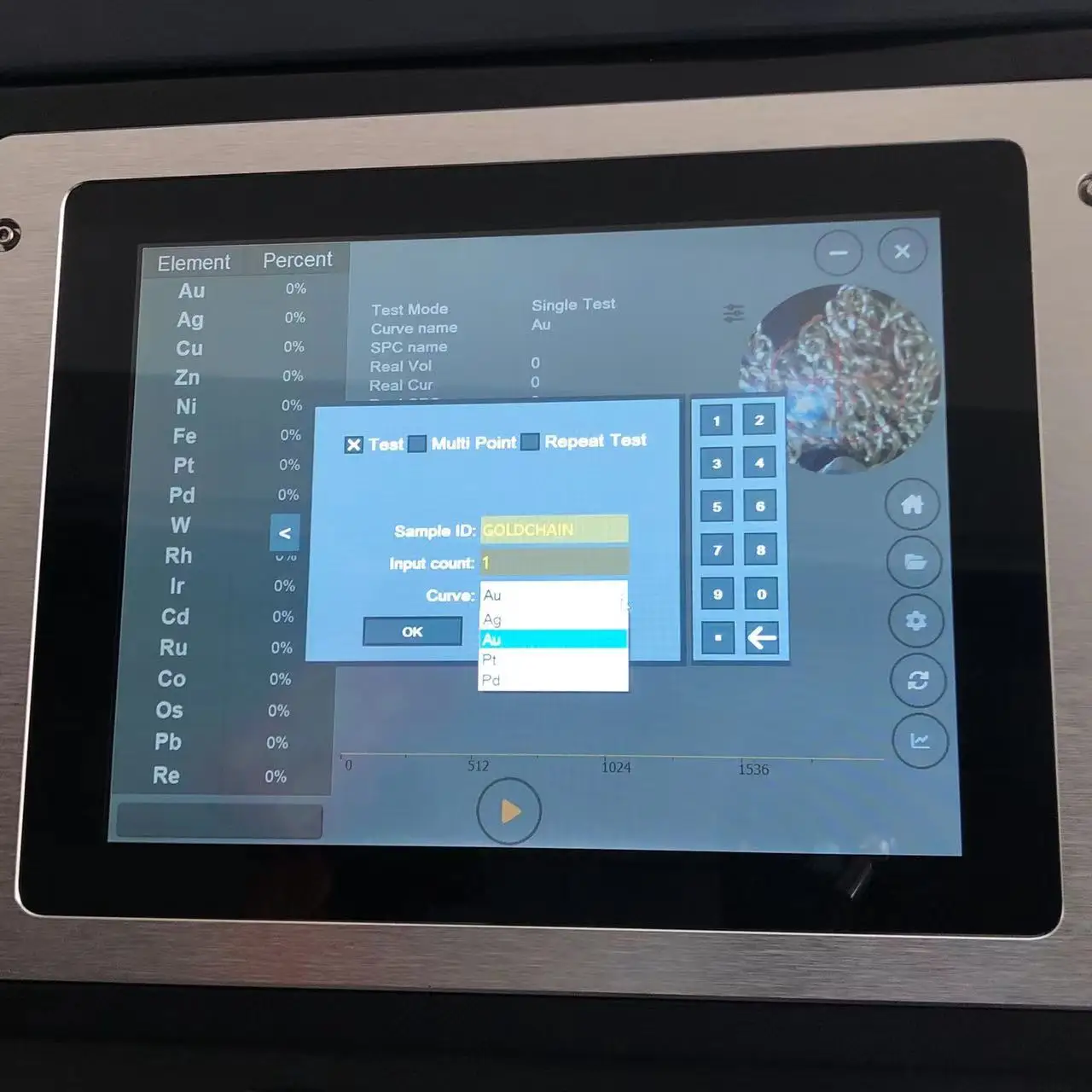

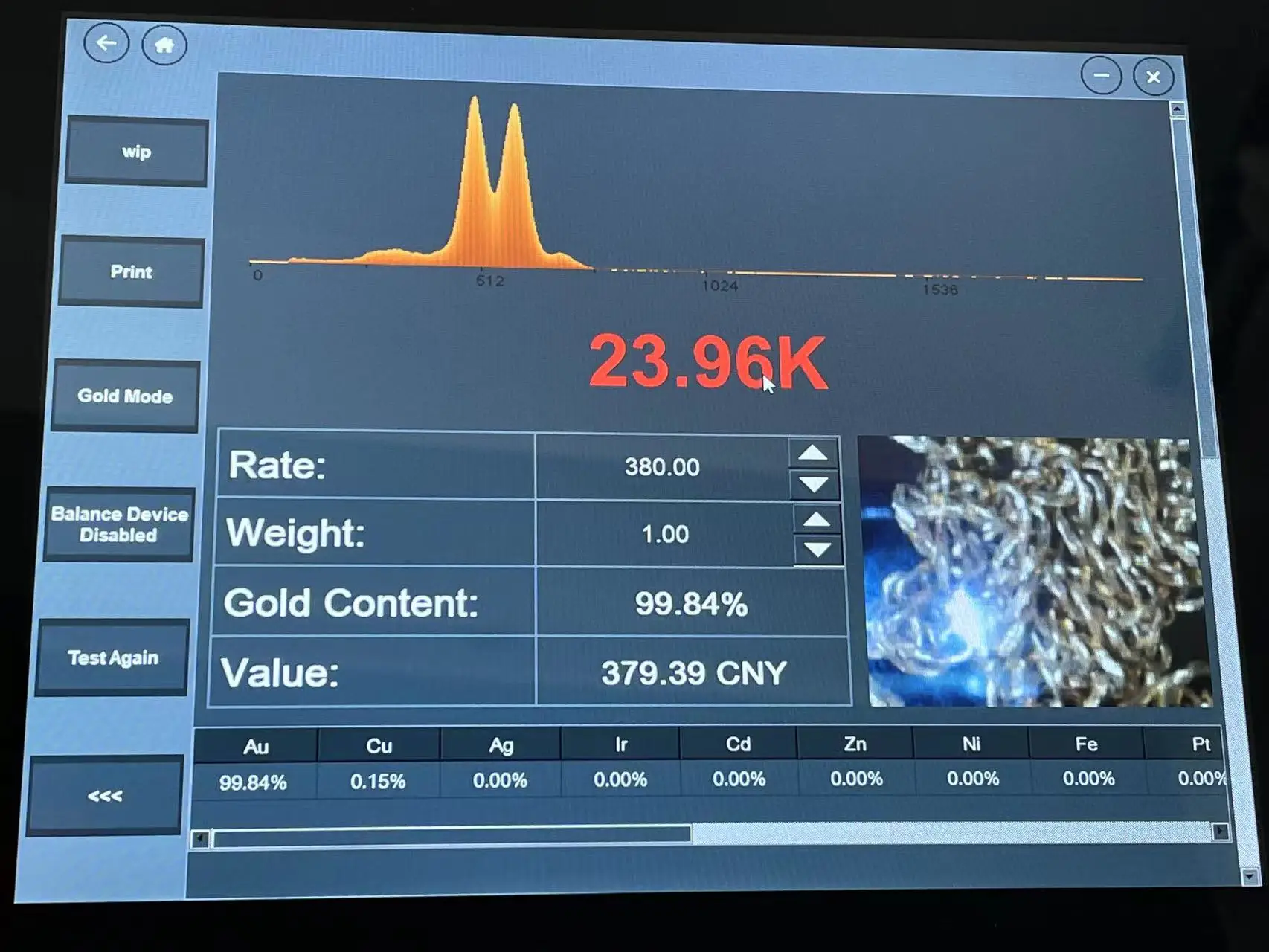

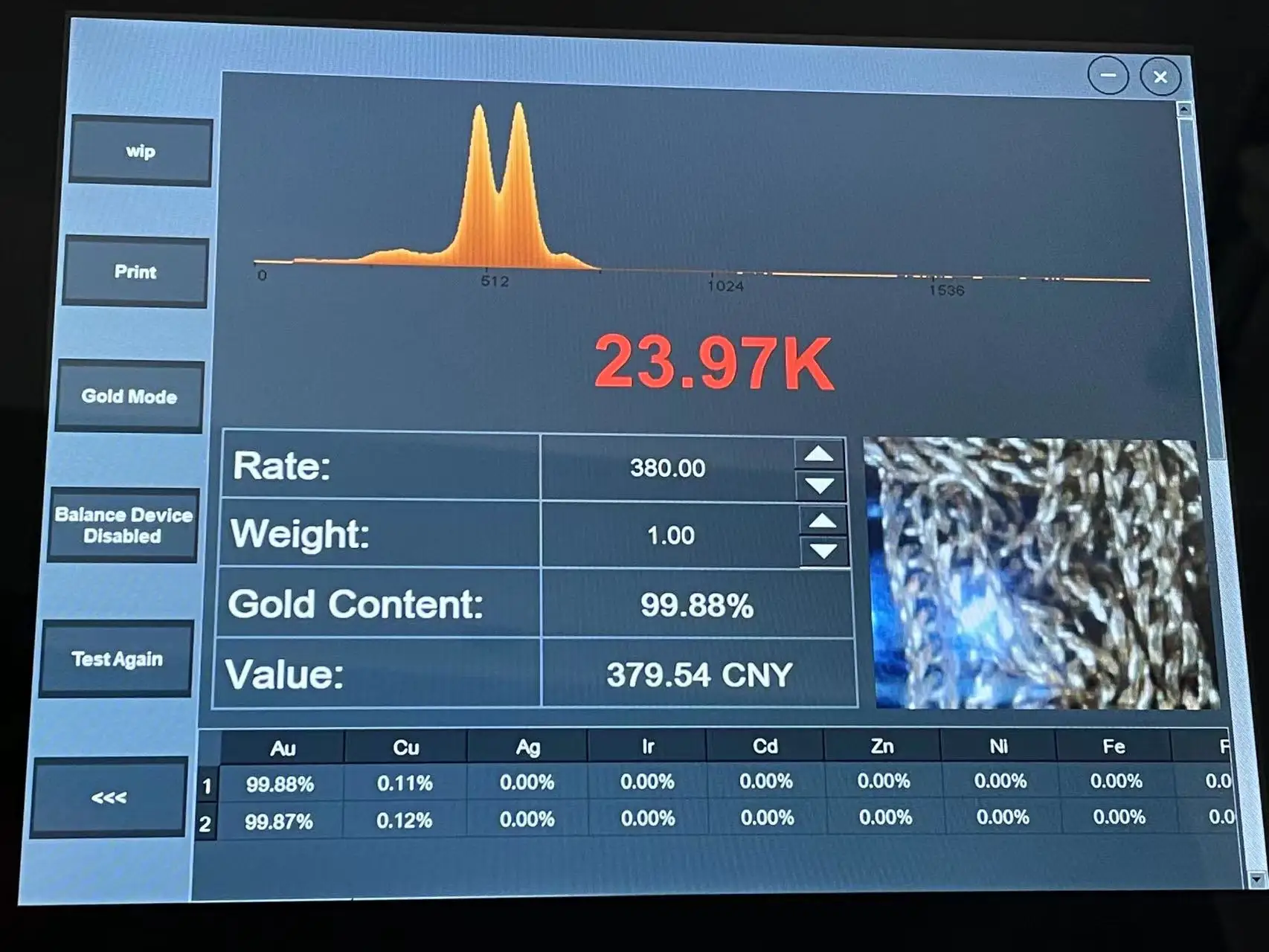

Optional colors for different elements will help to distinguish the interesting elements clearly and conveniently. When the testing is over, the testing report will be shown timely.

The main component and technical parameters

1. Working Principle:
Energy Dispersive X-ray Fluorescence
Main Structure: High-strength metal frame and industry plastic shell.

2. Detection Limit: 0.1%-99.99% , Precision: 0.1%-0.3%

3. Specification
Suitable Voltage/110V-220V Suitable Frequency: 50Hz-60Hz
Detector: Gas Proportional Detector
Testable Elements: Gold/Silver/Copper/Platinum/Palladium,Iridium,Cadmium, etc.
Size(mm):650*550*550
N/G Weight: 35kg
