CR319 Common Rail дизельный топливный инжектор пьезотестер испытательный стенд

Product Name

Common Rail Injector Test Bench

Product Description

1. High-Precision Flow Measurement, It Use Imported Flow Sensor, High Precision, Good Repeatability,
2. Test A Comprehensive, Test Injector Full Load, Medium Speed, Idle, Pre-Spray And Other Conditions Of
The Fuel Injection;
3. It Can Test Bosch, Denso, Delphi, Siemens, Cat Etc. Injector;
4. Machine Low Noise, It Is Using Frequency Control, Speed Prefabricated, Low Noise, No Impact;
5. Advanced Control, A Key Selection, The Whole Process Of Detection;
6. Massive Data;
7. Open Data Management, The User Can Add The Injector Data Itself, Especially For The New Fuel
Injector Standard Oil Calibration;
8. Injector Coding Function.

Standard features

1. Test the common rail injector

2. Test the piezo injector

3. Delphi, Denso, Bosch, Siemens coding function

4.BIP function

5.Graduated cylinder test injector with electronic flap

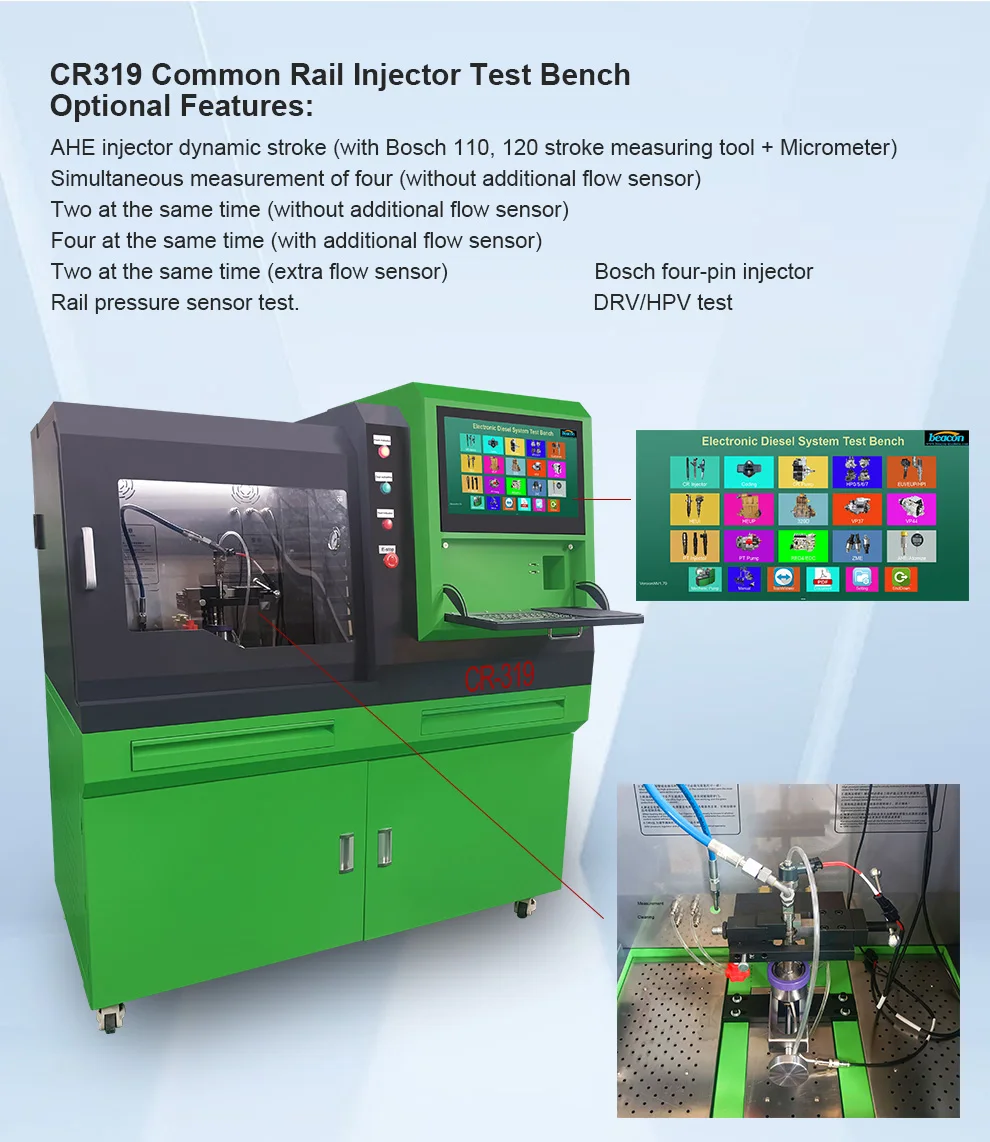

Optional features

1 AHE injector dynamic stroke (with Bosch 110, 120 stroke measuring tool + dial gauge)

2 Rail pressure sensor test

3 DRV/HPV test

4 Solenoid valve test

5 Bosch 4 pins injector test

6 Simultaneously measure 4 injectors with 4 flow sensors

(Modify the system + add 3 additional flow sensors + 3 high-pressure oil pipes + 6 solenoid valves + 6 filter elements + 3 filters
+ 1 four injector fixtures)

7.Simultaneously measure 2 injectors with 2 flow sensors

(Modify the system + add 1 additional flow sensor + 1 high-pressure oil pipe + 2 solenoid valves + 2 filter elements + 1 filter +
1 double injector fixture)
